AQUA JOE AJ-IST72ZM TELESCOPING SPRINKLER

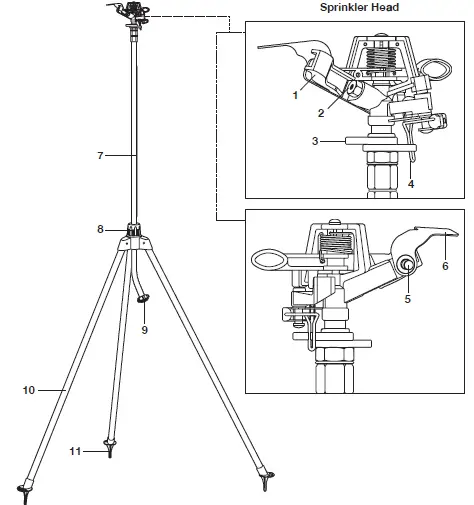

PRODUCT DESCRIPTION
- Anti-backsplash arm
- Nozzle
- Friction collars
- Trip lever
- Diffuser pin
- Deflector shield
- Telescopic pole
- Locking knob
- Hose-end connector
- Tripod leg (3)
- Spike (3)
Technical Data
- Coverage Max…………………………….1390 sq ft
- Spray Diameter Max…………………….42 ft (12.8 m)
- Max Pressure………………………………120 PSI
- Max Flow……………………………………4.1 GPM
- Spray Distance Max…………………….21 ft (6.4 m)
- Spray Patterns…………………………….Jet to mist
- Adjustable Coverage…………Partial to full 360º circle
- Telescopic Tripod Height……44 in. to 72 in. (111.8 cm to 182.9 cm)
- Base……………………………….Aluminum tripod
- Sprinkler………………………….Zinc
- Fitting Size………………………….Standard garden hose
- Weight…………………………….4.9 lbs (2.2 kg)
Operation
Distance Control
Use deflector shield to adjust the length of the spray.
Rotation Control
Set the friction collars for desired part circle coverage (5˚ – 360˚)
360º Coverage Control
Flip the trip lever up for full circle (0˚ – 360˚)

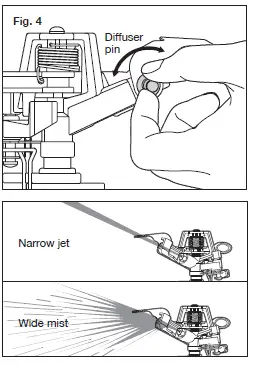

Adjusting Spray Patterns
Turn diffuser pin to adjust spray from narrow jet to wide mist

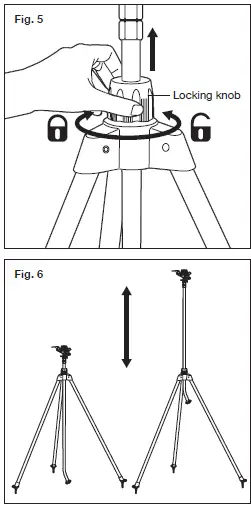

Telescopic Tripod
To extend the tripod, loosen the locking knob and extend the telescopic pole to the desired height. Lock the pole in positon by turning the locking knob clockwise (Figs. 5 – 6).
Spiked Legs
The spikes pierce the soil for extra stability without tearing up your yard as you move the sprinkler around to cover different areas Open the spiked legs wide and push them into the soil.

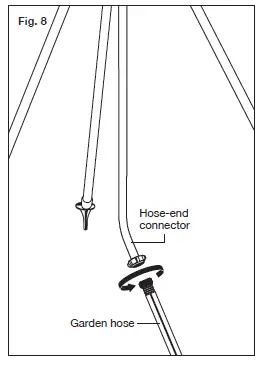

Connecting to the Garden Hose
Attach your garden hose to the hose-end connector
Watering Tips
Water only when necessary, preferably in
the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.
Maintenance
Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler
Storage

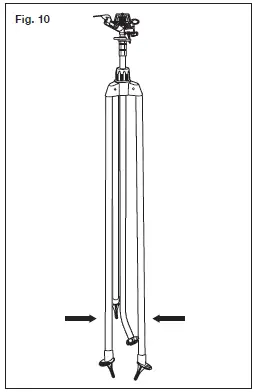

Collapse the tripod legs for storage
Service + Support
If your Aqua Joe® AJ-IST72ZM Zinc Impulse
360º Telescoping Sprinkler requires service or maintenance, please call Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.
Model + Serial Numbers
When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.
ABOVE ALL ELSE, Snow Joe® + Sun Joe® are dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we created the Snow Joe® + Sun Joe® promise.
OUR PROMISE: Snow Joe® + Sun Joe® warrant new products for two years from the date of purchase. If your product does not work, or there’s an issue with a specific part, we will fix this by either sending you a free replacement part or by sending you a new or comparable product at no charge. How cool is that! Before you know it, you’ll be back in action cutting, sawing, mowing, washing and…?
PRODUCT REGISTRATION:
Snow Joe®, LLC (“Snow Joe® + Sun Joe®”) strongly encourages you to register your purchase. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [email protected]. Failure to register your product purchase will not diminish your warranty rights. However, registering your purchase will allow Snow Joe® + Sun Joe® to better serve you with any of your customer service needs.
Warranty
WHO CAN SEEK WARRANTY COVERAGE? This Warranty is extended by Snow Joe® + Sun Joe® to the owner of this new product for residential and personal household use only. This Warranty does not apply to products used for commercial, rental or re-sale purposes. Should ownership of this product change during the 2-year period, please update the product’s owner information at snowjoe.com/register. WHAT IS COVERED? Snow Joe® + Sun Joe® warrants to the owner that if this product fails within 2 years from the date of purchase due to a defect in material or workmanship or as a result of normal wear and tear from ordinary household use, Snow Joe® + Sun Joe® will send a replacement part or product, as needed, free of charge and with free shipping to the original purchaser. If, in Snow Joe® + Sun Joe®’s sole discretion, the failed product cannot be repaired with a part, Snow Joe® + Sun Joe® will elect to either (A) send a new product at no charge and with free shipping or (B) refund the full purchase price to the owner.
WHAT IS NOT COVERED? This Warranty does not apply to products that have been used commercially or in non-household applications. This Warranty does not cover cosmetic changes that do not affect performance. This Warranty is only valid if the product is used and maintained in accordance with the instructions, warnings and safeguards contained in the owner’s manual. Snow Joe® + Sun Joe® will not be responsible for the cost of any unauthorized warranty repairs. This warranty does not cover any cost or expense incurred by the purchaser in providing substitute equipment or service during reasonable periods of malfunction or non-use of this product while waiting for a replacement part or unit under this warranty. Wearing parts like belts, augers, chains and tines are not covered under this warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). Batteries are covered in full for 2 years from the date of purchase. Repair, replacement or refund of the purchase price are the exclusive remedies of purchaser and the sole liability of Snow Joe® + Sun Joe® under this warranty. No employee or representative of Snow Joe® + Sun Joe® is authorized to make any additional warranty or any modification to this warranty which may be binding upon Snow Joe® + Sun Joe®. Accordingly, purchaser should not rely upon any additional statements made by any employee or representative of Snow Joe® + Sun Joe®. In no event, whether based on contract, indemnity, warranty, tort (including negligence), strict liability or otherwise, shall Snow Joe® + Sun Joe® be liable for any special, indirect, incidental, or consequential damages, including, without limitation, loss of profit or revenue. Some states do not allow limits on warranties. In such states, the above limitations may not apply to you. Outside the USA, other warranties may apply.
