AJ-6PSTB-XL Telescoping 360 Sprinkler

Know Your Turbo Drive 360º Telescoping Sprinkler

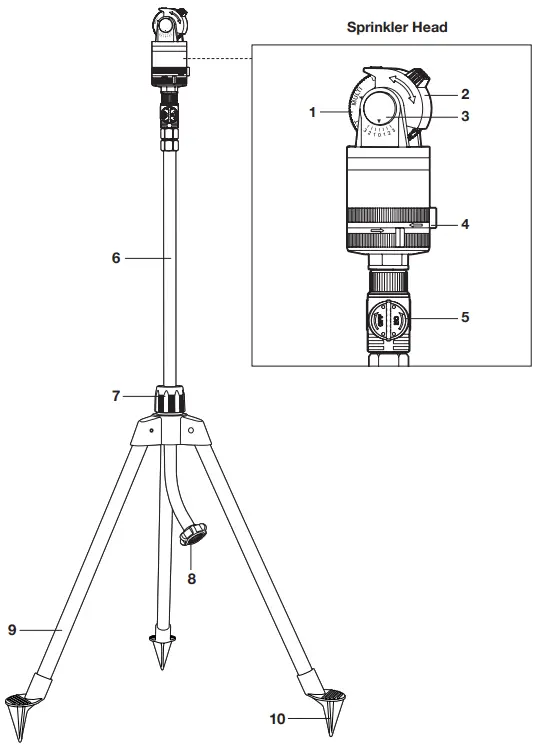

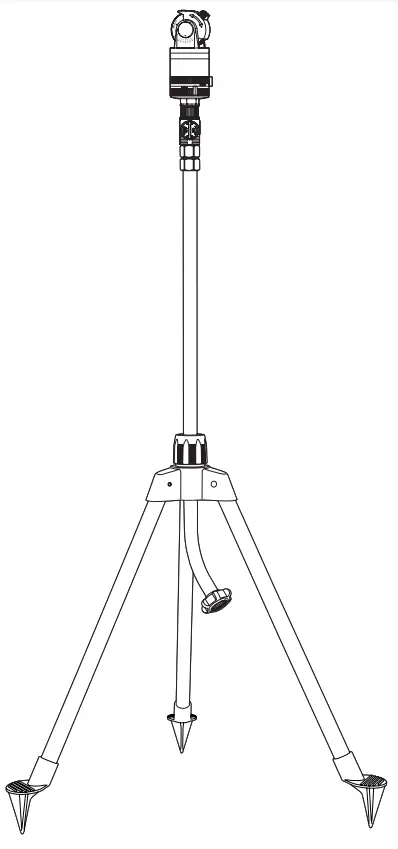

Read the owner’s manual and safety rules carefully before using your telescoping sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

Spray pattern adjuster
Spray distance adjuster
Spray angle indicator
Coverage sliding tabs
On/off flow control
Telescopic pole
Locking knob
Hose-end connector
Tripod leg (3)
Spike (3)

Technical Data

Coverage Max ……………………………….. 4900 sq ft
Spray Diameter Max …………………….. 79 ft (24 m)
Max Pressure* …………………………………..120 PSI
Max Flow with nozzle open ……………….. 9.3 GPM at minimum pressure (35.2 L/min)
Spray Distance Max …………………… 39.5 ft (12 m)
Spray Patterns …………………………………………… 6
Adjustable Coverage …………………… Partial to full 360º circle
Telescopic Tripod Height ……… 37.5 in. to 51.7 in. (95.3 cm to 131.3 cm)
Base …………………………………… Aluminum tripod
Fitting Size ………………….. Standard garden hose
Net Weight …………………………….. 3.8 lbs (1.7 kg)

* Peak pressure at initial discharge; working pressure under typical load is 60 PSI.

Operation

Six Selectable Spray Patterns

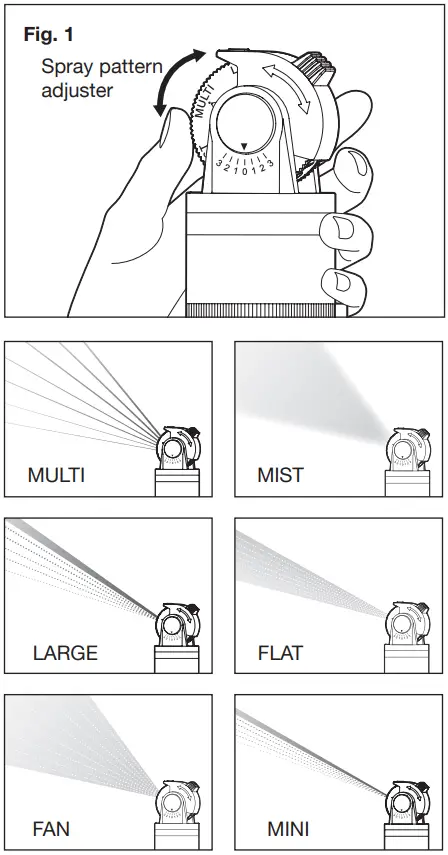

Use a spray pattern adjuster to select desired spray pattern: multi, mist, large, flat, fan, or mini (Fig. 1).

Distance Control

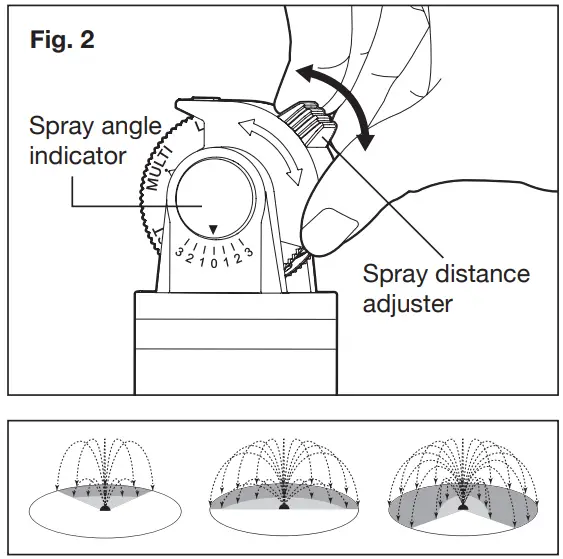

Use a spray distance adjuster to adjust the length of the spray. (Fig. 2).

Coverage Control

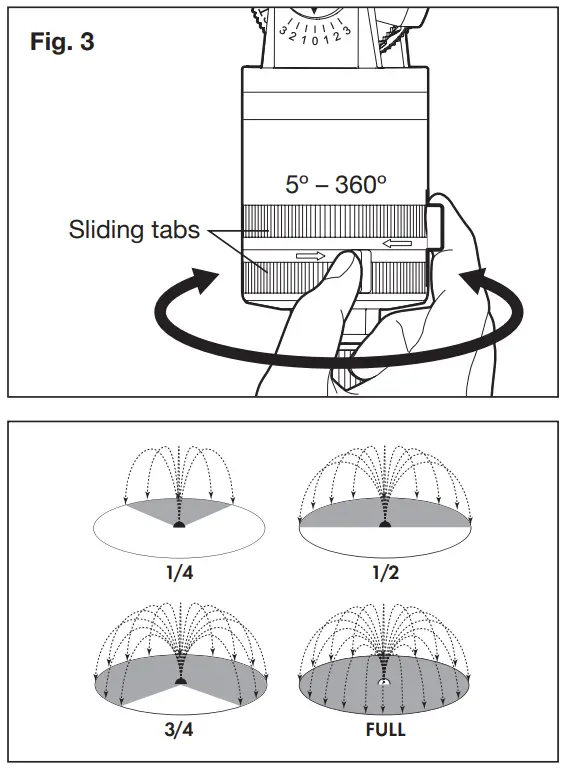

Sliding tabs allow for coverage adjustment from 5º – 360° (Fig. 3).

On/Off Flow Control

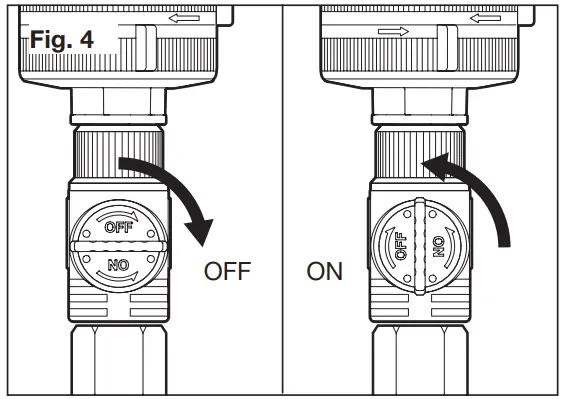

Turn the flow control clockwise to increase flow/turn on. Turn it counterclockwise to decrease flow/turn off. (Fig. 4).

Telescopic Tripod

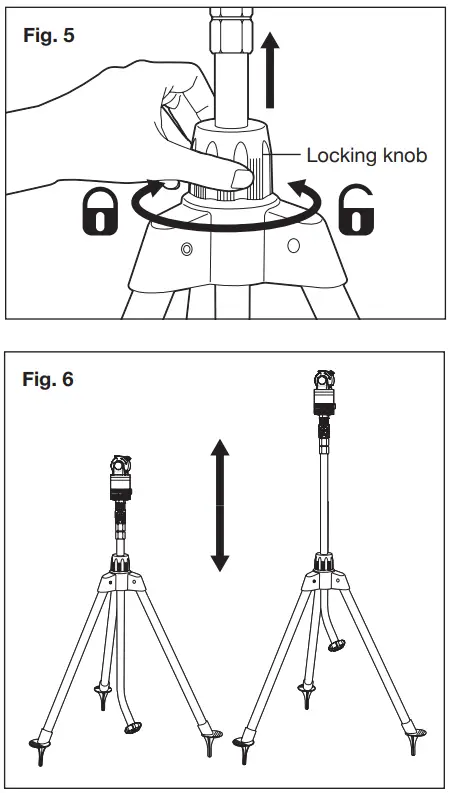

To extend the tripod, loosen the locking knob and extend the telescopic pole to the desired height. Lock the pole in position by turning the locking knob clockwise (Figs. 5 – 6).

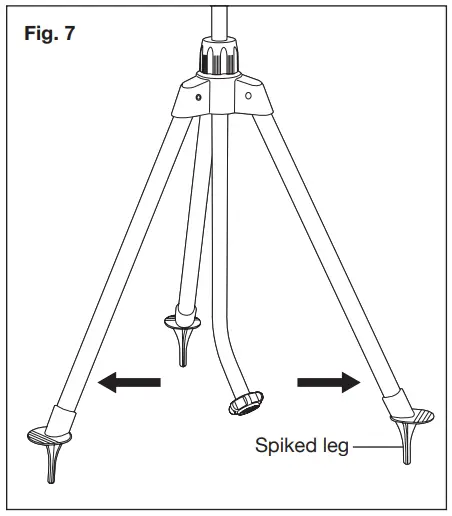

Spiked Legs
The spikes pierce the soil for extra stability without tearing up your yard as you move the sprinkler around to cover different areas (Fig. 7).
Open the spiked legs wide and push them into the soil.

Connecting to the Garden Hose

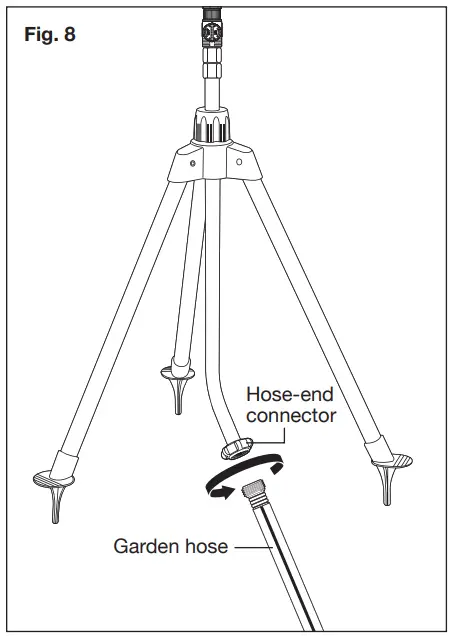

Attach your garden hose to the hose-end connector (Fig. 8).

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.
NOTE: Since water expands when it freezes, completely drain water from sprinklers and hoses to avoid damage if the temperature falls below 32ºF (0ºC).

Maintenance

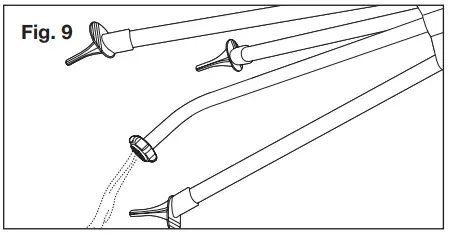

Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler (Fig. 9).

Storage

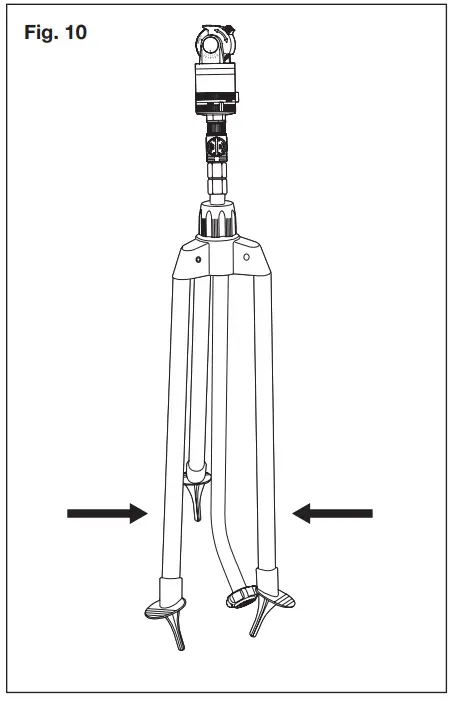

Collapse the tripod legs for storage (Fig. 10).

Service + Support
If your Aqua Joe® AJ-6PSTB-XL Turbo Drive 360º Telescoping Sprinkler requires service or maintenance, please call Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE
(1-866-766-9563) for assistance.

Model + Serial Numbers
When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.
