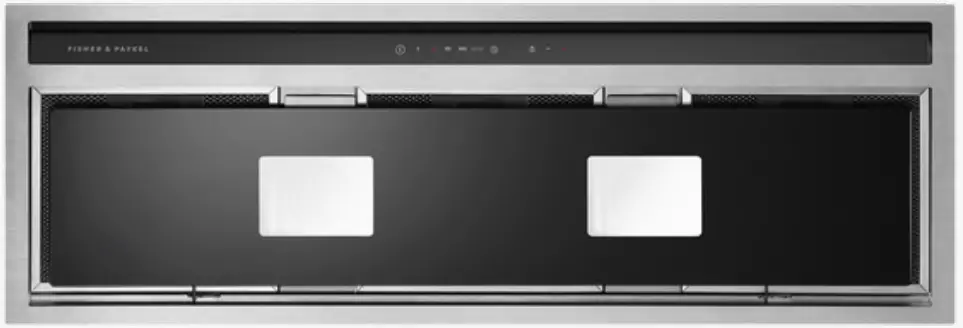

HP90IHCB3 90cm Integrated Insert Cooker Hood
User Guide
HP90IHCB3 90cm Integrated Insert Cooker Hood
QUICK REFERENCE GUIDE > HP90IHCB3
Integrated Insert Cooker Hood, 90cm
Series 7 | Integrated
Stainless Steel and GlassWith powerful extraction, this efficient, stylish range hood is perfectly hidden away in your cabinetry.
- With four fan speeds, plus boost function, select the perfect extraction rate for your cooking
- Powerful maximum air movement 687m³/hr
- With LED strip lighting to perfectly illuminate your hob
- Dishwasher safe filters that are easy to remove and clean

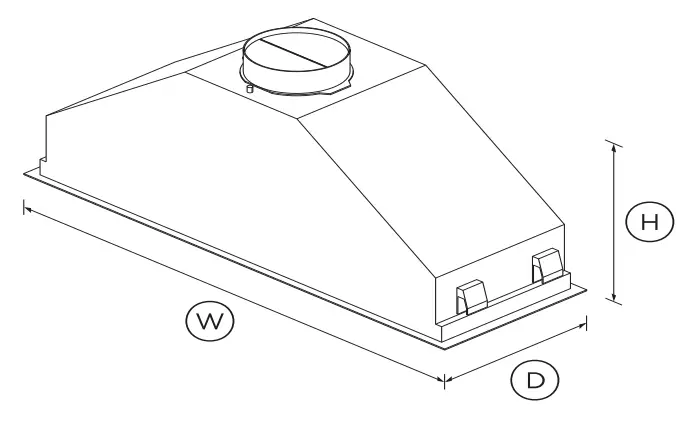

DIMENSIONS
| Height | 315mm |
| Width | 830mm |
| Depth | 280mm |
FEATURES & BENEFITS
Effective and quiet
Odours can linger in the kitchen well after cooking is finished. This cooker hood offers four fan speeds plus a boost function for powerful extraction to help remove steam and odours quickly. The timer keeps the cooker hood working for up to 15 minutes before automatically turning off.
Easy cleaning
The glass and stainless steel finishes are easily wiped clean and the filters removable and dishwasher safe. An alert reminds you when to clean the filter to ensure you get the best performance out of your cooker hood.
Simple to use
The intuitive control panel responds to the touch of your finger. Low-power LED lighting keeps energy usage to a minimum while providing superb illumination over the entire cooking surface.
Designed to match
This cooker hood can be built into your cabinetry for a seamless look. Its black glass control panel and stainless steel finish is designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
| Accessories | |
| Aluminium filter | 792429 |
| Eave ducting kit | RHK150E |
| Light bulb | 792556 |
| Recirculation carbon filter | 792481 |
| Side wall ducting kit | RHK150W |
| Consumption | |
| Energy rating | A |
| Fan ratings | |
| Maximum air movement | 687m³/hr |
| Maximum pressured air | 687m³/hr |
| Maximum sound rating | 74dB |
| Installation and cleaning | |
| Dishwasher safe filters | 3 |
| Ducted | Top extraction |
| Recirculation | Optional – top extraction |
| Performance | |
| Extraction type | Perimeter |
| Fan speeds | 4 |
| Filter type | Mesh with perimeter |
| Number of filters | 3 |
| Power requirements | |
| Lighting power | 7W |
| Motor power | 130W |
| Rated current | 3A |
| Supply frequency | 50Hz |
| Supply voltage | 120VV |
| Total Power | 137W |
| Product dimensions | |
| Depth | 280mm |
| Height | 315mm |
| Width | 830mm |
| Product information | |
| Control type | Capacitive touch |
| Ventilation features | |
| Dimmable lights | • |
| Light type | LED |
| Timer function | • |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 81339 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
