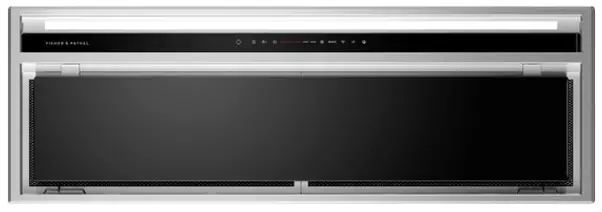

HP90IHCB4 Integrated Insert Cooker Hood
User Guide
Series 7 | Integrated
Black Glass Brushed Stainless Steel
HP90IHCB4 Integrated Insert Cooker Hood
With edge-to-edge extraction, this cooker hood is perfectly hidden away in your cabinetry.
- With three fan speeds plus a boost function, select the perfect extraction rate for your cooking
- Energy-efficient LED lighting to illuminate your hob surface
- Wi-Fi enabled for notifications through the SmartHQ™ app

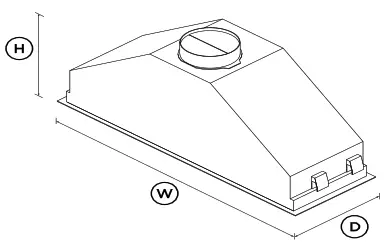

DIMENSIONS
| Height | 315mm |
| Width | 830mm |
| Depth | 280mm |
FEATURES & BENEFITS
ACHIEVE THE INVISIBLE
This stylish rangehood fits seamlessly into your kitchen cabinetry, providing ventilation that is as discreet as it is powerful.
EFFECTIVE EXTRACTION
Featuring three fan speeds, plus a boost function, this cooker hood provides powerful extraction to quickly remove odours and steam. Odours can linger in the kitchen well after cooking is finished so the timer keeps the hood working for up to 15 minutes before automatically turning off.
EASY CLEANING
Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ™ app will notify you when to clean the filter to ensure you get the best performance out of your cooker hood.
QUALITY MATERIALS
This cooker hood comes in a sleek black glass finish with a real stainless steel frame.
FULL SURFACE LIGHTING
Low energy, dimmable LED lights provide superb illumination of the entire hob surface.
SPECIFICATIONS
| Accessories | |
| Aluminium filter | 792943 |
| Recirculation carbon filter | 792481 |
| Installation and cleaning | |
| Dishwasher safe filters | 3 |
| Ducted | Top extraction |
| Recirculation | Optional – top extraction |
| Stainless steel filter cover | • |
| Two piece height adjustable | • |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 4 |
| Filter type | Mesh |
| Number of filters | 2 |
| Power requirements | |
| Motor power | 130W |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 280mm |
| Height | 315mm |
| Width | 830mm |
| Product information | |
| Control type | Capacitive touch |
| Ventilation features | |
| Auto-off/Run-on timer | • |
| Dimmable lights | • |
| Filter cleaning alert | • |
| Light type | LED strip |
| Wi-Fi connectivity | • |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 50212 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
