QUICK REFERENCE GUIDE > HC120BCXB2
Wall Cooker Hood, 120cm, Box Chimney
Series 7/Contemporary
Stainless Steel and Glass

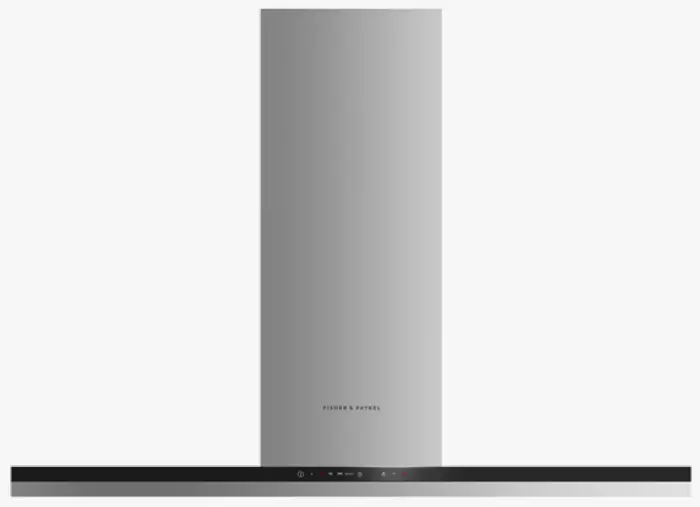

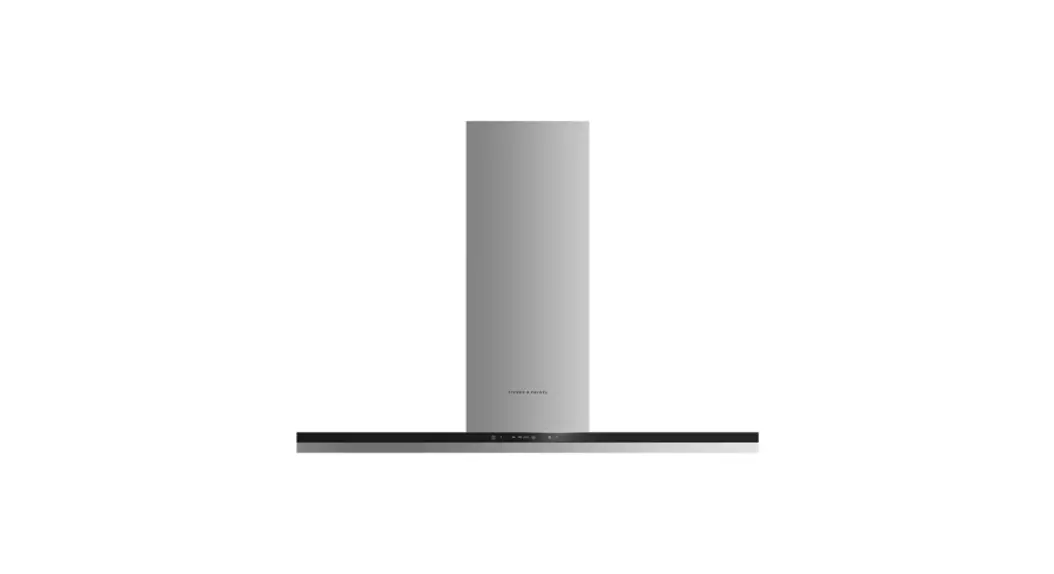

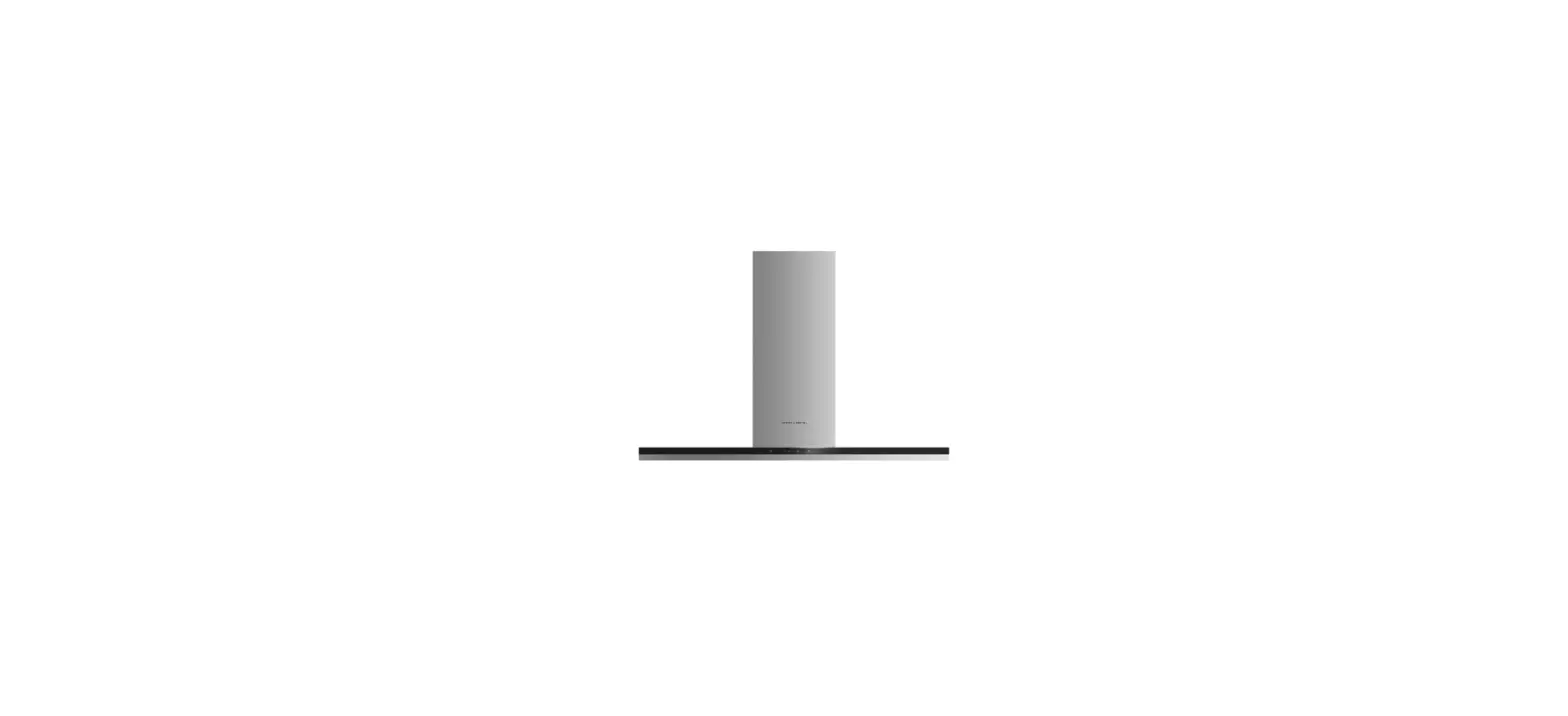

HC120BCXB2 Wall Cooker Hood
The wall chimney rangehood has contemporary styling, extracting steam, grease and cooking odours quietly and efficiently.
- With four fan speeds, plus a boost function, select the perfect extraction rate for your cooking
- Powerful maximum air movement 617m³/hr
- Dishwasher-safe filters that are easy to remove and clean

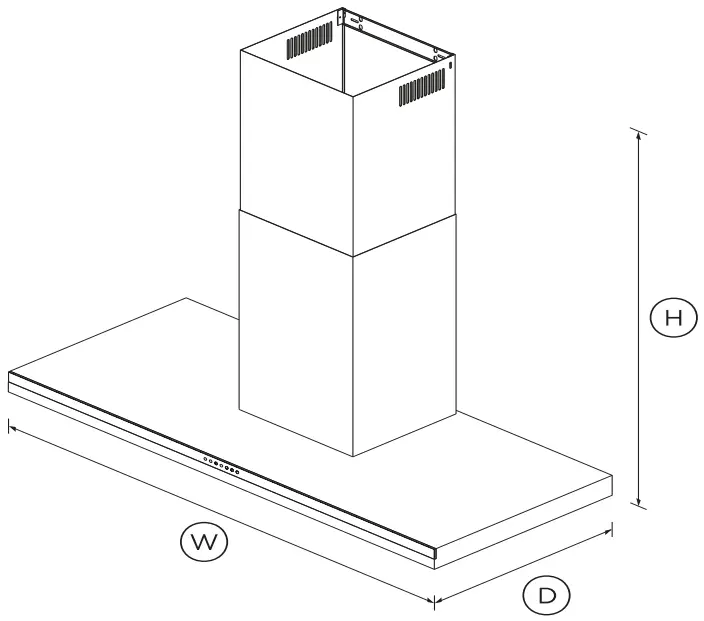

DIMENSIONS
| Height | 600-1035mm |
| Width | 1200mm |
| Depth | 500mm |
FEATURES & BENEFITS
Effective and quiet
Odours can linger in the kitchen well after cooking is finished. This cooker hood offers four fan speeds plus a boost function for powerful extraction to help remove steam and odours quickly. The timer keeps the cooker hood working for up to 15 minutes before automatically turning off.
Simple to use
This Fisher & Paykel chimney cooker hood features a sleek and easy-to-use touch-control panel. Low energy, dimmable LED lights provide superb illumination over the entire cooking surface.
Easy cleaning
Designed for simple removal, the filters are easy to clean and dishwasher safe. The stainless steel mesh cover just needs a quick wipe to keep clean. An alert reminds you when to clean the filter to ensure you get the best performance out of your cooker hood.
Designed to match
This wall chimney cooker hood features sleek black glass and stainless steel styling which will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
| Accessories | |
| Aluminium filter | 791938 |
| Chimney extension | 791774 |
| Eave ducting kit | RHK150E |
| Light bulb | 792556 |
| Recirculation carbon filter | 792481 |
| Recirculation diverter | 792560 |
| Sidewall ducting kit | RHK150W |
| Consumption | |
| Energy rating | B |
| Fan ratings | |
| Maximum air movement | 617m³/hr |
| Maximum pressured air | 617m³/hr |
| Maximum sound rating | 69dB |
| Installation and cleaning | |
| Dishwasher safe filters | 4 |
| Ducted | Top extraction |
| Recirculation | Optional – top extraction |
| Stainless steel filter cover | • |
| Two-piece height adjustable | • |
| Performance | |
| Airflow balancing plate | • |
| Extraction type | Surface |
| Fan speeds | 4 |
| Filter type | Mesh with Stainless Steel filter |
| Number of filters | 4 |
| Power requirements | |
| Lighting power | 7W |
| Motor power | 130W |
| Rated current | 3A |
| Supply frequency | 50Hz |
| Supply voltage | 220-240VV |
| Total Power | 137W |
| Product dimensions | |
| Depth | 500mm |
| Height | 600-1035mm |
| Width | 1200mm |
| Product information | |
| Control type | Capacitive touch |
| Ventilation features | |
| Dimmable lights | • |
| Light type | LED |
| Timer function | • |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 50113 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
