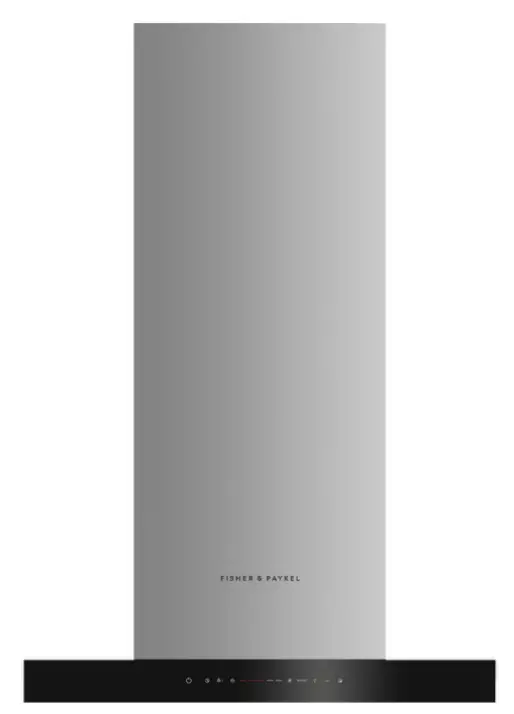

FISHER PAYKEL HC60BCXB4 Wall Cooker Hood 60cm Box Chimney

FISHER PAYKEL HC60BCXB4 Wall Cooker Hood 60cm Box Chimney

DESCRIPTION

The wall chimney cooker hood has a Contemporary styling, extracting steam, grease and cooking odours quietly and efficiently.

  • With three fan speeds, plus boost function, select the perfect extraction rate for your cooking
  • Dishwasher-safe filters that are easy to remove and clean
  • Wi-Fi enabled for notifications through the SmartHQ™ app

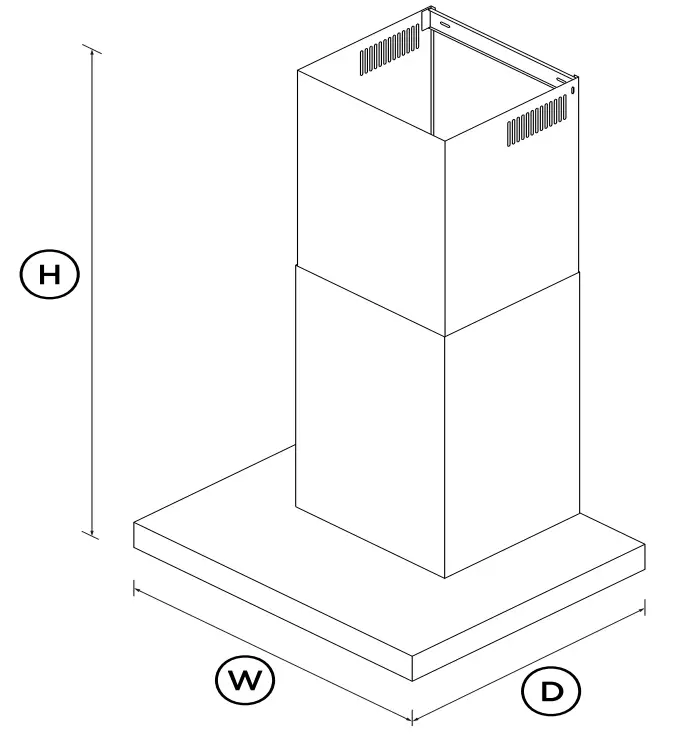

DIMENSIONS

Height595 – 1035mm
Width598mm
Depth500mm

Dimensions

FEATURES & BENEFITS

QUIET AND EFFECTIVE

Featuring perimeter extraction, four fan speeds and a boost function, this cooker hood provides powerful extraction to quickly remove odours and steam. Odours can linger in the kitchen well after cooking is finished so the timer keeps the hood working for up to 15 minutes before automatically turning off.

SIMPLE CONTROLS

The intuitive control panel responds to the touch of your finger. LED strip lighting illuminates the entire hob surface for the perfect sear or ideal reduction. Cooker hood settings, including temperature and fan speed, can be controlled via the SmartHQ™ app, with additional voice control options for fan speeds and lighting.

EASY CLEANING

Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ™ app will notify you when to clean the filter to ensure you get the best performance out of your cooker hood.

COMPLEMENTARY DESIGN

This wall cooker hood features sleek black glass and stainless steel styling which will complement any contemporary kitchen.

EASY INSTALLATION

This wall chimney cooker hood is the perfect partner to your Fisher & Paykel hob. It can be either externally ducted or internally recirculated, making it perfect for apartments.

SPECIFICATIONS

Accessories
Recirculation carbon filter792481
Installation and cleaning
Dishwasher safe filters4
DuctedTop extraction
RecirculationOptional – top extraction
Stainless steel filter cover
Two piece height adjustable
Performance
Extraction typeSurface
Fan speeds4
Filter typeMesh
Number of filters2
Power requirements
Motor power130W
Supply frequency50Hz
Supply voltage220 – 240V
Product dimensions
Depth500mm
Height595 – 1035mm
Width598mm
Product information1
Control typeCapacitive touch
Ventilation features
Auto-off/Run-on timer •
Dimmable lights •
Filter cleaning alert
Light typeLED strip
Timer function •
Wi-Fi connectivity
Warranty
Parts and labour5 years
SKU50213

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
