Dip Switches On-board User Manual

DIP Switches on-board User Manual

Specifications

It is a customized version of the classic ARDUINO MEGA R3 board. Full integration of Atmel
ATmega2560 microcontroller and ESP8266 Wi-Fi IC, with 32 Mb (megabits) of flash memory, and
CH340G USB-TTL converter on a single board! All components can be set up to work together or

independently.

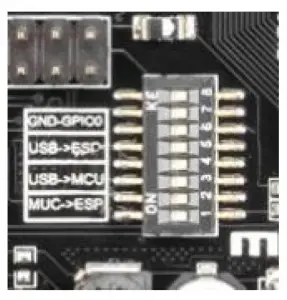

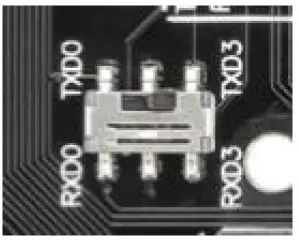

Operating mode is selected by means of DIP switches on-board:

Switch status and mode selection:

It is important that when the ESP8266 module is programming, it is necessary to press the button “Mode”

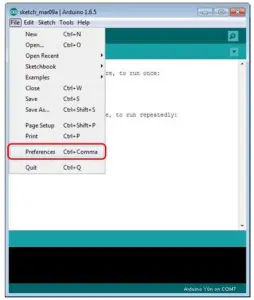

To begin open the Arduino IDE programming environment and go to settings

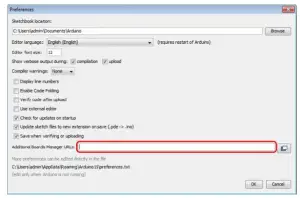

Then in the window that appears in the row, Additional Boards Manager URLs (marked in red)
insert http://arduino.esp8266.com/stable/package_esp8266com_index.json link for installation
in Arduino IDE additional scripts that would work with the modules ESP8266 and click OK

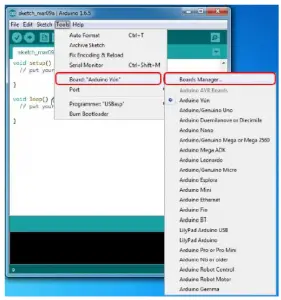

Then go to the Tools> Board> Boards Manager

In the window that appears, scroll through the list down to the script esp8266 by ESP8266 Community and click.

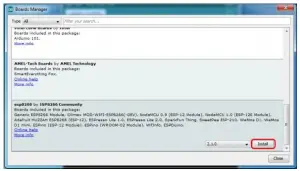

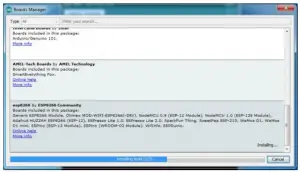

In the lower right corner will be able to select the version of the software, select the version 2.1.0 (the newest) and click the Install button

After installation, close the window and go to Tools> Board and see the list of available devices on the chip programming ESP8266

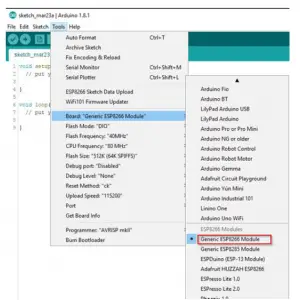

Next, you need to select the card as shown in the picture (Generic ESP8266 module)

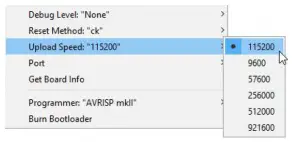

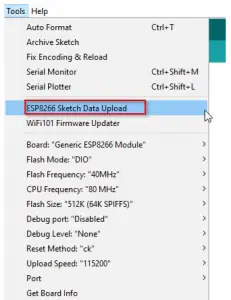

Select the upload speed – 115200

==========test sketch for ATmega2560===========

void setup()
{
Serial3.begin(115200);
pinMode(13,OUTPUT);
delay(500);
Serial3.println(“AT+CIPMUX=1”);
delay(2000);
Serial3.println(“AT+CIPSERVER=1,5000”);
delay(2000);
Serial3.println(“AT+CIPSTO=3600”);
delay(2000);
}
void loop()
{
while(Serial3.available())
{
char Rdata;
Rdata=Serial3.read();
if(Rdata==’A’|Rdata==’a’)

{
digitalWrite(13,HIGH);
delay(50);
}
else if(Rdata==’B’|Rdata==’b’)
{
digitalWrite(13,LOW);
delay(10);
digitalWrite(13,HIGH);
delay(10);
digitalWrite(13,LOW);
}
else
{
digitalWrite(13,LOW);
}
}
}
