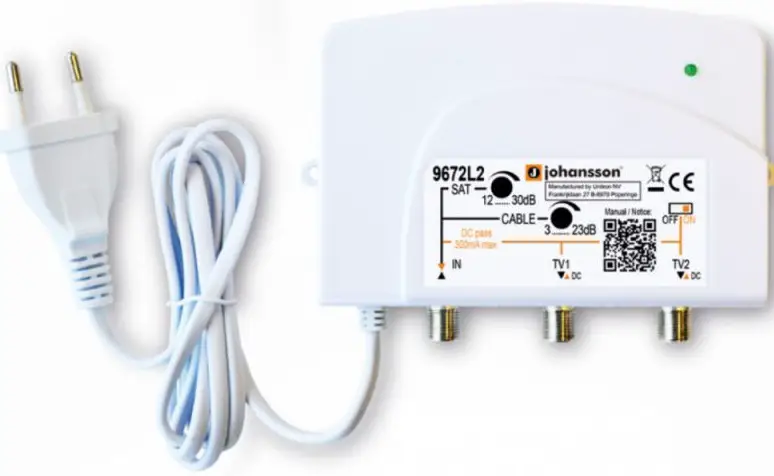

johansson 9672L2 Indoor amplifier TV-SAT 24 User Manual
| Outputs | – | 2, with diode protection |
| Frequency range | MHz | Cable: 47-694 Sat.: 950-2400 |
| Adjustable gain | dB | Cable: 3-23 Sat: 12-30 |
| Noise figure | dB | Cable: 4 Sat.: 6 |
| Max. input level | dBµV | Cable: 90 Sat.: 98 |
| Max. output level | dBµV | Cable: 106 (-60 dB IM3/2c) Sat.: 114 (-35 dB IM3/2c) |
| Fixed slope | dB | Sat.: 8 |
| Return loss input/outputs | dB | 10 |
| Isolation | dB | 14 |
| Switchable DC pass | mA | 300 max. |
| Connector type | – | “F” fem. |
| Power | – | 85-240 VAC / 50-60 Hz / 3W |
| Dimensions | mm | 137 x 92 x 42 |

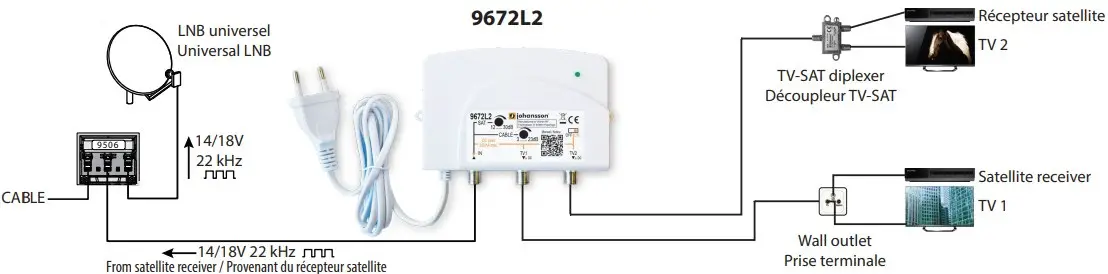

Application
