Johansson 7473l1 Smart Amp User Manual

User Manual
Smart Amp
Ref. 7473L1 ­ 7473L2 ­ 7474L1 ­ 7474L2PATENTED TECHNOLOGY
SW Version 1.0

No part of this manual may be copied, reproduced, transmitted, transcribed or translated into any language without permission.
Unitron reserves the right to change the specifications of the hardware and software described in these manuals at any time.
Unitron cannot be held liable for any damages resulting from the use of this product. Specifications are subject to change without notice. 03/21
© Unitron – Frankrijklaan 27 – B-8970 Poperinge – Belgium
T +32 57 33 33 63 F +32 57 33 45 24
[email protected]
www.unitrongroup.com

INTRODUCTION

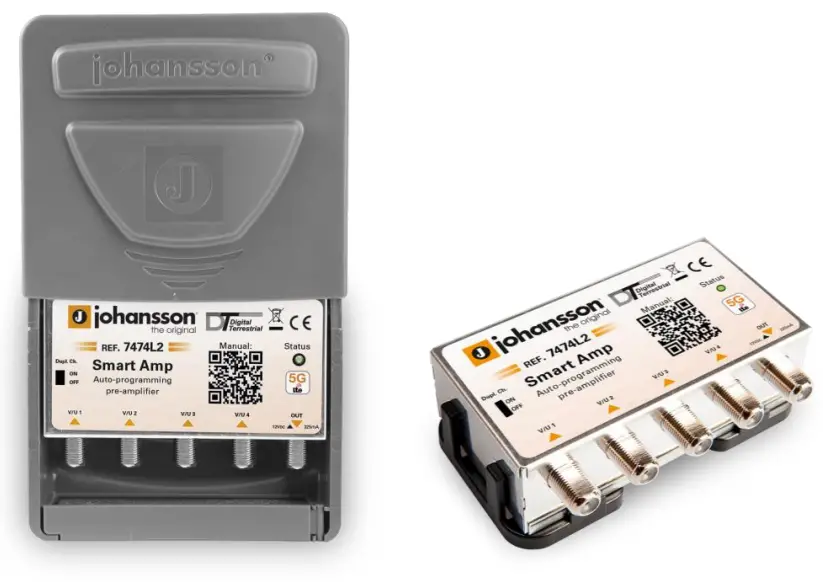

Product description

• Scans all channels, amplifies the weak signals while keeping the strong channels
• All output channels have an equal and stable output power
• Treats even the most difficult situations with adjacent channels
•  Channels with the same frequency can be amplified in and re-located to the LTE band (switchable)
• Fully automatic channel scan and process function upon double power start-up.
• Fully automatic recognition of the applied country channel plan
• SAW filters for LTE (4G or 5G) protection on all inputs
• Outdoor weatherproof mast-head housing
• DC Power over coax
• All ports ESD protected

Package contents

• 1 Smart Amp (ref. 7473L1 – 7473L2 – 7474L1 – 7474L2)

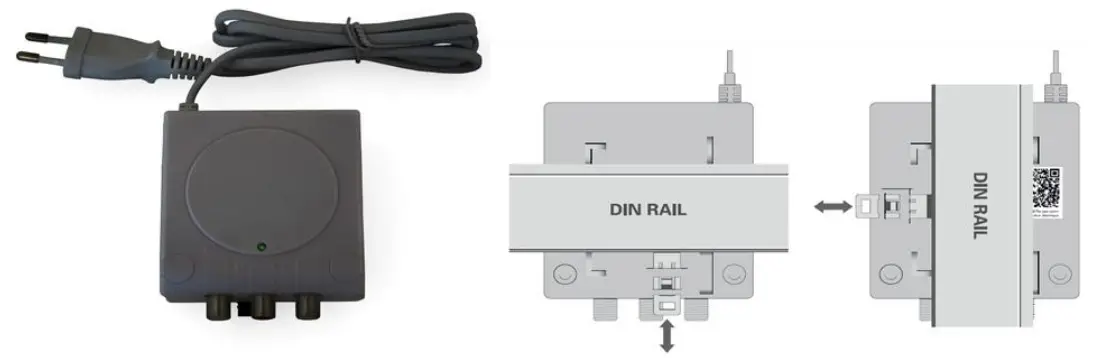

• 1 Power Supply 12V (ref. 2437)
• 1 wall clamp

TECHNICAL SPECIFICATIONS

HARDWARE INSTALLATION

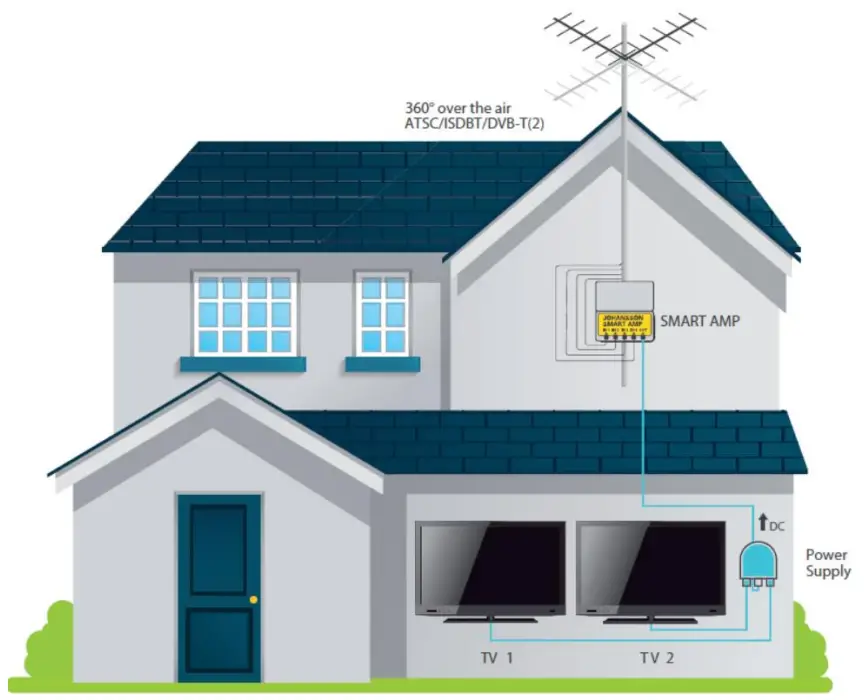

Installing the Smart Amp

• Connect your Terrestrial antennas to the Smart Amp*
• Connect the Smart Amp output to the Power Supply
• Connect your TVs to the Power Supply

Important: Mount the module vertically to a wall in a well-ventilated room and leave a minimum space of 15 cm around the product to guarantee maximum ventilation of the  product
* The Smart Amp does not allow pass-through DC-power for pre-amplifiers or active antennas

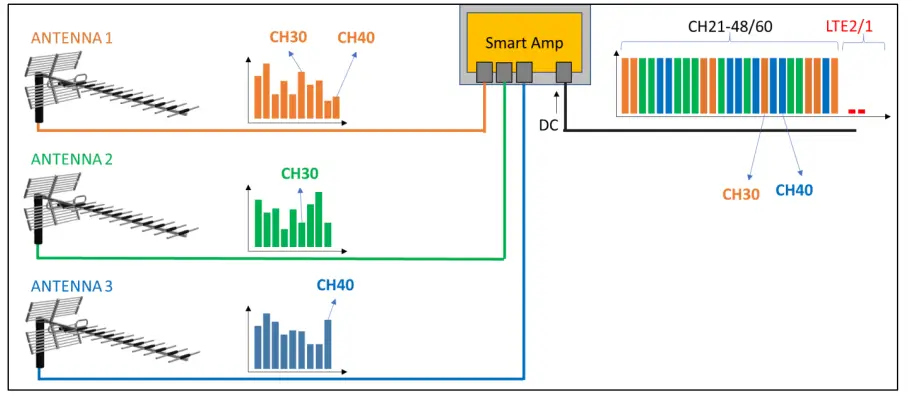

Duplicate channel switch OFF:
The weakest channel is rejected. See the example below:
CH30 > CH30
CH40 < CH40
➔ CH30 is transmitted
➔ CH30 is rejected
➔ CH40 is rejected
➔ CH40 is transmitted

Duplicate channel switch ON:

The weakest channel is converted to LTE band. See the example below:;
CH30 > CH30
CH40 < CH40
➔ CH30 is transmitted
➔ CH30 is converted to LTE band
➔ CH40 is converted to LTE band
➔ CH40 is transmitted

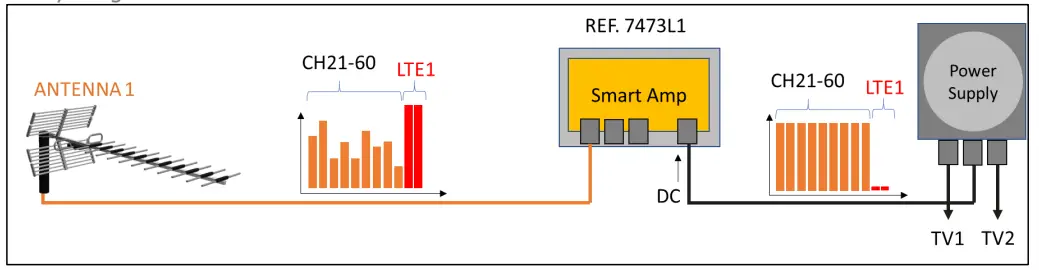

LTE Filtering

LTE1 = LTE800 = 4G (REF. 7473L1 & 7474L1) Everything above 790MHz is filtered out:

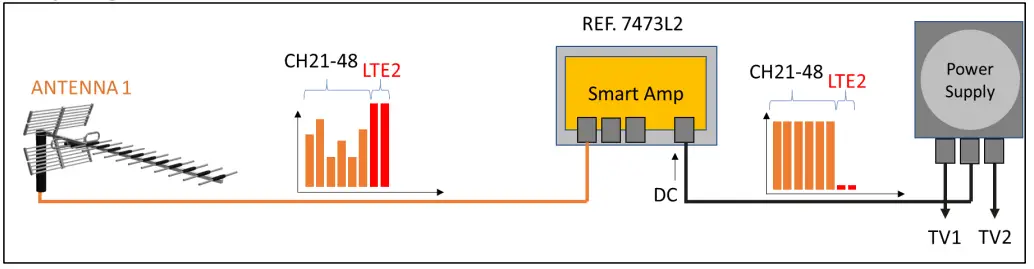

LTE2 = LTE700 = 5G (REF. 7473L2 & 7474L2) Everything above 694MHz is filtered out:

How Autoscan works:

• Plug-in Power Supply
• Status LED will blink green when scanning
• Status LED solid green when auto scan ready (This can take up to 20 seconds)
• Status LED red when an error during the scan. Unpowered and repower within 6 seconds to restart auto scan
• WARNING: do not turn off the power during SCAN

How to force channel scan:

(FORCE CHANNEL SCAN = RESET = REPROGRAM)

• Unpowered and Repower within 6 sec (Status LED will blink when scanning)
• If power interruption (>6 sec) = no reprogram = settings are kept

SAFETY INSTRUCTIONS

Read these instructions carefully before connecting the unit

To prevent fire, short circuit, or shock hazards:

• Do not expose the unit to rain or moisture.
• Install the unit in a dry location without infiltration or condensation of water.
• Do not expose it to dripping or splashing.
• Do not place objects filled with liquids, such as vases, on the apparatus.
• If any liquid should accidentally fall into the cabinet, disconnect the power plug.

To avoid any risk of overheating:

• Install the unit in a well-aired location and keep a minimum distance of 15 cm around the apparatus for sufficient ventilation
• Do not place any items such as newspapers, tablecloths, or curtains, on the unit that might cover the ventilation holes.
• Do not place any naked flame sources, such as lighted candles, on the apparatus
• Do not install the product in a dusty place
• Use the apparatus only in moderate climates (not in tropical climates)
• Respect the minimum and maximum temperature specifications

To avoid any risk of electrical shocks:

• Connect apparatus only to socket with protective earth connection.
• The mains plug shall remain readily operable
• Pull out the power plug to make the different connections of cables
• To avoid electrical shock, do not open the housing of the adapter.

Maintenance

Only use a dry soft cloth to clean the cabinet.
Do not use solvent
For repairing and servicing refer to qualified personnel.

Dispose of according to your local authority’s recycling processes

CONDITIONS OF WARRANTY

Unitron N.V. warrants the product as being free from defects in material and workmanship for a period of 24 months starting from the date of production indicated on it. See note below.
If during this period of warranty the product proves defective, under normal use, due to defective materials or workmanship, Unitron N.V, at its sole option, will repair or replace the product. Return the product to your local dealer for reparation.

THE WARRANTY IS APPLIED ONLY FOR DEFECTS IN MATERIAL AND WORKMANSHIP AND DOES NOT COVER DAMAGE RESULTING FROM:

• Misuse or use of the product out of its specifications,
• Installation or use in a manner inconsistent with the technical or safety standards in force in the country where the product is used,
• Use of non-suitable accessories (power supply, adapters…),
• Installation in a defect system,
• External causes beyond the control of Unitron N.V. such as drops, accidents, lightning, water, fire, improper ventilation…

THE WARRANTY IS NOT APPLIED IF

• Production date or serial number on the product is illegible, altered, deleted, or removed
• The product has been opened or repaired by a non-authorized person.

NOTE
Date of production can be found in the product’s serial number code. The format will either be “YEAR W WEEK” (e.g., 2017W32 = year 2017 week 32) or “YYWW” (e.g.,  1732 = year 2017 week 32).
