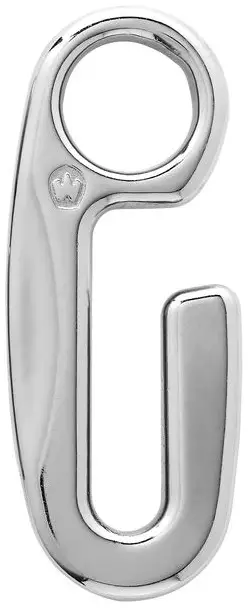

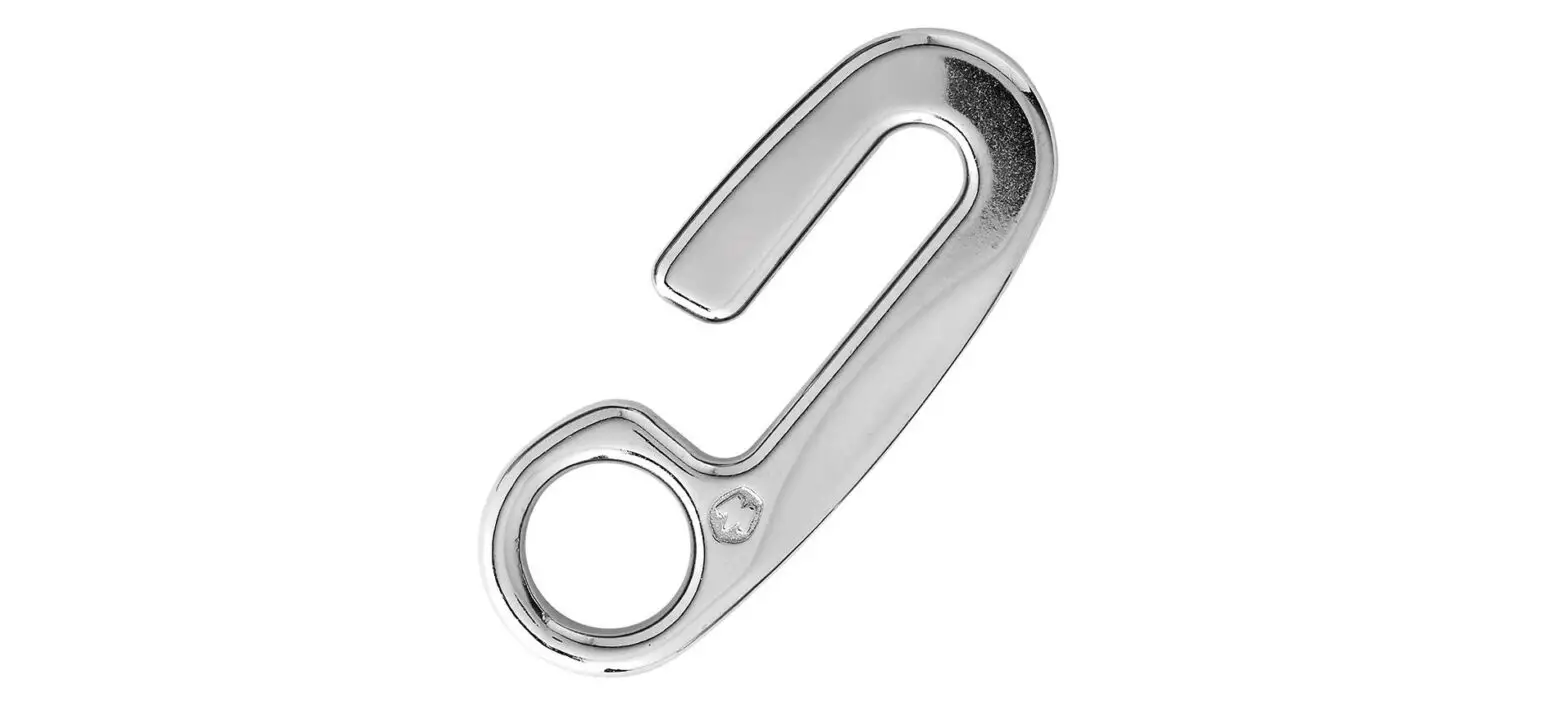

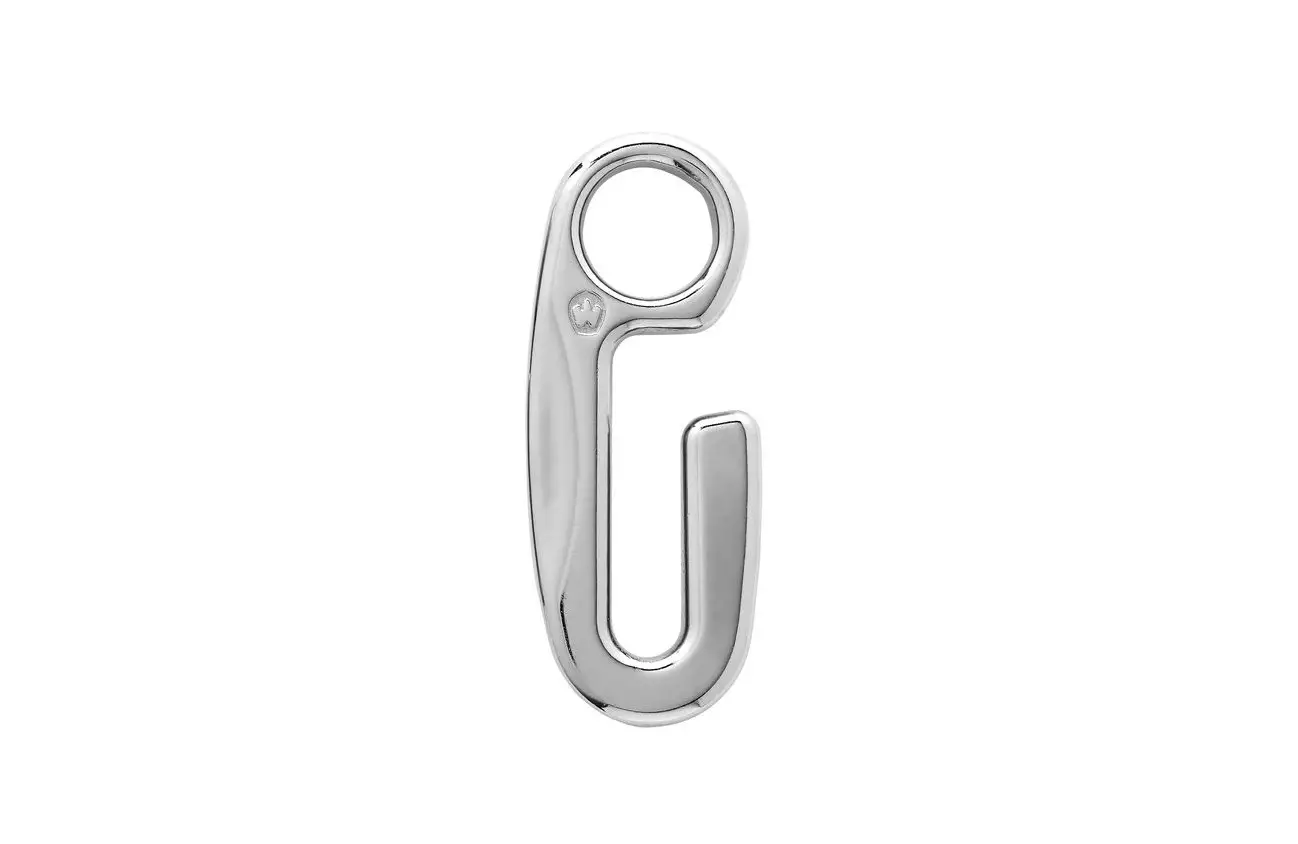

Wichard Chain Grip Range Installation Guide
Instructions
Attach the mooring rope to the chain grip with a bowline.
WARNING

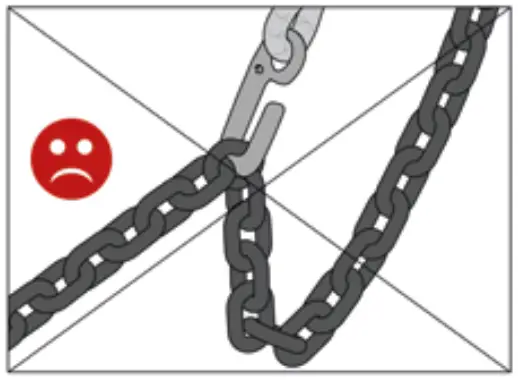

- Do not attach the chain grip to one of the chain links.
- Always use an appropriate mooring rope for this type of application. Always wear gloves to protect hands.
- Not for lifting applications.
| Part # | Ø Chain | Length | Rope size | Working load | Weight |
| 2994 | 8 mm – 5/16 in | 85 mm – 3 11/32 in | 17 mm – 43/64 in | 480 Kg – 1060 Lbs | 0.088 Kg – 0.194 Lbs |
| 2995 | 10 mm – 13/32 in | 103 mm – 4 1/16 in | 22 mm – 55/64 in | 720 Kg – 1580 Lbs
| 0.156 Kg0.343 Lbs |
| 2996 | 12 mm – 15/32 in | 125 mm – 4 29/32 in | 24 mm – 15/16 in | 960 Kg – 2110 Lbs | 0.287 Kg – 0.632 Lbs |
Support
Wichard, 1 ZI de Felet, CS 50085,
63307 Thiers cedex, France
Tél: + 33 (0)4 73 51 65 00
E-mail: [email protected]
