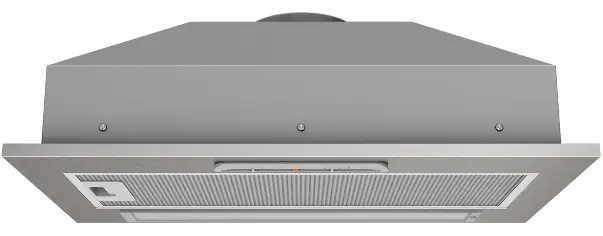

Westinghouse WRI500SB Integrated Rangehood

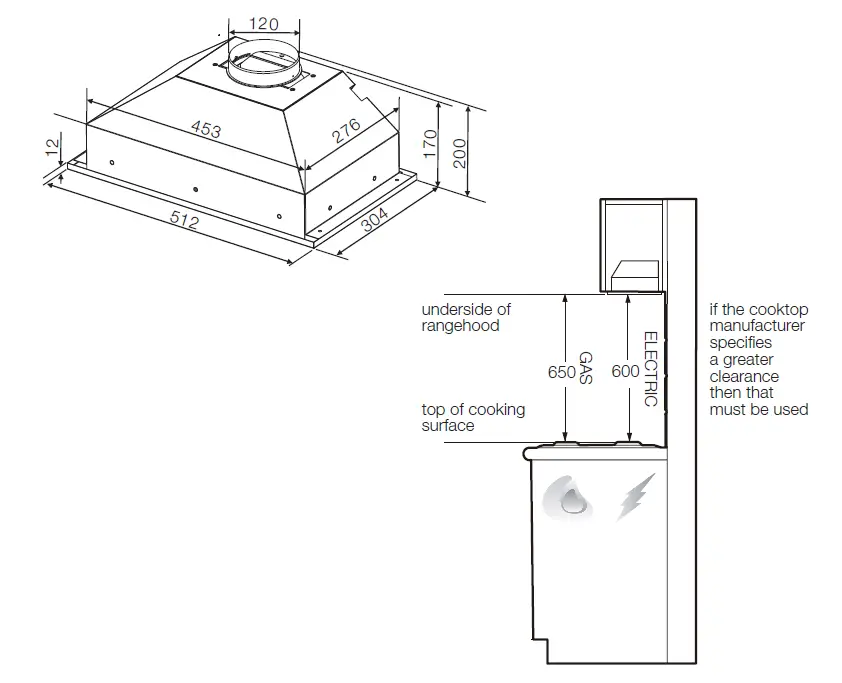

DIMENSION
WRI500SB, WRI500DB
| Product WxHxD (mm) | 512 x 200 x 304 |
| Cut-out WxHxD (mm) | 455 x 200 x 276 |
| Duct out through, diameter (mm) | top only, 125 |
IMPORTANT
These dimensions are a guide only. All measurements are in millimetres (mm). For complete installation instructions, refer to the manual provided with product.
© 2022 Electrolux Home Products Pty Ltd. ABN 51 004 762 341. W_DIM_50_RH_Aug22 westinghouse.com.au
