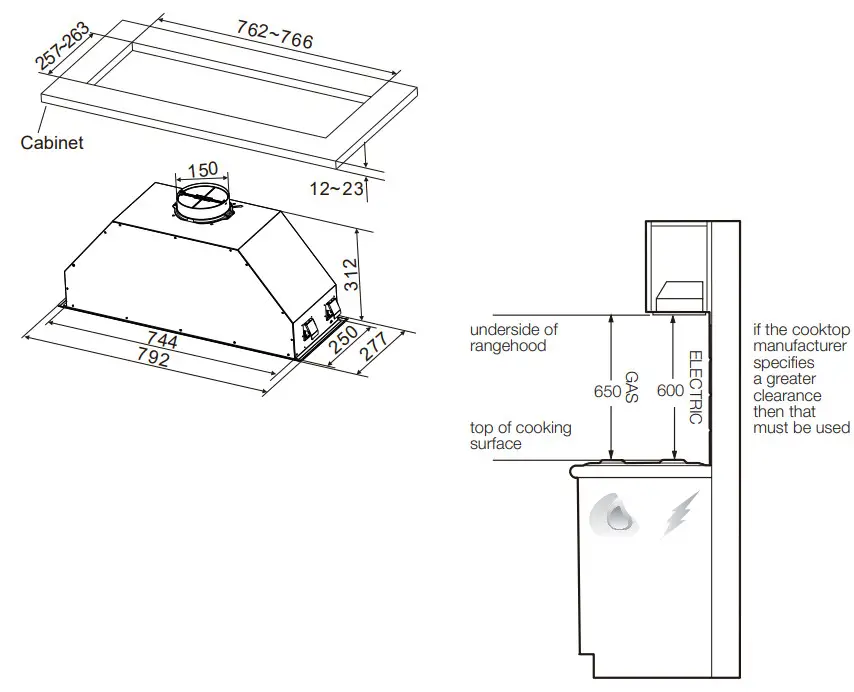

Dimension and installation guide
Integrated rangehood
WRI814BB
| Product WxHxD (mm) | 792 x 317 x 277 |
| Cut-out WxHxD (mm) | 762 x 313 x 257 |
| Duct out through, diameter (mm) | top only, 150 |
IMPORTANT
These dimensions are a guide only. All measurements are in millimetres (mm).
For complete installation instructions, refer to the manual provided with product.
