58kHz Wifi StealthPad™
Deactivator
Installation Manual

58kHz WiFi StealthPad Deactivator

WG SECURITY PRODUCTS INC.
591 W.Hamilton Ave, Suite 260, Campbell, CA 95008 (USA)
Tel: 408-241-8000 ▪ Fax: 408-559-2073

WARRANTY DISCLAIMER
WG Security Products Inc. makes no representation or warranty with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, WG Security Products Inc. reserves the right to revise this publication and make changes from time to time in the content hereof without obligation of WG Security Products Inc. to notify any person of such revision or changes.

FCC ID: 2A8TVWGWFSP58-II
“This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.”
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

CRITICAL NOTE
As specified by FCC Regulations 15.21, any changes or modifications not expressly approved by the party responsible for compliance of this equipment, will void the user’s permission and authority to operate this equipment.

IC: 29378-WGWFSP58II
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

OVERVIEW

System Description

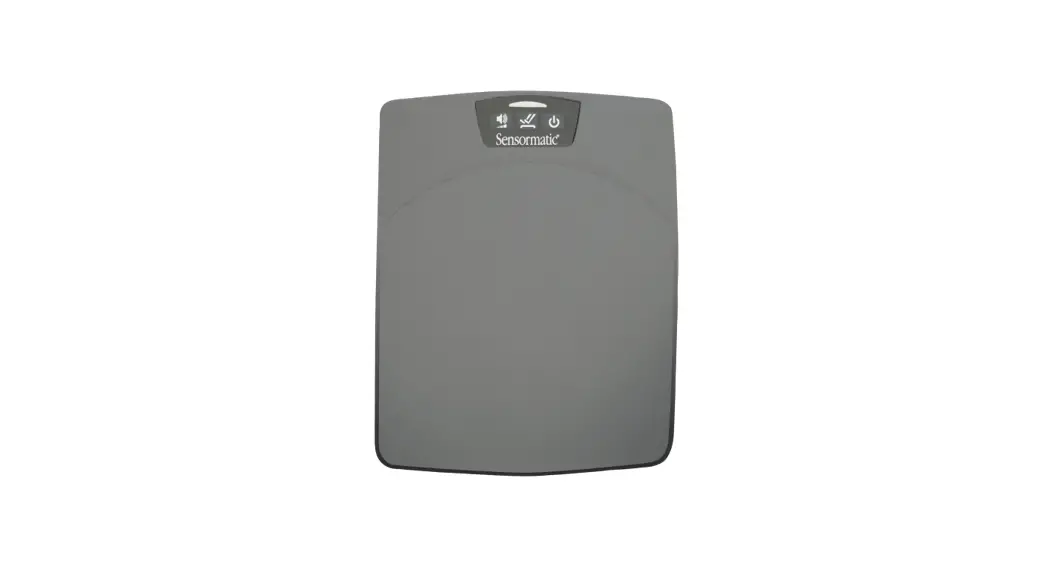

StealthPad is a distance deactivator providing excellent deactivation reliability and high throughput. The StealthPad can be easily installed on the counter top or flush mount.

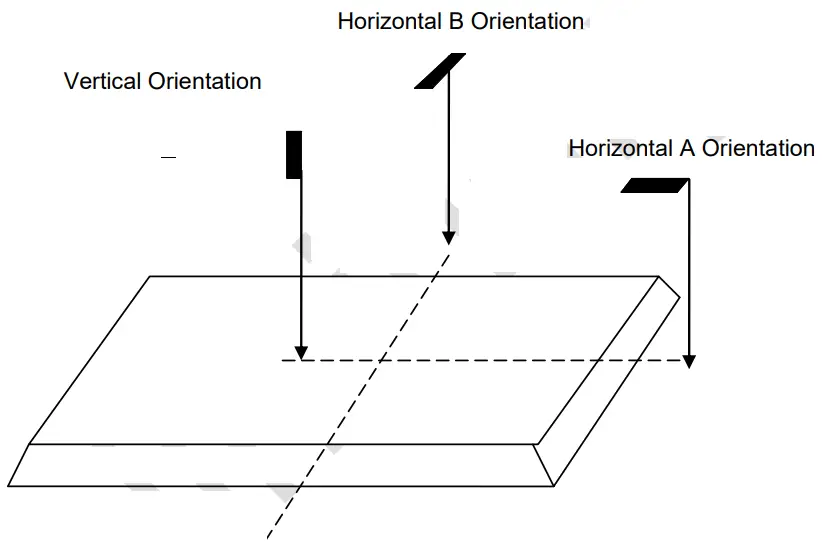

StealthPad deactivates AM labels up to 5 cm (2 in.) above the surface of the pad at a high throughput speed.

Features

• Compactness
  Its small footprint makes the antenna especially attractive in small counter tops or where counter space is at a premium.
• Proximity Deactivation
  The StealthPad offers distance deactivation, making it perfect for both source tagged and retailer tagged merchandise.
• Compact Size
  The compact size of the deactivation antenna allows StealthPad to easily be integrated into a counter application.
• Integrated Audible and Visual Notification.
  Label deactivation notification is built into the StealthPad.
• Cloud Accessible
  StealthPad includes the remote access capability via WG’s optional Cloud™ software for a variety of remote controls and data mining.

Specifications

Electrical

Mechanical
StealthPad Antenna

Wifi Antenna

Environmental

PRE-INSTALLATION GUIDE

CAD Dimensions

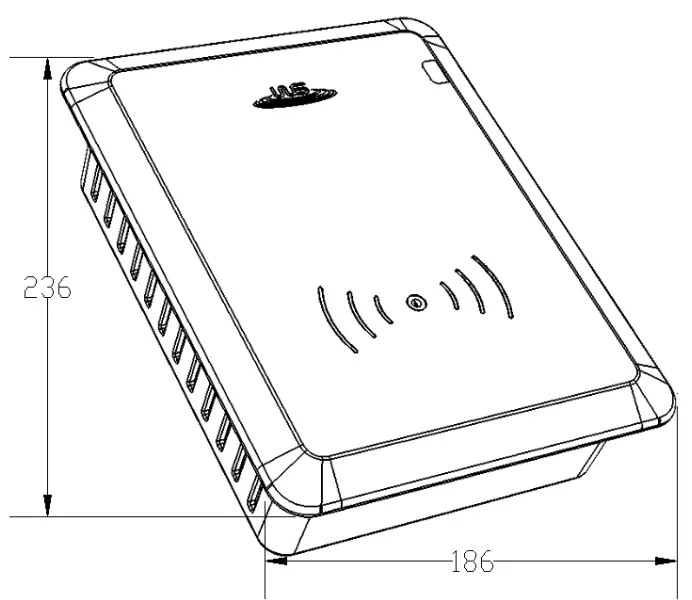

StealthPad(All dimensions are in millimeters)

Flush Mount Cut Out Suggestion

Installation Site Power Supply Check
IT IS RECOMMENDED THAT ALL STEALTHPADS BE ON THE SAME POWER PHASE.
Otherwise you need to adjust B sync value step by step to find a best position to sync different StealthPads when connected to power sources with difference phases.
ENSURE THERE IS SUFFICIENT CURRENT SUPPLY IF MULTIPLE STEALTHPADS SHARE ONE POWER SOURCE. The rated current for StealthPad is 0.3A but the suggested current draw for one StealthPad is 1A for better performance, so a 15A power box will better serve 10 StealthPads instead of 15 or more.
ENSURE THERE IS GOOD GROUNDING FOR THE STEALTHPAD POWER SUPPLY.
Sometimes poor grounding and high noise from the power supply will lower the sensitivity or detection range.

INSTALLATION

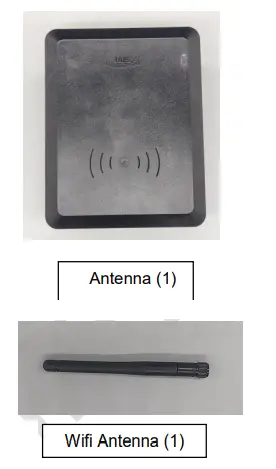

Parts List

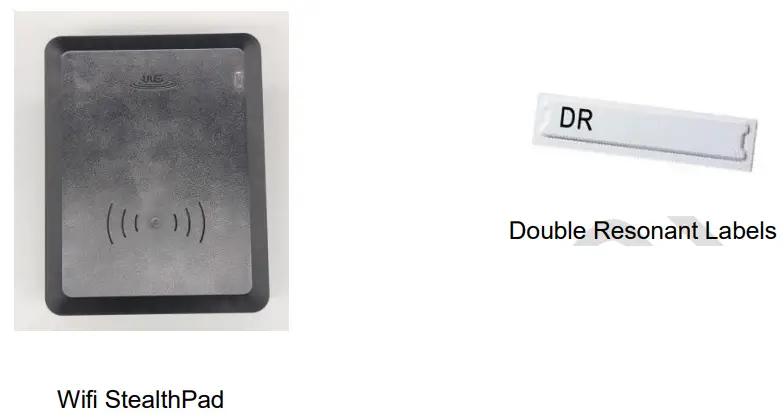

StealthPad FRONT VIEW

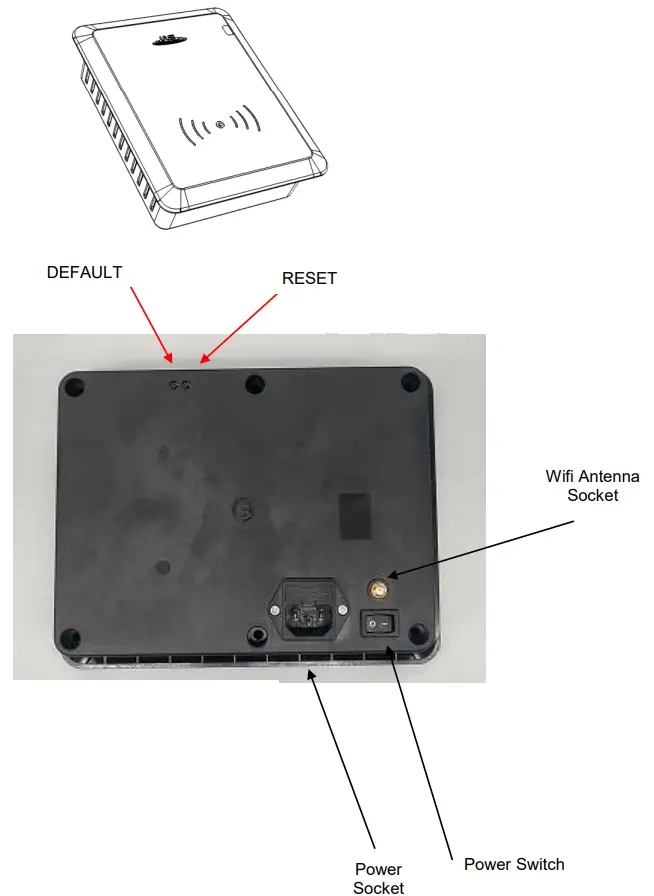

Deactivator Components and Connections

As shown in Figure 1, the deactivator consists of a detect/deactivator antenna pad, power and control box. The cables used and connections are shown in the following diagram. The antenna pad can be installed flush to the counter.

Always match the antenna type (read the label on the plastic housing) with control box input voltage type before connecting them; make sure they are matched.

HIGH VOLTAGE – HANDLE WITH CARE!
Equipment must be electrically disconnected from the branch-circuit supply when connecting Wifi StealthPad

Power Cord Notices
North American Power Supply Cords

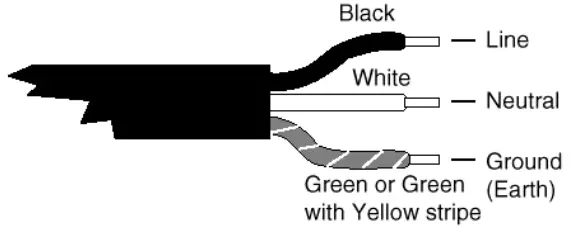

This equipment is supplied with an external power line at one end and a molded receptacle terminal block at the other end. Conductors are color coded white (neutral), black (line) and green or green/yellow (ground).
Operation of this equipment at voltages exceeding 130vac will require power supply cords that comply with NEMA configurations.

International Power Supply Cord

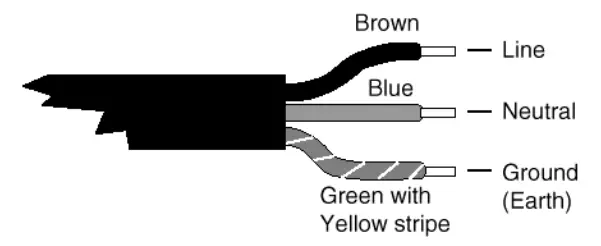

This equipment is supplied with an external power line at one end and a molded receptacle terminal block at the other end. Conductors are CEE color-coded—light blue (neutral), brown (line) and green/yellow (ground). Other IEC 320 C-13 type power supply cords can be used if they comply with the safety regulations of the country in which they are installed.

We recommend that you use a CE approved power cord H05 VV-F or H05 VVH2-F2 (Refer to the electrical code with governs your country for installation of the Anti-Theft Unit to the main power supply).

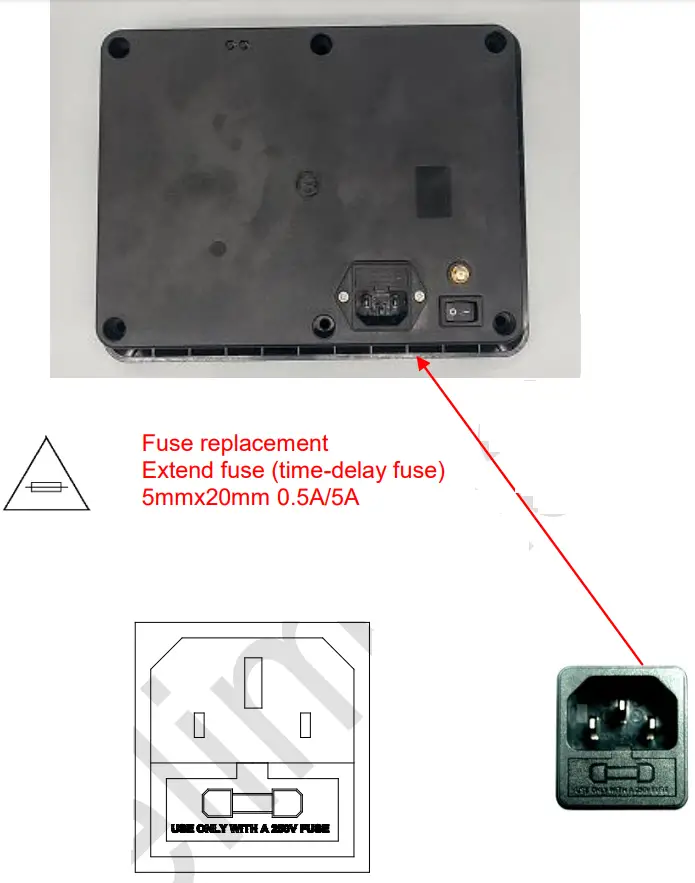

Fuse replacement

Wifi StealthPad

Equipment must be electrically disconnected from the branch-circuit supply when replacing the fuse.

WARNING – TO REDUCE THE RISK OF DAMAGE, REPLACE ONLY WITH SAME TYPE AND RATING OF FUSE.

QUICK START INSTRUCTIONS

General Setup and Use
Make sure the connectors are firmly attached to the sockets.
When all connections are ready, connect power and toggle the power switch. The power LED will come on to indicate the unit is active.

WGcloud DigiToolClient Communication Connection Setting Instruction

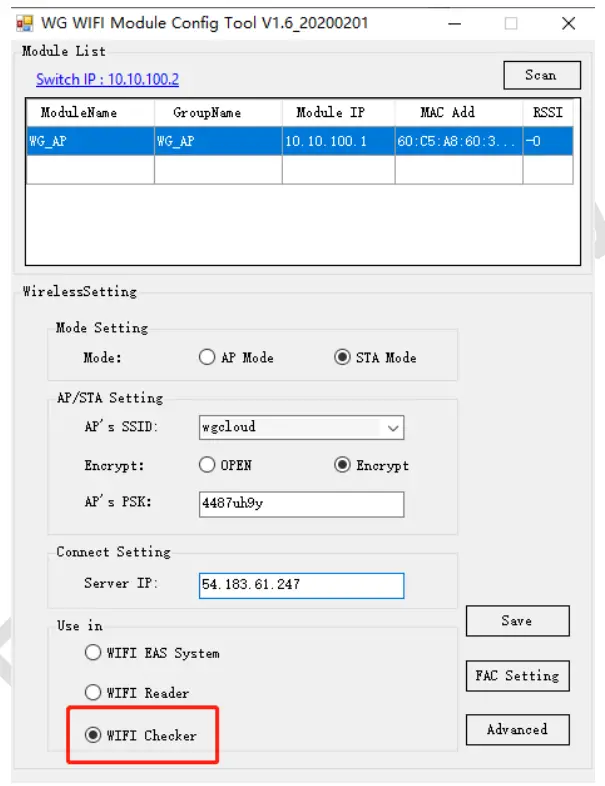

Factory settings of the WIFI Module are Sta mode. Set the wireless router to
AP’s SSDI: wgcloud
Pass Phrase: 4487uh9y
Server IP: 54.183.61.247

If router SSDI needs to be changed, the use in must be set to WiFi checker after changing through the configuration software

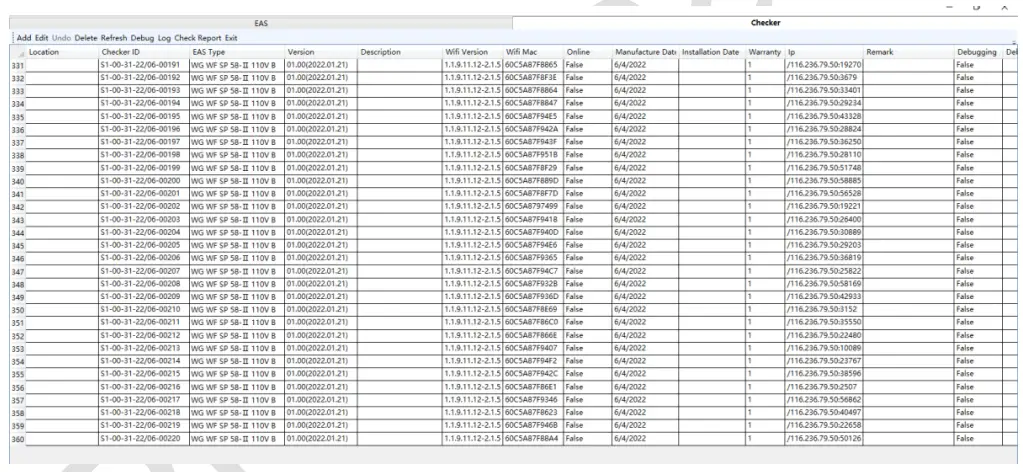

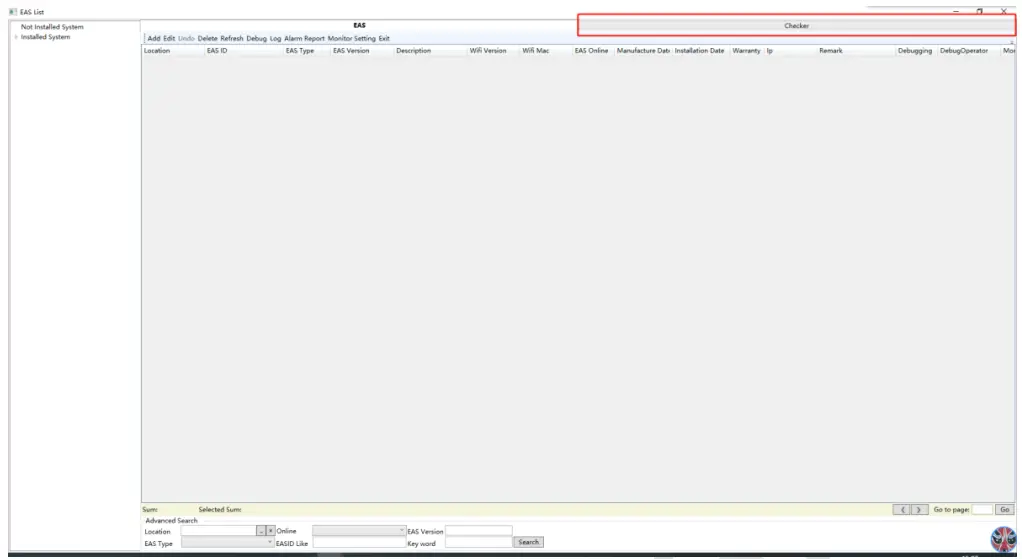

All WG WF SP are under the checker list.

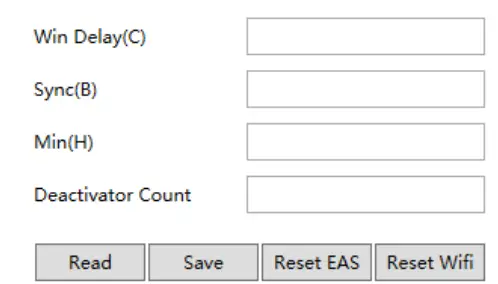

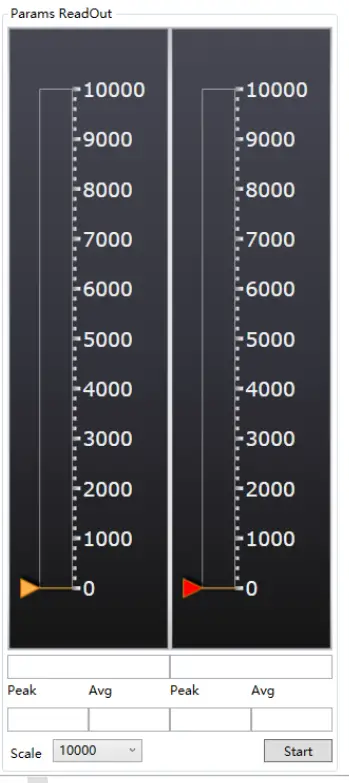

Enter into debug interface
