Supplementary information

Trace layout and dimensions including specific designs for each type:

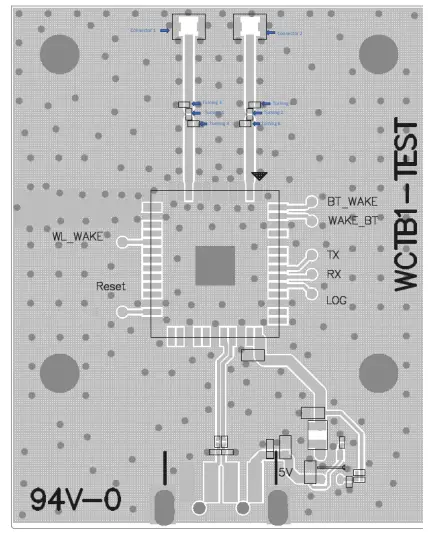

1. Layout of trace design, parts, antenna, connectors, and isolation requirements:
2. Boundary limits of size, thickness, length, width, shape(s), dielectric contain, and impedance must be clearly described for each type of antenna:

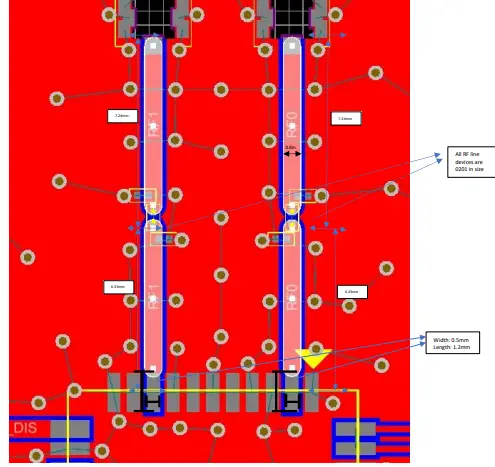

PCB Antenna trace antenna Dimension

: 0.33*0.33mm

Note:

1. RF trace between module RF pinout to antenna width is 0.8mm.
2. RF trace between module and antenna impedance is 0 ohm.

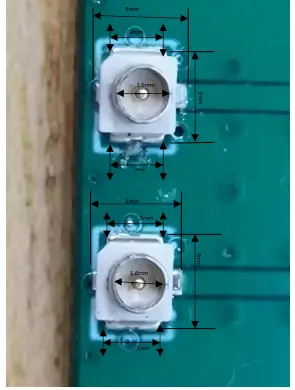

IPEX connector information

Size:

1. Different antenna length and shapes effect radiated emission and each design should be considered a different type:

2.4G WIFI:

Appropriate parts of manufacturers and specifications:
Information about devices on RF lines:

If customers completely refer to our antenna design for their own design, the antenna performance should also be the same as ours.

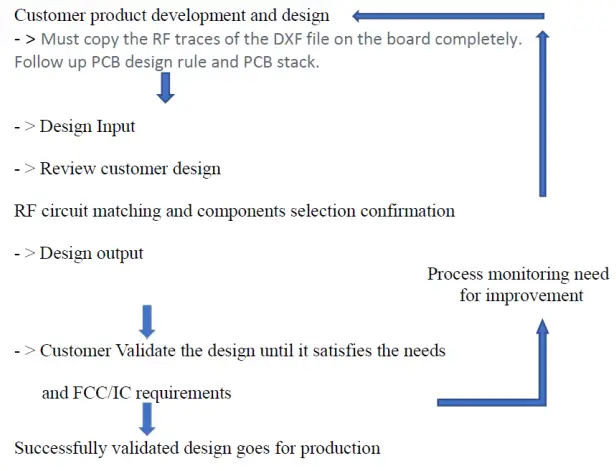

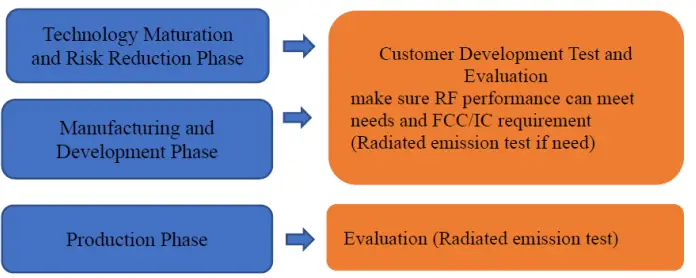

Production test procedures for ensuring compliance
