SWIVEL HEAD 2-IN-1 RIVETER
MODEL NO: AK3992
Instructions Manual
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble-free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
| Refer to instructions |
| Wear eye protection |
SAFETY
‰ WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this equipment.
Familiarise yourself with the application and the limitations of the riveter, as well as the potential hazards. Maintain the riveter in good condition (use an authorized service agent). Replace or repair damaged parts. Use genuine parts only. Unauthorized parts may be dangerous and will invalidate the warranty. Keep the work area clean, and uncluttered, and ensure there is adequate lighting. Keep the riveter clean for the best and safest performance. Check moving parts alignment on a regular basis.
DO NOT hold the workpiece by hand. Secure unstable workpiece with a clamp, vice, or another adequate holding device. Ensure the workpiece is correctly secured before using the riveter. DO NOT use the riveter for any purpose other than that it was designed for. DO NOT operate the riveter if any parts are damaged or missing, as this may cause failure and/or personal injury. When not in use store in a safe, dry, childproof location.
INTRODUCTION

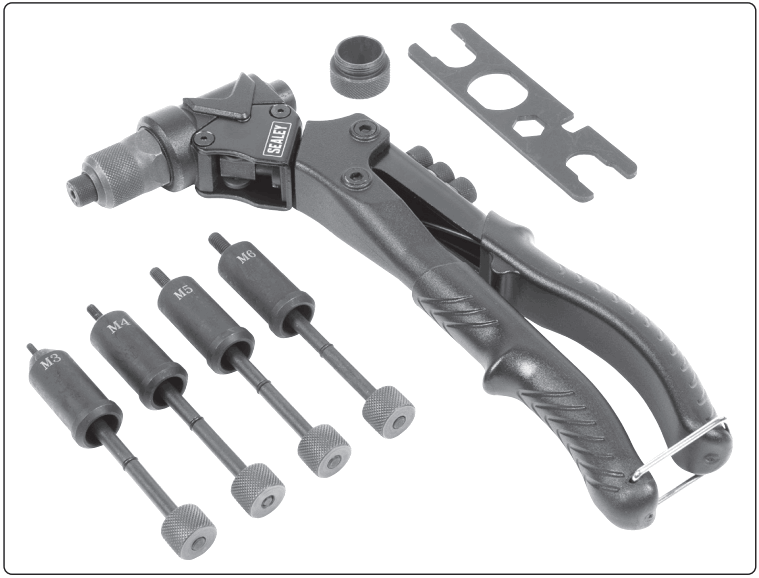

360° Swivel head gives greatly improved accessibility. Four nozzles for standard rivets and four mandrels for rivet nuts. Pressed steel body with cast swivel head and Chrome Molybdenum steel jaws. Rubber grip handle for added comfort. Supplied with nozzle spanner.
SPECIFICATION
Model no.: ……………………………………………………….AK3992
Includes Four nozzles for standard rivets (2.4mm(3/32”), 3.2mm(1/8”), 4mm(5/32”) and 4.8mm) and four mandrels for Rivet nuts. (M3, M4, M5, M6)
Length: …………………………………………………………….. 275mm
Rivet Types: Aluminium -Yes, Steel -Yes, Stainless Steel – Yes
OPERATION

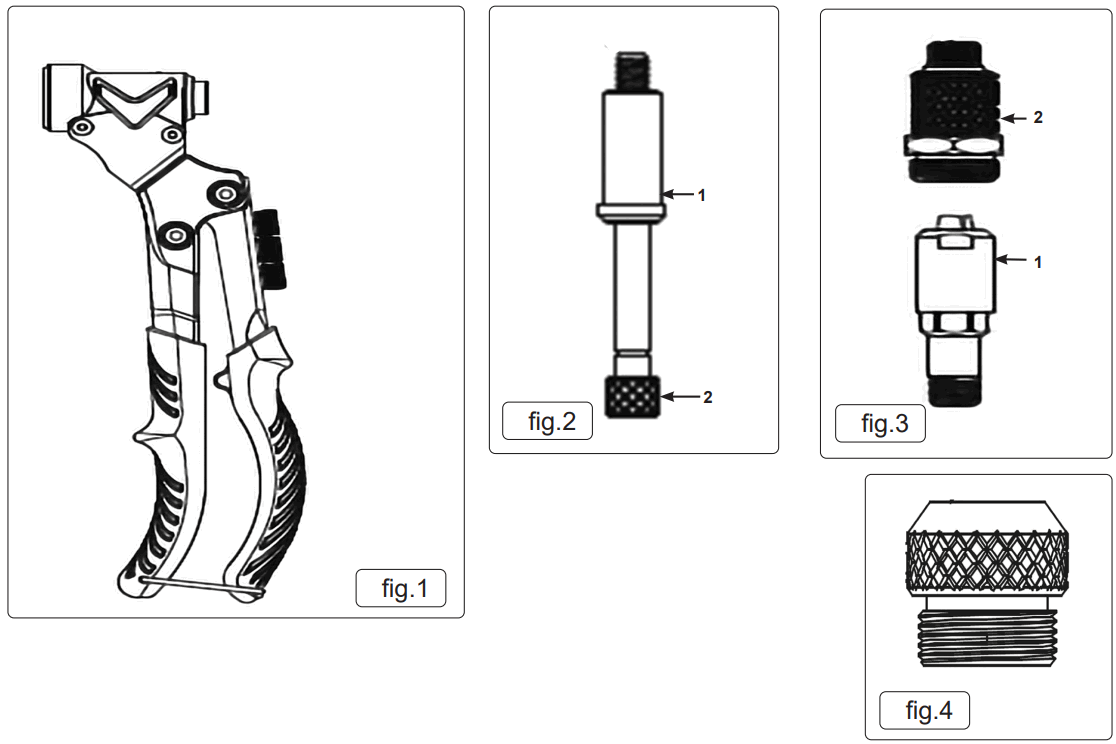

4.1. RIVETING (fig.3)
4.1.1. Screw collet (fig.3.1) firmly into Riveter body (fig.1).
4.1.2. Screw sleeve (fig.3.2) firmly into Riveter body (fig.1).
4.1.3. Select the appropriate nosepiece to suit the size of the rivet being used and screw it into the sleeve (fig 3.2).
4.2. RIVET NUT (fig.2)
4.2.1. Insert nut sleeve (fig.2.1) into Riveter body (fig.1).
4.2.2. Screw sleeve fixing nut (fig.4) firmly into Riveter body (fig.1).
4.2.3. Select the appropriate rivet nut pull rod (fig.2.2) to suit the size of the rivet nut being used and insert it into the rear of the Riveter body.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories, and packaging should be sorted, taken to a recycling center, and disposed of in a manner that is compatible with the environment. When the product becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications, and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Sealey Group, Kempson Way,
Suffolk Business Park, Bury St Edmunds,
Suffolk. IP32 7AR
01284 757500
01284 703534
[email protected]
www.sealey.co.uk
© Jack Sealey Limited
Original Language Version
AK3992 Issue 1 29/12/21
