Surebonder 8650 Heavy Duty 1-4 Inch Rivet Tool Instructions

#8650 – Heavy Duty 1/4″ Rivet Tool

Instructions:

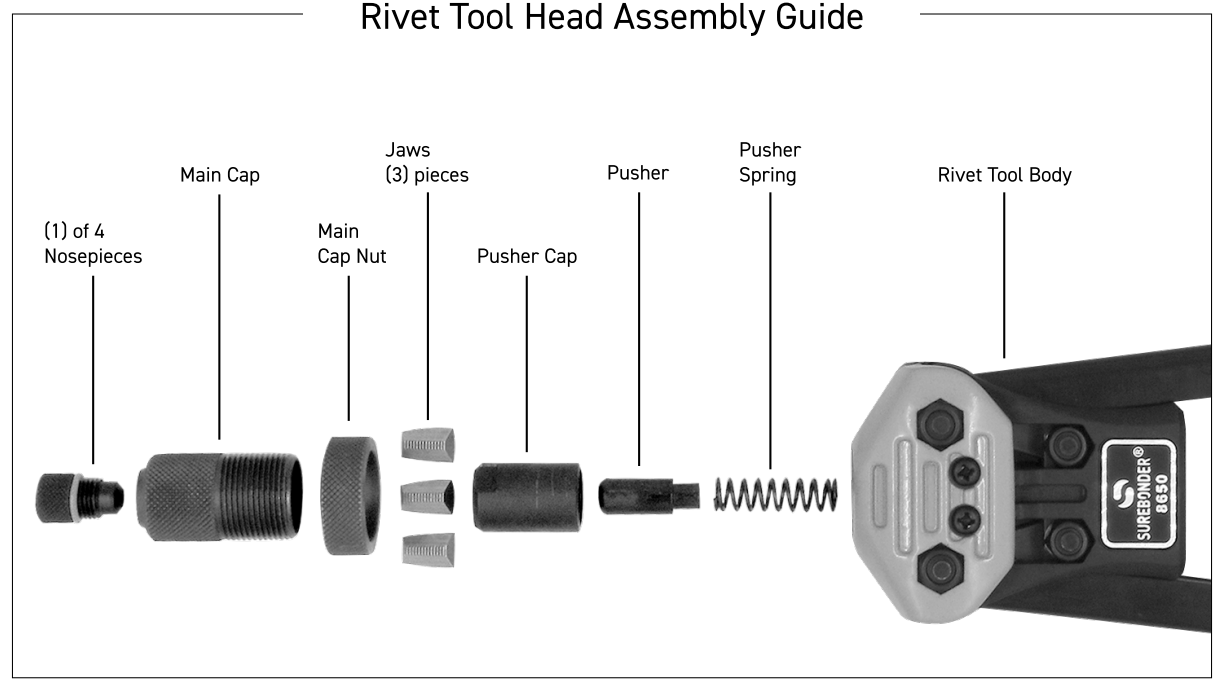

1. Select nosepiece for specific rivet.

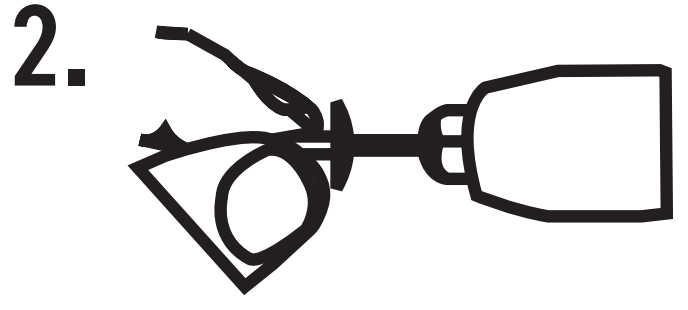

2. Open tool handles to insert rivet mandrel into nosepiece.

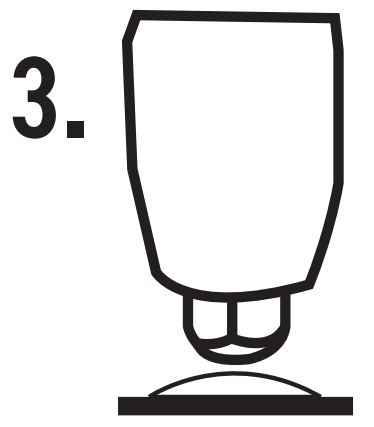

3. Insert rivet into hole and position tool

4. Squeeze handles together to set the rivet. If the rivet doesn’t set open handles and repeat until rivet is set.
5. When the rivet is set, open handles for the rivet mandrel to fall into the collection container.

FOR USE WITH

DIAMETER	3/32″	1/8″	5/32″	3/16″	1/4″
ALUMINUM
STEEL
STAINLESS

WARNING: Do not point the rivet tool at anyone, the rivet may fly when set. Always wear safety glasses when using this tool or any tool.
surebonder.com
WARNING: This product can expose you to phthalates that are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

© 2019 FPC Corporation
Wauconda, IL 60084
MADE IN CHINA
