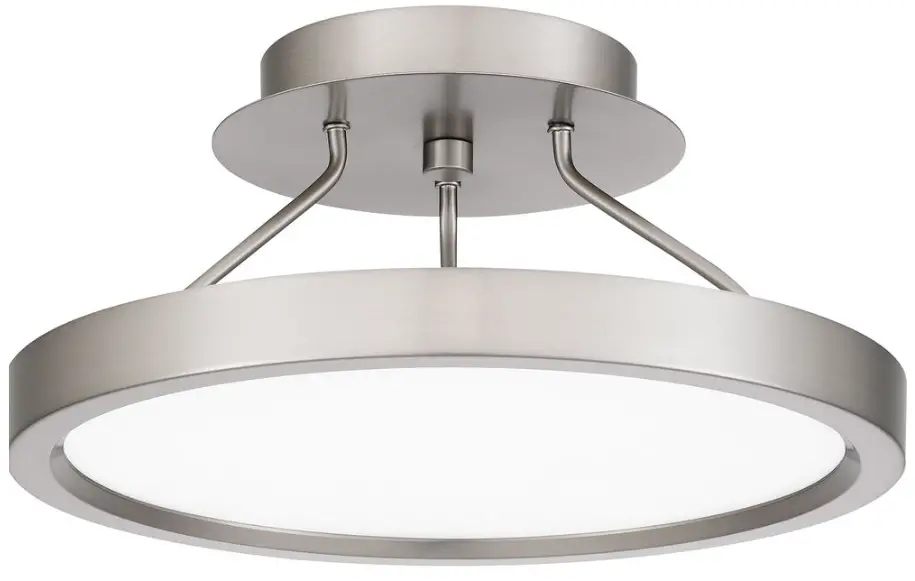

QUOIZEL OST1811BN Outskirts LED Semi-Flush Mount Ceiling Light
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
| Ratings | 120Vac, 60Hz | |
| Model No. | Wattage | |
| OST1811BN | 15W | |
| OST1811EK | 15W | |
| OST1815BN | 30W | |
| OST1815EK | 30W | |
| OST1820BN | 30W | |
| OST1820EK | 30W | |

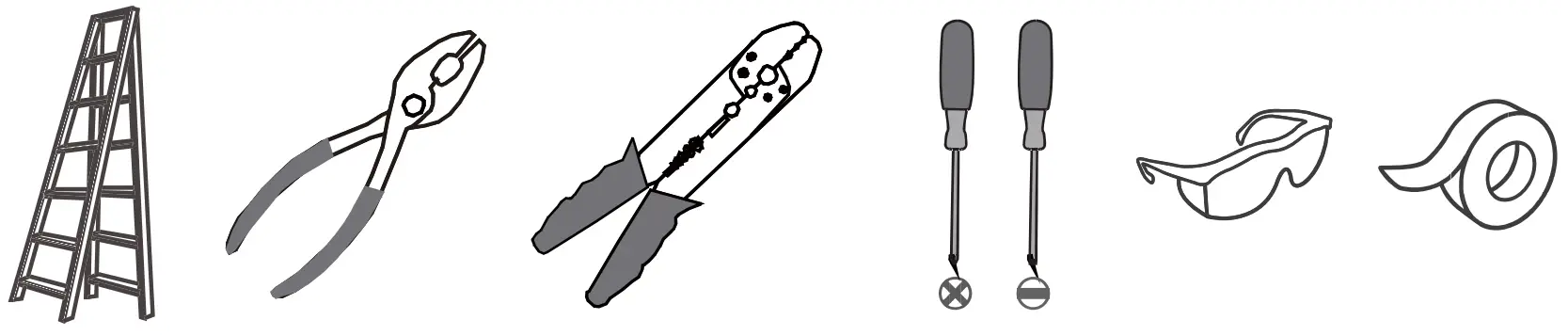

TOOLS REQUIRED
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.
PACKAGE CONTENTS

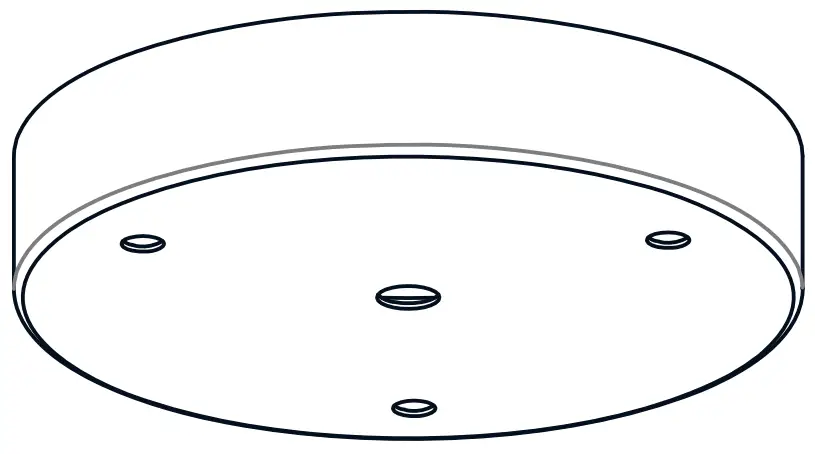

- A Ceiling Canopy x 1

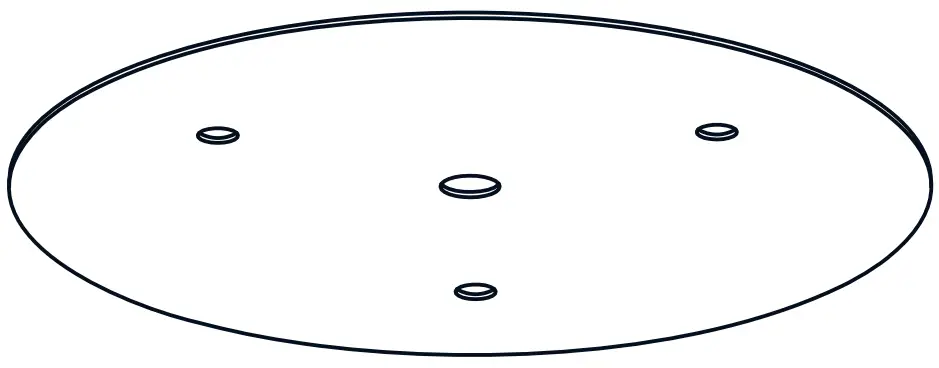

- B Floating x 1

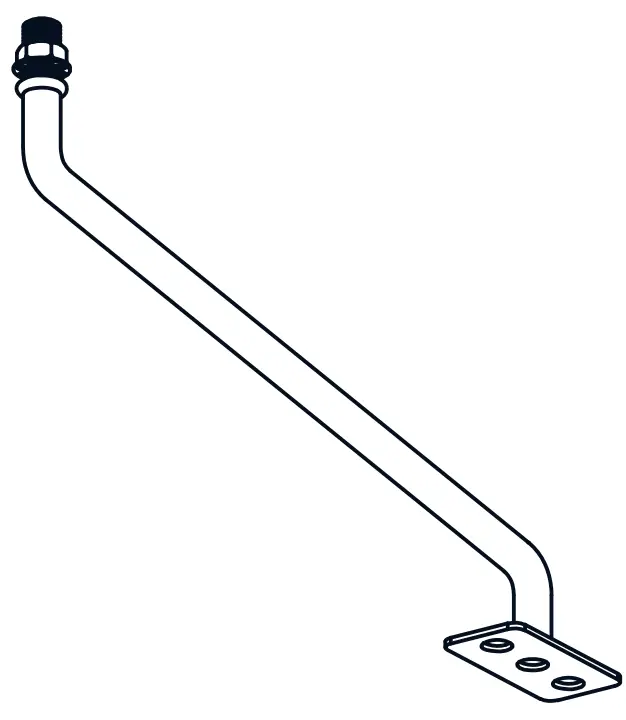

- C Support Arm x 3

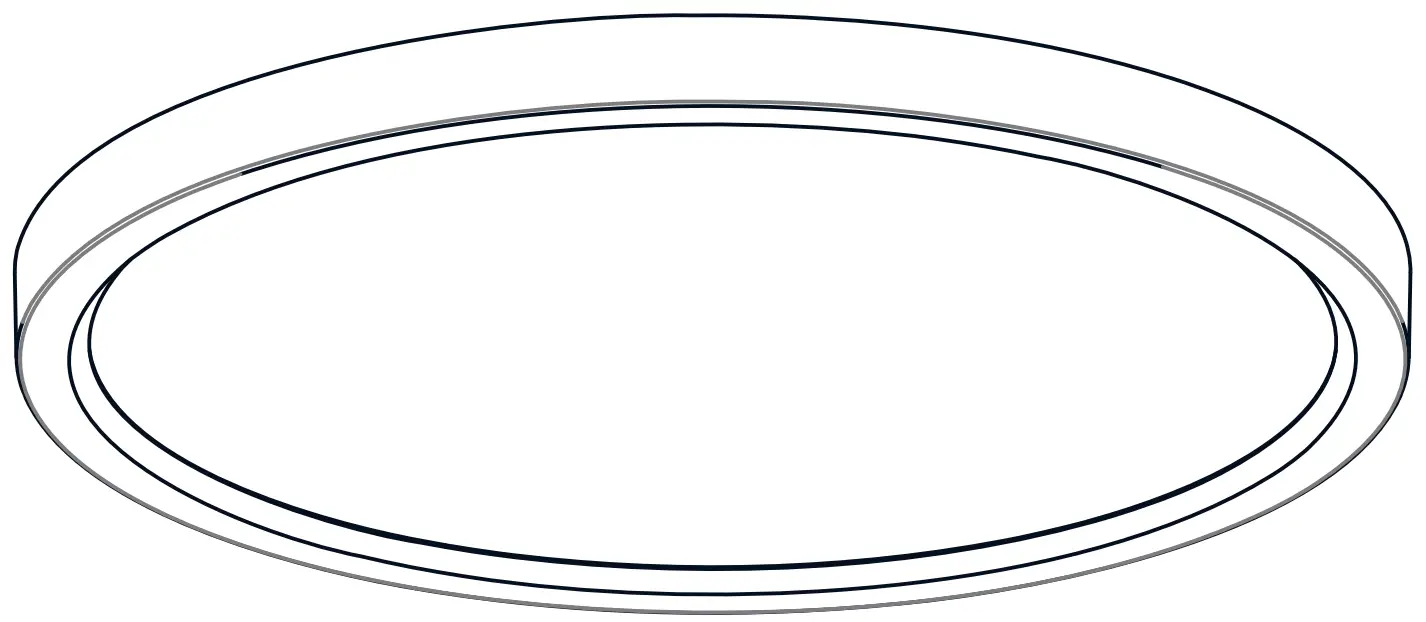

- D Fixture Body x 1
MOUNTING HARDWARE

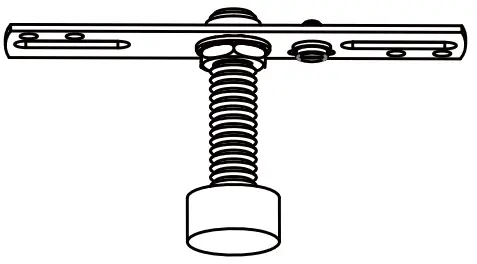

- AA Crossbar Assembly x 1

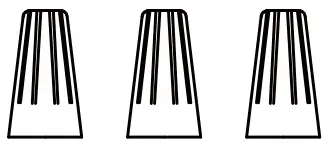

- BB Wire Connector x 3
- CC Outlet Box Screw x 2

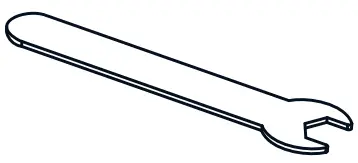

- DD Wrench x 1
INSTALLATION

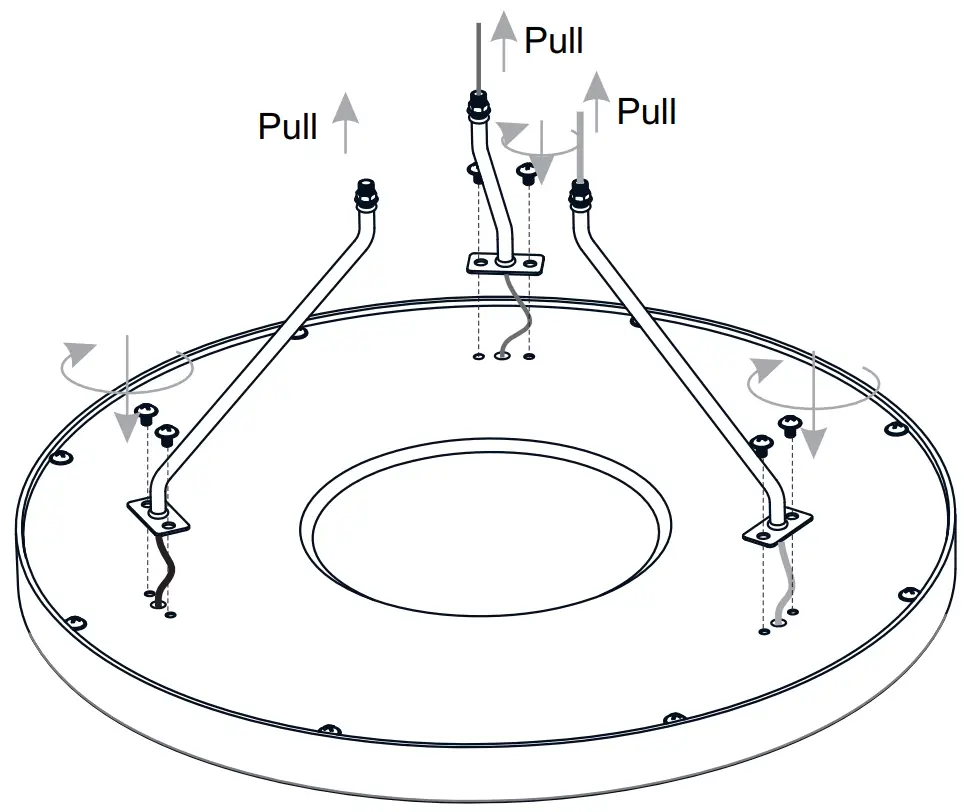

- Install Support Arms
Carefully pull wires during assembly
- Install Floating and Ceiling Canopy

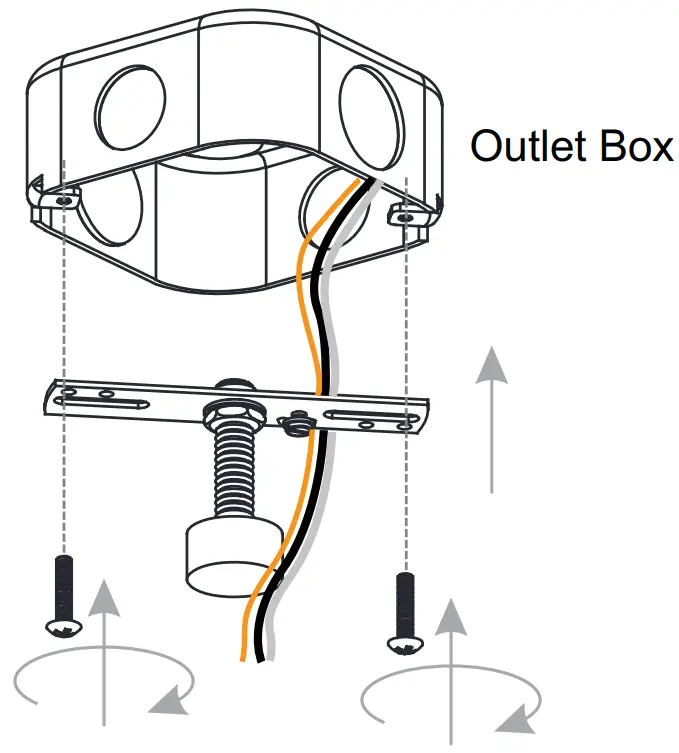

- Install Crossbar Assembly

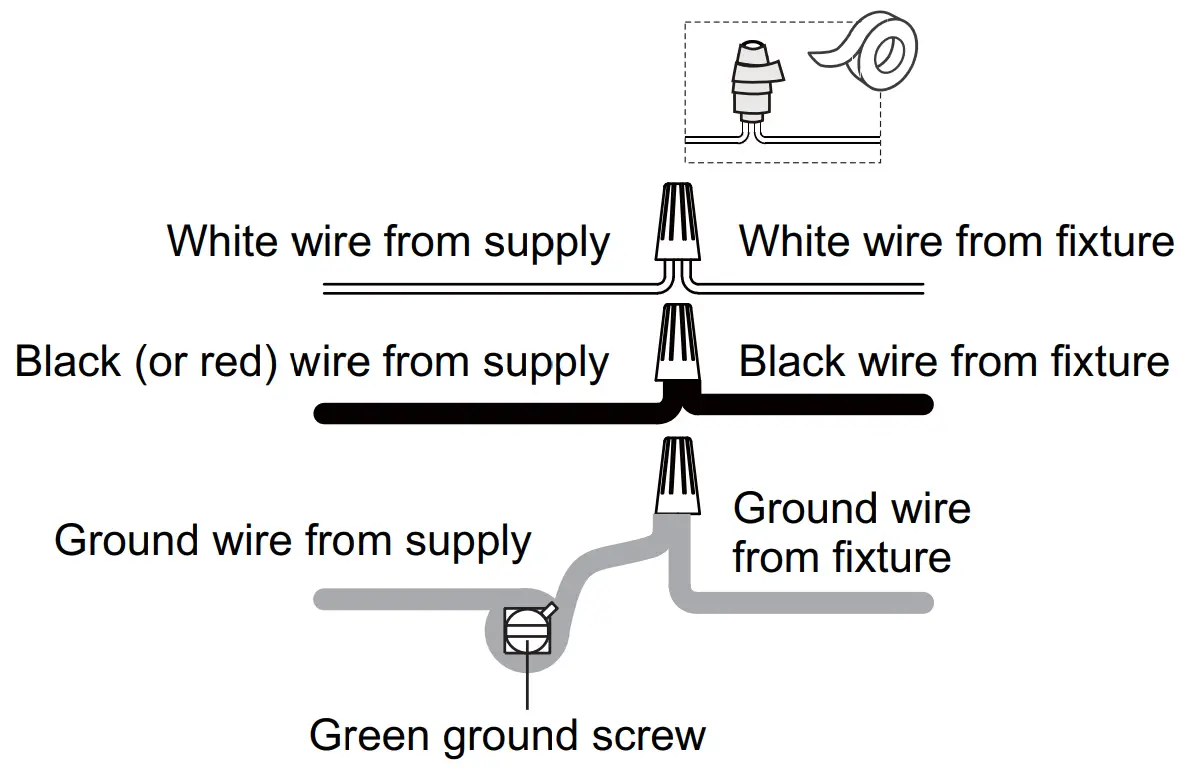

- Wiring

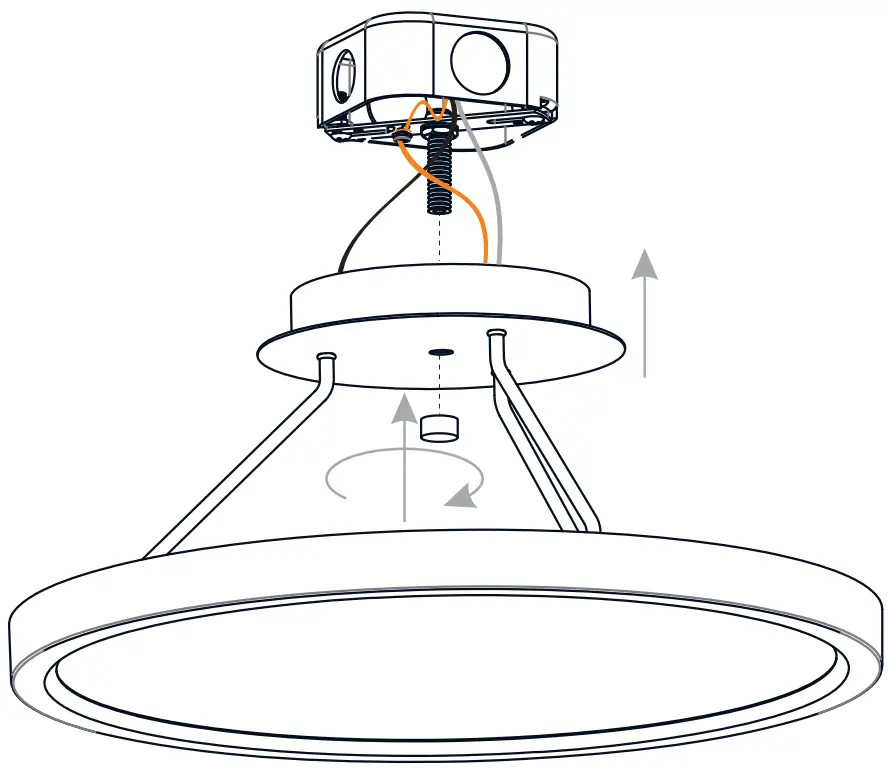

- Install Ceiling Canopy to Crossbar Assembly
Your installation is now complete! Restore electricity and save this sheet for future reference.
Quoizel | Artisans In Lighting
