Hard Head 018984 Remote Control For Garage Door Opener Instruction Manual

Hard Head 018984 Remote Control for Garage Door Opener Instruction Manual

 Important! Read the user instructions carefully before use. Save them for future reference.
(Translation of the original instructions)

SAFETY INSTRUCTIONS

SYMBOLS

	Read the instructions.
	Approved in accordance with the relevant directives.
	Recycle discarded product in accordance with local regulations.

TECHNICAL DATA

DESCRIPTION

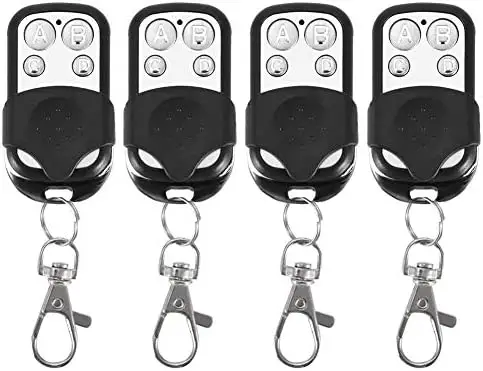

Remote control to control Hard Head garage door opener (018-980). Powered by 1 E27A 12V battery (included). Place on in each car or buy one in reserve.

USE

Apply access code

1. Plug in the plug. H flashes in the display and the light goes on. The unit is in standby mode (figure 1).
2. Press the LEARN button on the opener for at least 2 seconds.
   • is shown on the display (figure 2). Press the button on the remote control to control the garage door twice.
   • flashes several times, after which H is shown (figure 3).
3. The code has been learned by the opener.

NOTE:
Repeat the above steps if codes for additional remote controls are to be learned. The opener can learn codes for up to 10 remote controls.

Erase all remote control codes

Press and hold the LEARN button on the opener.
is shown on the display and switches to H. When H flashes on the display the codes are erased (figure 4).

NOTE:
The keypad will also be erased together with the remotes.

Using the remote control

Each of the 4 buttons on the remote control can be programmed to control 4 different garage door openers. When the button is programmed it can be used to switch the running sequence(open-stop-closestop-open).

EU DECLARATION OF CONFORMITY

Item number
018984

This declaration of conformity is issued under the sole responsibility of the manufacture.

REMOTE

Conforms to the following directives, regulations and standards:

This product was CE marked in year.

Skara 2021-11-26

Important! Read the user instructions carefully before use. Save them for future reference. Jula reserves the right to make changes. For latest version of operating instructions, see www.jula.com

JULA AB, BOX 363, SE-532 24 SKARA
© Jula AB 2022-06-30
