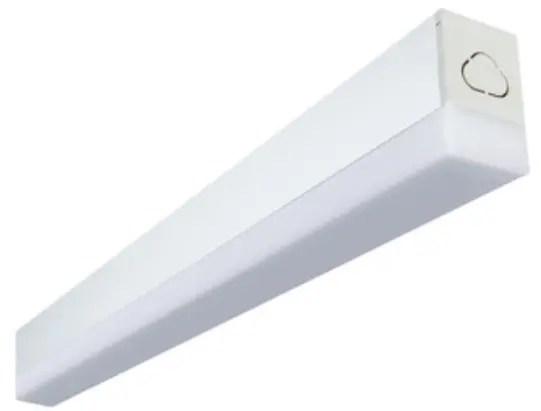

THORN L580 EQUALINE MINI Hanging Light Fixture
WARNING
- Installation and commissioning may only be carried out by authorized specialists and wired in accordance with the latest IEE electrical regulations or the national standards.
- Malns power must be switched off before carrying out installation.
- Lighting source and driver can’t be replaced.
- Indoor use only.
| Product Description | Wattage | Max.number linkable |
| EQUAMINI L580 LED950-830 | 9W | 40pcs |
| EQUAMINI L580 LED1050-840 | 9W | 40pcs |
| EQUAMINI L580 LED1900-830 HFX | 19W | 20pcs |
| EQUAMINI L580 LED2100-840 HFX | 19W | 20pcs |
| EQUAMINI L1180 LED1900-830 | 18W | 20pcs |
| EQUAMINI L1180 LED2100-840 | 18W | 20pcs |
| EQUAMINI L1180 LED3800-830 HFX | 37W | 10pcs |
| EQUAMINI L1180 LED4200-840 HFX | 37W | 10pcs |
| EQUAMINI L580 LED950-830 SD | 9W | 40pcs |
| EQUAMINI L580 LED1050-840 SD | 9W | 40pcs |
| EQUAMINI L580 LED1900-830 HFX SD | 19W | 20pcs |
| EQUAMINI L580 LED2100-840 HFX SD | 19W | 20pcs |
| EQUAMINI L1180 LED1900-830 SD | 18W | 20pcs |
| EQUAMINI L1180 LED2100-840 SD | 18W | 20pcs |
| EQUAMINI L1180 LED3800-830 HFX SD | 37W | 10pcs |
| EQUAMINI L1180 LED4200-840 HFX SD | 37W | 10pcs |

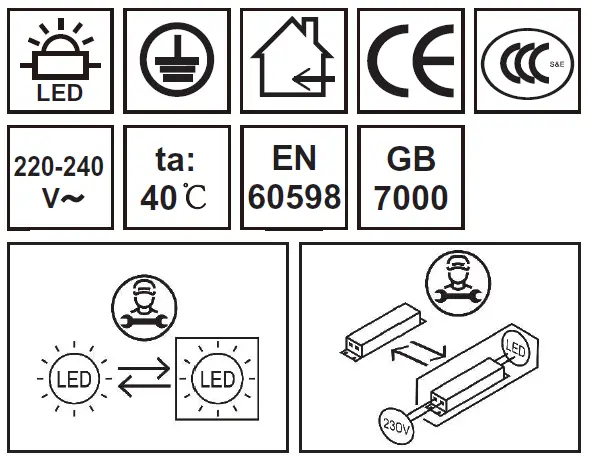

FEATURES

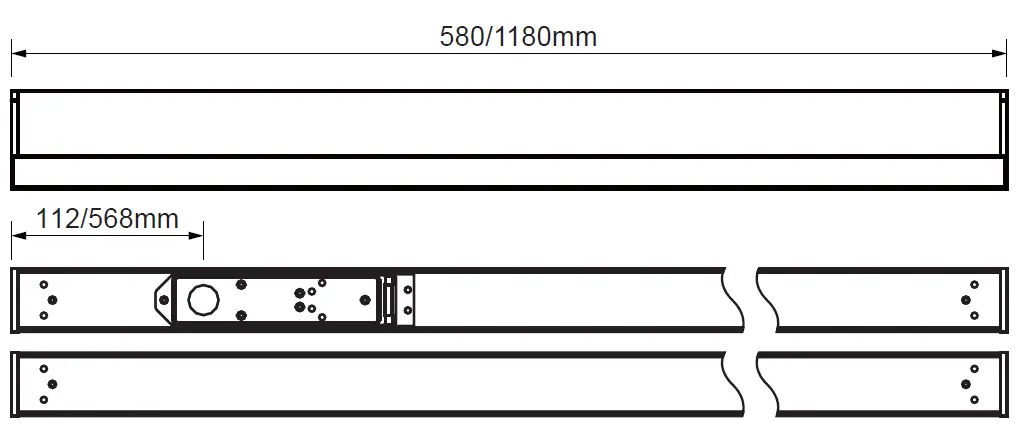

DIMENSION

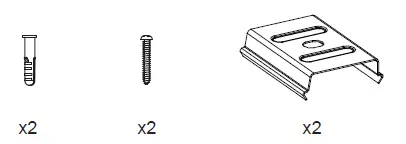

PARTS

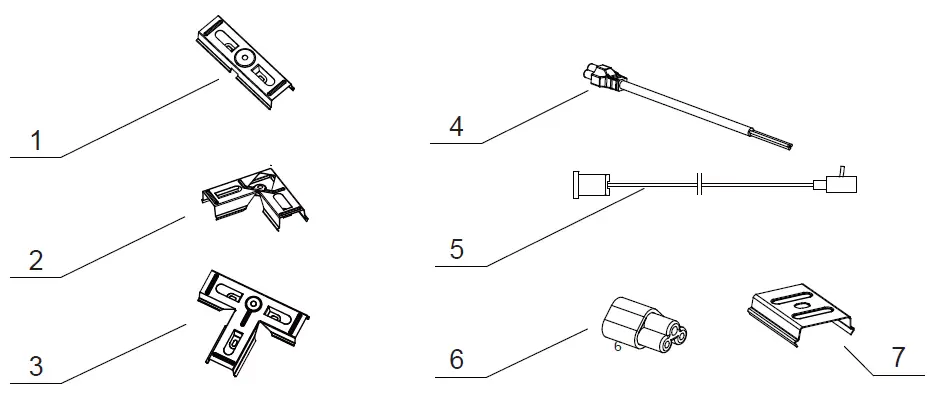

Accessories (need to be ordered separately)
| 1 | EQUAMINI I BRACKET | 22660831 |
| 2 | EQUAMINI L BRACKET | 22660840 |
| 3 | EQUAMINI T BRACKET | 22660832 |
| 4 | EQUAMINI SIDE FEED IN CABLE 300MM | 96630784 |
| 5 | EQUAMINI SUSPENSION KIT PAIR 1500 | 59010273 |
| 6 | EQUAMINI ELECTRICAL CONNECTOR | 96630783 |
| 7 | EQUAMINI STANDARD MOUNT BRACKET | 59019993 |
INSTALLATION INSTRUCTIONS

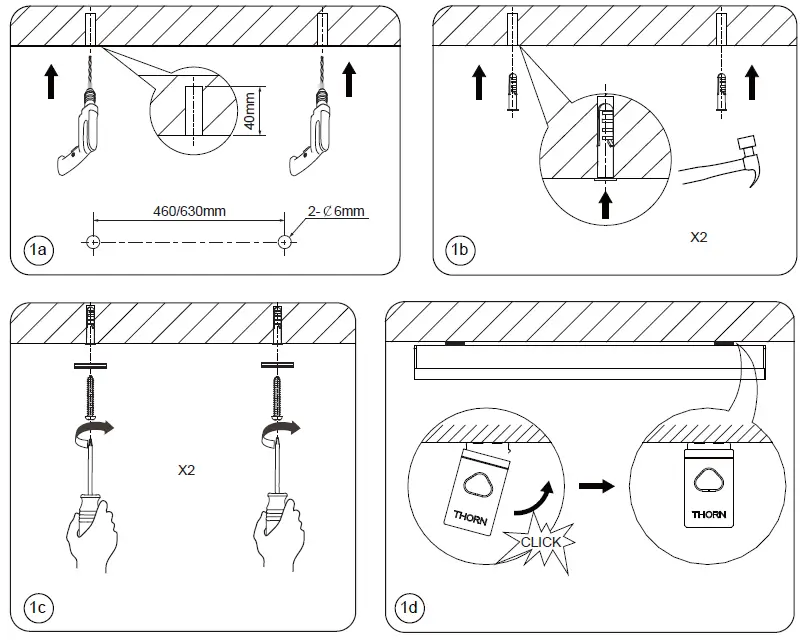

Surface mount（Horizontal installation is prefer）

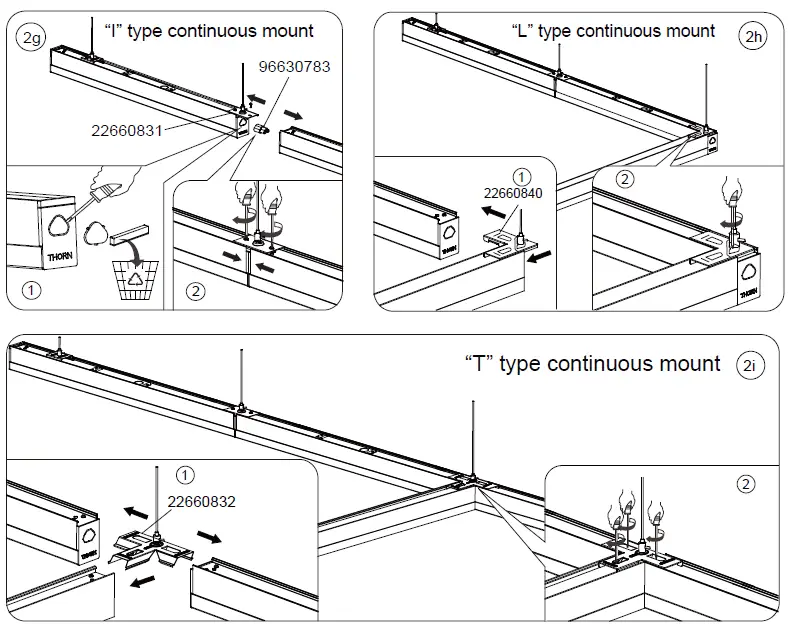

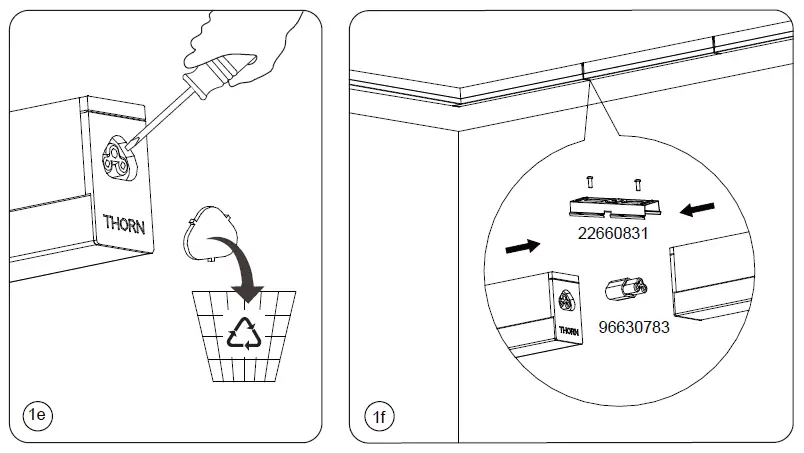

Surface continuous mount

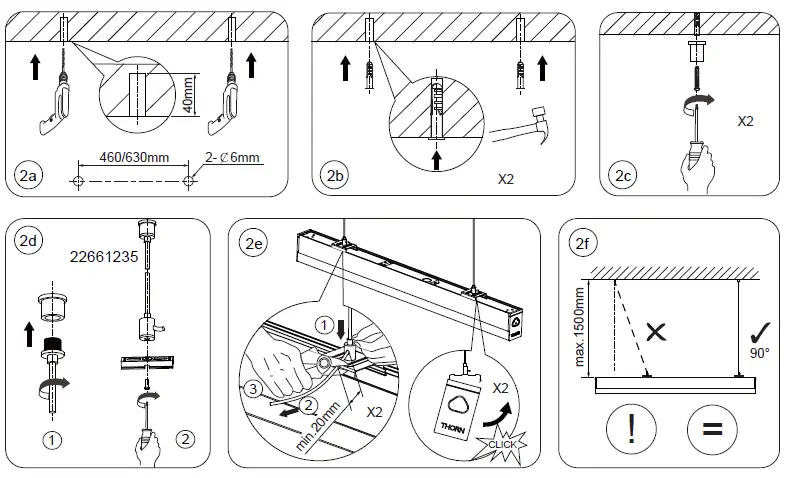

Suspended mount

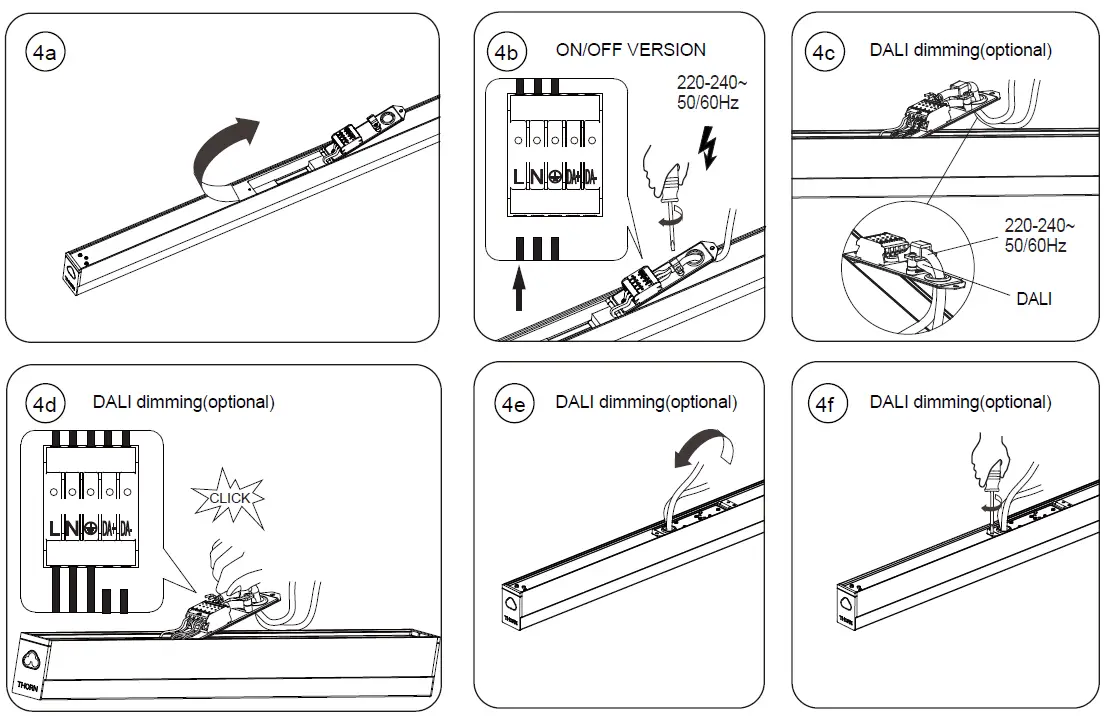

Mains and dimming connection (Endcap side cable feed in)
Mains and dimming connection (back side cable feed in)
Information on replaceability
