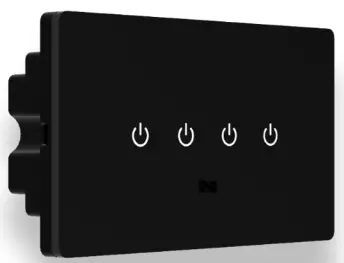

KASTA H1CSB Hesperus Touch Remote Switch

Important Safety Information

• This product must be installed by a licensed electrician in accordance with all the requirements of AS/NZS 3000 (current edition) and other relevant Standards and Regulations.
• Electricity MUST be disconnected prior to installation. Failure to do so may result in serious injury and or loss of life.
• Indoor use only. Not suitable for damp or explosive environments.
• Complies to Australian Standards AS/NZS 60950.1:2015, AS/NZS CISPR 15.
• No user serviceable parts inside.

FEATURES

• Mains-powered capacitive touch remote switch mechanism.
• Simple 2 wire connection – A, N (LOOP available).
• Pairs to existing hard-wired KASTA devices including Switch Relays, Dimmers, Curtain controllers and many other devices.
• Configure smart functions via the KASTA app such as timers, scenes and groups as well as button indicator backlight.
• Fits most Australian Standard wall mounting accessories.
• Integral white backlight.
• To prevent a reduction in Bluetooth ® signal strength, install away from metal objects.

FUNCTION SETUP

• ON/OFF 1 PRESS
  Turns paired device on or off. When paired with a dimmable light, light will adjust to previous brightness level.
• DIM UP/DOWN ONE LONG PRESS
  When paired with a light, long press button to dim up or down. Release button to stop.
• FULL BRIGHTNESS 2 PRESSES
  When paired with a light, sets light to full brightness.
• DELAY TO OFF 3 PRESSES*
  Paired device turns off automatically after a set time (comfigured in the app). Single click to cancel.
• VARIABLE 4 PRESSES*
  Refer to the paired device for functionality.
• VARIABLE 5 PRESSES*
  Refer to the paired device for functionality.
• BACKLIGHT 7 PRESSES*
  Enable 10% backlight brightness. 7 presses to disable.
• FACTORY RESET 9 PRESSES
  9 clicks of any button, restores all settings back to the factory. If successful, the white LED indicator will flash once.

APP ENABLED FUNCTION

• RETRIGGER TIMER 1 PRESS

Commence timer (on/off). Function must be programmed through the KASTA app first.

TECHNICAL SPECIFICATIONS

• Operating Temp: -20ºc to 40ºc
• Supply: 220-240V AC 50Hz

CONNECTION DIAGRAM

APP Installation
Visit www.kasta.com.au or your app store to download the free KASTA app. iOS: requires iOS 9.0 or later. Android: requires Android 4.4 or later. Devices must support Bluetooth 4.0
