Installation InstructionsHESPERUS Presence Touch Remote Switch

Product Code: H1CSB/H2CSB/H3CSB/ H4CSB/H6CSB

Contents hide

1 APP Installation

2 Important Safety Information

3 FEATURES

4 FUNCTION SETUP

5 APP ENABLED FUNCTION

6 TECHNICAL SPECIFICATIONS

7 CONNECTION DIAGRAM

8 Documents / Resources

8.1 References

9 Related Posts

APP Installation

Visit www.kasta.com.au or your app store to download the free KASTA app. iOS: requires iOS 9.0 or later.
Android: requires Android 4.4 or later. Devices must support Bluetooth 4.0

Important Safety Information

This product must be installed by a licensed electrician in accordance with all the requirements of AS/NZS 3000 (current edition) and other relevant Standards and Regulations.
Electricity MUST be disconnected prior to installation. Failure to do so may result in serious injury and or loss of life.
Indoor use only. Not suitable for damp or explosive environments.
Complies to Australian Standards AS/NZS 60950.1:2015, AS/NZS CISPR 15.
No user-serviceable parts inside.

FEATURES

Mains-powered capacitive touch remote switch mechanism.

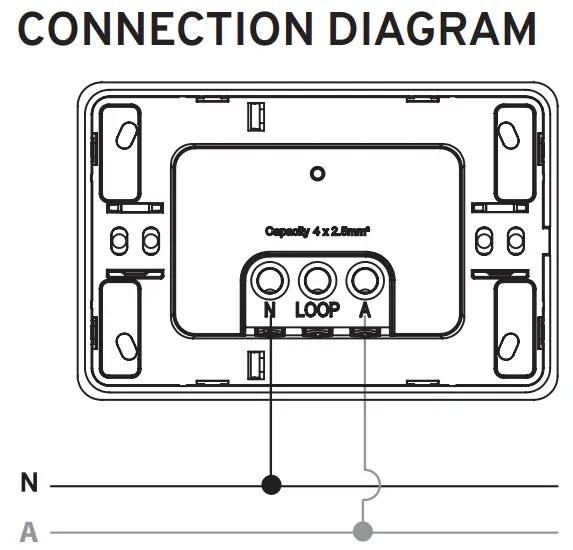

Simple 2 wire connection A, N (LOOP available).
Pairs to existing hard wired KASTA devices including Switch Relays, Dimmers, Curtain controllers, and many other devices.
Configure smart functions via the KASTA app such as timers, scenes, and groups as well as button indicator backlight.
Fits most Australian Standard wall mounting accessories.
Integral white backlight.
To prevent a reduction in Bluetooth ® signal strength, install it away from metal objects.

FUNCTION SETUP

ON/OFF	1 PRESS
Turns paired device on or off. When paired with a dimmable light, light will adjust to previous brightness level.
DIM UP/DOWN	ONE LONG PRESS
When paired with a light, long press button to dim up or down. Release button to stop.
FULL BRIGHTNESS	2 PRESSES
When paired with a light, sets light to full brightness.
DELAY TO OFF	3 PRESSES*
Paired device turns off automatically after a set time (comfigured in the app). Single click to cancel.
VARIABLE	4 PRESSES*
Refer to the paired device for functionality.
VARIABLE	5 PRESSES*
Refer to the paired device for functionality.
BACKLIGHT	7 PRESSES*
Enable 10% backlight brightness. 7 presses to disable.
FACTORY RESET	9 PRESSES
9 clicks of any button, restores all settings back to factory. *If successful, the white LED indicator will flash once.
