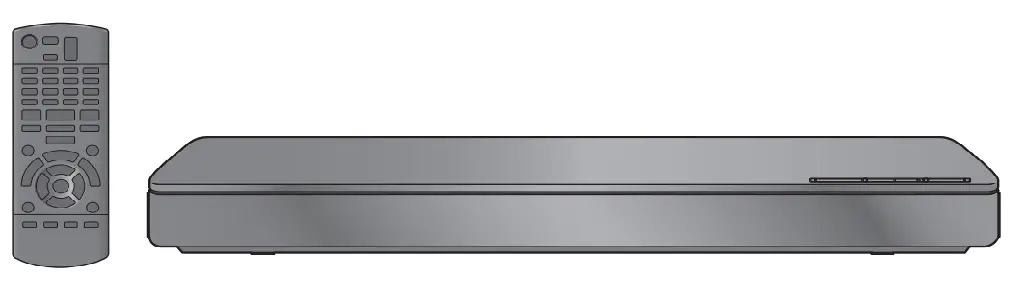

Panasonic DMP-BDT371 Blu-Ray players

Accessories

Check the supplied accessories before using this unit.

1. Remote control (N2QAYB001031)
2. Batteries for remote control
   AC mains lead

• Product numbers are provided in these operating instructions correctly as of January 2015. These may be subject to change.
• Do not use AC mains lead with other equipment.

Using the remote control

Insert the batteries to the terminal so that it (i and j) matches those in the remote control.
Point it at the remote control signal sensor on this unit. ( 9)

Unit and media care

Clean this unit with a soft, dry cloth

• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, carefully read the instructions that came with the cloth.

This unit’s lens
Use the lens cleaner (not supplied) to clean the unit’s lens.

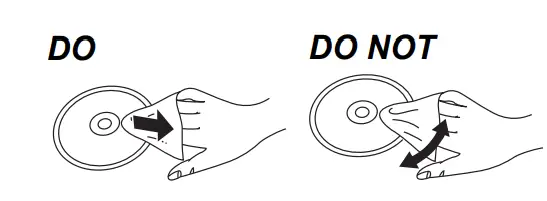

Clean discs
Wipe with a damp cloth and then wipe dry with a dry cloth.

Disc handling precautions

• Handle discs by the edges to avoid inadvertent scratches or fingerprints on the disc.
• Do not attach labels or stickers to discs.
• Do not use disc cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
• Do not use the following discs:
  • Discs with exposed adhesive from removed stickers or labels (rented discs, etc.).
  • Discs that are badly warped or cracked.
  • Irregularly shaped discs, such as heart shapes.

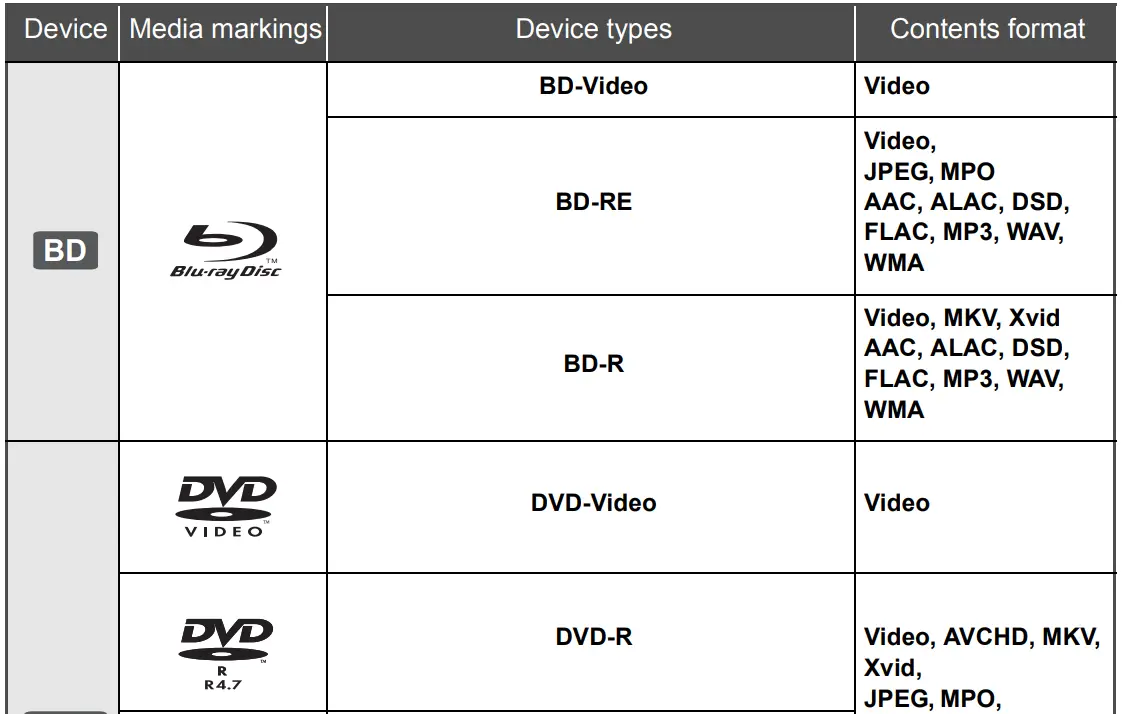

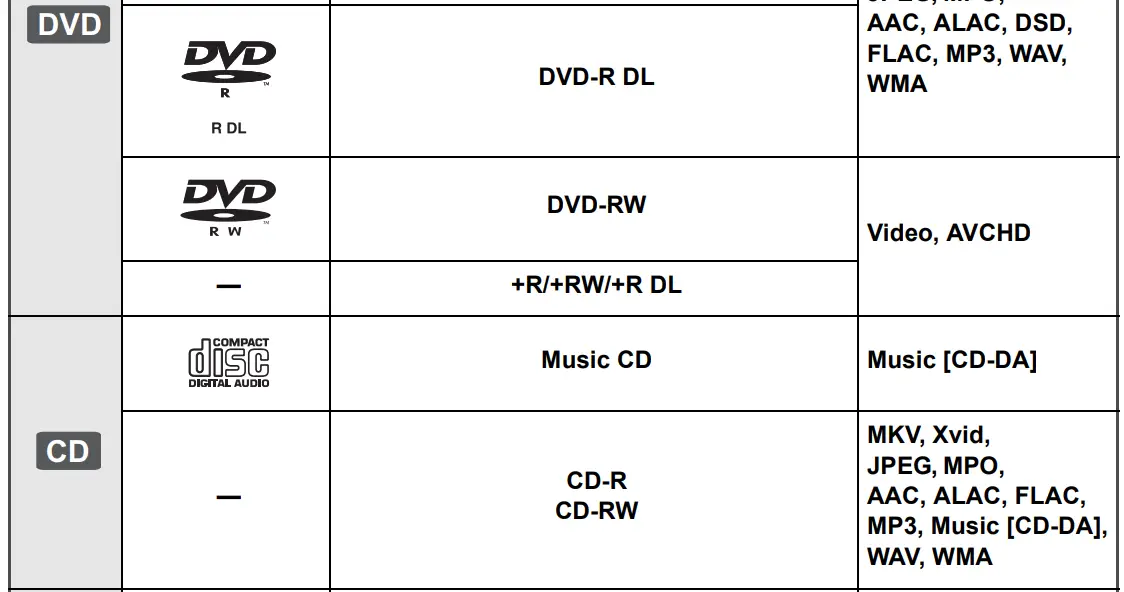

Playable media

Types of discs that cannot be played by this unit
Any other disc that is not specifically supported or previously described.

• DVD-RAM
• Super Audio CD
• Photo CD
• DVD-Audio
• Video CD and Super Video CD
• HD DVD

Region management information

The unit can play back BD-Video/DVD-Video discs of the following regions codes, including “ALL”:

Finalize
Any DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW that are recorded by a recorder need to be finalized by the recorder to play on this unit. Please refer to the recorder’s instructions.
BD-Video

• This unit supports high bit rate audio (Dolby® Digital Plus, Dolby® TrueHD, DTS-HD High-Resolution AudioTM and DTS-HD Master AudioTM) adopted in BD-Video.
• If “Dolby D/Dolby D +/Dolby TrueHD” is set to “PCM” and “DTS Neo:6” is set to “Off”, the maximum possible number of Dolby®’s sound is 5.1ch PCM. ( 25)

3D

• 3D videos and 3D still pictures can be played back when this unit is connected to a 3D-compatible TV using a High-Speed HDMI Cable.
• 2D video can be enjoyed as 3D virtually. ( 23)

Music CD
Operation and sound quality of CDs that do not comply with CD-DA specifications (copy control CDs, etc.) cannot be guaranteed to work.
USB device

• This unit does not guarantee connection with all USB devices.
• This unit does not support USB device charging.
• FAT12, FAT16, FAT32, and NTFS file systems are supported.
• This unit supports USB2.0 High Speed.
• This unit supports an HDD formatted in FAT32 and NTFS. If the HDD is not recognized, the power to the HDD may not be supplied. Supply power from an external source.

BD-RE, BD-R
Discs recorded in DR mode using Panasonic Blu-ray Disc recorders may not play back the audio etc., correctly.

• It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the recording method, and how the files were created.
• The producers of the disc can control how discs are played, so you may not always be able to control play as described in these operating instructions. Read the disc’s instructions carefully.

Control reference guide

When other Panasonic devices respond to the remote control of the unit, change the remote control code. ( 28)

1. Turn the unit on and off
2. TV operation buttons
   You can operate the Panasonic TV using this unit’s remote control. Some buttons may not work depending on the TV.
   POWER ON : Turn the TV on and off
   [AV]: Change input
   [+ -VOL] : Adjust the volume
3. Select title numbers, etc./Enter numbers or characters
4. Cancel
5. Change soundtrack ( 16)
6. Basic playback control buttons ( 16)
7. Show Pop-up menu ( 16)
8. Show Top menu ( 16)
9. Show Option menu ( 22)
10. Coloured buttons (red, green, yellow, blue)
    Used for various purposes depending on the display
11. Transmit the remote control signal
12. Open or close the disc tray ( 14)
13. Show the status messages ( 17)

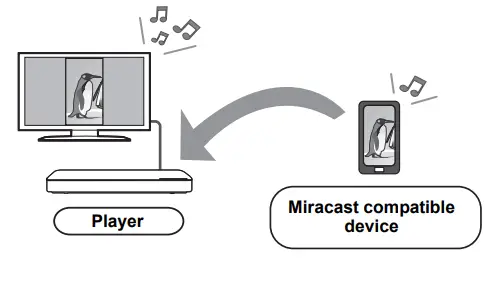

14. Show MiracastTM screen ( 19)
15. Show the Home Screen of the Network Service ( 18)
16. Exit the Menu screen
17. Show Netflix screen ( 18)
18. Show HOME menu ( 15)
19. [] : Move the highlight for selection
    [OK] : Confirm the selection
    () : Frame-by-frame ( 16)
20. Return to the previous screen

Available keys for HDMI CEC ( 21)

• 3 Number keys
• 6 Basic playback control buttons
• 9 Option button
• 10 Coloured buttons (red, green, yellow, blue)
• 16 Exit button
• 19/[OK] button
• 20 Return button

1. Disc tray ( 14)
2. Remote control signal sensor
   Distance: Within approx. 7 m
   Angle: Approx. 20e up and down, 30e left and right
3. USB ports ( 14)
4. Display
5. Open or close the disc tray ( 14)
6. Stop ( 16)
7. Start play ( 16)
8. Standby/on switch (Í/I) ( 13)
   Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.
   Rear panel terminals ( 10–12)

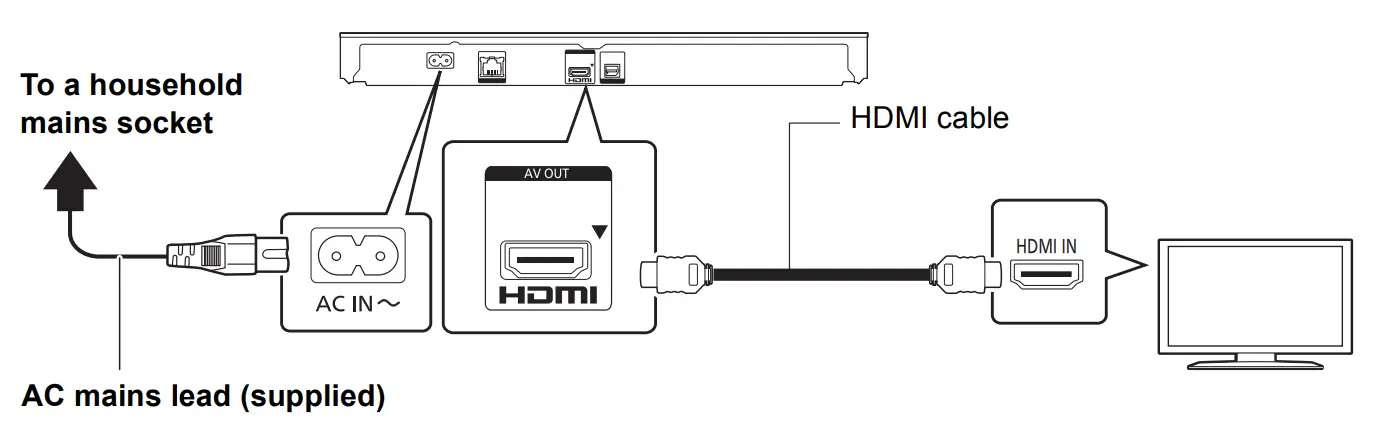

Connecting to a TV

Connect the AC mains lead after making all connections.

• Before making any connections, we recommend that you temporarily disconnect all the units from AC power.
• Use the High-Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized.
  It is recommended that you use Panasonic’s HDMI cable. When outputting a 1080p or 24p (4K) signal, please use HDMI cables 5.0 meters or less.
• This unit consumes a small amount of AC power ( 33) even when turned off in standby mode. For the purpose of energy conservation, the unit should be disconnected if you will not be using it for extended period of time.

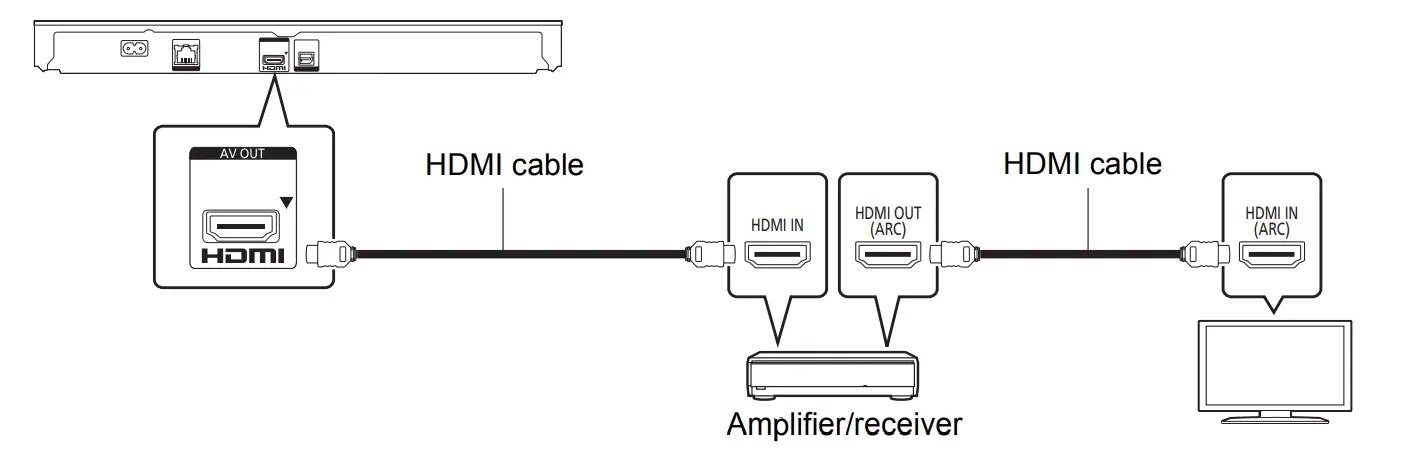

Connecting to an amplifier/receiver

Perform either one of the following connections in accordance with your amplifier/receiver input terminal.

HDMI AV OUT

• Set “Digital Audio Output” ( 25).
• When connecting to a non-3D or 4K compatible amplifier/receiver, connect this unit to a TV, then connect the TV and the amplifier/receiver. Please note, however, that the audio can only be up to 5.1ch.
• When using the TV or amplifier/receiver that does not have the indication of “(ARC)” (non-ARC-compatible) on the HDMI terminal, the amplifier/receiver and TV must also be connected using an optical digital cable in order to enjoy the TV’s sound through the amplifier/receiver.

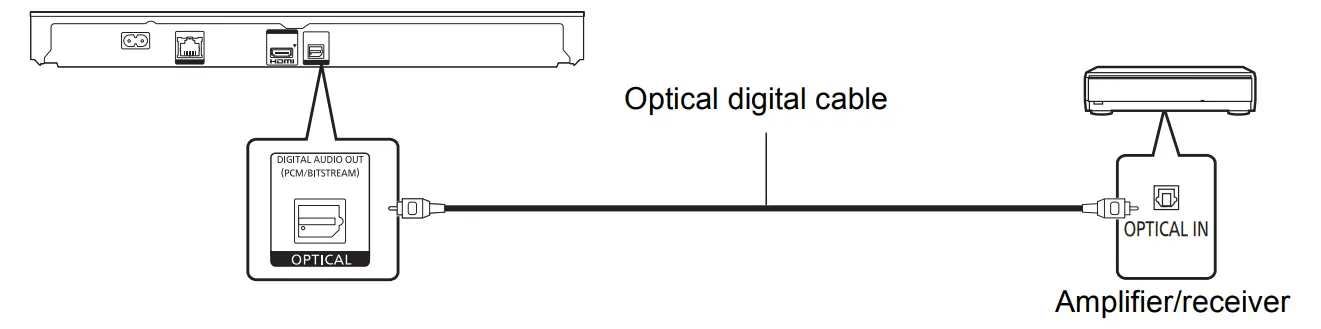

OPTICAL

• Set “HDMI Audio Output” to “Off” ( 25).
• Set “Digital Audio Output” ( 25).

Connecting to the network

The following services can be used when this unit is connected to broadband.

• Firmware can be updated ( 14)
• You can enjoy BD-Live ( 17)

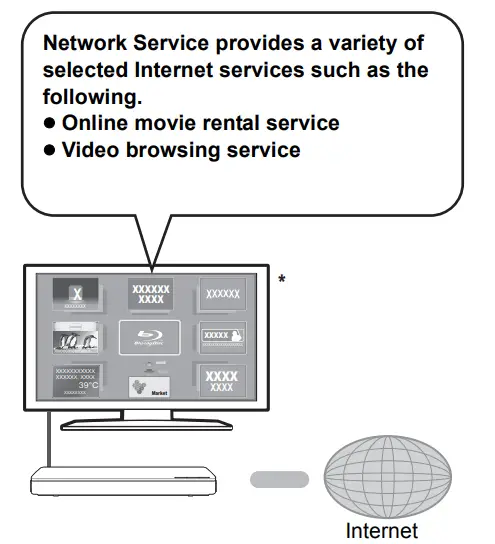

• You can enjoy Network Service ( 18)

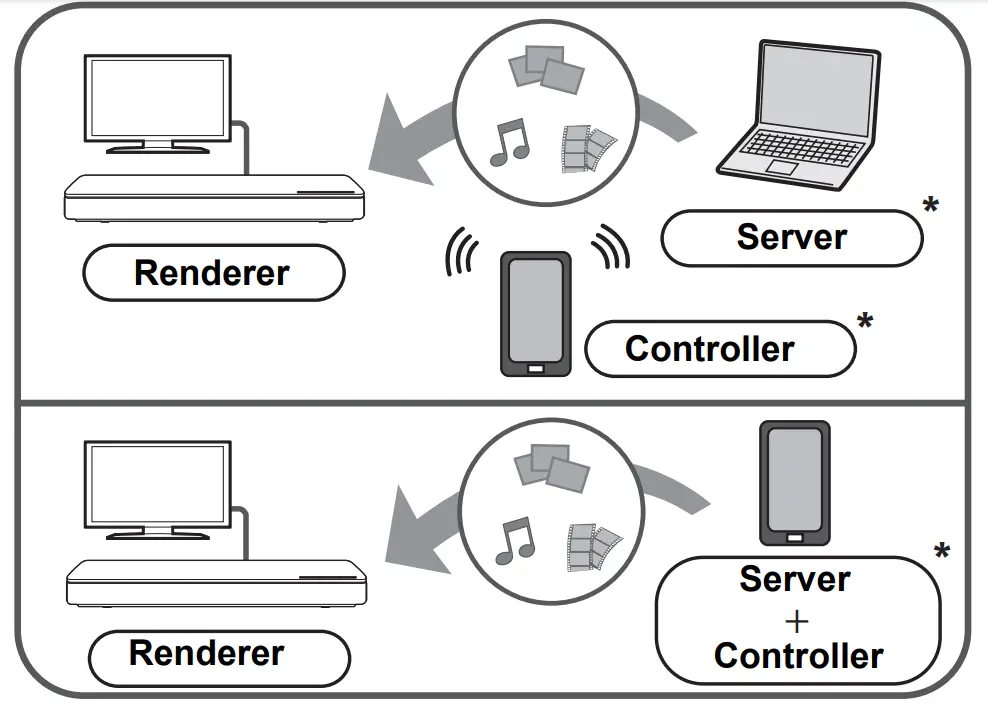

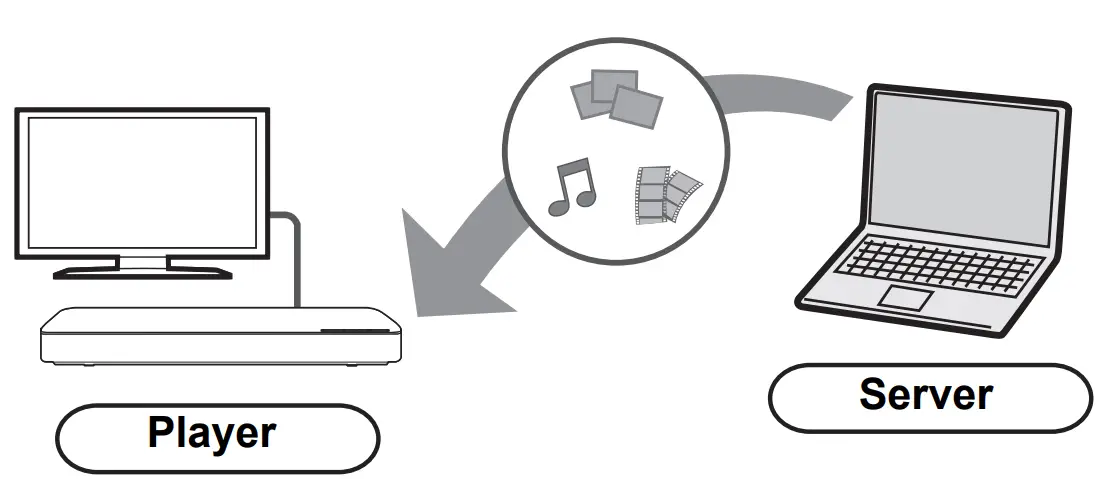

• You can access other devices (Home Network) ( 19)
• This unit supports Wi-Fi Direct® and can make a wireless connection to wireless devices without router. You can use this function when enjoying Home Network feature, etc. Internet access is not available while connected via Wi-Fi Direct®. ( 19, 26)
  For details about the connection method, refer to the instructions supplied with the connected equipment.

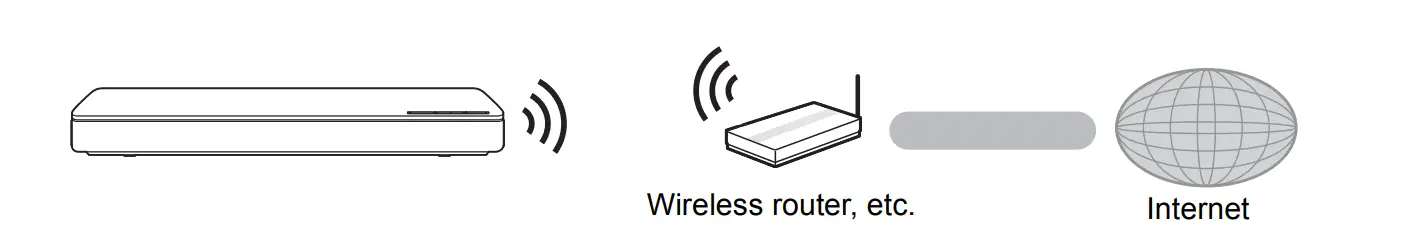

Wireless LAN connection
This unit has built-in Wi-Fi® and can be connected to a wireless router.

• For up-to-date compatibility information on your wireless router, refer to http://panasonic.jp/support/global/cs/ (This site is in English only.)
• The unit is not compatible with public wireless LAN services provided in airports, stations, cafes, etc.
• See page 3 for the precautions for wireless LAN connection.

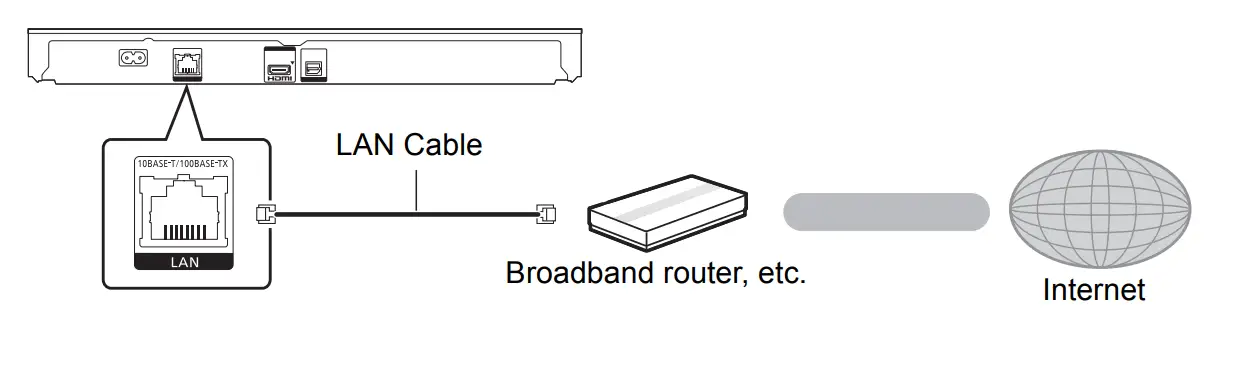

LAN cable connection

• Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.
• Inserting any cable other than a LAN cable in the LAN port can damage the unit.

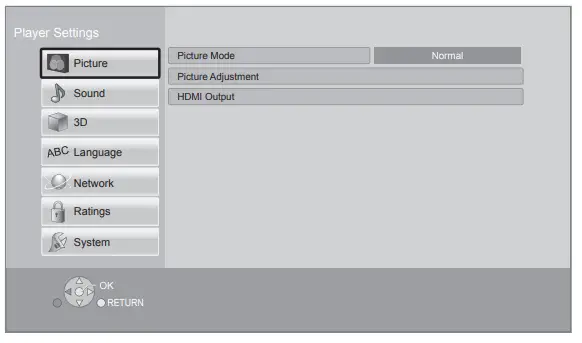

Settings

The following settings can be performed anytime in the Setup menu. ( 26, 27)

Easy Settings

After connecting your new player for the first time and pressing [POWER BUTTON], the basic settings screen will appear.
Preparation
Turn on the TV and select the appropriate video input.

1. Press [POWER BUTTON].
   The setup screen appears.
2. Follow the on-screen instructions to continue with the settings.

Easy Network Setting

After completing “Easy Settings”, you can perform  “Easy Network Setting”.
Follow the on-screen instructions to establish your connection settings. Select “Wired” or “Wireless” and press [OK].

About the wireless connection

Before beginning wireless connection setup

• Obtain your network name (SSID*).
• If your wireless connection is encrypted, please be sure that you know your encryption key.
  If your SSID is not displayed;
• Search again by pressing the red button on the remote control.
• Stealth SSIDs will not be displayed; in this case, enter manually by using “Manual setting”.
  Press [HOME]
• press [OK] to select “Setup”
• select “Player Settings”
• select “Network” and press [OK]
• select “Network Settings” and press [OK]
• select “Wireless Settings” and press [OK]
• select “Connection Setting” and press [OK]
• select “Manual setting” and press [OK]
  If your wireless network is encrypted;
  The encryption Key input screen will be displayed.
  Input the encryption key of your network.
• A USB keyboard can be used, but only for the keys displayed on the screen.

If your wireless router supports WPS (Wi-Fi Protected SetupTM);
You can easily set up a connection by pressing the green button on the remote control.

• Refer to the operating instructions of the hub or router.
• Do not use this unit to connect to any wireless network for which you do not have usage rights.
  Using these networks may be regarded as illegal access.
• If you have trouble getting online on your PC after performing network settings on this unit, perform the network settings on your PC.
• Please be aware that connecting to a network without encryption may result in the leaking of data such as personal or secret information.
  * SSID:
  An SSID (Service Set IDentification) is a name used by wireless LAN to identify a particular network. Transmission is possible if the SSID matches both devices.

Playback

Firmware updates

Occasionally, Panasonic may release updated firmware for this unit that may add or improve the way a feature operates. These updates are available free of charge.
This unit is capable of checking the firmware automatically when connected to the Internet via a broadband connection.*

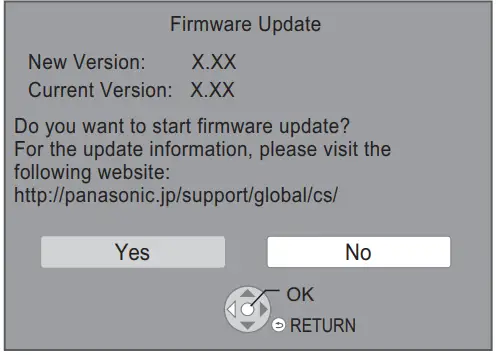

When a new firmware version is available, the following message is displayed.

You can also download the latest firmware from the following website and store it to a USB device to update the firmware. http://panasonic.jp/support/global/cs/
(This site is in English only.)
DO NOT DISCONNECT the unit from the AC power or perform any operation while the update takes place.

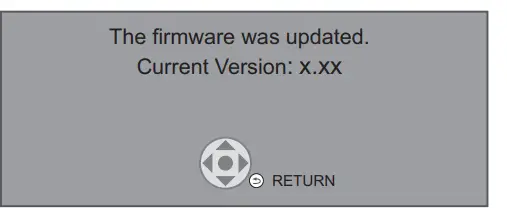

After the firmware is installed, unit will restart and the following screen will be displayed.

• To show the firmware version on this unit. ( 28, “Firmware Version Information”)
• Downloading will require several minutes. It may take longer or may not work properly depending on the connection environment.
• If you do not want to check for the latest firmware version, set “Automatic Update Check” to “Off”. ( 28)
  * You must agree to the terms of use for the Internet function and the privacy policy. ( 15, “Notice”)

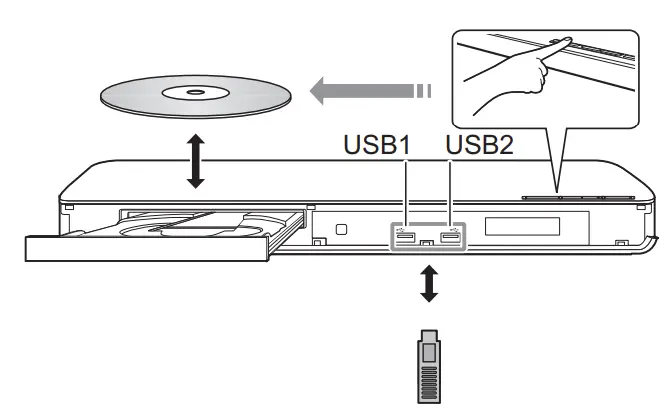

Inserting or removing media

Notes

• When inserting a media item, ensure that it is facing the correct way, which is the right side facing up.
• If you connect a Panasonic product with a USB connection cable, the setup screen may be displayed on the connected equipment. For details, refer to the instructions for the connected equipment.
• When you connect a USB HDD, use the right USB port (USB2).
  CAUTION
  Do not place objects in front of the unit. The disc tray may collide with objects when it is opened, and this may cause malfunction.

HOME menu
Major functions of this unit can be operated from
the HOME menu.
Preparation
Turn on the TV and select the appropriate video
input.

1. Press [POWER BUTTON] to turn on the unit.
   • After the network service introduction banner is shown, the HOME menu is displayed.
   • When connected to the network, the banner content may be changed.
   • You can disable the “Start-up Banner” ( 28).
2. Press [OK] or [3, 4, 2, 1] to select the item.
   • If there are any other items, repeat this step

Videos/Photos/Music

Network

Setup

Notice
Displays the terms of service for the cloud services.
To show the HOME menu Press [HOME].

• Items to be displayed may vary with the media.

Playback

1. Insert the media.
   Playback starts depending on the media.
2. Select the item to play and press [OK].
   Repeat this step if necessary.

• DISCS CONTINUE TO ROTATE WHILE MENUS ARE DISPLAYED. Press [∫STOP] when you have finished playback to protect the unit’s motor, your TV screen and so on.
• When the following conditions are met, a still picture will be played back in 4K. The resolution of the still picture will be changed automatically.
  • The unit is connected to a 4K compatible TV
  • “HDMI Video Format” is set to “Automatic” ( 24)
  • The still picture is being played back in 2D
• It is not possible to play back AVCHD and MPEG2 videos which have been dragged and dropped or copied and pasted to the media.

Operations during playback
The following functions may not work depending on the media and contents.

Stop
Press [∫STOP].
The stopping point is memorized.
Resume play function
Press [PLAY] to restart from this point.

• The point is cleared if the media is removed.
• On BD-Video discs including BD-J, the resume play function does not work. Press [;PAUSE].
• Press [;PAUSE] again or [1PLAY] to restart play.

Search/Slow motion

Search
While playing, press [SEARCH6] or [SEARCH5].
Slow motion
While paused, press [SEARCH5].

• Xvid, MKV, MP4 and MPEG2: Not effective.
  The speed increases up to 5 steps.
• Music, MP3, etc.: The speed is fixed to a single step.
• Press [1PLAY] to revert to normal playback speed.

Skip

While playing or paused, press [] or [].
Skip to the title, chapter or track.

Frame-by-frame

While paused, press

• Press and hold to fast forward.
• Press [PLAY] to revert to normal playback speed.
• Xvid, MKV, MP4 and MPEG2: Not effective.

Changing soundtrack

Press [AUDIO].
You can change the audio channel number or soundtrack language, etc.

Show top menu/pop-up menu

Press [TOP MENU] or [POP-UP MENU]. Select the item and press [OK].

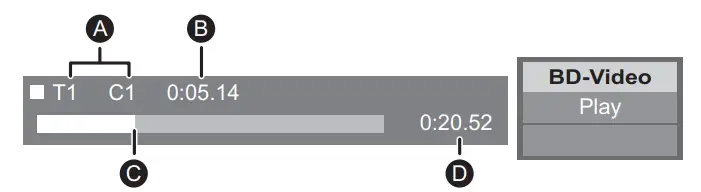

Show the status messages

While playing, press [STATUS].
The status messages give you information about what is currently being played. Each time you press [STATUS], the display information may change or disappear from the screen.

• Depending on media and contents, the display may change or not appear.
  • A T: Title, C: Chapter, PL: Playlist
  • B Elapsed time in the title
  • C Current position
  • D Total time

Enjoying 3D video and photos

Preparation

1. Connect this unit to a 3D compatible TV. ( 10)
2. Perform the necessary preparations for the TV.
3. Play back following the instructions displayed on the screen.
4. D Settings ( 23, 25)

• Please refrain from viewing 3D images if you do not feel well or are experiencing visual fatigue.
  In the event that you experience dizziness, nausea, or other discomfort while viewing 3D images, discontinue use and rest your eyes.
• 3D video might not output the way it is set in “HDMI Video Format” and “24p(4K)/24p Output” ( 24).
• When playing back 3D photos from “Photos” screen, select from the “3D” list. (Still pictures in “2D” are played back in 2D.)
  If “2D” and “3D” indications are not displayed, press the red button on the remote control to switch the view of playback contents.

Enjoying BD-Live

With “BD-Live” discs, you can enjoy bonus contents that use Internet access.
For this BD-Live function, connection of a USB device is necessary along with Internet connection.

• When USB devices are connected to both USB ports, disconnect both of them first, and then connect only the one you want to use.

1. Perform network connection and settings. ( 12, 13)
2. Connect a USB device with 1 GB or more free space.
   1. The USB device is used as the local storage.
3. Insert the disc.

Deleting data on the USB device
Select “USB Management” in the HOME menu ( 15), then select “BD-Video Data Erase” and press [OK].

• The usable functions and the operating method may vary with each disc, please refer to the instructions on the disc and/or visit their website.
• “BD-Live Internet Access” may need to be changed for certain discs ( 27).

Slideshow

Play a slideshow of photos and adjust various settings during the playback.

1. Insert the media.
2. Select “Photos”.
3. Select an item and press the green button.
   The following items can be set.

   Start Slideshow	Start the slideshow. You can display still pictures in the selected folder one by one at a constant interval.
   Interval	Change the display interval.
   Transition Effect	Select the effect when sliding pictures.
   Repeat Play	Set whether to repeat the slideshow.

   Still pictures displayed as “ ” cannot be played back with this unit.

Enjoying Network Service

Network Service allows you to access some specific websites supported by Panasonic.

* Images are for illustration purposes, contents may change without notice.
Preparation

• Network connection ( 12)
• Network settings ( 13)

1. Press [INTERNET]. Netflix can be accessed directly by pressing [NETFLIX] button even when this unit is off.
2. Select the item and press [OK].
   To exit from Network Service Press [HOME].

• When playing content in the media, Network Service cannot be accessed by pressing [INTERNET].
• An USB keyboard can be used, but only for the keys displayed on the screen. It may not be used depending on the service.
• In the following cases, settings are possible using the Setup menu items.
• When restricting the use of Network Service ( 27, “Network Service Lock”)
• When correcting the displayed time ( 26, “Time Zone”, “Summer Time”)
• When using another device such as a smartphone in combination with the unit by using a certain app on the device ( 27, “Remote Device Operation”)
• When using a slow Internet connection, the video may not be displayed correctly. A high speed Internet service with a speed of at least 6 Mbps is recommended.
• Be sure to update the firmware as soon as a firmware update notice is displayed on the screen. If the firmware is not updated, you may not be able to use Network Service function properly. ( 14)
• Network Service Home Screen is subject to change without notice.
• The services through Network Service are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.
• Some features of websites or content of the service may not be available.
• Some content may be inappropriate for viewers.
• Some content may only be available for specific countries and may be presented in specific languages.

Home Network feature

Before using the following features, be sure to configure the connected equipment on your Home Network.
Using MiracastTM
You can enjoy the content you are viewing on a Miracast-compatible smartphone, etc. on the big screen of your TV.

• Compatible with AndroidTM devices, ver. 4.2 and above and Miracast certified.
  For information on whether the smartphone, etc. supports Miracast, contact the manufacturer of the device.

1. Press [MIRACAST].
2. Operate the Miracast compatible device.
   1. On the device, enable Miracast and select this unit as the device to be connected.
      For details, refer to the instructions supplied with the device.
      To exit from Miracast Press [HOME].

Playing back contents on the DLNA server

You can share photos, videos and music stored in the DLNA Certified media server [PC with Windows 7 installed, smartphone, recorders, etc.] connected to your home network.

• About support format of DLNA ( 34).

Preparation

1. Perform network connection ( 12) and network settings ( 13) of this unit.
2. Add the contents and folder to the libraries of the Windows Media® Player or the smartphone, etc.
   1. Playlist of Windows Media® Player can play back only the contents that are stored in the libraries.
   2. When connected to Panasonic DLNA compatible recorders, register this unit to your Panasonic DLNA compatible recorders.

1. Press [HOME].
2. Select “Network”.
3. Select “Home Network”.
4. Select “DLNA Client”.
   • The list can be updated by pressing the red button on the remote control.
   • The connection method can be switched to Wi-Fi Direct by pressing the green button on the remote control.
5. Select the equipment and press [OK].
6. Select the item to play and press [OK].
   • You may be able to use convenient functions depending on the content by pressing [OPTION].
     To exit from Home Network Press [HOME].

Using the Digital Media Controller

You can use a smartphone or tablet as the Digital Media Controller (DMC) to playback contents from DLNA server on the Renderer (this unit).
Possible applications:* DMC compatible software should be installed.
Preparation
Perform steps 1 and 2. ( 19) 3 Perform the “Remote Device Settings”. ( 27)

• You can register up to 16 devices.

1. Press [HOME].
2. Select “Network”.
3. Select “Home Network”.
4. Select “Media Renderer”.
5. Select “Home Network” or “Wi-Fi Direct” and press [OK], then follow the indications on the screen.
6. Operate the DMC compatible devices.
   To exit from Media Renderer screen Press [HOME].

About DLNA and Media Renderer

For more details, refer to the following website and the operating instructions for each of the equipment.
http://panasonic.jp/support/global/cs/
(This site is in English only.)

• Wi-Fi Direct connection while using Home Network feature is only temporary, and the network connection method returns to the original setting when exiting.
• Depending on the device or connection environment, the data transfer rate may decrease.
• Depending on the contents and the connected equipment, playback may not be possible.
• Items displayed in grey on the display cannot be played back by this unit.

“HDMI CEC”

This unit supports “HDMI CEC” (Consumer Electronics Control) function. You can use this function by connecting the equipment that supports “HDMI CEC” with an HDMI cable. See the operating instructions for connected equipment for operational details.
Preparation

1. Set “HDMI CEC” to “On” ( 28). (The default setting is “On”.)
2. Set the “HDMI CEC” operations on the connected equipment (e.g., TV).
3. Turn on all “HDMI CEC” compatible equipment and select this unit’s input channel on the connected TV so that the “HDMI CEC” function works properly.
   Repeat this procedure when the connections or settings are changed.

Automatic input switching Power on link

When the unit starts playback, the TV will automatically switch the input channel and the screen of the unit will be displayed. Additionally when the TV is off, the TV will automatically turn on.

Power off link

All connected equipment compatible with “HDMI CEC”, including this unit, automatically turns off when you switch the TV off.

Easy control only with TV remote control

By using the TV remote control, you can perform the same operations as you use the remote control of this unit. ( 8)

• This unit supports the “HDMI CEC” (Consumer Electronics Control) function. However, operation cannot be guaranteed on all HDMI CEC devices.

Option menu

A variety of playback operations and settings can be performed from this menu. Available options differ depending on the playing contents and the condition of the unit.

1. Press [OPTION].
   • When playing music, select “Playback Settings” and press [OK].
     e.g., BD-Video
2. Select an item and change the settings.
   To exit the screen Press [OPTION].

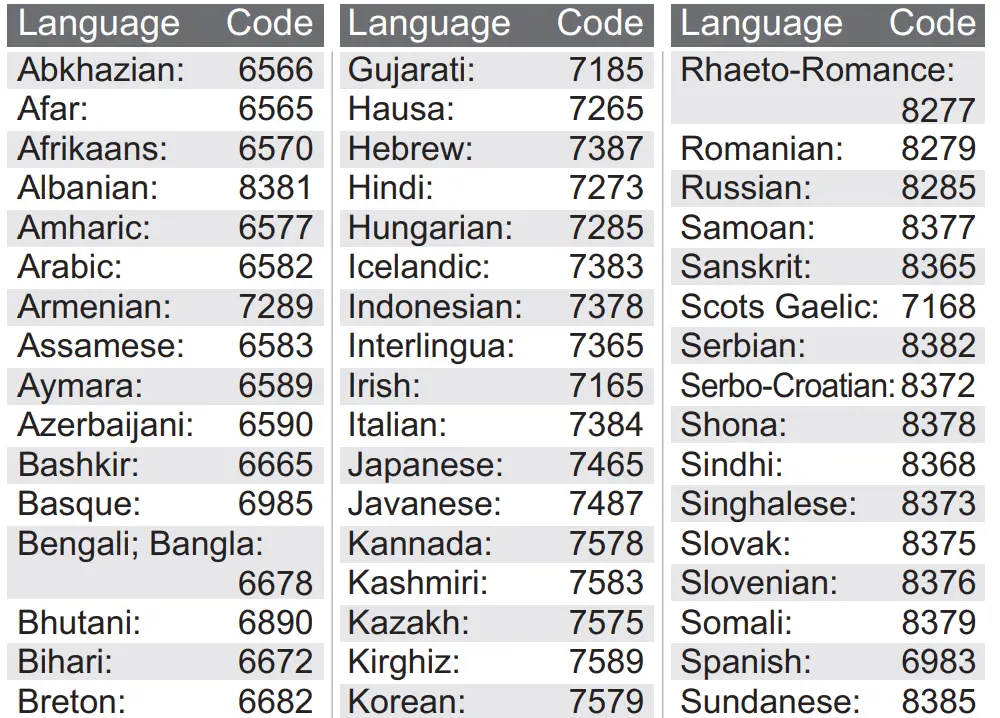

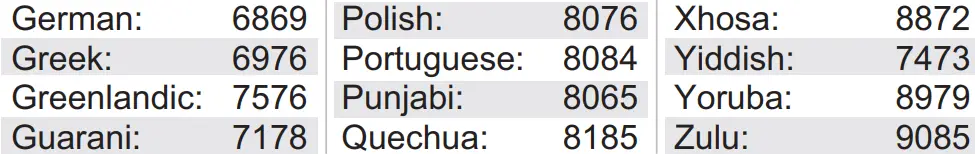

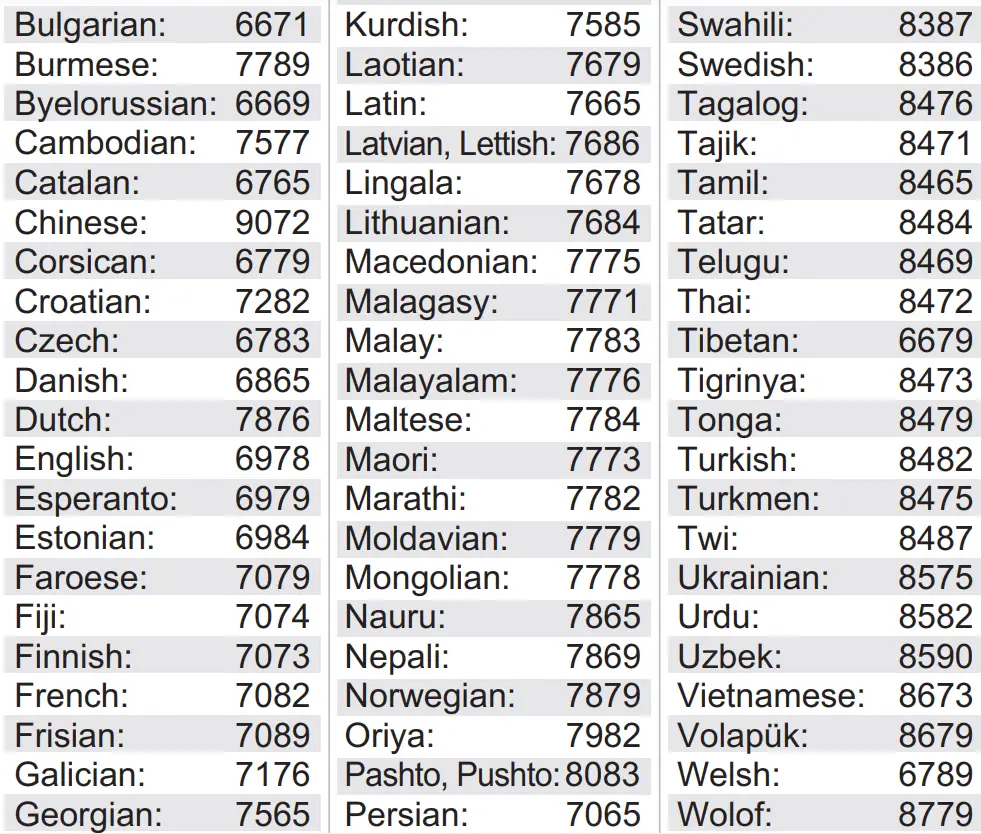

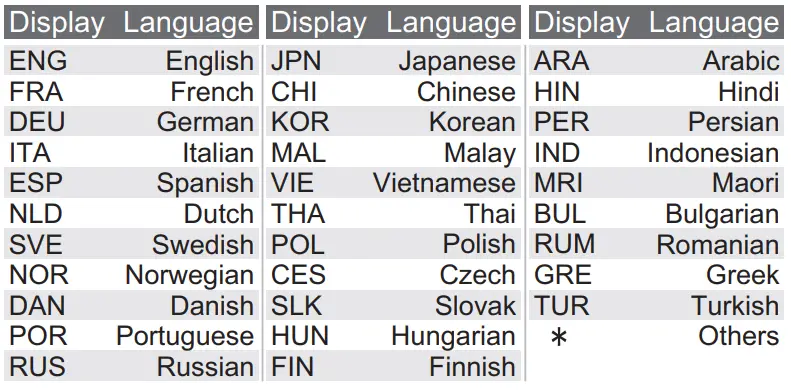

   Regarding Language : ( 35)

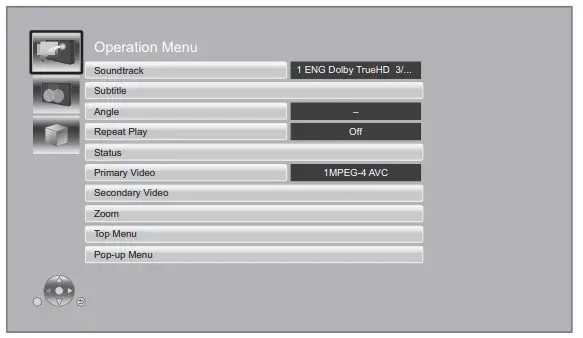

Operation Menu

• Soundtrack
  Show or change the soundtrack.
• Audio channel
  Select the audio channel number.
• Subtitle
  Change the subtitle settings.
• Angle
  Select the number of the angle.
• Repeat Play
  Select the item that you want to repeat.
  • You can repeat the playback of a chapter, playlist, the entire disc, etc., but the items displayed will differ depending on the type of the media.
  • Select “Off” to cancel.
• Random
  Select whether or not to play random.
• Start Slideshow
  Start the slideshow.
• Status
  Show the status messages.
• Sound
  Select the soundtrack and audio channel number during the playback of DLNA.
• Reception
  The radio wave status during the playback of DLNA is displayed. (Only when a wirelessconnection is used)
• Rotate RIGHT
• Rotate LEFT
  Rotate the still picture.
• Wallpaper
  Set the still picture to the wallpaper of HOME menu. ( 15)
• Video
  The recording method of original video appears.
• Primary Video
  The recording method of original primary video appears.
• Secondary Video


  Video	Select on/off for images. The recording method of original video appears. • During search/slow motion, only the primary video is displayed.
  Soundtrack	Select on/off for audio and the language.

• Zoom
  Videos and pictures are magnified.
• Top Menu
  Display Top Menu.
• Pop-up Menu
  Display Pop-up Menu.
• Menu
  Display Menu.

Picture Settings

• Picture Mode
  Select the picture quality mode during play.
  If you select “User”, you can change settings in “Picture Adjustment”.
• Picture Adjustment
  Specific picture quality settings can be changed.
• Progressive
  Select the method of conversion for progressive output to suit the type of material being played.
• 24p
  Movies and other material recorded on DVD-Video at 24p are output at 24p.
  • Only when you have selected “24p(4K)” or “24p” in “24p(4K)/24p Output” ( 24) and play discs recorded at a rate of 60 fields per second.
  • This may not work with the PAL contents.
• Reset to Default Picture Settings
  Return picture settings to the factory defaults.
• 3D Settings
  • Signal Format


    Original	Keep original picture format.
    Side by side	3D picture format comprising of left and right screens.
    2D to 3D	Converts 2D pictures to 3D effect.

  • Distance
    Set the amount of depth perception.
  • Graphic Display Level
    3D position for the Option menu or message screen, etc. can be adjusted during 3D playback.

Setup menu

Change the unit’s settings if necessary. The settings remain intact even if you switch the unit to standby.
Some items are common to the Option menu. You can get the same effect with both menus.

1. Press [HOME].
2. Press [OK] to select “Setup”.
3. Select “Player Settings”.
4. Select an item and change the settings.
   To exit the screen Press [HOME].


• Picture Mode ( 23)
• Picture Adjustment ( 23)
• HDMI Output
  Press [OK] to show the following settings:

HDMI Video Format
The items supported by the connected devices are indicated on the screen as “¢”. When any item without “¢” is selected, the images may be distorted.

• If “Automatic” is selected, the best suited output resolution to the connected TV is automatically selected.
• To enjoy high-definition video up-converted to 1080p, you need to connect the unit directly to 1080p compatible HDTV (High Definition TV). If this unit is connected to an HDTV through other equipment, the other equipment must also be 1080p compatible.

24p(4K)/24p Output
This setting is for selecting the output method for content recorded in 24p*1, such as movies.

• Connect the compatible TV for each (4K or 1080/24p) output to the HDMI AV OUT terminal of this unit.
• “24p(4K)” works only when playing back in 2D.
• When playing DVD-Video, set this setting to “24p(4K)” or “24p”, and then “24p” in “Picture Settings” ( 23) to “On”.
• When BD-Video/DVD-Video images other than 24p are played, images are output at 60p.

HDMI Colour Mode
This setting is for selecting colour-space conversion of the image signal.
Deep Colour Output
This setting is for selecting whether to use Deep Colour Output when a TV that supports Deep Colour is connected.
Contents Type Flag
Depending on the playback content, the TV will output adjusting to the optimal method when a TV that supports this function is connected.

• *1 A progressive image recorded at a rate of 24 frames per second (motion-picture film). Many BD-Video movie contents are recorded in 24 frames/second in accordance with the film materials.
• *2 A high resolution image/display technology of approximately 4000 (width) k 2000 (height) pixels.

Sound

Dynamic Range Compression

You can listen at low volumes but still hear dialogue clearly. (Dolby Digital, Dolby Digital Plus and Dolby TrueHD only)

• “Automatic” is effective only when playing Dolby TrueHD.

Digital Audio Output
Press [OK] to show the following settings:

• Dolby D/Dolby D +/Dolby TrueHD
• DTS/DTS-HD
• DSD Output Mode
• Select the audio signal to output. select “PCM” or “Off”, when the connected equipment cannot decode the respective audio format. This unit decodes the audio format and transmits to the connected equipment.
• If you do not make proper settings the audio may be static or noisy.
• “DSD Output Mode” is effective only when connecting the unit with an HDMI cable.

BD-Video Secondary Audio
Select whether or not to mix the primary and secondary audio (including the button click sound).
If “Off” is selected, the unit outputs the primary audio only.

HDMI Audio Output
This setting selects whether or not to output audio from HDMI.

• Select “Off” when the TV is connected to this unit via HDMI AV OUT terminal, and this unit is also connected to other devices, such as an amplifier/receiver via an OPTICAL terminal.

PCM Down Conversion
Select how to output audio with a sampling frequency of 96 kHz for the PCM output from the OPTICAL.

• If “On” is selected, the signals that are
  converted to 48 kHz are output.
• If “Off” is selected, and the connected equipment does not support 96 kHz, the sound will not be output normally.
• Signals are converted to 48 kHz despite the settings in the following cases:
  • when the signals have a sampling frequency of 192 kHz
  • when the disc has copy protection
  • when “BD-Video Secondary Audio” is set to “On”

Downmix
Select the downmix system of multi-channel to 2-channel sound.

• Select “Surround encoded”, when the connected equipment supports the virtual surround function.
• The downmix effect is not available when “Digital Audio Output” is set to “Bitstream”.
• The audio will be output in “Stereo” in the following cases:
  • AVCHD playback
  • Playback of secondary audio (including the button click sound).

DTS Neo:6
2ch (2.1ch) audio is expanded to 7ch (7.1ch).

• This function works when the following conditions are met:
  • Audio is output from the HDMI AV OUT terminal.
  • Audio recorded at 96 kHz or lower is output.
  • “Digital Audio Output” is set to “PCM” when audio other than PCM is output.

3D

• 3D BD-Video Playback
  Select the playback method of 3D compatible video software.
• 3D Playback Message Set to display or hide the 3D viewing warning screen when playing back the 3D compatible video software.
• Graphic Display Level ( 23)

Language

Soundtrack Preference
Choose the language for audio.

• If “Original” is selected, the original language of each disc will be selected.
• When the selected language is not recorded on the disc, or depending on how the navigation is created on the disc, it may playback in a different language than the selected language.
• Enter a code ( 35) when you select “Other ¢¢¢¢”.

Subtitle Preference
Choose the language for the subtitle.

• When “Automatic” is selected, a subtitle for the language selected in the “Soundtrack Preference” is displayed only when the language other than the language selected in the “Soundtrack Preference” is played back.
• When the selected language is not recorded on the disc, or depending on how the navigation is created on the disc, it may playback in a different language than the selected language.
• Enter a code ( 35) when you select “Other ¢¢¢¢”.

Menu Preference
Choose the language for the disc menus.

• Enter a code ( 35) when you select “Other ¢¢¢¢”.

Subtitle Text
Select a desired item according to the language used for MKV/Xvid subtitles text.
This item is displayed only after playing back afile.
On-Screen Language
Choose the language for menus and on-screen messages.

Network

Easy Network Setting ( 13)
Network Settings
Perform network-related settings individually.
Press [OK] to show the following settings:

• LAN Connection Mode
  Select the LAN connection method.
• When not using wireless LAN (when turning it off), select “Wired”.
• wireless Settings
  This allows the wireless router and connection settings to be set up. Current connection settings and connection state can be checked.
  Press [OK] to show the following settings:

Connection Setting
The wireless router connection wizard will be displayed.
Double Speed Mode Setting (2.4GHz) Set the connection speed for a 2.4 GHz wireless format.

• If you connect using the “Double Speed
  Mode (40MHz)”, 2 channels use the same frequency band, and there is consequently a greater risk of reception interference. This can cause the connection speed to drop or become unstable.
• IP Address / DNS Settings
  This is for checking the state of the networkconnection and setting the IP address and DNS-related.
  Press [OK] to show the respective setting.
• Proxy Server Settings
  This is for checking the state of connection with the Proxy server and performing settings.
  Press [OK] to show the respective setting.

Network Drive Connection
This unit can access a hard disk shared folder on a network and play back videos, still pictures, and music. For the setting and operation method of connected equipment, refer to the following website.
http://panasonic.jp/support/global/cs/
(This site is in English only.)

Remote Device Settings ( 18, 20)
Press [OK] to show the following settings:
Remote Device Operation
Enable to start Network Service on this unit by using another device such as Smartphone, etc.
Enable to operate the unit by DMC.
If “On” is selected, “Quick Start” will be activated.
Device Name Entry
Set the name of this unit to be displayed on the connected equipment.
Registration Type

Remote Device List
Registering/deregistering of the displayed equipment can be performed when “Manual”  in “Registration Type” is selected.
BD-Live Internet Access ( 17)
You can restrict Internet access when BD-Live functions are used.

• If “Limit” is selected, Internet access is permitted only for BD-Live contents which have content owner certificates.

Ratings

The following items use the same password.
Don’t forget your password.

• DVD-Video Ratings
  Set a ratings level to limit DVD-Video play.
• BD-Video Ratings
  Set an age limit of BD-Video play.
• Network Service Lock
  You can restrict the usage of Network Service

System

• Easy Settings
  You can execute basic settings.
• TV Settings
  Press [OK] to show the following settings:

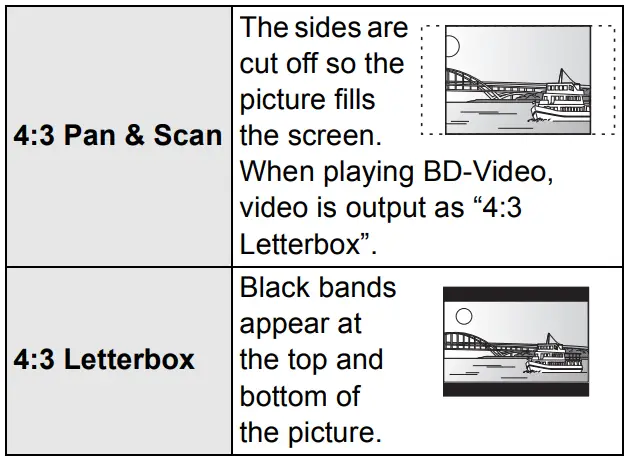

• TV Aspect
  Set to match the type of TV connected.
  When connected to a 4:3 aspect TV and playing 16:9 ratio image:When connected to a 16:9 widescreen TV and playing 4:3 ratio image:

  16:9	Video is displayed as a 4:3 ratio image in the centre of the screen.
  16:9 full	Video is displayed as a horizontally stretched 16:9 image.

  TV System
  Perform the setup so it matches the TV System of the connected TV.

Screen Saver Function
This is to prevent image retention on the screen.

• When this is set to “On”:
  If a list of playback content is displayed and there is no operation for 10 minutes or more, the screen switches to HOME menu automatically.
• While playing and pausing, etc., this function is not available.

On-Screen Messages
Choose whether to show status messages automatically.

HDMI CEC

Set to use “HDMI CEC” function when connected via HDMI cable to a device that supports “HDMI CEC”.

• select “Off” when you do not want to use “HDMI CEC”.

Front Panel Display
Changes the brightness of the unit’s display.

• If “Automatic” is selected, the display is set to bright and only dimmed during playback.

Start-up Banner
Select whether to display the banner after turning on this unit. ( 15).

Quick Start
Speed of start-up from standby mode is increased.

• When set to “On”, the internal control unit will be powered and in Network standby mode. The idle power consumption will increase so compared to when set to “Off”.
  (Power consumption 33)
• Remote Control
  Change the remote control code if other
  Panasonic products react to this remote control.

Firmware Update ( 14)
Press [OK] to show the following settings:

• Automatic Update Check
  When this equipment remains connected to the Internet, it will check for the latest firmware version when it is turned on and you can update it if necessary.
• Update Now
  You can update the firmware manually if a firmware update is available.

System Information
Press [OK] to show the following settings:

• Software Licence
  Information about the software used by this unit is displayed.
• Firmware Version Information
  Display firmware version of this unit and wireless LAN module.

Default Settings

This returns all values in the Setup menu and the Option menu to the default settings, except for some settings of network, ratings, remote control code, on-screen language, etc.

Troubleshooting guide

Before requesting service, please perform the following checks.
If the problem remains unresolved, consult your dealer for instructions.
Unit does not respond to remote control or unit’s buttons.
Disconnect the AC mains lead, wait 1 minute, then reconnect the AC mains lead.

Do you have the latest firmware installed?
Panasonic is constantly improving the unit’s firmware to ensure that our customers are enjoying the latest technology. ( 14)

The following do not indicate a problem with this unit:

• Regular disc rotating sounds.
• Image disturbance during search.
• Image disturbance when replacing 3D discs.

Cannot eject disc.

1. Turn the unit on.
2. Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds.
   • “00 RET” is displayed on the unit’s display.
3. Press [1] (right) repeatedly on the remote control until “06 FTO” is displayed on the unit’s display.
4. Press [OK].

General operation

To return to the factory defaults.

• Select “Yes” in “Default Settings” in the Setup menu. ( 28)
  To return all settings to the factory preset.

Reset the unit as follows:

1. Turn the unit on.
2. Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds.
   – “00 RET” is displayed on the unit’s display.
3. Press [1] (right) repeatedly on the remote control until “08 FIN” is displayed on the unit’s display.
4. Press and hold [OK] for more than 5 seconds.

The remote control does not work properly.

• Change the batteries in the remote control. ( 5)
• The remote control and this unit are using different codes.
  If “SET ” is displayed on the unit’s display when a button is pressed on the remote control, change the code on the remote control.
  Press and hold [OK] and the displayed number (“”) for more than 5 seconds.

The TV tuner mode is not displayed when the TV is turned on.

• This phenomenon may occur, depending on the TV setting, when “Quick Start” is set to “On”.
• Depending on the TV, this phenomenon may be prevented by reconnecting the HDMI cable to a different HDMI input terminal or by changing the HDMI auto connection setting.

This unit is turned off automatically.

• To save on electricity, this unit is turned off automatically if there is no button operation for about 20 minutes when not playing back (such as when paused or displaying the menu, displaying still pictures, etc.).

You have forgotten your ratings password.
You want to cancel the ratings level.

1. The ratings level returns to the factory defaults.
2. Turn the unit on.
3. Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds.
   – “00 RET” is displayed on the unit’s display.
4. Press [1] (right) repeatedly on the remote control until “03 VL” is displayed on the unit’s display.
5. Press [OK].

The TV screen turns black.

1. In the following cases, HDMI authentication takes place and a black screen is displayed:
2. When “24p(4K)/24p Output” is set to “24p(4K)” or “24p”.
3. When the display is switched between 2D and 3D images.
4. When you quit the 4K playback of a still picture by displaying another screen,including the HOME menu.

This unit does not recognize the USB connection correctly.

• Disconnect and re-connect the USB cable. If it still does not recognize the connection, turn this unit off and on again.
• USB devices may not be recognized by this unit when connected using the following :
  • a USB hub
  • a USB extension cable
• If you connect USB HDD to this unit, use the
  USB cable that is supplied with the HDD.
• When you connect a USB HDD, use the right
  USB port (USB2). ( 14)


The images from this unit do not appear on  the TV.
Picture is distorted.
An incorrect resolution is selected in “HDMI
Video Format”. Reset the setting as follows:

1. Turn the unit on.
2. Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds.
   • “00 RET” is displayed on the unit’s display.
3. Press [1] (right) repeatedly on the remote control until “04 PRG” is displayed on the unit’s display.
4. Press and hold [OK] for more than seconds.
   Set the item again. ( 24)
   • When Dolby Digital Plus, Dolby TrueHD, and DTS-HD® audio are not output properly, select “Yes” in “Default Settings” ( 28) and make proper settings.

The unit and TV are using different video systems.

1. Turn the unit on.
2. Press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds.
   • “00 RET” is displayed on the unit’s display.
3. Press [1] (right) repeatedly on the remote control until “05 P/N” is displayed on the unit’s display.
4. Press and hold [OK] for more than 5 seconds. The system switches from PAL to NTSC or vice versa.

• PAL discs cannot be correctly viewed on an NTSC TV.
• When “3D BD-Video Playback” in the Setup menu is set to “Automatic”, images may not be output depending on the connection method. After removing the disc from this unit, select “Set before play” in the Setup menu, and select “2D Playback” in the setup screen displayed when playing 3D discs. ( 25)
• When outputting in 24p (4K), images may be distorted depending on the HDMI cable. Use an HDMI cable that supports 4K output.

Video is not output in high-definition.

• Confirm that “HDMI Video Format” in the Setup menu is set properly. ( 24)

3D video is not output.

• Connect to a full high-definition TV.
• Is there a non-3D compatible amplifier/ receiver connected between this unit and a TV? ( 11)
• Are the settings on this unit and the TV correct? ( 17)
• Is the amplifier/receiver that is connected between this unit and TV on?
• Depending on the connected TV, the video being played back might switch to 2D video due to changes in resolution etc. Check the 3D setting on the TV.

3D video is not output correctly as 2D.

• Select “Set before play” in the Setup menu, and select “2D Playback” in the setup screen displayed when playing 3D discs. ( 25, “3D BD-Video Playback”)
• Discs that have recorded titles with Side by side (2 screen structure) and that can be enjoyed in 3D are played back in accordance with the settings of the TV.

A black band is displayed around the edge of the screen.
The aspect ratio of the screen is abnormal.

• Confirm the “TV Aspect” is set properly. ( 27)
• Adjust the aspect setting on the TV.

Audio
Cannot switch audio.

• The audio cannot switch, if “Digital Audio Output” is set to “Bitstream” or “On”*. Set “Digital Audio Output” to “PCM” or “Off”*. ( 25)
  * For “DSD Output Mode”

Cannot hear the desired audio type.

• Check the connections and the “Digital Audio Output” settings. ( 11, 25)
• To output audio from a device connected with an HDMI cable, set “HDMI Audio Output” to “On” in the Setup menu. ( 25)

Playback

Disc cannot be played.

• The disc is dirty. ( 5)
• The disc is not finalized. ( 7)

Still pictures (JPEG) do not play back normally.

• The images that were edited on the PC, such as Progressive JPEG, etc., may not be played back.

I can’t play back BD-Live.

• Confirm that this unit is connected to the broadband Internet. ( 12)
• Confirm the “BD-Live Internet Access” settings. ( 27)
• Confirm a USB device is connected to the USB port. ( 14)
• Connect this unit to the network by a wired connection.

Network

I can’t connect to the network.

• Confirm the network connection and settings. ( 12, 13, 26)
• There may be interference that prevents the unit from detecting your home network. Place the unit and the wireless router closer to each other. This unit may be able to detect your network name ( 13, “SSID”).
• Check the operating instructions for each device and connect accordingly.

When using wireless LAN connection, video from the DLNA Certified media server is not played back or video frames are dropped during playback.

• Higher transfer rate router such as 802.11n (2.4 GHz) wireless router may solve the problem. If you use 802.11n (2.4 GHz) wireless router, it is necessary to set the encryption type to “AES”. Simultaneous use with a microwave, cordless telephone etc. at 2.4 GHz may result in connection interruptions or other problems.
• On the “Wireless Settings” screen ( 26), the continuous lighting of at least 4 “Reception” indicators is the target for a stable connection. If 3 or fewer indicators are lit or the connection is being interrupted, change the position or angle of your wireless router and see if the connection state improves. If there is no improvement, connect to a wired network and perform the “Easy Network Setting” ( 13) again.

Messages on the screen

Cannot play.

• You inserted an incompatible disc.
  Cannot play on this unit.
• You tried to play a non-compatible image.
• Re-insert the media.
  No disc inserted.
• The disc may be upside down.
  $ This operation is not available.
• Some operations are unsupported by the unit. (For example, reverse slow motion, etc.) IP address is not set.
• The “IP Address” in “IP Address / DNS Settings” is “—. —. —. —”. Set the “IP Address”, “Subnet Mask”, and “Gateway Address”. (Select the automatic address acquisition if necessary.) The wireless access point currently has a low network security setting. It is recommended to change to a higher setting.
• Set a stronger network security level referring to the wireless router operating instructions.

Messages on the unit’s display

NET
While connecting to a network.

No PLAY

• There is a viewing restriction on a BD-Video or DVD-Video. ( 27)
• The media is dirty or badly scratched. The unit cannot play.

REMOVE

• The USB device is drawing too much power. Remove the USB device.

SET
(“  ” stands for a number.)

• The remote control and this unit are using different codes. Change the code on the remote control.
  Press and hold [OK] and the indicated number button at the same time for more than 5 seconds.
• U59
• Temperature of this unit is hot and the unit switches to standby for safety reasons.
  Wait for about 30 minutes.
  Install or place this unit with good ventilation.

H or F
(“  ” stands for a number.)

• There is something unusual.
• Check the unit using the troubleshooting guide. If the service number remains displayed, do the following.
  • Disconnect the plug from the household mains socket, wait a few seconds, then reconnect it.
  • Press [Í/I] to turn the unit on.
    If the service number remains displayed despite doing the above, request service from the dealer.
    Inform the dealer of the service number when requesting service.

UPDATE

• The system is being restarted during the firmware update. Please do not turn off the unit.

UPD/
(“  ” stands for a number.)

• The firmware is being updated.
  Please do not turn off the unit.

FIN

• The firmware update is complete

Specifications

General

Specifications are subject to change without notice.

File format

Audio information

The audio output differs depending on which terminals are connected to the amplifier/receiver, and the settings on the unit. ( 25, “Digital Audio Output”)

The number of channels listed is the maximum possible number of output channels when connected to amplifier/ receiver compatible with the respective audio format.

• *1 When “BD-Video Secondary Audio” is set to “On”, the audio will be output as Dolby Digital, DTS Digital SurroundTM or 5.1ch PCM.
• When “DTS Neo:6” is set to “Cinema” or “Music”, 2ch (2.1ch) audio can be expanded to 7ch (7.1ch) and output. ( 25)
• *3 For “DSD Output Mode”

Supported format for DLNA

File formats that are not supported by your DLNA server cannot be played.
Video


Audio

Display languages list

Language code list

“AVCHD” is a trademark of Panasonic Corporation and Sony Corporation.
Java is a registered trademark of Oracle and/or its affiliates. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under  license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, &  DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
This product is licensed under the AVC patent portfolio license and VC-1 patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard (“AVC/VC-1 Video”) and/or (ii) decode AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC/VC-1 Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.
The Wi-Fi CERTIFIEDTM Logo is a certification mark of Wi-Fi Alliance®.
The Wi-Fi Protected SetupTM Identifier mark is a certification mark of Wi-Fi Alliance®.
“Wi-Fi®” and “Wi-Fi Direct®” are registered trademarks of Wi-Fi Alliance®.
“Wi-Fi Protected SetupTM”, “MiracastTM”, “WPATM”, and “WPA2TM” are trademarks of Wi-Fi Alliance®.
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.
Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries.
Android is a trademark of Google Inc.
Copyright 2004-2014 Verance Corporation. CinaviaTM is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677 and worldwide patents issued and pending under license from Verance Corporation. All rights reserved.
This product incorporates the following software:

1. the software developed independently by or for Panasonic Corporation,
2. the software owned by third party and licensed to Panasonic Corporation,
3. the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
4. the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or
5. open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.

The software categorized as (3) – (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof shown in the Player Settings menu. At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.
Contact Information: [email protected]
The source code and the copyright notice are also available for free in our website below.
http://panasonic.net/avc/oss/
David M. Gay’s dtoa and strtod license
The author of this software is David M. Gay. Copyright (c) 1991, 2000, 2001 by Lucent Technologies. Permission to use, copy, modify, and distribute this software for any purpose without fee is hereby granted, provided that this  entire notice is included in all copies of any software which is or includes a copy or modification of this software and in all copies of the supporting documentation for such software.
THIS SOFTWARE IS BEING PROVIDED “AS IS”, WITHOUT ANY EXPRESS OR IMPLIED WARRANTY. IN PARTICULAR, NEITHER THE AUTHOR NOR LUCENT MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND CONCERNING THE MERCHANTABILITY OF THIS SOFTWARE OR ITS FITNESS FOR ANY PARTICULAR PURPOSE. “UNICODE, INC. LICENSE AGREEMENT – DATA FILES AND SOFTWARE
Unicode Data Files include all data files under the directories
http://www.unicode.org/Public/, http://www.unicode.org/reports/, and http://www.unicode.org/cldr/data/.
Unicode Software includes any source code published in the Unicode Standard or under the directories
http://www.unicode.org/Public/, http://www.unicode.org/reports/, and http://www.unicode.org/cldr/data/.

NOTICE TO USER

Carefully read the following legal agreement. BY DOWNLOADING, INSTALLING, COPYING OR OTHERWISE USING UNICODE INC.’S DATA FILES (““DATA FILES””), AND/OR SOFTWARE (““SOFTWARE””), YOU UNEQUIVOCALLY ACCEPT, AND AGREE TO BE BOUND BY, ALL OF THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF YOU DO NOT AGREE, DO NOT DOWNLOAD, INSTALL, COPY, DISTRIBUTE OR USE THE DATA FILES OR SOFTWARE. COPYRIGHT AND PERMISSION NOTICE Copyright (c) 1991-2009 Unicode, Inc. All rights reserved. Distributed under the Terms of Use in  http://www.unicode.org/copyright.html.
Permission is hereby granted, free of charge, to any person obtaining a copy of the Unicode data files and any associated documentation (the ““Data Files””) or Unicode software and any associated documentation (the ““Software””) to deal in the Data Files or Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, and/or sell copies of the Data Files or Software, and to permit persons to whom the Data Files or Software are furnished to do so, provided that (a) the above copyright notice(s) and this permission notice appear with all copies of the Data Files or Software, (b) both the above copyright notice(s) and this permission notice appear in associated documentation, and (c) there is clear notice in each modified Data File or in the Software as well as in the documentation associated with the Data File(s) or Software that the data or software has been modified.

THE DATA FILES AND SOFTWARE ARE PROVIDED ““AS IS””, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDERS INCLUDED IN THIS NOTICE BE LIABLE FOR ANY CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES,  OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE DATA FILES OR SOFTWARE. Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in these Data Files or Software without prior written authorization of the copyright holder.”

1. MS/WMA
   This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary and third parties.
2. MS/PlayReady/Final Product Labeling
   This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.
3. MS/PlayReady/End User Notices
   Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners  may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.
4. FLAC, WPA Supplicant
   The software licenses are displayed when “Software Licence” in the Setup menu is selected. ( 28)

Manufactured by:
Panasonic Corporation Kadoma, Osaka, Japan
Importer for Europe:
Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany

Panasonic Corporation
Web Site: http://panasonic.net
C Panasonic Corporation 2015

FAQS
