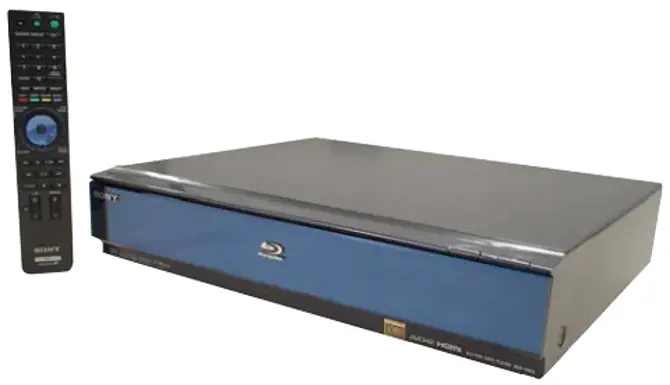

Sony Bdp-s500 Blu-ray Disc High Definition Player User Manual

BDP-S500
RMT-B101A/B101P
US Model
Canadian Model
AEP Model
UK Model
Russian Model
Australian Model
SERVICE MANUAL
Ver. 1.0 2007.09

SPECIFICATIONS

System
Laser: Semiconductor laser
Outputs
(Jack name: Jack type/Output level/ Load impedance)
AUDIO OUT L/R:
Phono jack/2 Vrms/10 kilohms
DIGITAL OUT (OPTICAL):
Optical output jack/–18 dBm (wave length 660 nm)
DIGITAL OUT (COAXIAL):
Phono jack/0.5 Vp-p/75 ohms
5.1CH OUTPUT:
Phono jack/2 Vrms/10 kilohms
HDMI OUT:
HDMI 19-pin standard connector
COMPONENT VIDEO OUT(Y, PB, PR):
Phono jack/Y: 1.0 Vp-p/PB, PR: progressive or interlace = 0.7 Vp-p/75 ohms
VIDEO: Phono jack/1.0 Vp-p/75 ohms
S VIDEO: 4-pin mini DIN/Y:
1.0 Vp-p, C: 0.286 Vp-p/75 ohms
General
Power requirements:
120 V AC, 60 Hz
Power consumption: 33 W
Dimensions (approx.):
430 × 99.2 × 361 mm (17 × 4 ×141 /4 in.) (width/height/depth) incl. projecting parts
Mass (approx.): 4.8 kg (10 3 /4 lb)
Operating temperature:
5 ºC to 35 ºC (41°F to 95°F)
Operating humidity:
25 % to 80 %
Supplied accessories

• Video cord (phono plug × 1) (1)
• Stereo audio cord (phono plug × 2) (1)
• Power cord (1)
• Remote commander (remote) (1)
• Size AA (R6) batteries (2)
• GNU License Information (English only) (1) (Except US, Canadian)

Specifications and design are subject to change without notice.

SERVICE NOTE

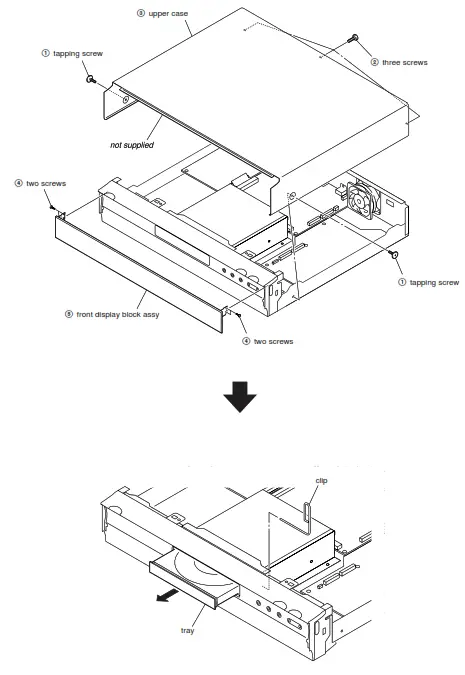

1. DISK REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION)

REPAIR PARTS LIST

Ref. No.	Part No.	Description	Remarks
		ACCESSORIES & PACKING MATERIALS ********************************
	1-479-848-31	REMOTE COMMANDER (RMT-B101A)	(US, CND)
	1-480-207-21	REMOTE COMMANDER (RMT-B101P)	(AEP, UK, RUS, AUS)
	1-555-074-52	CORD, POWER	(AUS)
	1-575-131-82	CORD, POWER	(AEP, RUS)
	1-776-263-22	CORD, CONNECTION
	1-823-701-11	CORD, POWER	(US, CND)
	1-827-269-12	CORD, POWER	(UK)
	3-270-909-11	MANUAL, INSTRUCTION (ENGLISH)	(US, CND)
	3-270-909-21	MANUAL, INSTRUCTION (FRENCH)	(CND)
	3-270-910-11	MANUAL, INSTRUCTION (ENGLISH)	(UK, AUS)
	3-270-910-21	MANUAL, INSTRUCTION (FRENCH)	(AEP)
	3-270-910-31	MANUAL, INSTRUCTION (GERMAN)	(AEP)
	3-270-910-41	MANUAL, INSTRUCTION (ITALIAN)	(AEP)
	3-270-910-51	MANUAL, INSTRUCTION (SPANISH)	(AEP)
	3-270-910-61	MANUAL, INSTRUCTION (DUTCH)	(AEP)
	3-270-910-71	MANUAL, INSTRUCTION (SWEDISH)	(AEP)
	3-270-910-81	MANUAL, INSTRUCTION (RUSSIAN)	(RUS)

The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified.

REVISION HISTORY

Sony Corporation
Home Electronics Network Company
9-883-968-11
2007I0500-1
© 2007. 9
Published by Quality Assurance Dept.
