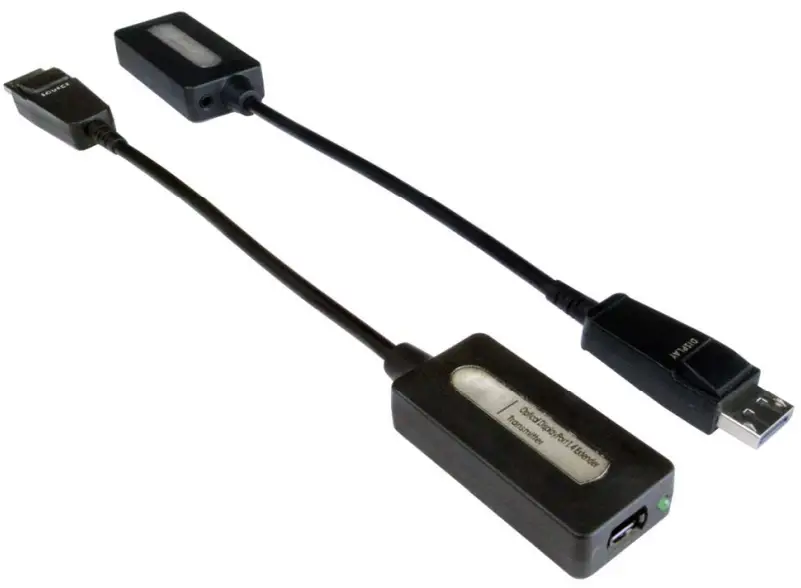

NTI ST-FODP14-MPO-200M 8K DisplayPort 1.4 Extender via One MPO Multimode Fiber Optic
Introduction
The XTENDEX® 8K DisplayPort 1.4 Extender via MPO Fiber Optic Cable locates an Ultra-HD 8K 4320p 30Hz DisplayPort display away from a DP computer up to 656 feet (200 meters) via a male-to-male multimode OM3 type B (crossover) MPO fiber optic cable (8- or 12-strand). Each extender consists of a transmitter that connects to a DisplayPort source, and a receiver that connects to a DisplayPort display.
- Signal transmission via an 8- or 12-strand multimode 50-micron OM3 type B (crossover) MPO male-to-male fiber optic cable.
- Supports Ultra-HD 8K resolutions to 7680×4320 @30Hz YUV 4:4:4, Ultra-HD 4Kx2K resolutions to 3840×2160 @120Hz YUV 4:4:4, and HDTV resolutions to 1080p @240Hz.
- DisplayPort features supported:
- DisplayPort 1.4
- Multi-Stream Transport (MST)
- Up to 36-bit Deep Color
- LPCM
- YCbCr 4:4:4, YCbCr 4:2:2, and RGB
- Bandwidth up to 32.4Gbps
- HDCP compliant.
- EDID pass-through for the support of any DisplayPort display device.
- Compact design — connects directly to source/display.
- Cables can be installed in conduit prior to extender installation.
- Supports Plug-n-Play specifications.
- Low RFI/EMI for sensitive applications.
Material Supplied with this kit:
ST-FODP14-MPO-200M Local and Remote Unit 1- Power supply- In:100 to 240V, 50/60Hz ; Out: DC 5V, 2A URL Slip with Web location of this manual
Available Material sold separately:
FIBER-MPO12-3B-xxxM-LSZH-MM 12-Strand OM3 Multimode MPO Fiber Optic Cable, LSZH, Type B, Male-Male
- Contact an NTI product consultant for available lengths up to 200 meters.
Installation
This extender system is composed of two individual units, the Transmitter and the Receiver, interconnected by fiber optic cable.
MPO OM3 type B (crossover) multimode fiber cabling is required for extension up to 200m.
- Connect the Transmitter module to the DisplayPort source device.
- Connect the Receiver module to the display.
- Connect the MPO/MTP optical cable (8- or 12- strand) from Transmitter to the Receiver.
- Connect the included +5V DC power supply to the receiver.
- The Green Power LED indicator on the modules will be illuminated after all connections are complete.

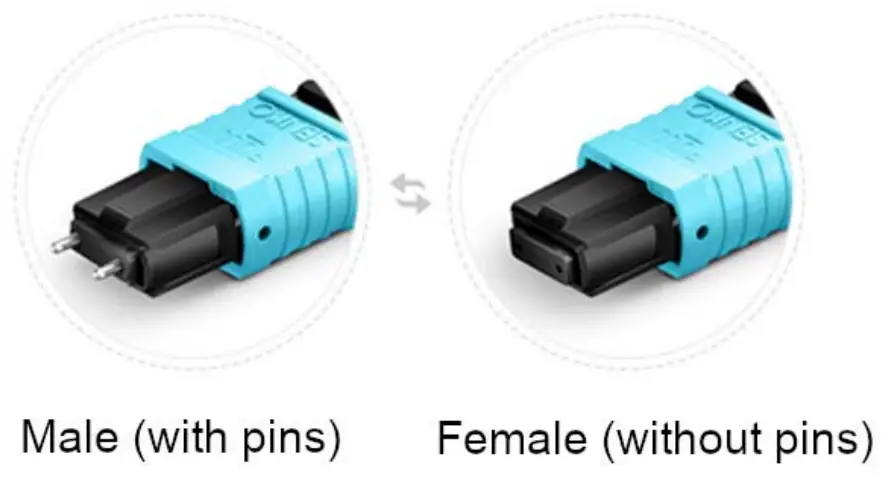

Note: An MPO or MTP fiber cable with male plugs will be required to connect between the Transmitter and Receiver. NTI # FIBER-MPO12-3B-xxxM-LSZH-MM is available.
Specifications
| Local Unit |
|
| Remote Unit |
|
| Supported Video Resolutions |
|
| EDID | Pass through |
| DPCP | Supported |
| DP Compliance | DP 1.4 |
| HDCP | Compliant |
| Operating Temperature | 32 to 122°F (0˚ to 50˚C ) |
| Storage Temperature | -4 to 158°F (-20˚ to 70˚C) |
| Humidity | 20-80% Operating, 10-90% Storage Relative Humidity Non-condensing |
| Power -Local | Powered by attached video source |
| Power-Remote |
|
| Cables | Use an 8- or 12-strand multimode 50/125-micron OM3 type B (crossover) MPO male-to-male fiber optic cable to extend the receiver from the transmitter up to 656 feet (200 meters) (not included). |
| Max Distance | Extend to 656 feet (200 meters) using an 8- or 12-strand multimode 50-micron OM3 type B (crossover) MPO male-to-male fiber optic cable. |
| Dimensions (Local and Remote) WxDxH | Body: 1.22×2.52×0.63 in. (31x64x15.9 mm) Overall length with attached male DisplayPort cable: 11.81 in (300 mm) |
| Approvals | CE, FCC, RoHS, TAA compliant |
| Transmitter (Local Unit) | Receiver(Remote Unit) | |
| Video Connector | DisplayPort Female | DisplayPort Female |
| Fiber Connector | Female MPO x1 | Female MPO x1 |
| Max. data rate | 32.4 Gbps | 32.4 Gbps |
| Power Consumption | 0.2W (Max.) | 0.6W (Max.) |
| Net Weight | 54.431g | 54.975g |
