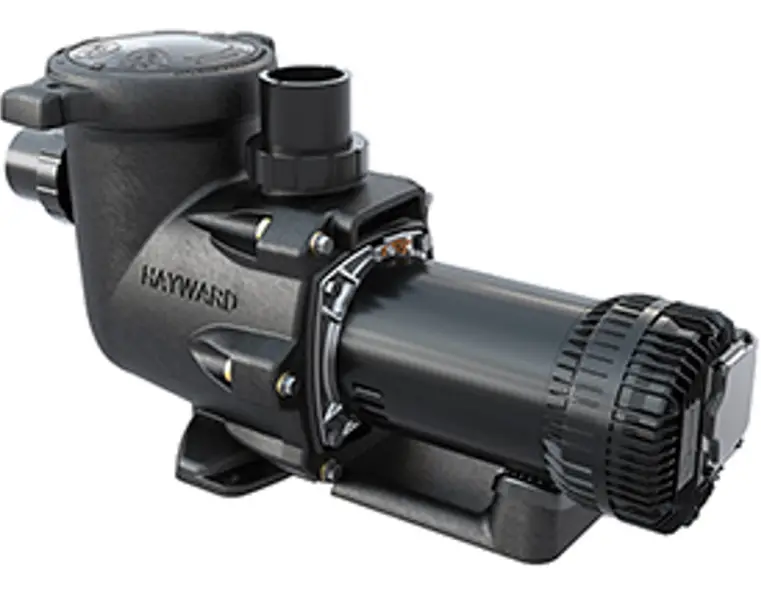

HAYWARD W3SP3215X20XE XE Series TriStar Ultra-High Efficiency Variable Speed
PRODUCT OVERVIEW
SPECIFICATION

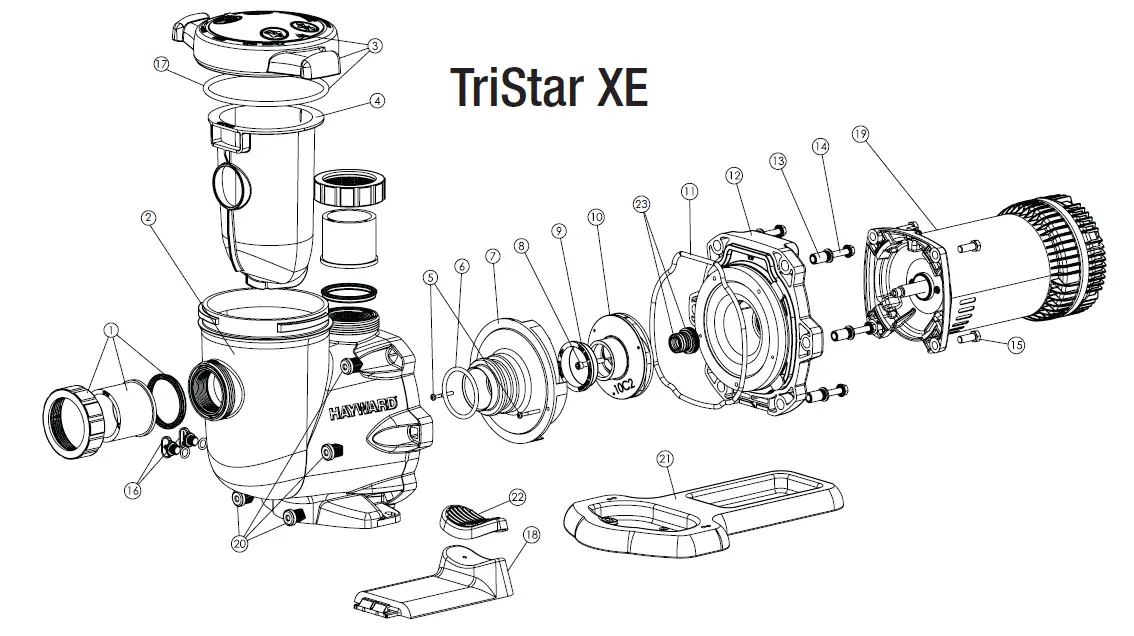

| Ref. No. | Part No. | Description |
| 1 | SPX3200UNKIT | Union Connector Kit (Includes 2 Nuts, Connectors & Gaskets) |
| 2 | SPX3200A | Pump Strainer Housing, 2” x 2 1/2” with Drain Plugs |
| 3 | SPX3200DLS | Strainer Cover Kit (Includes Strainer Cover, Lock Ring & O-Ring) |
| 4 | SPX3200M | Strainer Basket |
| 5 | SPX3200Z8 | Diffuser Screw |
| 6 | SPX4000Z1 | Diffuser O-Ring |
| 7 | SPX3200B3 | Diffuser |
| 8 | SPX3200Z1 | Impeller Screw |
| 9 | SPX3021R | Impeller Ring |
| 10A | SPX3207C | 1.25THP Impeller with Impeller Screw |
| 10B | SPX3210C | 1.85THP Impeller with Impeller Screw |
| 10C | SPX3215C | 2.25THP Impeller with Impeller Screw |
| 11 | SPX3200T | Housing O-Ring |
| 12 | SPX3200E | Seal Plate |
| 13 | SPX3200Z211 | Housing Insert/Seal Plate Spacer Kit |
| 14 | SPX3200Z3 | Housing Bolt |
| 15 | SPX3200Z5PAK4 | Motor Bolt (package of 4) |
| 16 | SPX4000FG | Drain Plug with O-Ring |
| 17 | SPX3200S | Strainer 0-Ring |
| 18 | SPX3200GA | Motor Support |
| 19A | SPX3207X10XEPE | 1.25 HP Power End includes #5-#12, #15, #18, #19, #22, #23 |
| 19B | SPX3210X15XEPE | 1.85 HP Power End includes #5-#12, #15, #18, #19, #22, #23 |
| 19C | SPX3215X20XEPE | 2.25 HP Power End includes #5-#12, #15, #18, #19, #22, #23 |
| 20 | SPX3200Z211 | Housing Insert/Seal Plate Spacer Kit |
| 21A | SPX3200WF | Optional Riser Base (aligns with Pentair® WhisperFlo® pump*) |
| 21B | SPX3200SR | Optional Riser Base (aligns with Pentair® WhisperFlo® pump*) |
| 22 | SPX3200Q2 | Motor Support Adapter |
| 23A | SPX3200SA | Shaft Seal Assembly |
| 23B | SPX4000SAV | Shaft Seal Assembly (Viton) |
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
