SUB-12 Pro Powered Subwoofer
Instruction Manual

SUB-12 Pro Powered Subwoofer

Passionate about Music It’s what we do!
SUB-12 Pro
12″ ACTIVE/POWERED SUBWOOFER
Owner’s Manual
Please note that this procedure is exclusively for notifying Better Music Builder and its affiliates that your copyrighted material has been infringed. Better Music Builder is protected by the U.S. and international copyright.

SAFETY INSTRUCTIONS

PLEASE READ THIS MANUAL FIRST
Thank you for buying M product. Read this manual first as it will help you operate the system properly. Please keep this manualfor future reference.
WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
WARNING: To reduce the risk of electric shock, only qualified professionals can remove the cover of this system
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
The lighting flash & arrowhead symbol within an equilateral triangle is intended to alert you that this part is not dielectric, and may cause the hazard of electric shock
The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and servicing instructions.

INTRODUCTION

The 12″ 1800W Active/Powered Subwoofer SUB-12 Pro has more than enough power to power passive speakers, allowing for the perfect complete stereo system. The SUB-12 Pro is “powered,” which means they have amplifiers already built-in. Being a powered speaker, each model has the power to drive two other external speakers for a combined maximum power of 1800 Watts.
SUB-12 Pro is made of with solid plywood with advanced environmental protection polyurethane-based painting which is very dense. We are fencing each cabinet to provide strong ultra-weather ability. With this design, each bass speaker reduces interference and enhances the sound quality.

SYSTEM FEATURES

• 1 x 12″ woofer [3″ voice coil low frequency woofer]
• Built-In power amplifier
• Portable/compact design
• Digital amplifier with DSP and outputs
• Audio input: 1 x XLR
• Audio output: 1 x XLR
• Speaker output: 1 x Speakon NL4 connector
• Handling power: RMS 1000 Watts, PEAK 1800 Watts
• Suitable for use with any full range or mid/high speaker
• Convenient handle on subwoofer box
• Protective grill: Black perforated steel
• Integral 35mm pole receptacle for mounting full range or mid/high speaker cabinet

CONTROLS AND FUNCTIONS

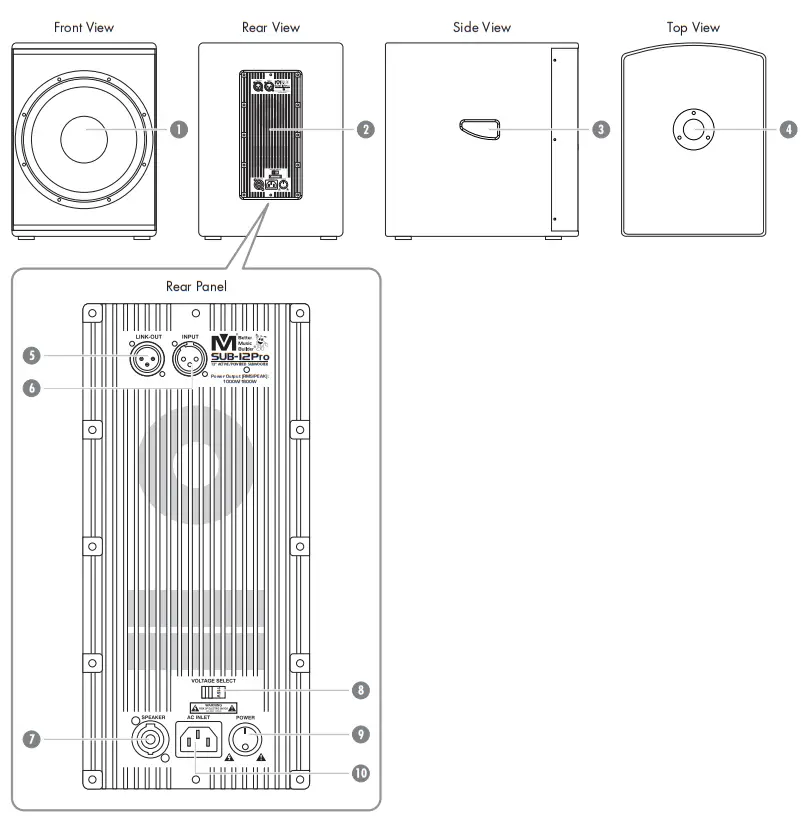

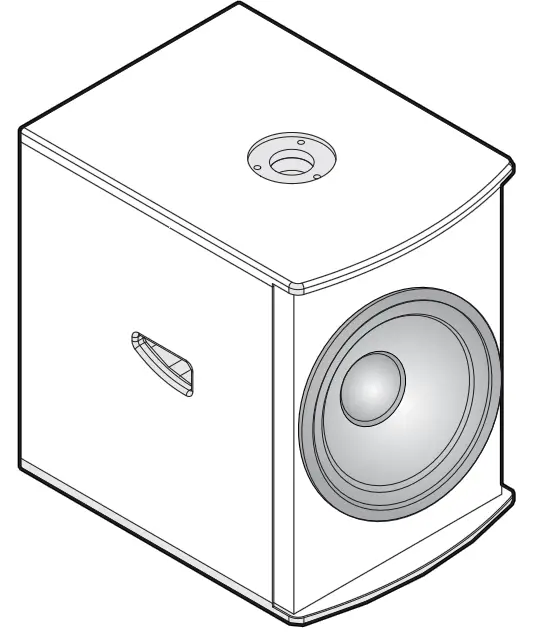

FRONT & REAR PANEL

1. 12-INCH WOOFER [3-INCH VOICE COIL LOW FREQUENCY WOOFER]
2. REAR PANEL
3. SUBWOOFER HANDLE
4. 35MM MOUNTING POLE SLOT
5. AUDIO OUTPUT (XLR)
6. AUDIO INPUT (XLR)
7. SPEAKER OUTPUT: Speakon NL4 connector
8. VOLTAGE SELECTOR: Grid voltage corresponding switch.
9. POWER SWITCH
10. AC-POWER: 110V for USA & Canada. 220V for Asia and Europe.

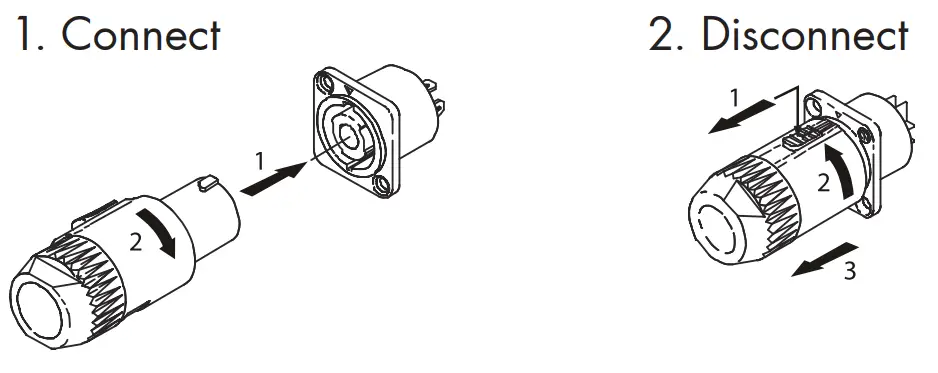

NL4 CONNECTION

SYSTEM SETUP GUIDELINES

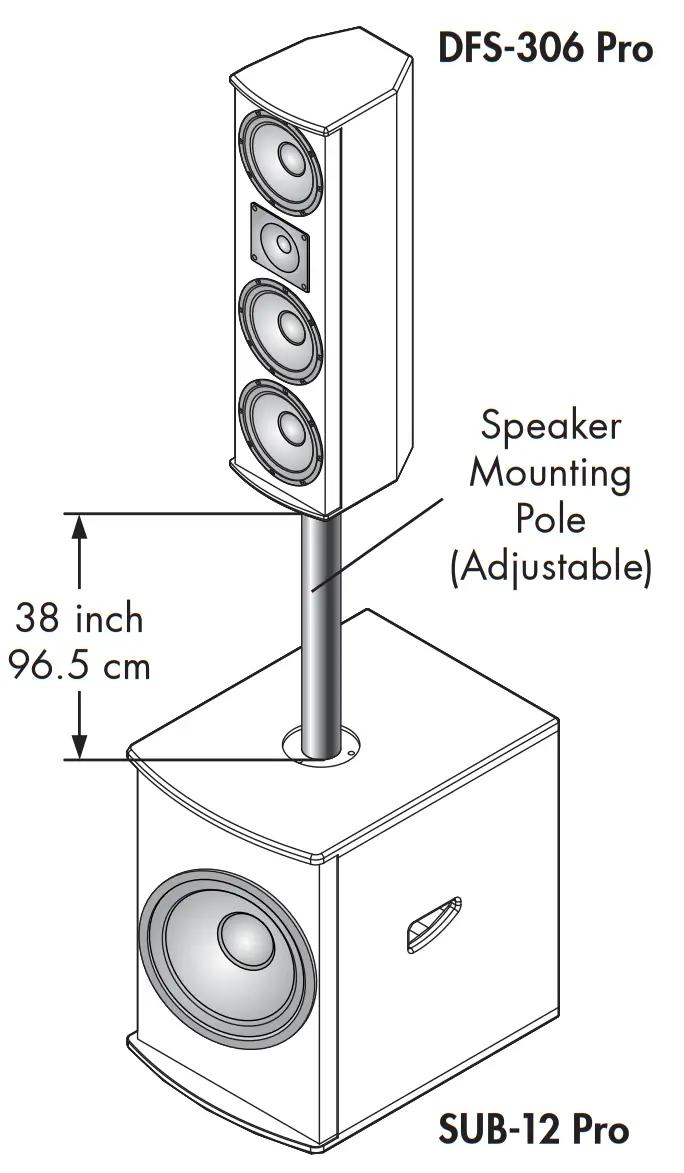

PLAC NG THE SPEAKERS ON THE SPEAKER MOUNTING POLE (Adjustable)
Part Number: AM91 (Optional)
Better Music Builder’s new product line of vocal/column speaker DFS-306 Pro make for a fantastic complete live sound system when paired with a 12″ powered subwoofer SUB-12 Pro. Dynamic Fusion Series speakers such as the vocal/column speakers recreate the music and vocal in crystal clear sound.

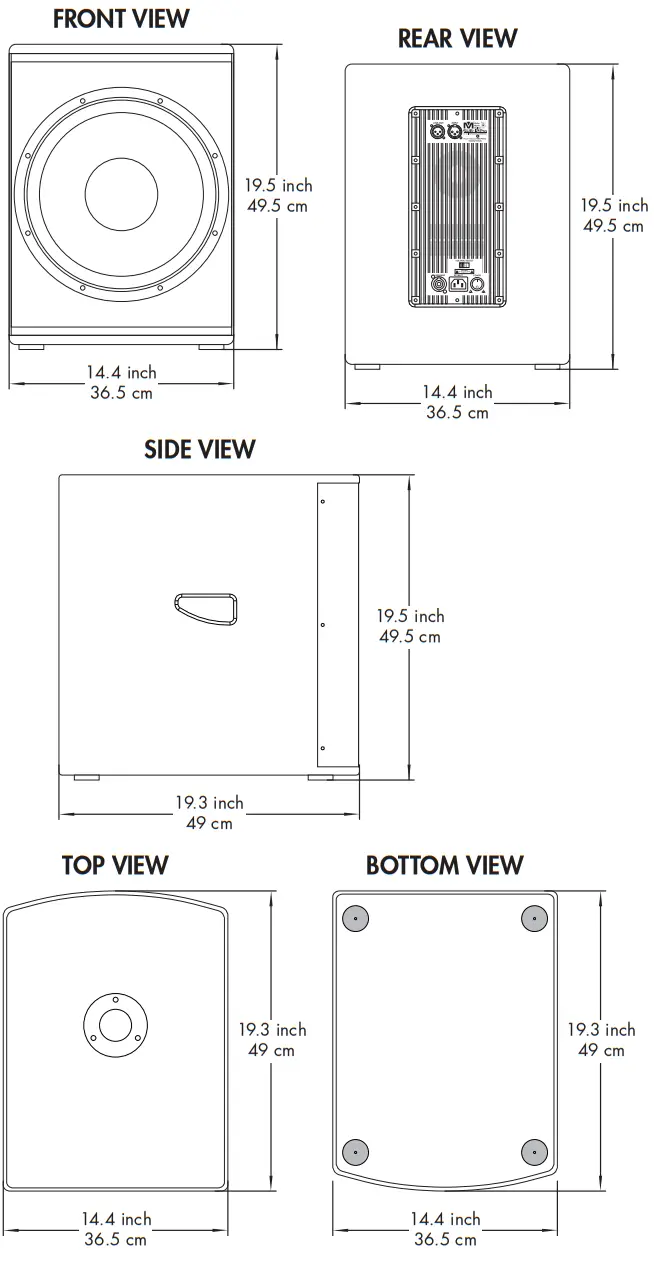

PHYSICAL DIMENSIONS

SPECIFICATIONS

12″ BASS POWERED SUBWOOFER
MODEL
TYPE	Subwoofer
PEAK POWER	900 Watts
RMS POWER	450 Watts
CABINET TYPE	MDF Wood
SUPPORTED FIXTURE	Ground
WOOFER [Low Frequency]	12″ (1 units)
POWER AMPLIFIER	Built-in DSP Power Amplifier
FREQUENCY RESPONSE	35Hz – 500Hz (±3dB)
RATED IMPEDANCE	4-8 ohms
SENSITIVITY	95 dB/1W/1M
COVERAGE
SPL RATING [PEAK]	122dB
SPEAKER OUTPUT CONNECTOR	Speokon NL4 x 1 1+1 -1)
“SPOT” RANGE	Exponential LF Horn Configuration
HIGHLIGHTED FEATURES	75mm Voice Coil

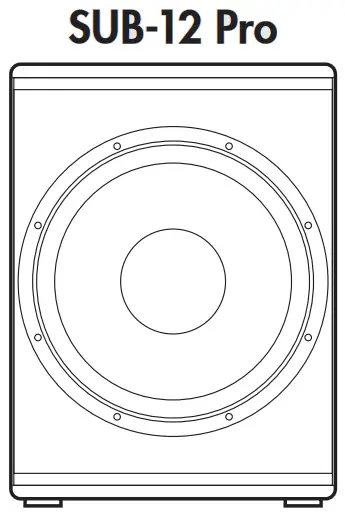

SUB-12 Pro

SYSTEM APPLICATIONS

LARGE FORMAT SOUND SYSTEM
