QUICK START GUIDE
WAVE BUDS

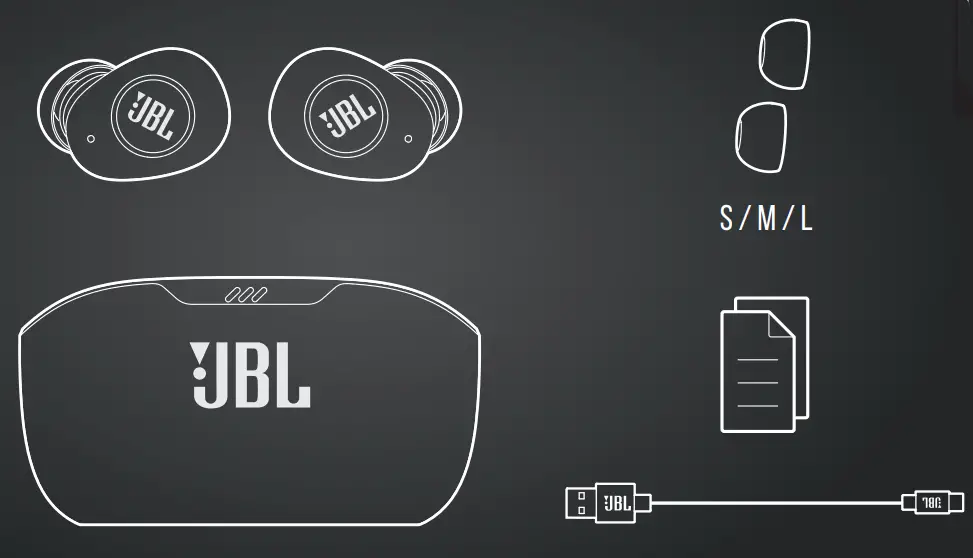

WHAT’S IN THE BOX
https://register.jbl.comutm_medium=US&utm_source=QSG
APP
APP
JBL Headphones
GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

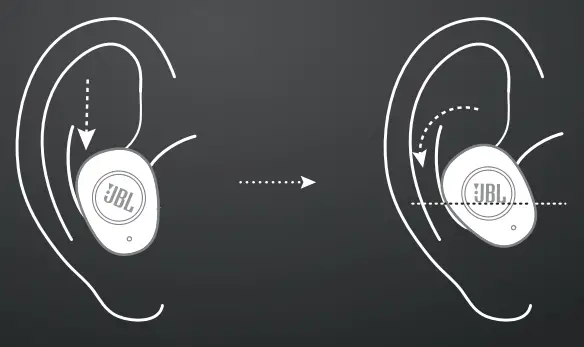

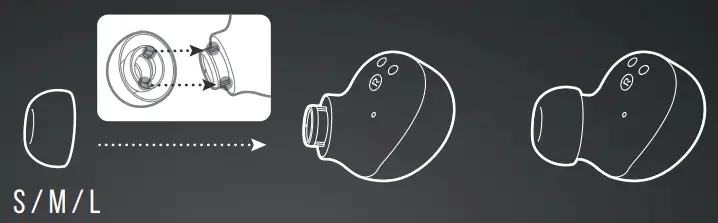

HOW TO WEAR
HOW TO WEAR- Try different sizes for a perfect fit and audio performance.

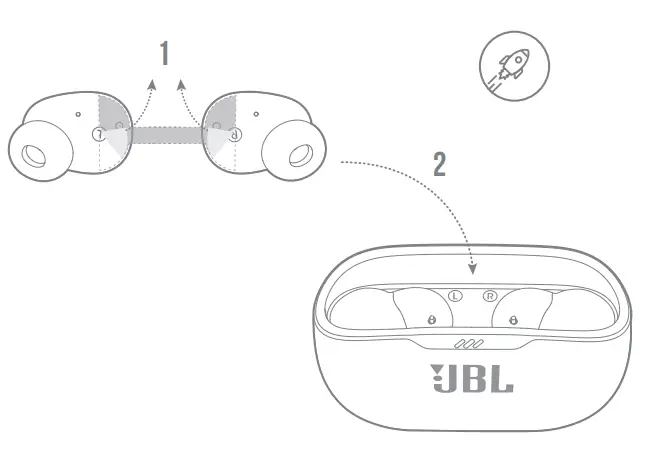

FIRST TIME USE

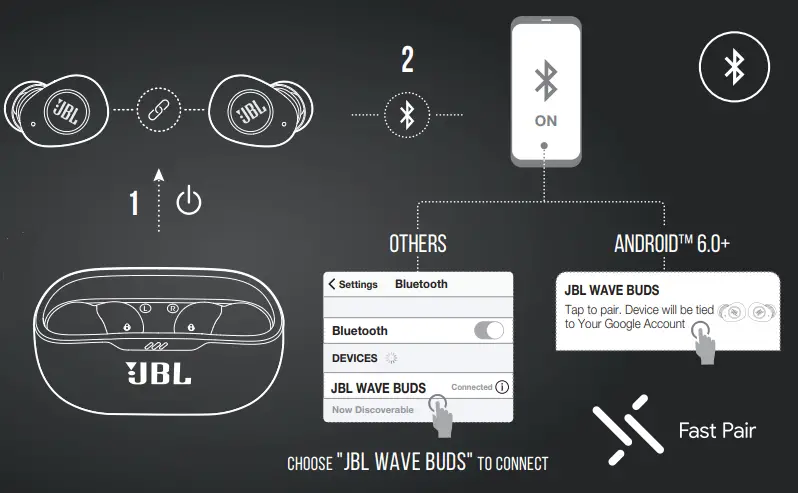

POWER ON & CONNECT

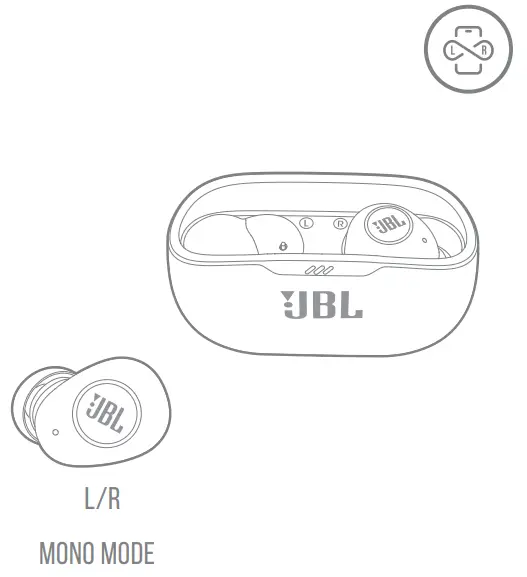

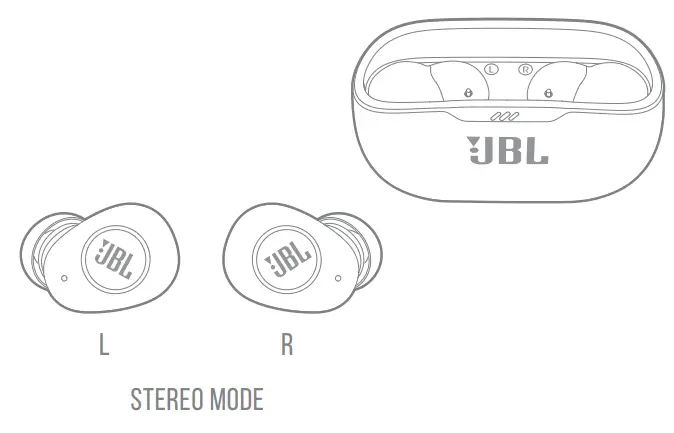

DUAL CONNECT
 |  |

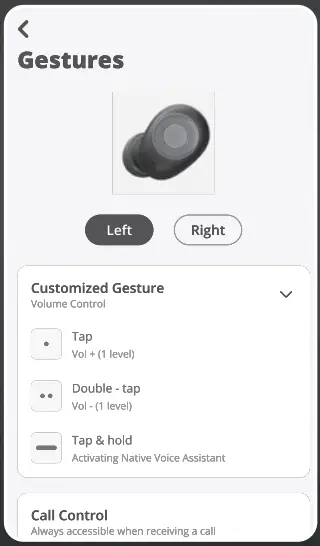

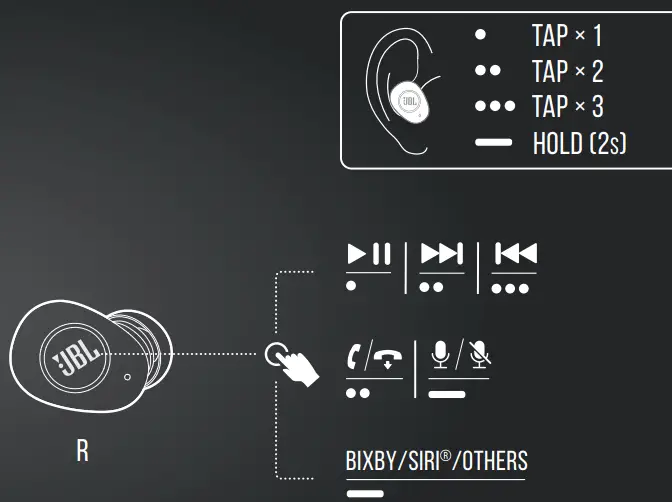

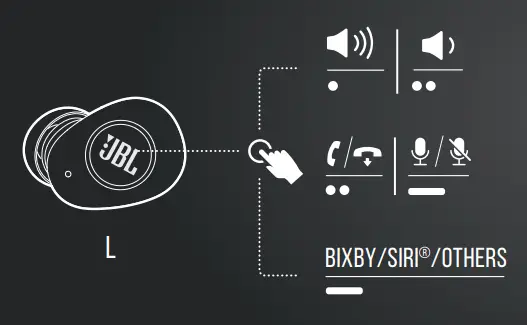

CONTROLS
 |  |
* Enable advance controls by connecting your JBL WAVE BUDS to JBL Headphones App .

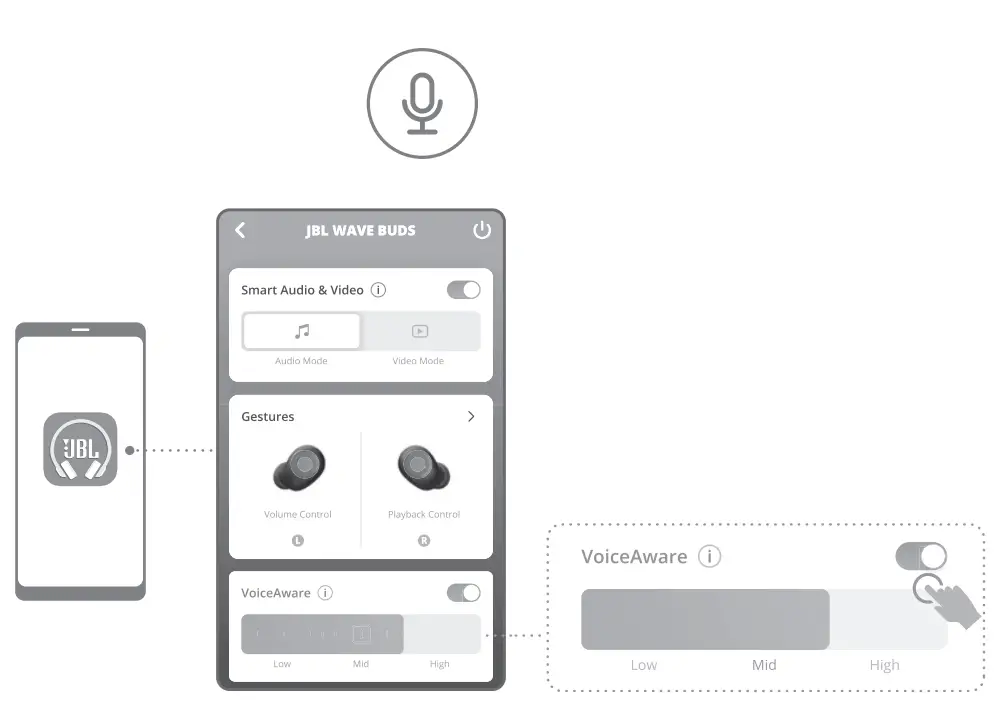

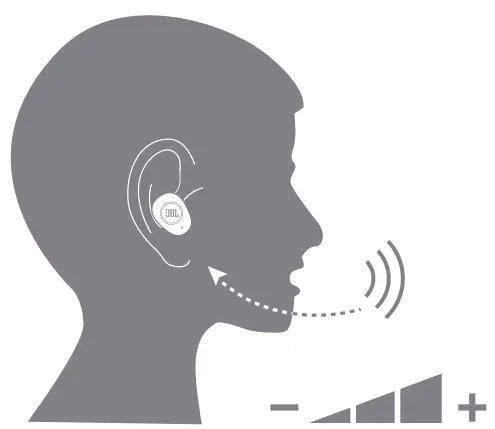

VOICEAWARE
 |  |

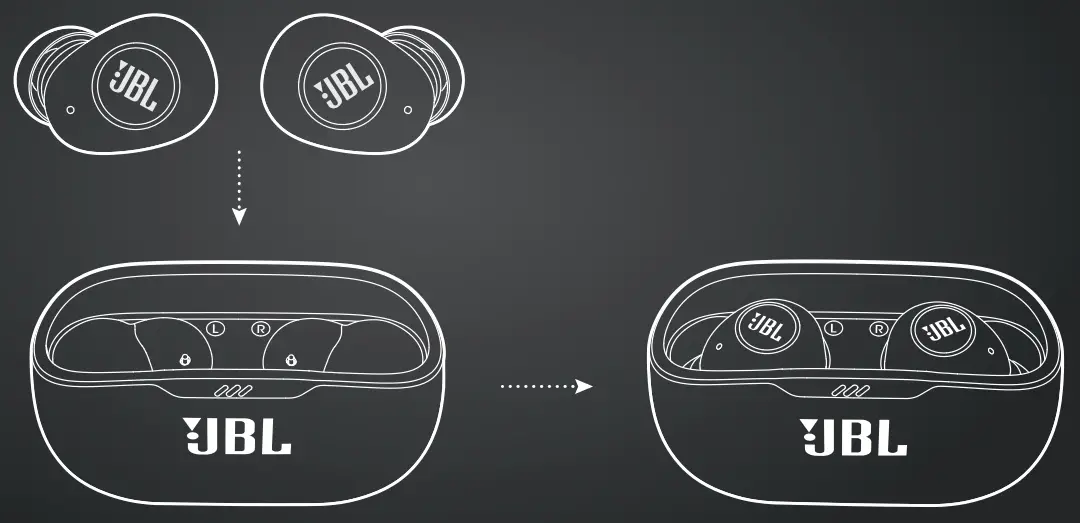

POWER OFF
POWER OFF

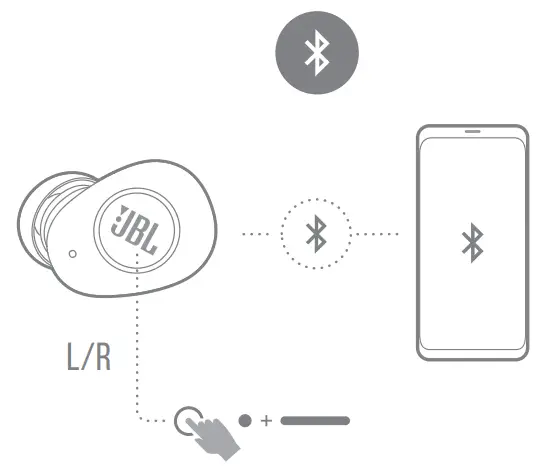

MANUAL SETUP

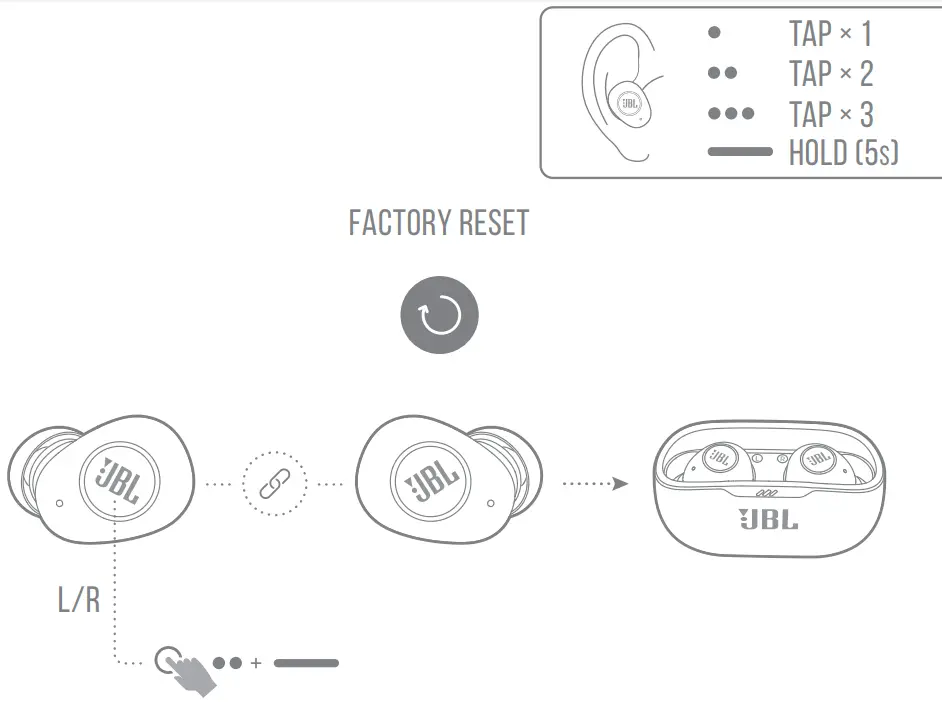

| Connect to a new Bluetooth device | Factory reset |
 |  |

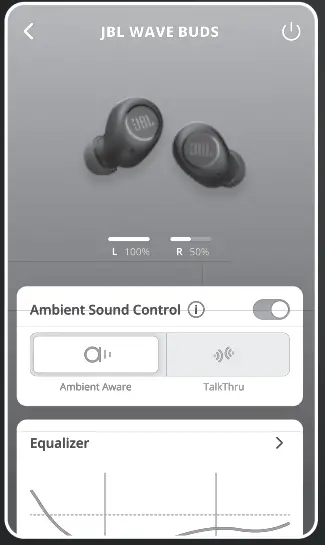

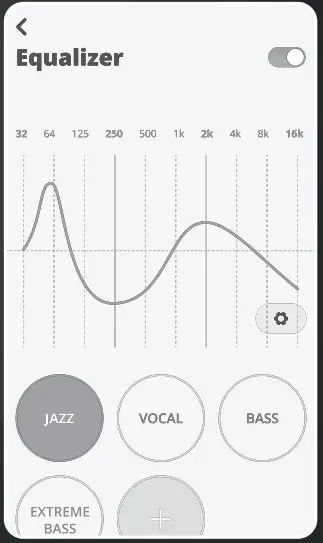

DO MORE WITH THE APP
 |  |  |

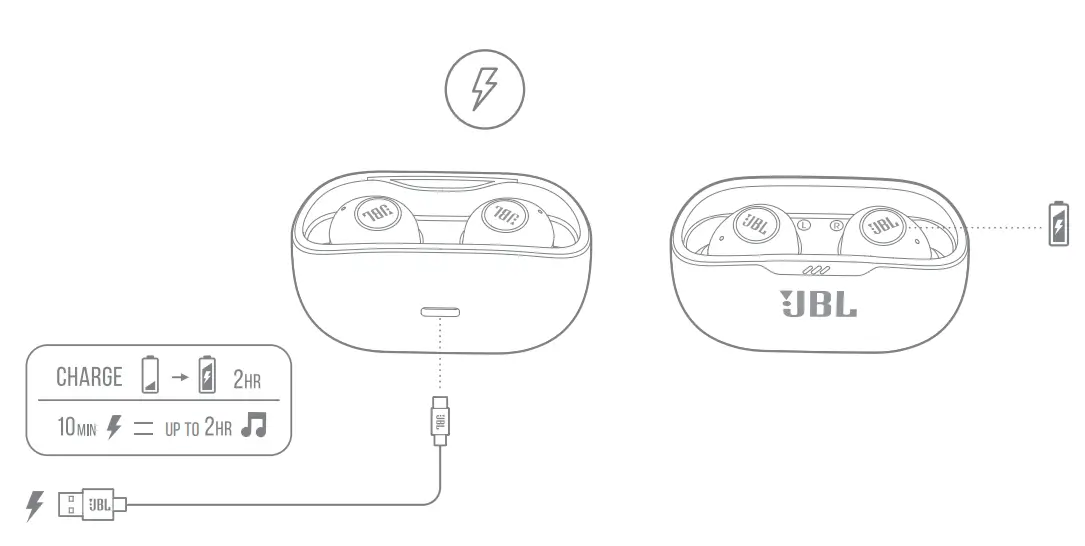

CHARGING
LED BEHAVIORS
LED BEHAVIORS
TECH SPEC
TECH SPEC| Model: | WAVE BUDS |
| Driver size: | 8 mm/ 0.315” Dynamic Driver |
| Power supply: | 5 V  1 A |
| Earbud: | 4.5 g per pc (9 g combined)/ 0.0099 lbs per pc (0.0198 lbs combined) |
| Charging case: | 34 g/ 0.075 lbs |
| Earbud battery type: | Lithium-ion polymer (47 mAh/ 3.8 V) |
| Charging case battery type: | Lithium-ion polymer (550 mAh/ 3.8 V) |
| Charging time: Music playtime with | <2 hrs from empty |
| BT on: | 8 hrs |
| Talk time: | 4.5 hrs |
| Frequency response: | 20 Hz – 20 kHz |
| Impedance: | 16 ohm |
| Sensitivity: | 100 dB SPL@1 kHz |
| Maximum SPL: | 95 dB |
| Microphone sensitivity: | -38 dBV/Pa@1 kHz |
| Bluetooth version: | 5.2 |
| Bluetooth profile version: | A2DP V1.3, AVRCP V1.6, HFP V1.7 |
| Bluetooth transmitter frequency range: | 2.4 GHz – 2.4835 GHz |
| Bluetooth transmitter power: | <10 dBm |
| Bluetooth transmitter modulation: | GFSK, π/4-DQPSK, 8DPSK |
| Maximum operation temperature: | 45 °C |
TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE VARIES BY USE AND SETTINGS.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners. WARNING
DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS
HP_JBL_WAVE BUDS_QSG_Global_SOP_V12
