JBL True wireless in-ear headphones User Guide

Pure bass zero cables

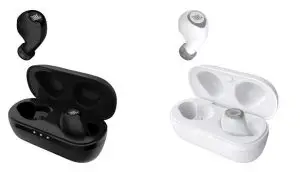

No wires. No hassles. Introducing the completely cord free JBL C105TWS. They are powerful in sound thanks to a 5.8mm driver featuring JBL Pure Bass sound and colorful in design. The earbuds combined with the elegantly designed portable charging case provide 17 hours of unrestrained musical enjoyment. Ergonomically shaped, they also ensure superior comfort. Equipped with intuitive and handy controls that are conveniently located on each earpiece, including one click access to Siri and Google Now.
Features
- JBL Pure Bass Sound
- True Wireless
- Hands-free Stereo Calls
- 5H Playback for Earbuds + 12H for Charging Case
Features and Benefits
JBL Pure Bass Sound
The 5.8mm driver featuring JBL Pure Bass sound provides a powerful punch to all your tracks
True Wireless
Enjoy the freedom of a wireless lifestyle while on the go. Now listen to music, manage your calls or work out without the fear of tangled wires interrupting your groove.
Bluetooth 5.0
Bluetooth version 5.0 for a robust connection with a longer range
5H Playback for Earbuds + 12H for Charging Case
Your listening needs are met from the start of the day, to its end. And if that’s not enough, plug the earbuds into the elegantly designed portable charging case for just 15 minutes to get 1 extra hour of charge.
Hands-free Stereo Calls
Never miss your call during your daily commute or workout thanks to intuitive control for stereo hands-free calls and conveniently placed buttons on the earphones. Connect with Siri or Google Assistant with the push of a button.
What’s in the box
- C105TWS
- 3 sizes of eartips (S, M, L) Charging cable
- 1 x Warranty/Warning (W/!)
- 1 x QSG/Safety Sheet (S/i)

Technical specifications:
| Driver Size | 5.8mm Dynamic driver |
| Driver sensitivity at 1 kHz/1mW | 93dB |
| Dynamic frequency range | 20Hz-20kHz |
| Microphone Sensitivity | -40dBv/Pa |
| Power Supply | 5V 0.5A |
| Impedance | 32 ohm |
| Bluetooth version | 5.0 |
| Bluetooth transmitted power | 010dbm |
| Bluetooth transmitted modulation | GFSK, /4 DQPSK and 8DPSK |
| Bluetooth frequency | 2.402GHz-2.480GHz |
| Bluetooth profiles | A2DP 1.3, AVRCP 1.6, HFP 1.7 |
| Battery type | Lithium-ion Battery (60mA/3.7V) |
| Charging time | <2hrs from empty |
| Music playtime with BT on | 5Hrs |
| Weight | 58g |
For any Details Visit: www.jbl.com
