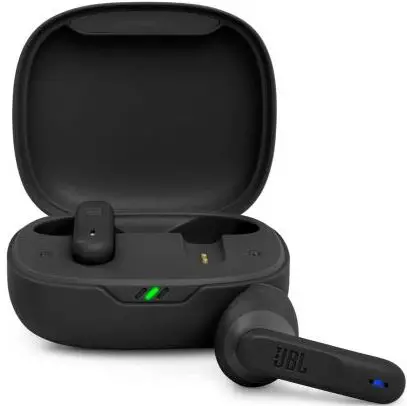

JBL Wave300TS True Wireless Earbuds

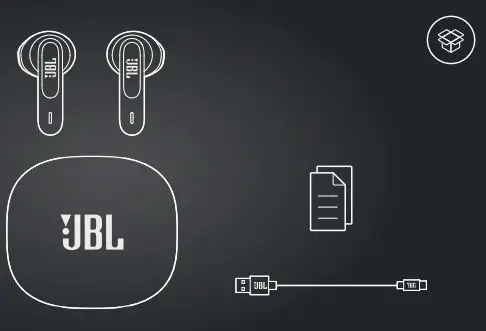

WHAT’S IN THE BOX

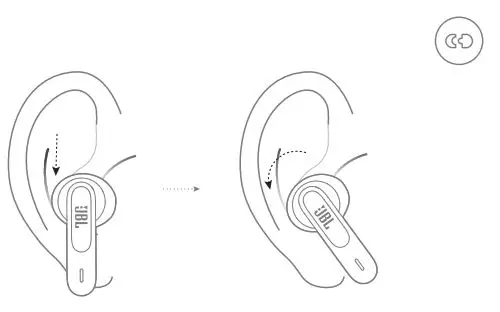

how to wear

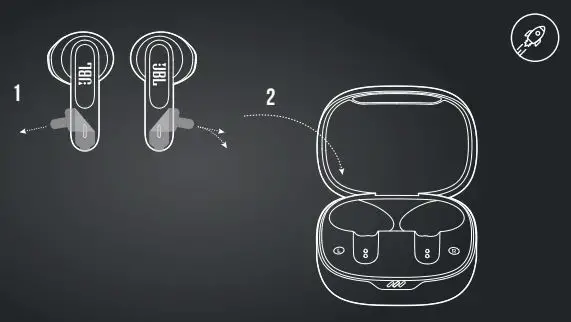

FIRST TIME USE

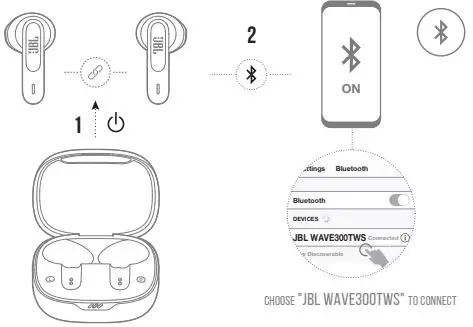

power on & CONNECT
DUAL CONNECT

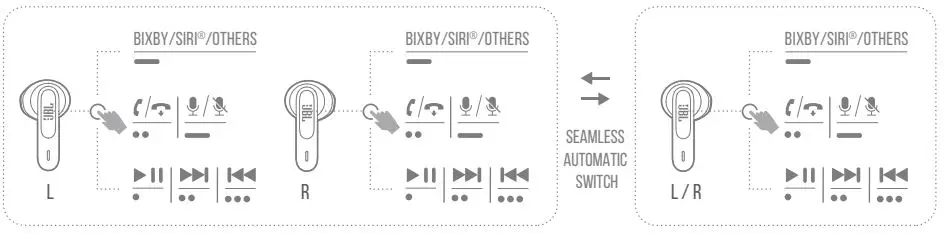

Controls
- Stereo Mode
- Mono Mode

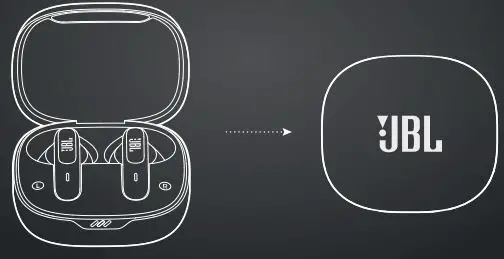

power off
Manual SETUP
- TAP 1
- TAP 2
- TAP 3
- HOLD
- Connect to a new Bluetooth device
- RECONNECT LEFT & RIGHT
- FACTORY RESET

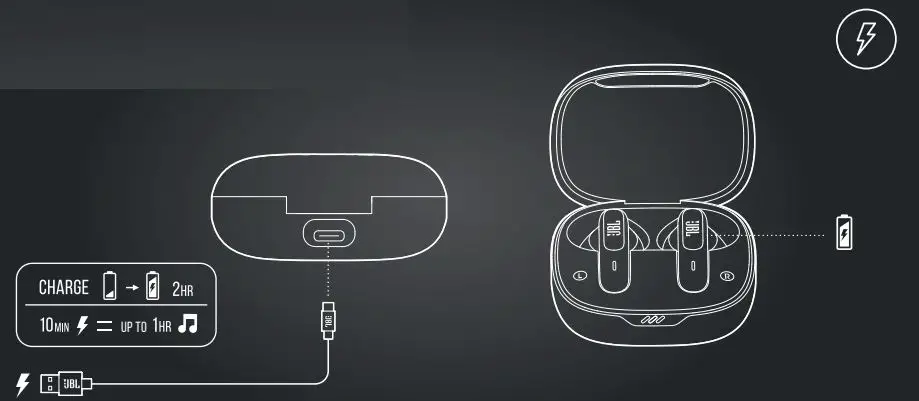

Charging

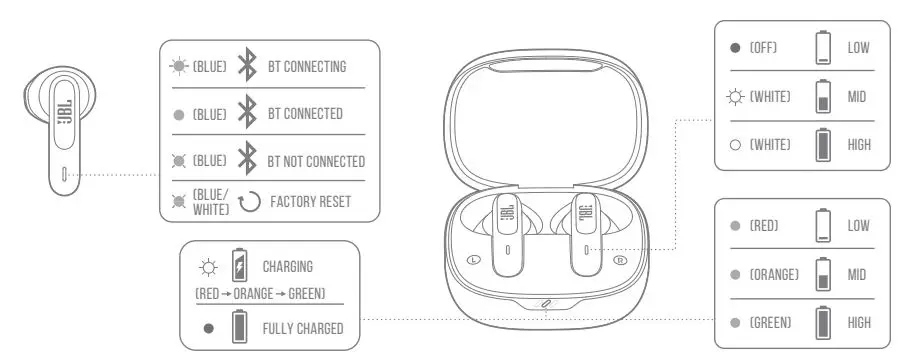

led behaviors
TECH SPEC
- Model: WAVE300TWS
- Driver size: 12 mm/ 0.47” Dynamic Driver
- Power supply: 5V 1A
- Earbud: 3.85 g per pc (7.7 g combined)/ 0.009 lbs per pc (0.017 lbs combined)
- Charging case: 36 g/ 0.079 lbs
- Earbud battery type: Lithium-ion polymer (40 mAh/ 3.85 V)
- Charging case battery type: Lithium-ion polymer (500 mAh/ 3.8 V)
- Charging time: < 2 hrs from empty
- Music playtime with BT on: up to 6 hrs
- Frequency response: 20 Hz – 20 kHz
- Impedance: 32 ohm
- Sensitivity: 105 dB SPL@1 kHz
- Maximum SPL: 95 dB
- Microphone sensitivity: -38±2 dBV/Pa@1 kHz
- Bluetooth version: 5.2
- Bluetooth profile version: A2DP V1.3 AVRCP V1.6 HFP V1.7
- Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
- Bluetooth transmitter power: <12 dBm
- Bluetooth transmitter modulation: GFSK, π/4–DQPSK, 8–DPSK
- Maximum operation temperature: 45 °C
WARNING: TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE VARIES BY USE AND SETTINGS.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
Anatel — Agência Nacional de Telecomunicações
