WAVE Beam True Wireless Earbuds

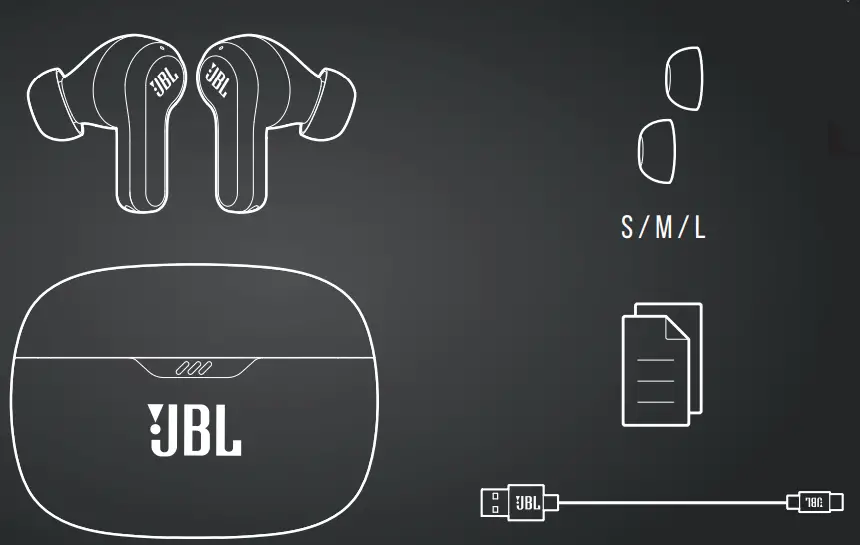

WHAT’S IN THE BOX
https://register.jbl.comutm_medium=US&utm_source=QSG
APP
JBL Headphones
GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.
https://storage.lscloud.harman.com/Testing/MyJBLHeadphones/QRCodeDownload/appstore/jblheadphone.html
HOW TO WEAR
HOW TO WEAR- Try different sizes for a perfect fit and audio performance.

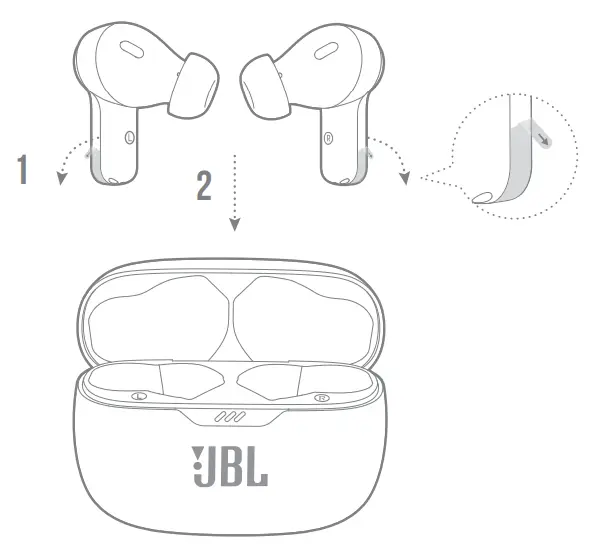

FIRST TIME USE
FIRST TIME USE

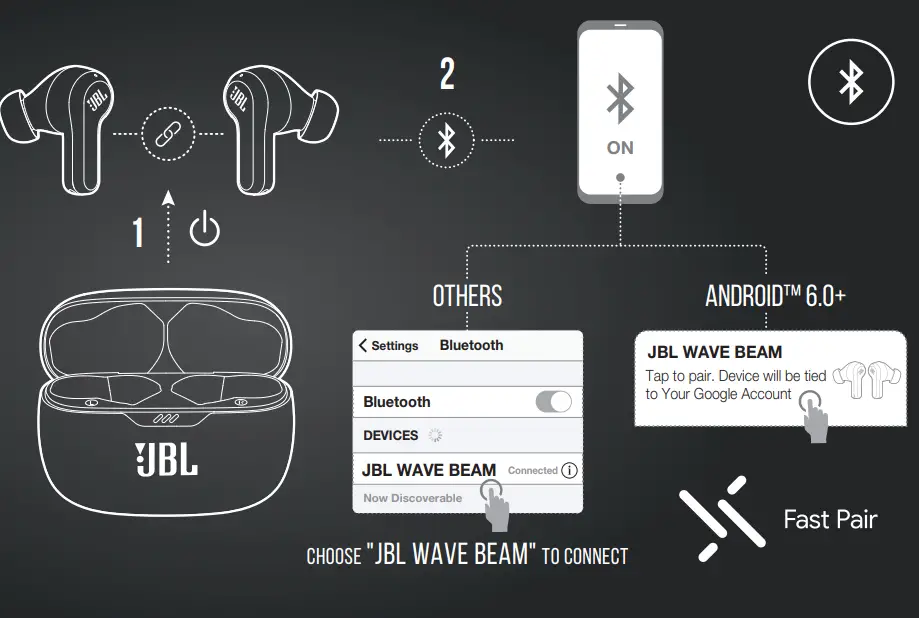

POWER ON & CONNECT

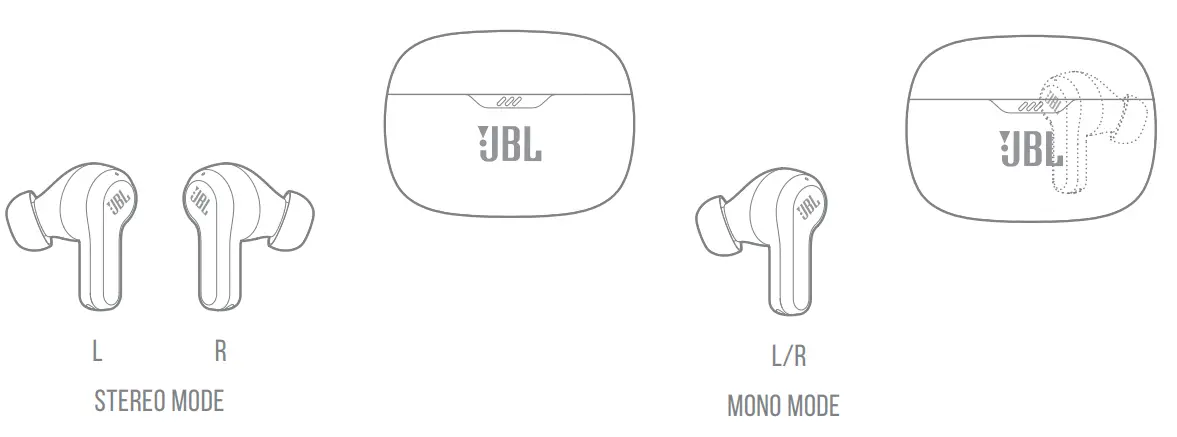

DUAL CONNECT
DUAL CONNECT

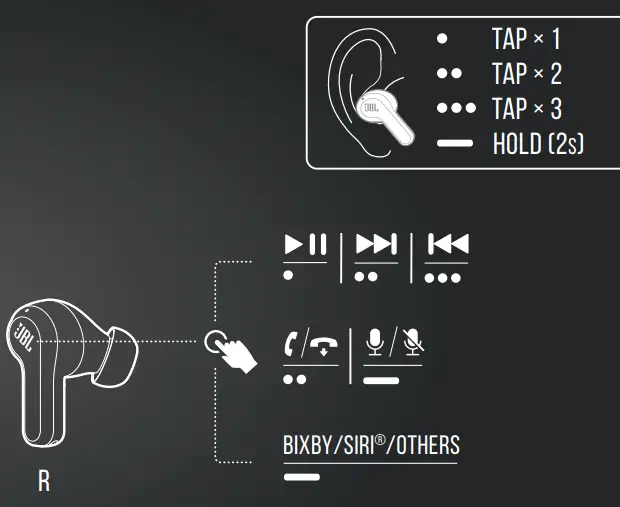

CONTROLS

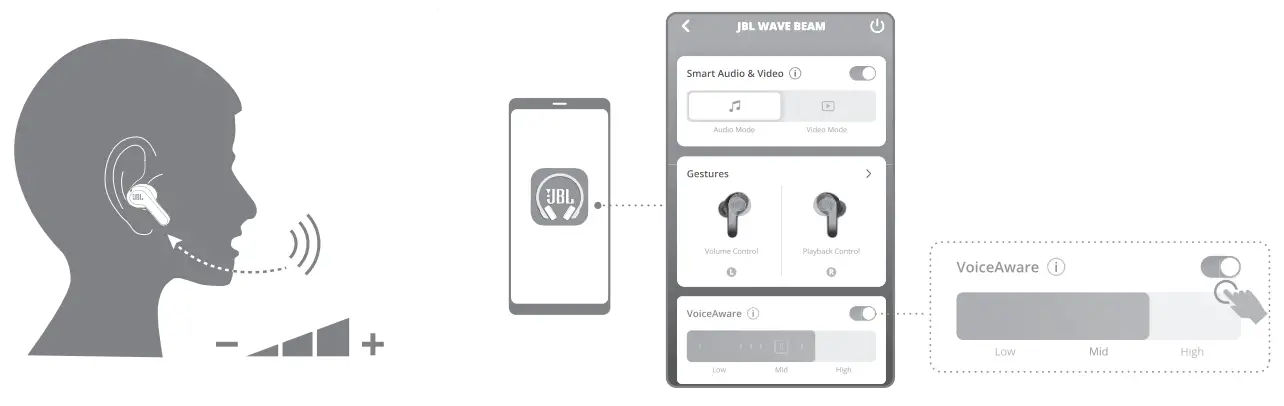

VOICEAWARE
VOICEAWARE

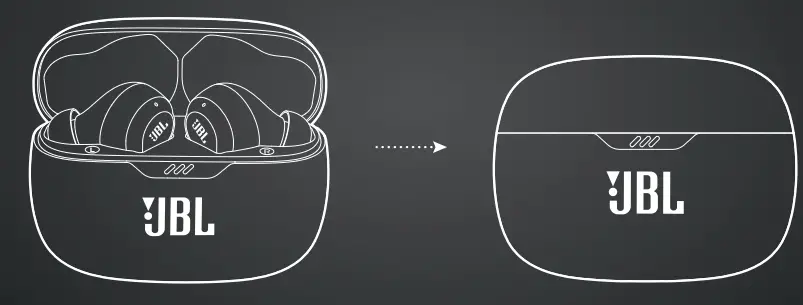

POWER OFF
POWER OFF
MANUAL SETUP

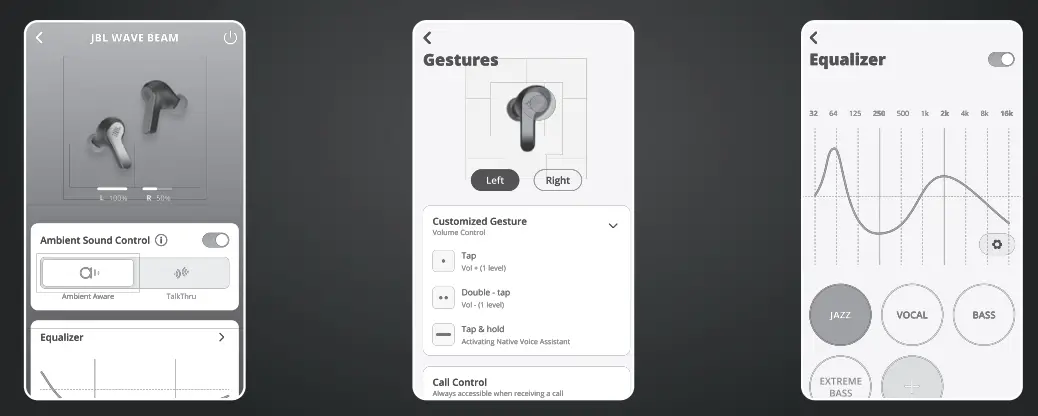

DO MORE WITH THE APP

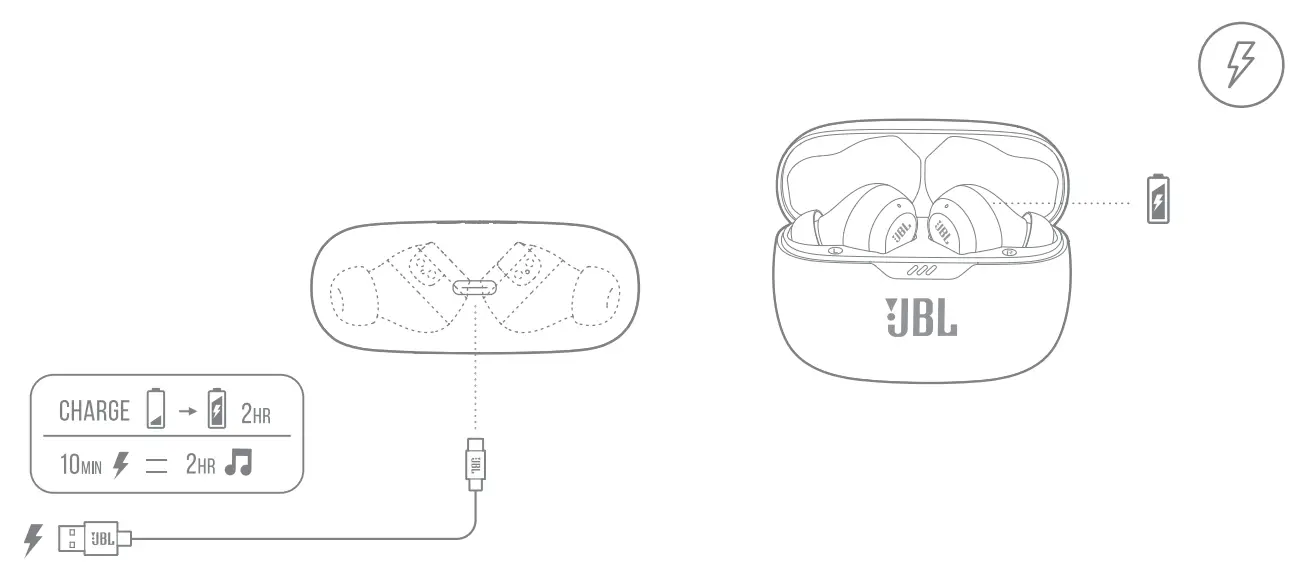

CHARGING

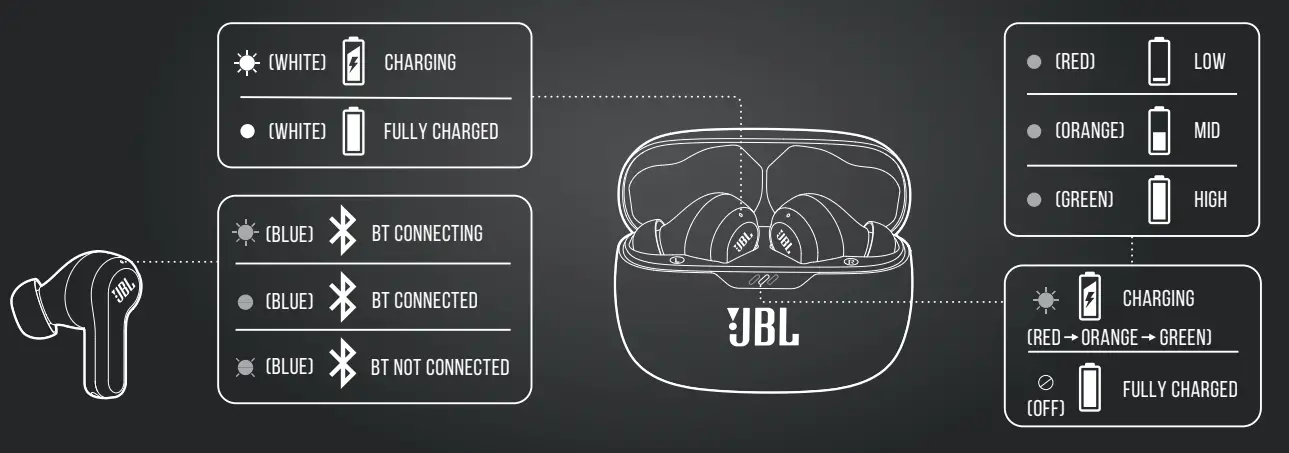

LED BEHAVIORS
LED BEHAVIORS
TECH SPEC
TECH SPEC| Model: | WAVE BEAM |
| Driver size: | 8 mm/ 0.315” Dynamic Driver |
| Power supply: | 5 V 1 A |
| Earbud: | 4.4 g per pc (8.8 g combined)/ 0.0097 lbs per pc (0.0194 lbs combined) |
| Charging case: | 39.5 g/ 0.0871 lbs |
| Earbud battery type: | Lithium-ion polymer (48 mAh/ 3.85 V) |
| Charging case battery type: | Lithium-ion polymer (530 mAh/ 3.7 V) |
| Charging time: | <2 hrs from empty |
| Music playtime with BT on: | 8 hrs |
| Talk time: | 4.5 hrs |
| Frequency response: | 20 Hz – 20 kHz |
| Impedance: | 16 ohm |
| Sensitivity: | 100 dB SPL@1 kHz |
| Maximum SPL: | 95 dB |
| Microphone sensitivity: | -38 dBV/Pa@1 kHz |
| Bluetooth version: | 5.2 |
| Bluetooth profile version: | A2DP V1.3, AVRCP V1.6, HFP V1.7 |
| Bluetooth transmitter frequency range: | 2.4 GHz – 2.4835 GHz |
| Bluetooth transmitter power: | <15 dBm |
| Bluetooth transmitter modulation: | GFSK, π/4-DQPSK, 8DPSK |
| Maximum operation temperature: | 45 °C |
TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE VARIES BY USE AND SETTINGS.
This equipment complies with Directive 2014/53/EU radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The portable device is designed to meet the requirements for exposure to radio waves established by European Union market(France). These requirements set a SAR limit of 2W/kg averaged over ten gram of tissue. The highest SAR value 0.221W/kg reported under this standard during product certification for use when properly worn on the head.
WARNING
DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
HP_JBL_WAVE BEAM_QSG_Global_SOP_V12
