TAIYO YUDEN WBSBHVGXG Wireless LAN and Bluetooth Module Evaluation Board
INTRODUCTION
This module requires device drivers that are under Japan export control. Depending on the customer’s country and application (e.g. weapons), TAIYO YUDEN CO., LTD. may not be able to provide these drivers to all customers. Please contact your local TAIYO YUDEN CO., LTD. sales office for additional information. To contact your local sales office and for additional product information, please visit www.ty-top.com
Rev. Records
- 8-Jan.2016> Ver.1.0 Released
- 17-Mar.2016>Ver.1.1 Added descriptions to the second page
- 18-Aug.2016>Ver.1.2 Added Shematic and correct the BOM(R42,R38,C14)
- 6-Apr. 2017>Ver.1.3 Minor change
- 25-Aug. 2017>Ver.1.4 Update RECOMMENDATION OPERATION ENVIRONMENT
- 22-Jun. 2020>Ver.1.5 Update BOM and Schematic
Introduction
This evaluation board is developed for communication test of Wireless LAN and Bluetooth® module which TAIYO YUDEN CO., LTD. develops and sells. This evaluation board makes it possible to perform easily the communication test of Wireless LAN and Bluetooth® module of TAIYO YUDEN CO., LTD..
Conformity module
WYSBHVGXG
Accessories
- Evaluation Board (WBSBHVGXG) 1 piece
- DC Power Cable 1 piece
Recommendation operation environment
PC with Linux Fedora18 with software development option and SDIO interface(CPU 1000MHz or higher) Attention: PC with SDIO is required. Although SDIO and SD Memory Card have the same slot shape, they are not compatible. WLAN Module and Evaluation Board will not work if they are connected to SD memory card slot.

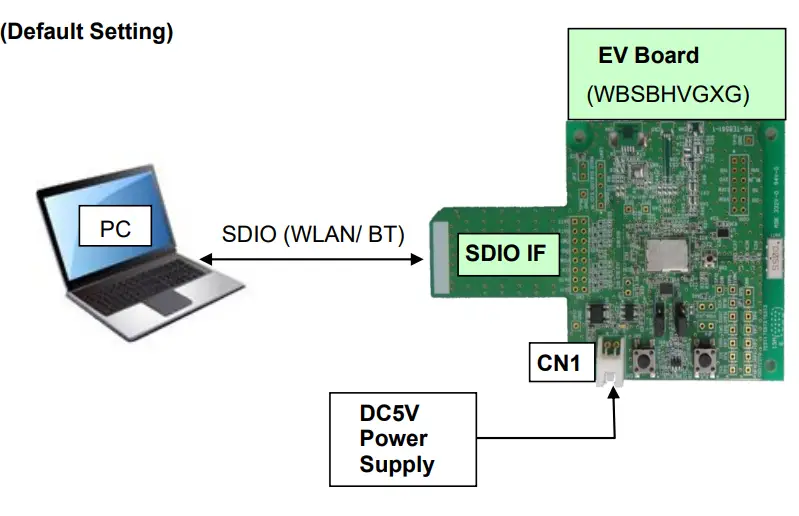

An example of a connection
SDIO(Default Setting)

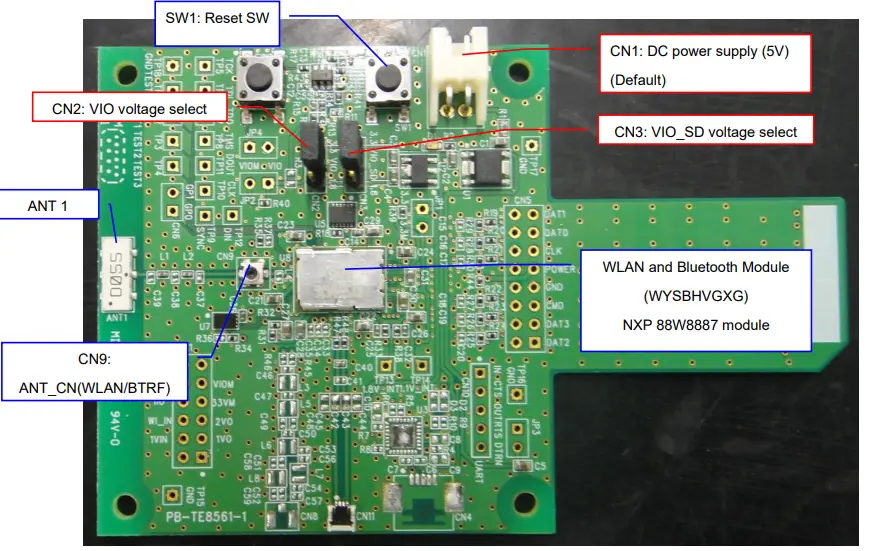

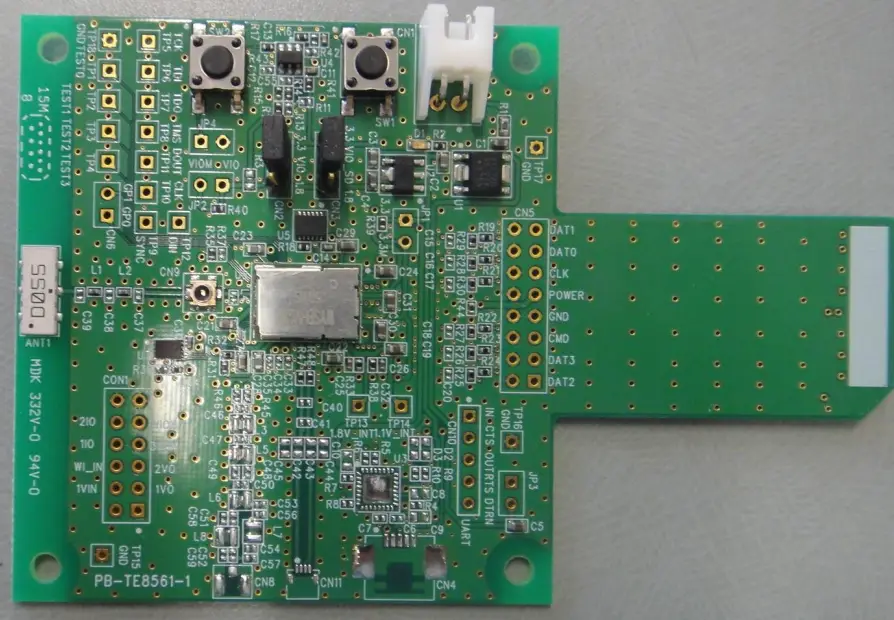

Evaluation board layout

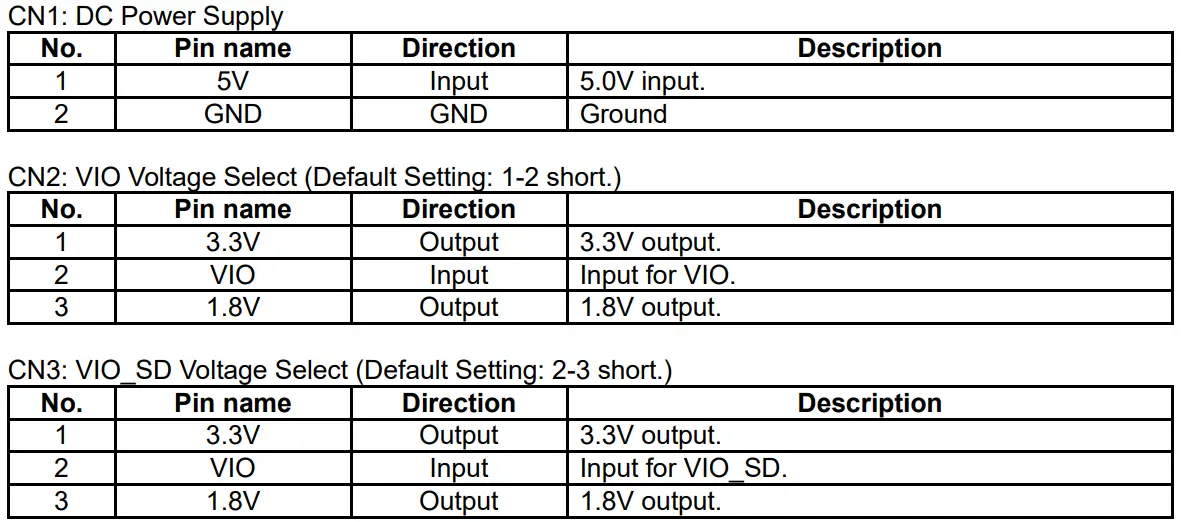

Pin description of evaluation board
WBSBHVGXG (TE8561-1)

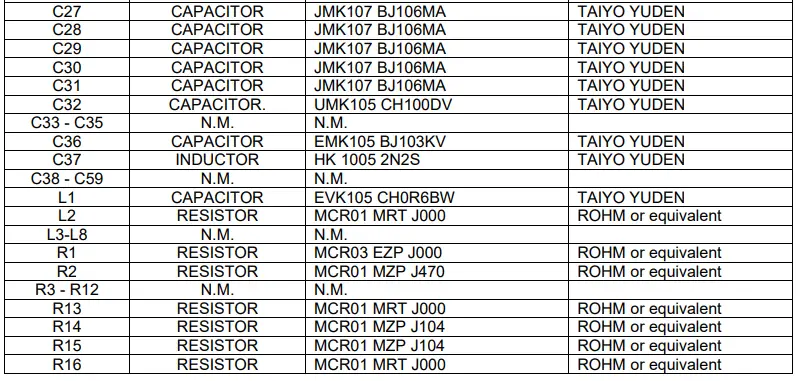

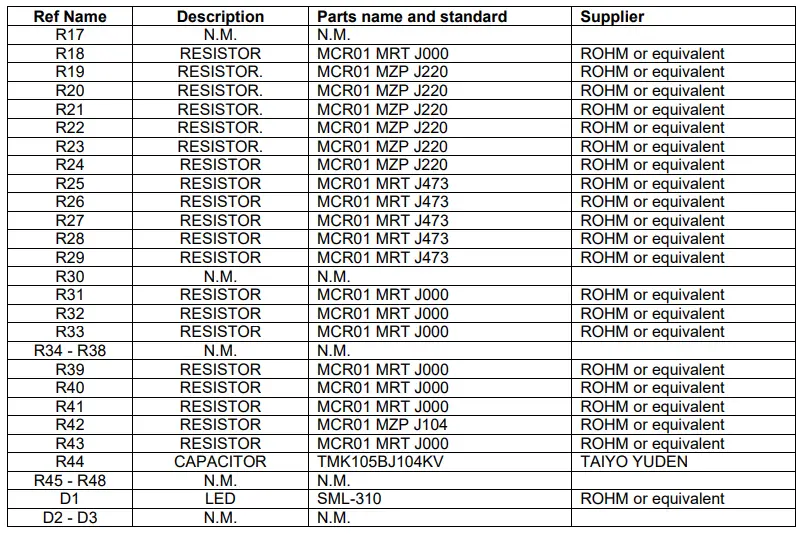

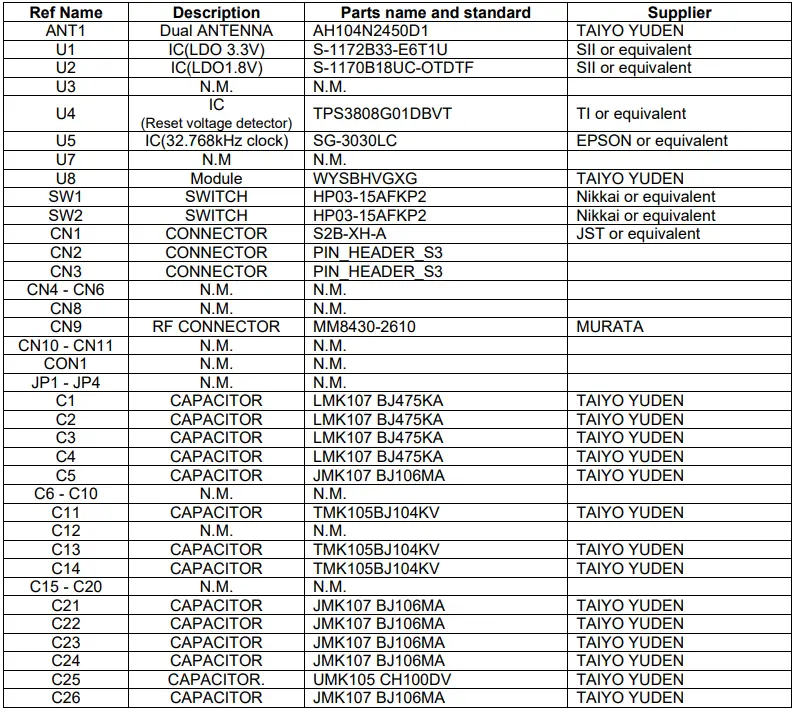

BOM of evaluation board
WBSBHVGXG (TE8561-1)

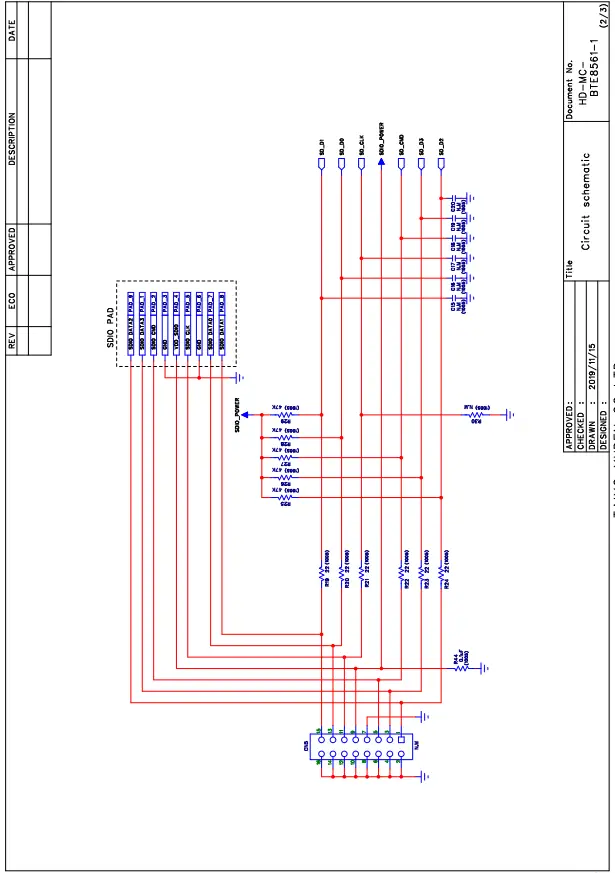

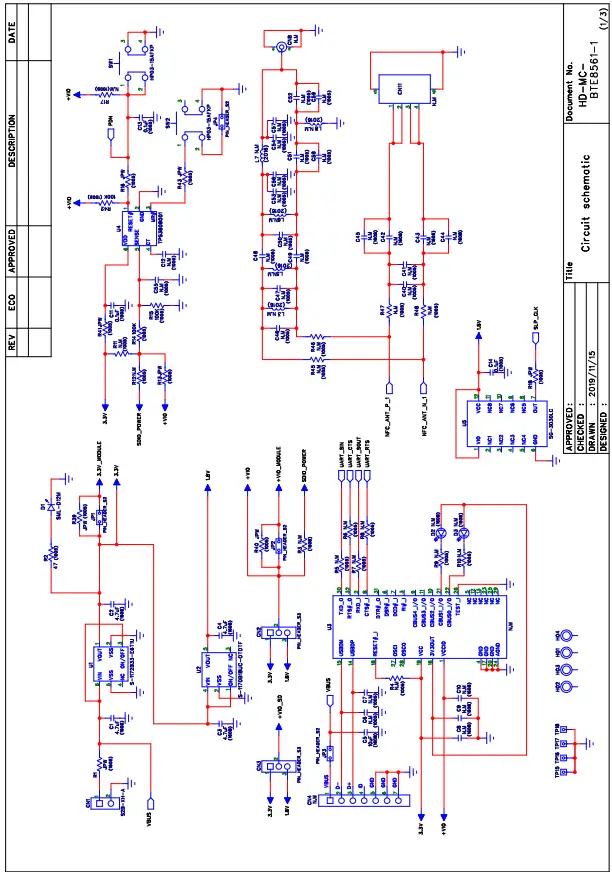

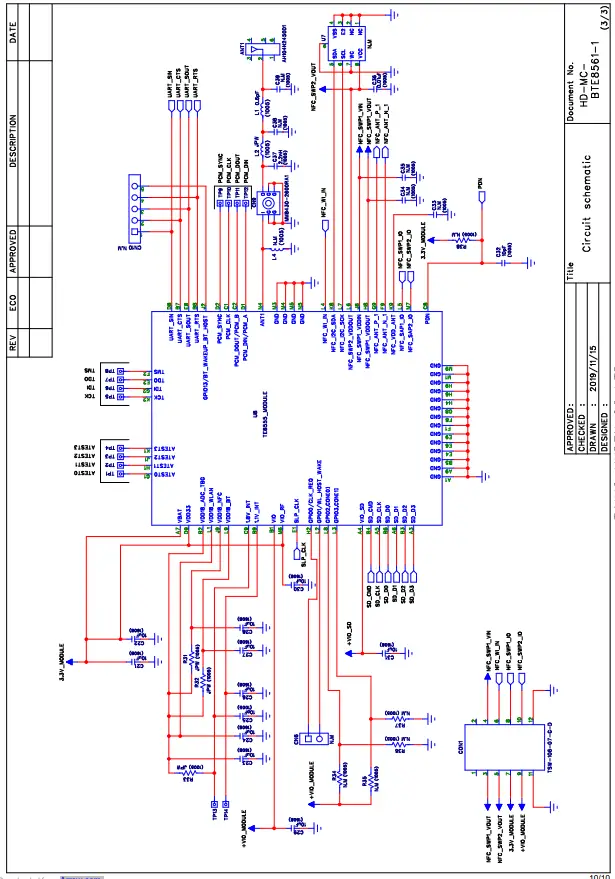

DIAGRAM
TAIYO YUDEN CO., LTD.
