FD-1002MRJ-C Ice Maker Cubelet-Style 22 Inch W
User Manual
FD-1002MRJ-C Ice Maker Cubelet-Style 22 Inch W
Parts List
Modular Flaker
Models
FD-1002MAJ-C, MAJ-CB,
FD-1002MRJ-C, MRJ-CB,
FD-1002MRJZ-C, MRJZ-CB
Auxiliary Codes
| FD-1002MAJ-C F-0 August 2016 G-0 January 2017 G-1 April 2017 H-0 January 2018 J-0 January 2019 J-1 April 2019 J-2 July 2019 J-3 September 2019 K-0 January 2020 L-0 January 2021 L-1 June 2021 L-2 November 2021 M-0 January 2022 M-1 May 2022 FD-1002MAJ-CB M-1 May 2022 | FD-1002MRJ-C F-0 August 2016 G-0 January 2017 G-1 April 2017 F-0 August 2016 G-0 January 2017 G-1 April 2017 H-0 January 2018 J-0 February 2019 J-1 April 2019 J-2 July 2019 J-3 September 2019 K-0 January 2020 L-0 January 2021 L-1 August 2021 | FD-1002MRJ-CB K-0 May 2020 L-0 January 2021 L-1 August 2021 FD-1002MRJZ-C L-0 October 2021 L-1 December 2021 M-0 February 2022 M-1 May 2022 M-2 June 2022 FD-1002MRJZ-CB L-0 August 2021 L-1 November 2021 M-0 February 2022 M-1 May 2022 M-2 June 2022 |
Auxiliary Code Breakdown
The auxiliary code is the first two characters in the serial number. The first character indicates the year. Years progress or regress in alphabetical order. The series runs from “A” through “V” and the letters “I” and “O” are skipped. The second character indicates significant part changes within a year. Base is “0” and this number advances for each change. In cases where there is a letter in parentheses, this designates the month. This is the last character in the serial number. The series runs from “(A)” through “(M)” and the letter “(I)” is skipped. This designation is only included when identifying a parts change within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered separately.

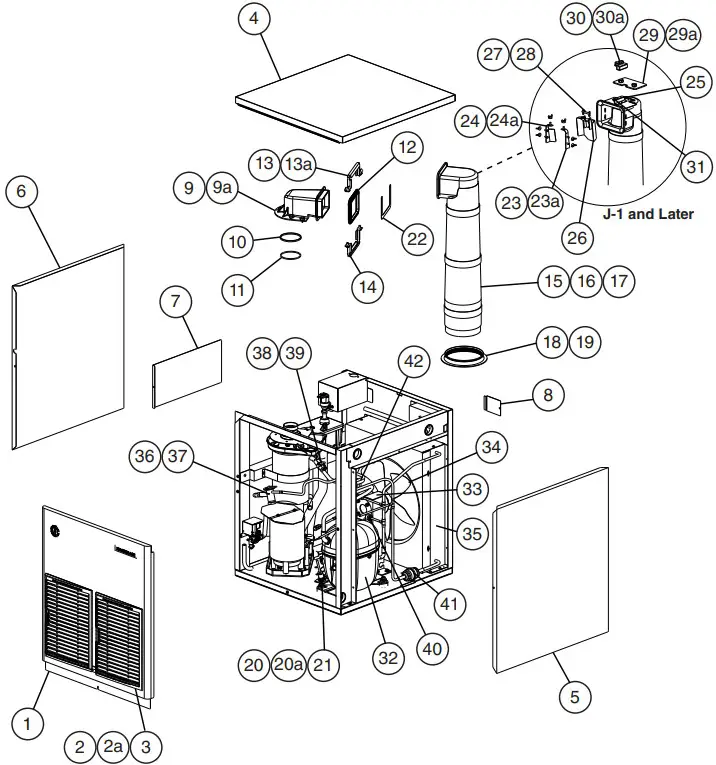

Main Assembly & Refrigeration Circuit
FD-1002MAJ-C, FD-1002MAJ-CB
F-0 to M-1
| Title: A. Main Assembly & Refrigeration Circuit Model: FD-1002MAJ-C, FD-1002MAJ-CB | ||||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | ||||
| F-0 to G-0 | G-1 H-0 | J-0 | J-1 to M-0 | M-1 | ||||
| Main Assembly | ||||||||
| 1 | Front Panel Assembly (includes 2 each of items 2 & 3) | FD-1002MAJ-C | 3B1080G01 | 1 | 1 | 1 | 1 | 1 |
| FD-1002MAJ-CB | 1A6090A01 | 1 | ||||||
| 2 | Louver | 1A0548-01 | 2 | 2 | 2 | 2 | 2 | |
| 2a | Push Retainer | 4A2414-01 | 6 | 6 | – | |||
| 3 | Air Filter | 2A2063G01 | 2 | 2 | 2 | 2 | 2 | |
| 4 | Top Panel | 2A7090-01 | 1 | 1 | 1 | 1 | 1 | |
| 5 | Right Side Panel | 2A4432G01 | 1 | 1 | 1 | 1 | 1 | |
| 6 | Left Side Panel | 2A3897G01 | 1 | 1 | 1 | 1 | 1 | |
| 7 | Control Box Cover | 3A4544-01 | 1 | 1 | 1 | 1 | 1 | |
| 8 | Junction Box Cover | 433410-01 | 1 | 1 | 1 | 1 | 1 | |
| 9 | Spout | 104797-01 | 1 | 1 | 1 | 1 | 1 | |
| 9a | Thumbscrew | 415949G08 | 5 | 5 | 5 | 5 | 5 | |
| 10 | O-Ring | 4A4755-03 | 1 | 1 | 1 | 1 | 1 | |
| 11 | Nylon Ring | 432661-02 | 1 | 1 | 1 | 1 | 1 | |
| 12 | Spout-to-Chute Packing | 321037-01 | 1 | 1 | 1 | 1 | 1 | |
| 13 | Upper Strap | 328703-02 | 1 | 1 | 1 | 1 | 1 | |
| 13a | Wing Nut | 7E12-0600 | 2 | 2 | 2 | 2 | 2 | |
| 14 | Lower Strap | 321038G02 | 1 | 1 | 1 | 1 | 1 | |
| 15 | Chute | 2A1919-03 | 1 | 1 | 1 | – | ||
| 2A1919-01 | 1 | 1 | ||||||
| 16 | Chute Insulation | 2A1920-01 | 1 | 1 | 1 | 1 | 1 | |
| 17 | Chute Tie | 436531G01 | 3 | – | ||||
| 18 | Chute Packing | 432877-01 | 1 | 1 | 1 | 1 | 1 | |
| 19 | Ring | 3A1017-01 | 1 | 1 | 1 | 1 | 1 | |
| 20 | Bin Control 1 Housing (infrared sensor) | 3A3478-01 | 1 | 1 | 1 | 1 | 1 | |
| 20a | Thumbscrew | 415949G08 | 1 | 1 | 1 | 1 | 1 | |
| 21 | Bin Control 1 (infrared sensor) | 4A4469-01 | 1 | 1 | 1 | 1 | 1 | |
| 22 | Spout-to-Chute Bracket | 4A1712-01 | 1 | 1 | 1 | 1 | 1 | |
| 23 | Chute Baffle A | 3A0400G01 | 1 | 1 | ||||
| 23a | Wing Nut | 7E12-0400 | 3 | 3 | ||||
| 24 | Chute Baffle B | 3A0399G01 | 1 | 1 | ||||
| 24a | Wing Nut | 7E12-0400 | 3 | 3 | ||||
| 25 | Bin Control 2 Bracket (mechanical bin control) | 3A1744G01 | 1 | 1 | ||||
| 26 | Actuator | 436848G01 | 1 | 1 | ||||
| 27 | Shaft | 436851-01 | 1 | 1 | ||||
| 28 | Snap Pin | 715S-0005 | 2 | 2 | ||||
| 29 | Plate | 4A2039-01 | 1 | 1 | ||||
| 29a | Thumbscrew | 415949G10 | 2 | 2 | ||||
| 30 | Bin Control 2 Proximity Switch (mechanical bin control) | 4A2033-01 | 1 | 1 | ||||
| 30a | Thumbscrew | 415949G08 | 2 | 2 | ||||
| 31 | Truss Head Screw (ground) | 7C32-0408 | 1 | 1 | ||||
| Title: A. Main Assembly & Refrigeration Circuit Model: FD-1002MAJ-C, FD-1002MAJ-CB | |||||||
| Description | Material or Model Number | Part Number | Required Number | ||||
| F-0 to G-0 | G-1 H-0 | J-0 | J-1 to M-0 | M-1 | |||
| Refrigeraton Circuit | |||||||
| Compressor | 4A5669-01 | 1 | 1 | 1 | 1 | 1 | |
| Fan Motor | 4A3158-01 | 1 | 1 | 1 | 1 | 1 | |
| Fan Blade | 4A0197-01 | 1 | 1 | 1 | 1 | 1 | |
| Condenser | 211663-02 | 1 | 1 | 1 | 1 | 1 | |
| Thermostatic Expansion Valve | 4A1117-01 | 1 | 1 | 1 | – | ||
| 4A3493-01 | 1 | 1 | |||||
| Thermostatic Expansion Valve Cover | 4A1168-01 | 1 | 1 | 1 | 1 | 1 | |
| Thermostatic Expansion Valve Bulb Holder | 3A0112-01 | 1 | 1 | 1 | 1 | 1 | |
| Clamp | 443461-01 | 1 | 1 | 1 | 1 | 1 | |
| High-Pressure Switch | 4A7070-04 | 1 | 1 | 1 | 1 | 1 | |
| Drier | 4A2666-01 | 1 | 1 | 1 | 1 | 1 | |
| Heat Exchanger | 3A7904G01 | 1 | 1 | 1 | 1 | 1 | |

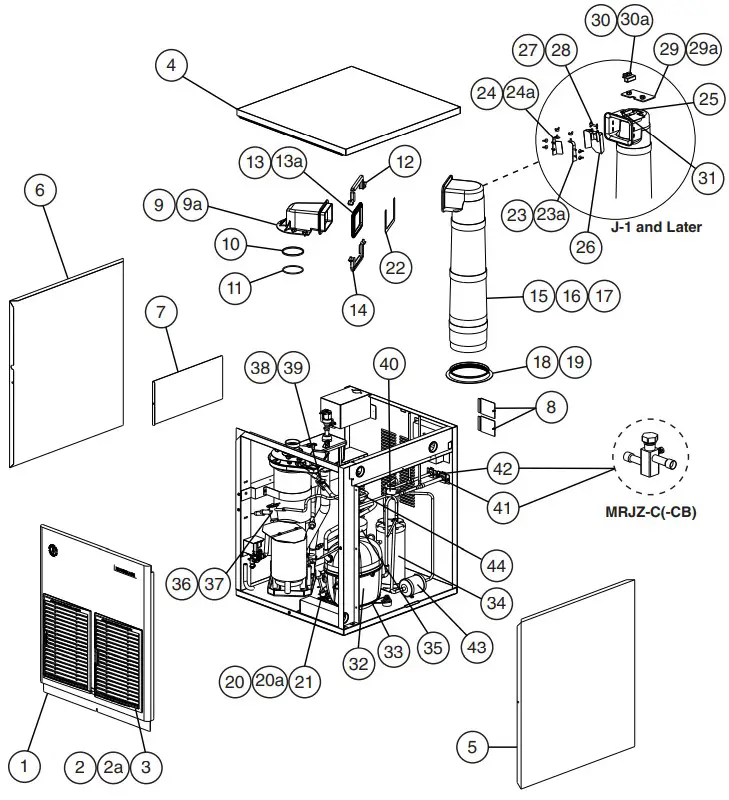

A. Main Assembly & Refrigeration Circuit
FD-1002MRJ(Z)-C, FD-1002MRJ(Z)-CB
F-0 to M-2
| Title: A. Main Assembly & Refrigeration Circuit Model: FD-1002MRJ(Z)-C, FD-1002MRJ(Z)-CB | ||||||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | ||||||
| F-0 to G-0 | G-1 to J-0 | J-1 J-2 | J-3 | K-0 to L-0 | M-1 | M-2 | ||||
| Main Assembly | ||||||||||
| 1 | Front Panel Assembly (includes 2 each of items 2 & 3) | FD-1002MRJ(Z)-C | 3B1080G01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| FD-1002MRJ(Z)-CB | 1A6090A01 | 1 | 1 | 1 | ||||||
| 2 | Louver | 1A0548-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2a | Push Retainer | 4A2414-01 | 6 | – | ||||||
| 3 | Air Filter | 2A2063G01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 4 | Top Panel | 2A7090-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 5 | Right Side Panel | 2A4432G01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 6 | Left Side Panel | 2A3897G01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | Control Box Cover | 3A4544-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 8 | Junction Box Cover | 433410-01 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 9 | Spout | 104797-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 9a | Thumbscrew | 415949G08 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 10 | O-Ring | 4A4755-03 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 11 | Nylon Ring | 432661-02 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 12 | Spout-to-Chute Packing | 321037-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 13 | Upper Strap | 328703-02 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 13a | Wing Nut | 7E12-0600 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 14 | Lower Strap | 321038G02 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 15 | Chute | 2A1919-03 | 1 | 1 | – | |||||
| 2A1919-01 | 1 | 1 | 1 | 1 | 1 | |||||
| 16 | Chute Insulation | 2A1920-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 17 | Chute Tie | 436531G01 | 3 | – | ||||||
| 18 | Packing | 432877-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 19 | Nylon Ring | 3A1017-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 20 | Bin Control 1 Housing (infrared sensor) | 3A3478-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 20a | Thumbscrew | 415949G08 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 21 | Bin Control 1 (infrared sensor) | 4A4469-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 22 | Spout-to-Chute Bracket | 4A1712-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 23 | Chute Baffle A | 3A0400G01 | 1 | 1 | 1 | 1 | 1 | |||
| 23a | Wing Nut | 7E12-0400 | 3 | 3 | 3 | 3 | 3 | |||
| 24 | Chute Baffle B | 3A0399G01 | 1 | 1 | 1 | 1 | 1 | |||
| 24a | Wing Nut | 7E12-0400 | 3 | 3 | 3 | 3 | 3 | |||
| 25 | Bin Control 2 Bracket (mechanical bin control) | 3A1744G01 | 1 | 1 | 1 | 1 | 1 | |||
| 26 | Actuator | 436848G01 | 1 | 1 | 1 | 1 | 1 | |||
| 27 | Shaft | 436851-01 | 1 | 1 | 1 | 1 | 1 | |||
| 28 | Snap Pin | 715S-0005 | 2 | 2 | 2 | 2 | 2 | |||
| 29 | Plate | 4A2039-01 | 1 | 1 | 1 | 1 | 1 | |||
| 29a | Thumbscrew | 415949G10 | 2 | 2 | 2 | 2 | 2 | |||
| 30 | Bin Control 2 Proximity Switch (mechanical bin control) | 4A2033-01 | 1 | 1 | 1 | 1 | 1 | |||
| 30a | Thumbscrew | 415949G08 | 2 | 2 | 2 | 2 | 2 | |||
| 31 | Truss Head Screw (ground) | 7C32-0408 | 1 | 1 | 1 | 1 | 1 | |||
| Title: A. Main Assembly & Refrigeration Circuit Model: FD-1002MRJ(Z)-C, FD-1002MRJ(Z)-CB | ||||||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | ||||||
| F-0 to G-0 | G-1 to J-0 | J-1 J-2 | J-3 | K-0 to L-0 | M-1 | M-2 | ||||
| Refrigeration Circuit | ||||||||||
| 32 | Compressor | 4A5669-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 33 | Crankcase Heater | 4A5091-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 34 | Receiver | 437596-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 35 | Accumulator | 3A4276-01 | 1 | 1 | 1 | – | ||||
| 3B1322-01 | 1 | |||||||||
| 36 | Thermostatic Expansion Valve | 4A3493-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 37 | Thermostatic Expansion Valve Cover | 4A1168-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 38 | Thermostatic Expansion Valve Bulb Holder | 3A0112-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 39 | Clamp | 443461-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 40 | High-Pressure Switch | 4A7070-04 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 41 | Discharge Line Coupling | FD-1002MRJ-C FD-1002MRJ-SC | 434072-01 | 1 | 1 | 1 | 1 | 1 | – | |
| Discharge Line Service Valve | FD-1002MRJZ-C FD-1002MRJZ-SC | 4A3491-01 | 1 | 1 | ||||||
| 42 | Liquid Line Coupling | FD-1002MRJ-C FD-1002MRJ-SC | 426554-01 | 1 | 1 | 1 | 1 | 1 | – | |
| Liquid Line Service Valve | FD-1002MRJZ-C FD-1002MRJZ-SC | 4A3491-01 | 1 | 1 | ||||||
| 43 | Drier | 4A1338-01 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 44 | Heat Exchanger | 3A7904G01 | 1 | 1 | 1 | – | ||||
| 3B0348G01 | 1 | 1 | 1 | 1 | ||||||

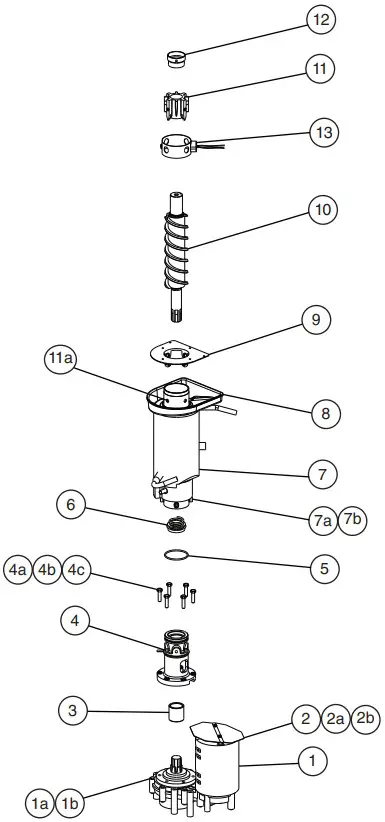

Icemaking Unit
FD-1002M_J(Z)(-C)(-CB)
F-0 to M-2
| Title: B. Icemaking Unit Model: FD-1002M_J(Z)(-C)(-CB) | ||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | ||
| F-0 to L-0 | L-1 to L-2 | L-2 to M-2 | ||||
| 1 | Gear Motor | SP-5582 | 4A2007-01 | 1 | – | |
| 4A6946-01 | 1 | 1 | ||||
| 1a | Gear Motor Bolt | 7S12-0811 | 3 | 3 | 3 | |
| 1b | Washer | 7L22-0800 | 3 | 3 | 3 | |
| 2 | Gear Motor Barrier | 4A4029-01 | 1 | – | ||
| 3B1054-01 | 1 | 1 | ||||
| 2a | Truss Head Screw | 4×8, SS | 7C32-0408 | 2 | 2 | 2 |
| 2b | Rubber Washer | 4A5268-01 | 2 | 2 | 2 | |
| 3 | Spline Coupling | 414137-01 | 1 | 1 | 1 | |
| 4 | Housing | 2A1977G01 | 1 | – | ||
| 3B0186G01 | 1 | 1 | ||||
| 4a | Hex Head Bolt | 8×30, SS | 7B02-0830 | 6 | 6 | 6 |
| 4b | Plain Washer | 7W22-0800 | 6 | 6 | 6 | |
| 4c | Split Lock Washer | 7L22-0800 | 6 | 6 | 6 | |
| 5 | O-Ring | 4A4755-02 | 1 | 1 | 1 | |
| 6 | Mechanical Seal | 432492-01 | 1 | 1 | – | |
| 432492-03 | 1 | |||||
| 7 | Evaporator | 2A7209G01 | 1 | 1 | 1 | |
| 7a | Socket Head Cap Screw | 7S12-0812 | 4 | 4 | 4 | |
| 7b | Split Lock Washer | 7L22-0800 | 4 | 4 | 4 | |
| 8 | Drip Pan | 2A7187-01 | 1 | 1 | 1 | |
| 9 | Flange | 352713-01 | 1 | 1 | 1 | |
| 10 | Auger | 120863G02 | 1 | 1 | 1 | |
| 11 | Extruding Head | 3A2176G01 | 1 | 1 | 1 | |
| 11a | Seal Bolt | P01768-02 | 4 | 4 | 4 | |
| 12 | Cutter | 427183G01 | 1 | 1 | 1 | |
| 13 | Evaporator Heater | 4A2292-01 | 1 | 1 | 1 | |

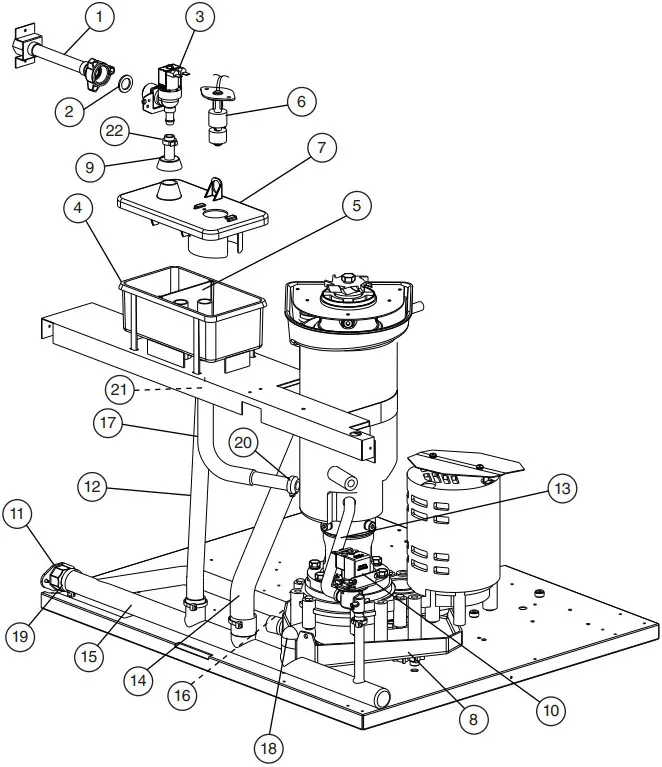

Water Circuit
FD-1002M_J(Z)(-C)(-CB)
F-0 to M-2
| Title: C. Water Circuit Model: FD-1002M_J(Z)(-C)(-CB) | ||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | ||
| F-0 to L-0 | L-1 to L-2 | M-2 | ||||
| 1 | Water Supply Pipe | 4A7166G01 | 1 | 1 | 1 | |
| 2 | Washer | 413854-03 | 1 | 1 | 1 | |
| 3 | Inlet Water Valve | 4A5309-01 | 1 | 1 | 1 | |
| 4 | Reservoir | 2A0753-01 | 1 | 1 | 1 | |
| 5 | Reservoir Separator | 4A1255-01 | 1 | 1 | 1 | |
| 6 | Float Switch | All | *435490-01 | 1 | 1 | 1 |
| FD-1002MRJZ-C FD-1002MRJZ-CB | *3B1240G01 | *1 | ||||
| 7 | Reservoir Cover | 214810-01 | 1 | 1 | 1 | |
| 8 | Drain Pan | 323765G02 | 1 | 1 | 1 | |
| 9 | Reservoir Inlet | 4A0869-01 | 1 | 1 | 1 | |
| 10 | Drain Valve | 4A2772-02 | 1 | 1 | 1 | |
| 11 | Drain Fitting | 4A5528-01 | 1 | 1 | 1 | |
| 12 | Vinyl Hose | L=405 mm | 7725-1923 | 1 | – | |
| 7725B1923 | 1 | 1 | ||||
| 13 | Silicone Hose | L=185 mm | 7730I3896 | 1 | 1 | 1 |
| 14 | Vinyl Hose | L=460 mm | 4A0658L01 | 1 | 1 | 1 |
| 15 | Drain Hose | 3A8198-01 | 1 | 1 | – | |
| 3A8198-02 | 1 | |||||
| 16 | Vinyl Hose | L=30 mm | 7725-1923 | 1 | 1 | 1 |
| 17 | Reservoir Hose | 4A1165-06 | 1 | 1 | 1 | |
| 18 | Elbow | 4A5624-01 | 1 | 1 | 1 | |
| Hose Clamps | ||||||
| 19 | Hose Clamp | 26-30 mm | 4A2017-02 | 1 | 1 | 1 |
| 20 | Hose Clamp | 17-20 mm | 4A2017-05 | 1 | 1 | 1 |
| 21 | Hose Clamp | 19-22 mm | 4A2017-06 | 1 | 1 | 1 |
| 22 | Hose Clamp | 14-15 mm | 4A2017-08 | 1 | 1 | 1 |
*Auxiliary Code Break for item 6: Float Switch
*435490-01 – Float Switch
FD-1002MRJZ-C F0 to M20260H, M20281L and Later
FD-1002MRJZ-CB L0 to M21045H, M21081L and Later
*3B1240G01 – Float Switch
FD-1002MRJZ-C M20261J-M20280J
FD-1002MRJZ-CB M21046J-M21080J
* 435490-01 float switch used for all service replacements.

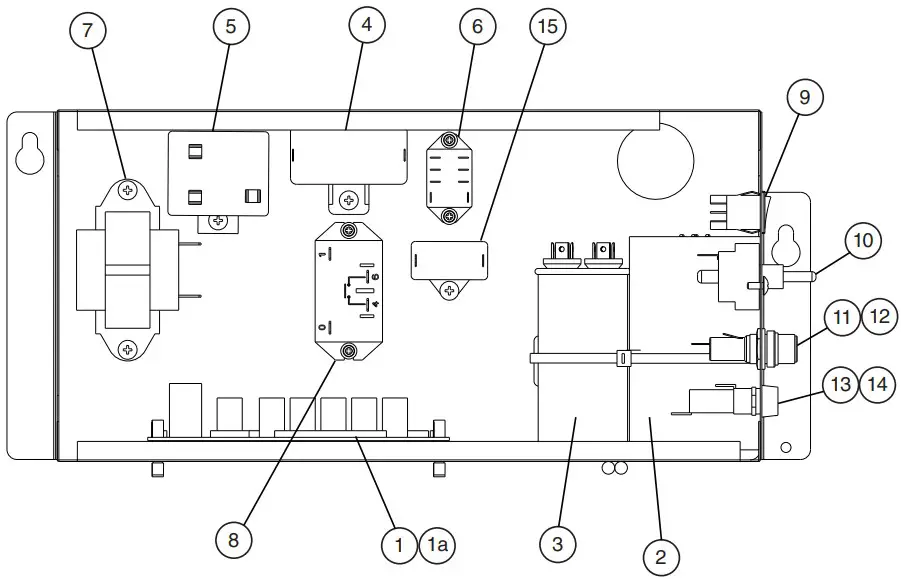

Control Box Assembly
FD-1002M_J(Z)(-C)(-CB)
F-0 to M-2
| Title: D. Control Box Assembly Model: FD-1002M_J(Z)(-C)(-CB) | |||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | |
| F-0 to G-1 | G-1 to M-2 | ||||
| 1 | Control Board | 2A8054-01 | 1 | – | |
| 2A9093-01 | 1 | ||||
| 1a | Control Board Support | 4A0336-03 | 4 | 4 | |
| 2 | Start Capacitor | 340-408MFD, 250VAC | 3A0076-24 | 1 | 1 |
| 3 | Run Capacitor | 40MFD, 370VAC | 3A2005-13 | 1 | 1 |
| 4 | Gear Motor Capacitor | 24MFD, 250VAC | 4A2273-01 | 1 | 1 |
| 5 | Start Relay | 4A1107-22 | 1 | 1 | |
| 6 | Compressor Control Relay | 4A6558-01 | 1 | 1 | |
| 7 | Control Transformer | 4A0557-01 | 1 | 1 | |
| 8 | Compressor Relay | 4A3140-01 | 1 | 1 | |
| 9 | Control Switch | 4A0558-01 | 1 | 1 | |
| 10 | Power Switch | 4A2332-01 | 1 | 1 | |
| 11 | Fuse Holder (Control) | 4A5443-01 | 1 | 1 | |
| 11 | Fuse (Control) | AGC-1A, 250VAC | 4A0893-01 | 1 | 1 |
| 13 | Fuse Holder (Gear Motor) | 4A3449-02 | 1 | – | |
| 4A6101-01 | 1 | ||||
| 14 | Fuse (Gear Motor) | GMD-3A, 250VAC Slow Blow | 4A0893-06 | 1 | 1 |
| 15 | Fan Motor Capacitor | FD-1002MAJ-C 5MFD, 250VAC | 443192-02 | 1 | – |
| 4A6435-02 | 1 | ||||
Accessories & Labels
FD-1002M_J(Z)(-C)(-CB)
F-0 to M-2

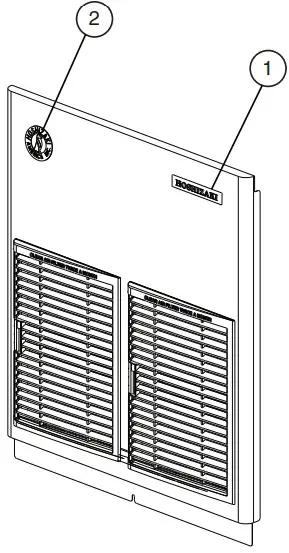

| Title: E. Accessories & Labels Model: FD-1002M_J(Z)(-C)(-CB) | |||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | |
| F-0 to G-1 | G-1 to M-2 | ||||
| 1 | Hoshizaki Emblem Label | 4A0560-01 | 1 | 1 | |
| 2 | Penguin Label | 4A0526-01 | 1 | – | |
| 475552L02 | 1 | ||||
| 3 | Universal Brace | 4A0363-01 | 2 | 2 | |
| 3a | Hex Bolt | 7B02-0512 | 4 | 4 | |
hoshizakiamerica.com
Number: 71372
Issued: 8-14-2017
Revised: 10-11-2022
Hoshizaki America, Inc.
