Sensor: Flow
User Guide

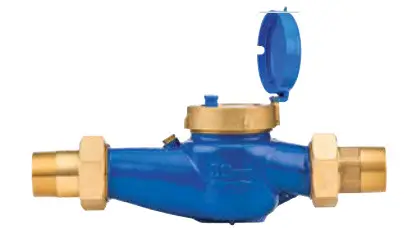

HC FLOW METER
Detect, monitor, and report critical flow zone data via wired or wireless connection with this robust and simple-to-install flow sensor.
KEY BENEFITS
- Compatible with Hydrawise® enabled HC, HPC, Pro-HC, and HCC controllers
- Provides station-level flow rates and totals
- Sends automatic alerts in the event of high-flow, low-flow, or unscheduled flow conditions
- Flow reports within Hydrawise software can display total system water use and individual station water use for accurate water budgeting and tracking
- Robust brass construction with union fittings for easy installation and removal for winterisation
- Analogue dial on the face of the meter displays daily flow totals and a leak detector
OPERATING SPECIFICATIONS
- Scaled pulse output is pre-calibrated from the factory based on the size of the meter
- When wired directly to the controller, the meter must be installed with shielded, minimum 0.75 mm 2 wire, up to 300 m from the controller
- Accuracy: ± 2% of reading at recommended flow
- Warranty period: 2 years

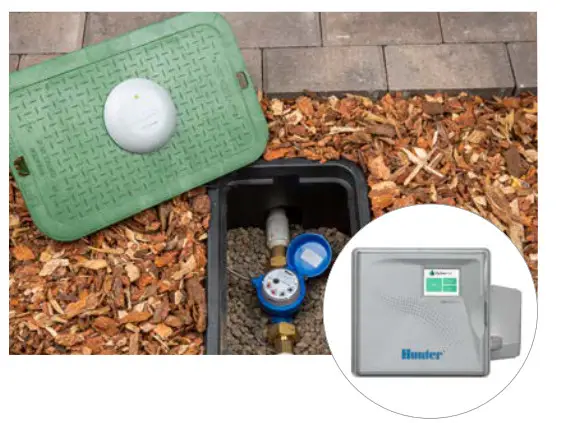

WIRELESS HC FLOW METER BENEFITS
- Add wireless communication to any HC Flow Meter (sensor sold separately)
- Send flow data wirelessly from the sensor to the controller, without the need to run wire or dig trenches
WIRELESS HC FLOW METER OPERATING SPECIFICATIONS
- 152 m range (line of sight) from transmitter to receiver
- Communication frequency: 868 MHz for international use; 915 MHz for use in Australia/New Zealand
- Transmitter power supply: 3 AA batteries
- Receiver power supply: 24 VAC from host controller
- Warranty period: 2 years
HC FLOW METER SPECIFICATIONS
| HC-075-FLOW-B (20 mm) | HC-100-FLOW-B (25 mm) | HC-150-FLOW-B (40 mm) | ‘T HC-200-FLOW-B (50 mm) | |
| Minimum flow (I/min) | 0.83 | 1.16 | 3. | 8. |
| Maximum recommended flow (I/min) | 60 | 110 | 250 | . 400 |
| Maximum flow rate (I/min) | 80 | 130 | 330 | 500 |
| Dial reading (m3) | 1 pulse per 1 litre | 1 pulse per 10 litres | 1 pulse per 10 litres | 1 pulse per 10 litres |
| HC-075-FLOW-B (20 mm male BSP thread) Height: 8 cm Length: 23.2 cm Depth: 8 cm Weight: 0.9 kg | HC-150-FLOW-B (40 mm male BSP thread) Height: 16.2 cm Length: 43.1 cm Depth: 12.5 cm Weight: 6.6 kg |
| HC-100-FLOW-B (25 mm male BSP thread) Height: 9.3 cm Length: 26.2 cm Depth: 8 cm Weight: 1.4 kg | HC-200-FLOW-B (50 mm male BSP thread) Height: 16.2 cm Length: 44.7 cm Depth: 12.5 cm Weight: 7.4 kg |
WIRELESS HC FLOW METER
WIRELESS HC FLOW METER MODELS
| Model | Description |
| W-HC-FLOW-INT | Wireless HC Flow Meter Kit, includes transmitter and receiver (international 868 MHz) |
| W-HC-FLOW-TR-INT | Wireless HC Flow Meter, transmitter only (international 868 MHz) |
| W-HC-FLOW-R-INT | Wireless HC Flow Meter, receiver only (international 868 MHz) |
| W-HC-FLOW-AU | Wireless HC Flow Meter Kit, includes transmitter and receiver (AU/NZ 915 MHz) |
| W-HC-FLOW-TR-AU | Wireless HC Flow Meter, transmitter only (AU/NZ 915 MHz) |
| W-HC-FLOW-R-AU | Wireless HC Flow Meter, receiver only (AU/NZ 915 MHz) |
| HC-075-FLOW-B | HC Flow Meter with 20 mm male BSP thread, m 3 reading |
| HC-100-FLOW-B | HC Flow Meter with 25 mm male BSP thread, m 3 reading |
| HC-150-FLOW-B | HC Flow Meter with 40 mm male BSP thread, m 3 5reading |
| HC-200-FLOW-B | HC Flow Meter with 50 mm male BSP thread, m 3 reading |
