Beghelli Infinita LED X5 CabLECom Emergency Luminaires Instruction Manual

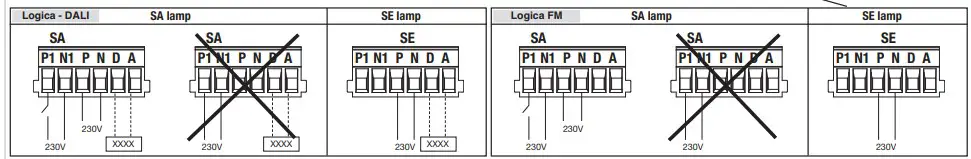

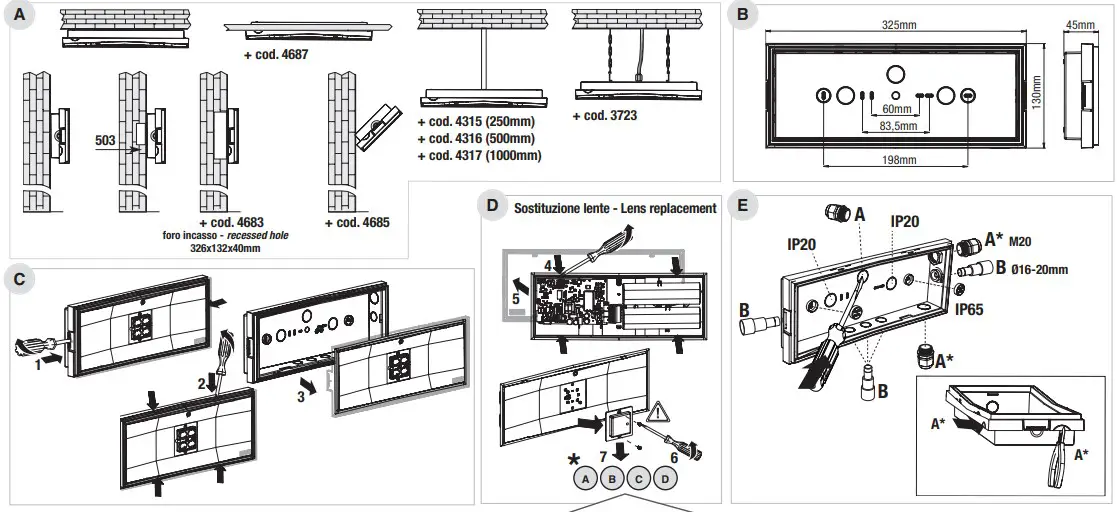

INSTALLATION
AUTOMATIC TESTS PERIODICITY:
FUNCTIONAL TEST (30 sec)= every 28 daysAUTONOMY TEST (1h)= every 26 weeks

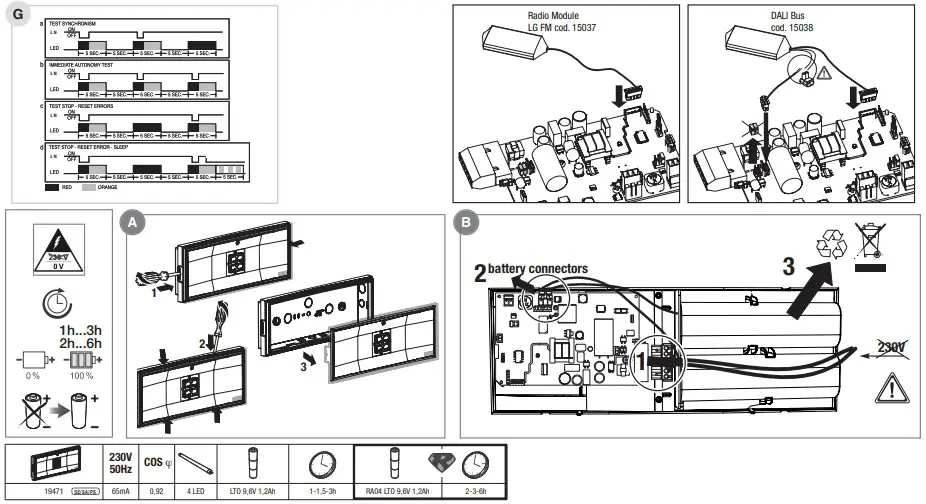

Even lamps carry out the autonomy test 1 week after the odd lamps. (0,2,…,8,A,C,E)= even; (1,3,…,9,B,D,F)= odd. To perform the functions shown on the diagrams turn on and off the power when the red LED is lit.
LED SIGNALS
FIXED GREEN: BATTERY CHARGED
FLASHING GREEN: BATTERY CHARGING
ONE RED FLASH: BATTERY ERROR DURATION
