User Manual
KEYBOARD
RPT-GEKC10RB
THANK YOU FOR CHOOSING US!
We value your trust. We hope that you will be happy with our product, and as excited about it as we are. We try to offer products of the highest quality that satisfy even the most demanding requirements. If you are satisfied, it would make us very happy if you choose us again the next time you make a purchase.
SAFETY INFORMATION
- Use the keyboard only as instructed in this manual.
- Keep out of the reach of children.
- Do not place any heavy objects on the keyboard.
- Do not disassemble the keyboard. It does not contain any parts serviceable by the user. Have all repairs carried out by an authorized service center.
- Protect the keyboard from moisture, dust, falls, and shocks.
- Do not expose the keyboard to dripping or splashing water. Do not immerse the keyboard in water or any other liquid. Do not place containers filled with water, such as vases, on the keyboard.
- Do not place the keyboard near an open flame, such as candles, heaters, or other heat sources.
- If you experience unusual keyboard overheating or other signs of malfunction, stop using it and contact an authorized service center.
- Keep the keyboard clean. Use only cleaning agents designed for cleaning and maintaining this type of electronics and accessories to clean the keyboard.
- Do not insert any objects into the keyboard inputs.
- Do not force the USB cable connector into the keyboard input.
- The original version is in Czech language.
TECHNICAL PARAMETERS
| Connection | USB cable |
| Keyboard type | Membrane |
| Keys functions | 114 keys Combined FN key 19 anti-ghosting keys |
| Power | 5 V= 0.1 A |
| Backlight | RGB |
| Length of the USB cable | 1.8 m |
| Compatibility with operating systems | Windows95 / 98 / 2000 / ME / XP/ Vista/7/8/10 |
| Dimensions | 440.8 x 175.4 x 33.4 mm |
| Weight | 670 g ± 20 g |

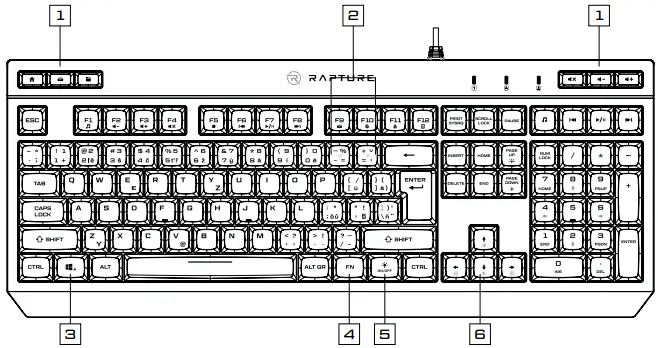

OVERVIEW
- Multimedia keys (home, email, folder, mute, volume)
- Keys to adjust backlight speed
- Key to lock/unlock Windows
- FN key (to use the media keys)
- Backlight On/Off
- Direction arrows (Left/right arrows to adjust backlight direction; up/down arrows to select a backlight colour)
INSTRUCTIONS
Plug the USB cable connector into a free USB port on your computer.
The system will automatically install the drivers and the keyboard will be ready to use.
NOTE:
Some effects can be combined with each other, such as setting the backlight effect, direction, speed, and brightness of the backlight.
WARNING:
Under no circumstances wash the keyboard in water or any other liquid. Do not use harsh cleaners, gasoline, solvents, chemicals, etc.
CLEANING
Keep the keyboard clean.
Use only cleaners designed for cleaning and maintaining this type of electronics and accessories to clean the keyboard.
KEYBOARD SHORTCUTS
Keyboard shortcut | Meaning |
| FN | When the FN key is pressed, only the keys that can be used with the FN key light up. |
| FN + F1 | Launch the music player application |
| FN + F2 | Lower the volume |
| FN + F3 | Increase the volume |
| FN + F4 | Complete mute |
| FN + F5 | Stop playback |
| FN + F6 | Skip to previous track |
| FN + F7 | Start playback / pause playback |
| FN + F8 | Skip to next track |
| FN + F9 | Launch the e-mail application |
| FN + F10 | Launch home page in a browser |
| FN + F11 | Lock / unlock all keyboard keys |
| FN + F12 | Launch the calculator application |
| FN + 1 – FN + 9 | Backlight effect selection (9 effects in total) |
FN +  / | Backlight speed adjustment |
FN +  / | Backlight direction adjustment |
FN +  / | Backlight colour selection within the selected backlight effect |
FN +  / | Brightness adjustment. Press the PAGE UP button to increase the brightness, and the PAGE DOWN button to decrease the brightness. |
| FN + W | Swap the functions of the W, S, A, D and directional arrows up, down, left, right. |
FN +  | Lock/unlock Windows |
| Anti-ghosting keys | Q, A, Z, W, S, X, E, D, C, B, spacebar, left, right, up, down, Tab, left Alt, left Ctrl, left Shift. |
 | Press once to turn the backlight on, press again to turn the backlight off. |
The use of the WEEE Symbol indicates that this product should not be treated as household waste. By ensuring this product is disposed of correctly, you will help protect the environment. For more detailed information about the recycling of this product, please contact your local authority, your household waste disposal service provider, or the shop where you purchased the item.
This product meets all of the related basic EU regulation requirements. The EU declaration of conformity is available on www.alzashop.com/doc.
This product sold in the European Union meet the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
