Alza Ln22ld11 Professional Series Rgb Led Strip Lights User Manual

Alza Ln22ld11 Professional Series Rgb Led Strip Lights User Manual

alza-LN22LD11-Professional-Series-RGB-LED-Strip-Lights-LOGO

alza LN22LD11 Professional Series RGB LED Strip Lights

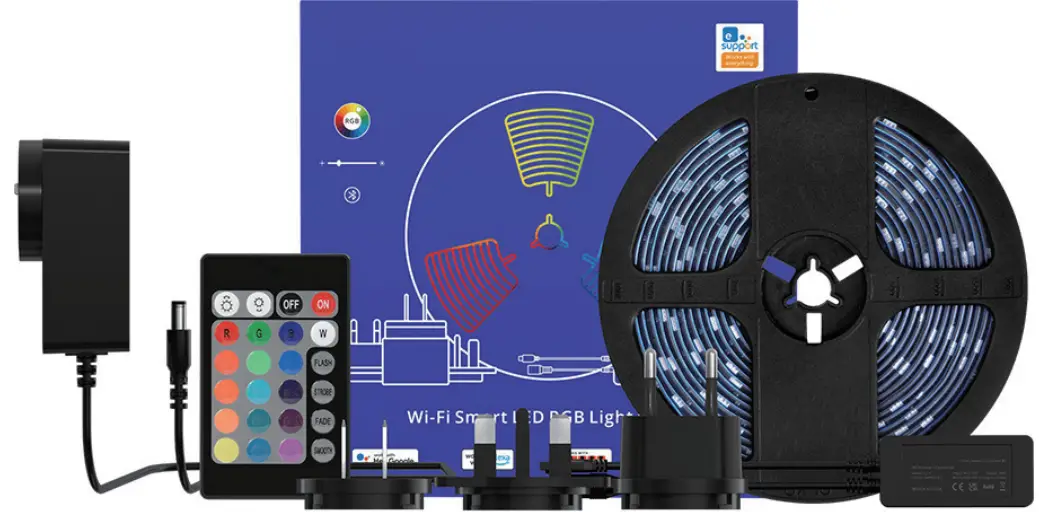

alza-LN22LD11-Professional-Series-RGB-LED-Strip-Lights-PRODUCT

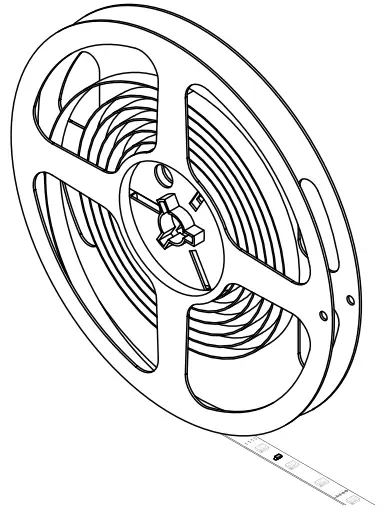

OVERVIEWalza-LN22LD11-Professional-Series-RGB-LED-Strip-Lights-FIG-1

  • Model: LN22LD11
  • LED QTY: 30LEDs/m
  • Material: FPCB
  • IP Rating: IP65
  • Input Voltage: DC 12V
  • Luminous Flux: >300Lm/m
  • Lifespan: >25000Hours
  • Beam Angle: 140°
  • Working Humidity: <95%Working
  • Temperature: -15℃~50℃

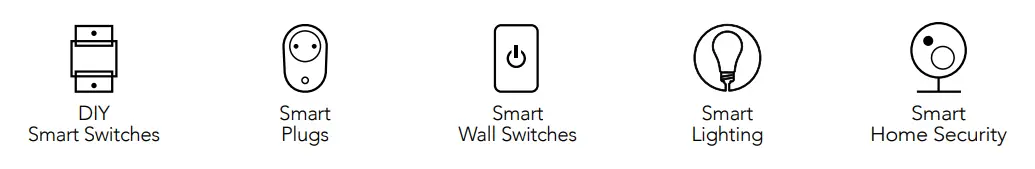

Application

alza-LN22LD11-Professional-Series-RGB-LED-Strip-Lights-FIG-2

AC ADAPTERalza-LN22LD11-Professional-Series-RGB-LED-Strip-Lights-FIG-3

  • Model: LN22LD11
  • Cable length: 1.5m
  • Input: 100-240V AC 50/60Hz 0.6A Max
  • Output: DC 12V (24W)
  • Dimension: 80x56x44mm
  • Color: Black
  • Material: PC V0
  • Protection: Overvoltage Protection, Overload Protection, Overheat Protection

Wi-Fi Smart Controlleralza-LN22LD11-Professional-Series-RGB-LED-Strip-Lights-FIG-4

  • Model: LN22LD11
  • Input: DC 5-12V
  • Power: 24W (36W Max)
  • Wi-Fi: IEEE802.11 b 2.4GHz Supported platform: Android & iOS Remote controller: Infrared, 24Keys Remote controller battery: 3V(CR2025) Material: ABS V0
  • Dimension
  • Controller(60x28x13.5mm)
  • Remote Controller(85x52x7mm)

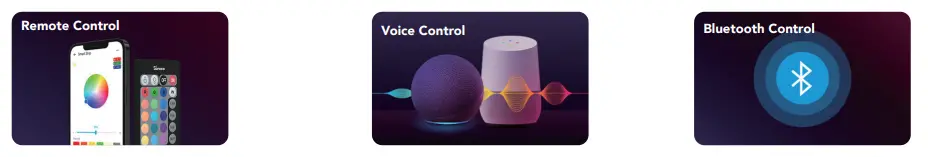

alza-LN22LD11-Professional-Series-RGB-LED-Strip-Lights-FIG-5

  • Light Up Your Surroundings
    More than 16 million colors and real-time synchronization provide a zestful experiencefor your life. The real time data of R/G/B helps you capture the light strip’s status.
    You can alsouse the R/G/B data bars to adjust thecolor of the light strip.
  • Free Your Hands With Voice
    Our light strips support both Hey Google and Alexa, change the color and its brightness and temperature through your voice.
  • Diverse Selection Methods
    Color palette, color circle, recent and classic color, various selecting ways for color changing. The color temperature and brightness can be adjusted on the CCT and W interface.

Google and Google Play are trademarks of Google LLC.
Amazon, Alexa and all related logos are trademarks of Amazon.com, lnc, or its affiliates.

Importer:
Alza.cz a.s., Jankovcova 1522/53, 170 00 Praha 7,
Czech Republic www.alza.cz

Manufacturer:

  • ADDRESS: Guangzhou Linong Lighting Technology Co.,Ltd. Keying Rd,Guangzhou Sci-Tech Industry Park, Baiyun District,Guangzhou,China.
  • Tel: +86-20-31238588
  • Emai: [email protected]
  • Web: www.lnled.com
