Govee H6139 Rgb Led Strip Light User Manual (+ PDF)

Preparation Before Installing
a. Unpack the box and check all items listed in the packing list.
b. Power on the strip lights and check whether they light up.
Installing Steps

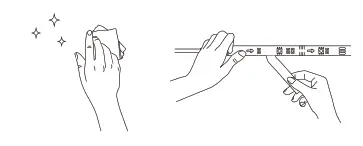

a. Wipe the surface to make
b. Peel off the protective film sure it’s clean and dry. on the tape, stick the strip on and press over it firmly.

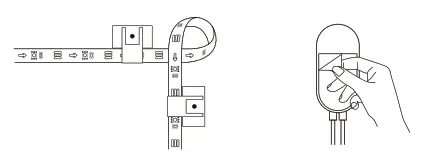

c. Reinforce via clips around
d. Peel off the protective film corners. on the control box and stick it on.
e.Power on the strip lights and begin using.

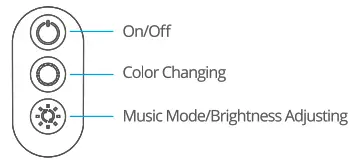

Controlling with the Control Box

Button	Function
On/Off	Turn the light on/off.
Color Changing	Press to cycle through 9 colors.
Music Mode/	Press to enter music mode.
Brightness Adjusting	Press and hold to cycle through the 6 brightness levels.

Controlling with the Remote Control

Button	Function
ON/OFF	Press to turn the light on/off.
Pause/Play	Press to pause/continue the Music Mode or dynamic Scene Modes.
Auto	1. Switch the Scene Mode between 7 options at random. 2. Every mode lasts for 30s.
Mode	MODE +/- : Press to cycle forward or backward through 7 scene modes.
Music Mode	Press to enter music mode.
Speed	SPEED +/-: For scene mode, press it to speed up or slow down the changing of lights; For music mode, press it to increase or decrease the sensitivity of the mic.
Adjust Brightness	Dim or brighten the light.
Color Changing	COLOR +/-: Press to cycle forward or backward through 32 colors.
Color Selecting	Press to change the color. R Red, G: Green, B. Blue, W: White

Downloading the Govee Home App

Download the Govee Home app from App Store (i0S devices) or Google Play (Android devices).
Notice: You need a smartphone running iOS 9.3 (or above) or Android 4.4 (or above).

Connecting the Strip Lights to the App

Turn on Bluetooth in your mobile phone.
Open Govee Home app and tap “+” icon in the top right corner.
Select “H6139- in the device list.

Troubleshooting

Cannot connect to Bluetooth.
a. Do not skip Bluetooth connection in the app.
b. Make sure Bluetooth in your mobile phone has been turned on.
c. It may be caused by incompatibility between the phone system and the app. Please change to another mobile phone and connect again.
d. Re-power on the strip and re-turn on Bluetooth in your phone and try again.
e. Keep the distance between the strip and the phone less than 1 m/3.28ft while connecting.
f. Keep obstructions between the strip and the phone as few as possible.
The strip doesn’t match the same color/Some LED beads don’t light up.
Please contact Govee support team in time for return.
Cannot sync to the music beat.
a. Please keep the control box close to the sound source.
b.Clean out the sound picking hole on the control box.
The strip lights don’t work.
a. Pull out every connective part of the strip lights and firmly
re-connect them.
b.Tap On/Off button on the control box or app to check whether it is a strip quality issue.

Compliance Information

EU Compliance Statement: Shenzhen Intellirocks Tech Co. Ltd. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU. A copy of the EU Declaration of Conformity is available online at www.govee.com/
EU contact address:
EC REPBellaCocool GmbH (E-mail: [email protected]) PettenkoferstraBe 18, 10247 Berlin, Germany
I EC I REPI
Environmentally friendly disposal
Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to these collecting points or to similar collection points.With this little personal effort, you contribute to recycle valuable raw materials and the treatment of toxic substances.

FCC and ISED Canada Statement

This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt R55 standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radioriV technician for help.

FCC and IC Radiation Exposure Statement
This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Non-replaceable light source. Not intended for illumination. Only used for creating ambiance.

Do not connect the rope light to the supply while it is in the packing or wound onto a reel;
Do not use the rope light when covered or recessed into a surface;
Do not open or cut the rope light;

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Govee is a trademark of Shenzhen Intellirocks Tech Co.Ltd. Copyright ©2020 Shenzhen Intellirocks Tech Co.Ltd. All Rights Reserved.
Frequency 2.4GHz (BLE)
Maximum Power <10dBm
836-6139-23502

For FAQs and more information,
please visit: www.govee.com
Customer Service
Warranty: 12-Month Limited Warranty
Support: Lifetime Technical Support
Email: [email protected]
Official Website: www.govee.com
