Product information
NR1510

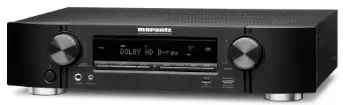

MARANTZ NR1510 SLIM 5.2CH 4K ULTRA HD AV RECEIVER
WITH HEOS BUILT-IN
Experience exceptional audio performance from the slim profile Marantz NR1510 5.2ch 4K Ultra HD AV receiver that drives elevated surround sound and high-fidelity audio from a compact chassis. At half the height of a traditional AV receiver, the R1510 features the latest in HDMI connectivity and delivers high-resolution surround sound from Dolby TrueHD and DTS-HD Master Audio. Stream music from popular online sources and control the NR1510 with voice control compatibility via Amazon Alexa, Google Assistant, and Apple Siri.
Highlights
- slim profile that’s half the height of a traditional AV receiver delivers exceptional performance and the most musical sound
- 5-channel discrete power amplifier, 50W per channel (8-ohm, 20Hz – 20kHz, 0.08% THD)
- 6 HDMI inputs with full HDCP 2.3 support
- Supports Dolby Vision, Hybrid Log-Gamma (HLG), eARC, and ALLM for enhanced picture and audio
- 4K/60 Hz full-rate pass-through, 4:4:4 color resolution, HDR10 and BT.2020
- Surround format support for Dolby TrueHD and DTS-HD Master Audio
- ALAC, FLAC, and WAV lossless file decoding up to 24-bit/192-kHz for high-resolution listening
- HEOS Built-in for multi-room streaming, music streaming, and voice control
- Built-in Wi-Fi with 2.4GHz/5GHz dual-band support (dual antenna)
- Supports all major voice control agents and streaming services
- Integrated phono input to directly connect your turntable
Because music matters
NR1510
MARANTZ NR1510 SLIM 5.2CH 4K ULTRA HD AV RECEIVER WITH HEOS BUILT-IN
| FEATURES | NR1710 | |
| MULTICHANNEL SURROUND | ||
| DTS HD Master / DTS:X / DTS Neural:X | o / – / – | |
| DTS Virtual:X | – | |
| IMAX Enhanced | – | |
| Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization | o / – / – | |
| Dolby ProLogic Ilz / Dolby Surround | – / – | |
| Auro 3D / Auromatic | – / – | |
| Multichannel Stereo | o | |
| Max Number of Processing (Preamp) Channels | 5.1 | |
| Audyssey | MultEQ | |
| Audyssey Dynamic EQ / Dynamic Volume | o / o | |
| Compressed Audio Enhancer: MDAX2 | O | |
| NETWORK | ||
| HEOS Multi-Room and Streaming / Network Audio Streaming | o / o | |
| Lossy Formats: MP3 / WMA / AAC | o / o / o | |
| Lossless Formats: FLAC / ALAC / WAV | o / o / o | |
| FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | o / o / o | |
| DSD Audio Streaming | up to DSD5.6 | |
| Gapless Playback | o (FLAC, WAV ,ALAC ,DSD) | |
| AirPlay2 Audio Streaming | o | |
| Internet Radio (Tune In) | o (TuneIn) | |
| Spotify connect / Deezer / TIDAL / Napster / Pandora / SiriusXM | o / o / o / o / o / o | |
| Compatible with Remote APP (iOS/Android) | Marantz 2016 AVR Remote | |
| Ethernet / Wi-Fi | o / o (dual antenna/ dual band) | |
| Bluetooth | o | |
| HDMI | ||
| 4K 60Hz 4:4:4 resolution / HDCP 2.3 | o / o | |
| eARC (Enhanced Audio Return Channel) | o | |
| Analog to HDMI scaling | – | |
| HDMI to HDMI scaling | – | |
| GUI Overlay on HDMI | o | |
| HDR / HLG / Dolby Vision | o (HDR10) / o / o | |
| 3D Signal Pass-Through | o | |
| HDMI Pass-Through in Standby Mode | o | |
| MULTIROOM / CI | ||
| HEOS Multi-Room Integrated | o | |
| HEOS Link Compatibility: IR/ IP | o / o | |
| Multi-Room zones | – | |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | – / – / – / – | |
| IP Control / RS232 Control / Web Control / App Control | o / – / o / o | |
| Domotz Pro / IHIJI compatible | o / o | |
| INPUTS/OUTPUTS | ||
| VIDEO | ||
| Composite In / Out | 3 / 1 | |
| Component In / Out | – / – | |
| HDMI In / Out | 5+1 / 1 | |
| AUDIO | ||
| Analog In / Out | 3 / – | |
| Phono (MM) In | o | |
| Digital In: Optical / Coaxial | 1 / 1 | |
| Multi-Room Out: Analog / Digital | – / – | |
| USB Audio / Made for iPod / Made for iPhone | o / – / – | |
| Multichannel Pre Out | o (2.2) / – | |
| Subwoofer Out | 2 | |
| 7.1 Multichannel Input | – | |
| OTHER | ||
| Speaker Terminal: Gold Plated Screw / Regular Screw | – / o | |
| Speaker A / B | – | |
| Bi-Amp Drive | – | |
| Multi-Room Speaker Terminal | – | |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | – / – / – / o / o | |
| OTHER | ||
| FL Display | 1 line | |
| Graphic User Interface – GUI | Hybrid GUI | |
| ISF Certification | – | |
| GUI Languages | 3 | |
| Setup Assistant | o | |
| Smart Select | o | |
| Firmware Update by Network / USB | o / o | |
| Variable Cross Over | o | |
| Optimized Bass Redirection | o | |
| Bass Sync | – | |
| ECO Mode | o | |
| Auto Power Off | O | |
| Sleep Timer | O | |
| SPECIFICATIONS | ||
| Number of Poweramps | 5 | |
| Number of Speaker Terminals | 5 | |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) | 50 W | |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 60 W | |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 100 W | |
| GENERAL | ||
| System Remote Control | RC040SR | |
| Power Consumption in W | 180 | |
| Power Consumption No-Sound (ECO on / off) in W | – | |
| Standby Consumption in W | 0.2 (with CEC 0.5) | |
| Maximum Dimensions | ||
| Antenna Horizontal: W x D x H (mm) | 17.3 x 14.9 x 4.1 | |
| Antenna Vertical: W x D x H (mm) | 17.3 x 14.9 x 6.9 | |
| w/o Antenna: W x D x H (mm) | 17.3 x 14.5 x 4.1 | |
| Weight (lbs) | 18.1 | |
| UPC | ||
| NR1510U1B | Black | 699927241650 |
The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc. is under license. Dolby, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories. DTS, the Symbol, DTS in combination with the Symbol, DTS:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. The Spotify software is subject to third-party licenses found here: www.spotify.com/connect/third-party-licenses. Other trademarks and trade names are those of their respective owners. Marantz is a trademark or registered trademark of D&M Holdings, Inc.
* All specs can be subject to change.
* This feature is not available in all countries.
