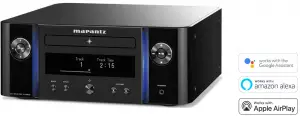

a screen shot of a speaker

M-CR612

NETWORK CD RECEIVER FEATURING HEOS, FM/AM, BLUETOOTH®, AIRPLAY 2 AND VOICE CONTROL COMPATIBILITY

The Marantz M-CR612 compact network CD receiver supports near limitless streaming platforms through AirPlay2, Bluetooth and HEOS connectivity. The built-in disc player is compatible with music CDs, CD-R/CD-RW recordable and erasable discs, and is equipped with an AM/FM tuner. Use your voice to control the M-CR612 with Amazon Alexa, Google Assistant or Apple Siri for seamless ease of use.

Highlights

  • Power and connectivity to suit your audio preference: 60W x 2ch (6 ohms), or 4x 30W for speaker A/B with individual volume setting
  • Plays CD, WMA/MP3 (CD-R/RW) and features an AM/FM tuner: No matter how you listen, enjoy your music with elevated Marantz sound
  • Stream music from your favorite sources: Play songs from TuneIn internet radio, Pandora, Spotify, SiriusXM, Amazon Prime Music, TIDAL and more via
    AirPlay 2, Bluetooth and the HEOS app (music streaming services may vary by region)
  • Supports Amazon Alexa, Google Assistant and Apple Siri voice agents: Use your voice to control the M-CR612
  • High-performance, high-resolution audio playback for every source: Supports WAV/FLAC/ALAC 192kHz/24bit, DSD 2.8/5.6MHz and Gapless playback
    (WAV/FLAC/ALAC, DSD)
  • Built-in Bluetooth and Wi-Fi with 2.4GHz/5GHz dual band support: Improved network stability even in Wi-Fi-crowded homes
  • Includes two digital Optical inputs for your TV or digital device: The M-CR612 automatically detects the signal input from your TV and outputs elevated sound
  • Works with your with TV remote: Program the M-CR612 to work with your TV remote and easily adjust volume up, volume down, mute and source selection

graphical user interface, text, application

FEATURES

FEATURESM-CR612
High quality power output2 x 60W
CD compatibility: CD / CD-R/-RW / WMA / MP3 •• / • / • / •
Tuner: AM / FM• / •
HEOS Multiroom & Streaming
Online service (HEOS)Spotify Connect, Amazon Prime, Deezer Premium+, iHeart Radio, Pandora, SiriusXM, Sound Cloud, Tidal
Streaming Audio from computer
AirPlay 2
Internet RadioTune In
Voice Control – Works with Amazon Alexa
Voice Control – Google Assist / Apple Siri• / •
Voice Control – Microphone Built-in
Bluetooth
Ethernet / WiFi 2.4 GHz (11 b/g/n) / WiFi 5GHz (11 a/n)• / • / •
WiFi setup: WPS / WiFi Sharing• / •
Lossy formats MP3 / WMA / AAC• / • / •
Lossless formats FLAC / ALAC / WAV / AIFF / DSD• / • / • / • / •
DSD Audio2.8 / 5.6 MHz
FLAC / WAV / ALAC192kHz / 24bit
Gapless Playback – FLAC / WAV / DSD• / • / •
Remote App: iDevice / Android• HEOS App
Tone control: Bass / Treble / Balance• / • / •
Low Noise OLED Display3 line
Front illuminationBlue, White, Green, Orange
Alarm: Once / Daily / Programmable / Timer• / • / • / •
IR Learning for TV Remote

INPUTS / OUTPUTS

Analog in / Out1 / 1
Digital optical In2
USB input: type A1 (rear)
Subwoofer PreOut1
Headphone Out
Speaker A / B
Speaker binding PostScrew type

SPECIFICATIONS

AUDIO SECTION
Power Output (6 ohm, 1kHz)60W
Number of channels2
Bi-Amping / Speaker A+B / Parallel BTL• / • / •
Frequency Response10Hz – 40kHz
Signal to noise ratio90dB
Total Harmonic Distortion0.1
FM SECTION
Frequency range FM87.5 – 108 MHz
Signal to Noise Ratio FM (Mono/Stereo)70/70dB
Total Harmonic Distortion FM (Mono/Stereo)0.4/0.4%

GENERAL

Available colorBlack
MENU languagesEN / FR / ES
Remote ControlRC014CR
Power Consumption55W
Standby Consumption0.3W
Dimensions: W x H x D (in)11.02 x 11.93 x 4.37
Weight (lbs)7.28

UPC

M-CR612/U1BBlack699927711658

Sound United LLC
North America Regional Headquarters
1 Viper Way
Vista, CA 92081

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc. is under license. The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses. Other trademarks and trade names are those of their respective owners. Marantz is a trademark or registered trademark of D&M Holdings, Inc.

*All specs can be subject to change.

www.marantz.com
