marantz Slim 7.2ch 8K AV receiver HEOS Built-in Voice Control

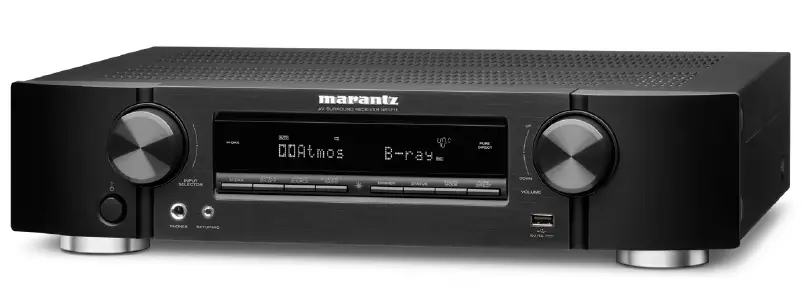

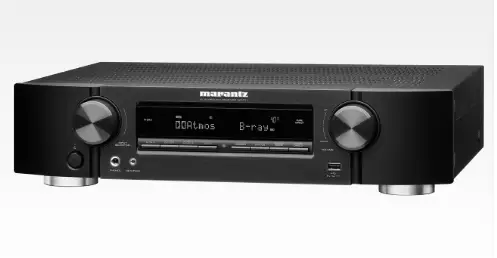

Hear the most musical sound from an elegantly slim profile. The Marantz NR1711 7.2ch 8K AV receiver drives immersive, high-fidelity audio from a compact chassis. At half the height of a traditional AV receiver, the NR1711 supports multi-dimensional audio formats Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, and DTS Virtual:X.
Features
- Slim design, exceptional performance: With a slim profile that is half the height of a traditional AV receiver, the NR1711 delivers exceptional performance and sound quality.
- Performance, power and connectivity to suit your audio preferences: 7.2 channel discrete power amplifier, 90W per channel.
- 8K/60Hz and 4K/120Hz pass-through support for every entertainment need: With the latest technology in HDMI support, enjoy 8K quality video from your 8K source devices or with 8K upscaling from Full HD or 4K sources.
- Support for the most advanced three-dimensional audio formats: Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X processing are all supported to allow you to listen to immersive, multi-dimensional audio.
- Enhanced Audio Return Channel (eARC) HDMI support: Through the main HDMI output, connect your TV with eARC HDMI support to allow uncompressed and object-based audio formats like Dolby Atmos and DTS:X directly from a smart TV app to your AV receiver.
- The greatest technology for home cinema: Support for the latest HDR formats including HDR10, HDR10+, HLG, Dolby Vision, 4:4:4 colour resolution and BT.2020, as well as Dynamic HDR provides exceptional picture quality for brightness, clarity and contrast.
- Advanced gaming specifications: With 4K/120Hz pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), experience gaming thrills with amazing imaging and reduced lag.
- High-resolution streaming for audiophile approved sound: Ability to decode ALAC, FLAC and WAV lossless files up to 24-bit/192-kHz; DSD 2.8MHz and 5.6MHz tracks enjoy your music exactly as the artist intended.
- Features HEOS Built-in and the free HEOS App: Your key to digital music streaming, multi-room audio and voice control throughout your entire home.
- Almost unlimited music sources: Stream from music services like Spotify Free and Premium, Amazon Music HD, Tidal and more, or stream directly from smart devices via AirPlay 2 or Bluetooth.
Technical Specs
| Multichannel surround | |
| DTS HD Master / DTS:X / DTS:X Pro | • / • / – |
| DTS Neo:X / DTS Neural:X | – / • |
| DTS Virtual:X | • |
| IMAX Enhanced | – |
| Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization | • / • / • |
| Dolby ProLogic Ilz / Dolby Surround | – / • |
| Auro 3D | – |
| Multichannel Stereo | • |
| Max Number of Processing (Preamp) Channels | 7.1 |
| Sound Enhancements | |
| Discrete Power Amplifier | 7 |
| Copper Plated Chassis | – |
| Power Transformer: Toroidal / EI | EI |
| Current Feedback Topology | – |
| Hyper Dynamic Amplifier Modules (HDAM) | – |
| Pure Direct | • |
| Gold Plated RCA Terminals | – |
| Clock Jitter Reducer | – |
| Audyssey | MultEQ |
| Audyssey Dynamic EQ / Dynamic Volume | • / • |
| Audyssey LFC | – |
| Compressed Audio Enhancer: MDAX2 | • |
| Network | |
| HEOS Multi-room and Streaming | • |
| Bluetooth Re-transmit for Bluetooth headphones | • |
| Amazon Alexa / Google Voice Assistant / Apple HomePod | • / • / • |
| Lossy Formats: MP3 / WMA / AAC | • / • / • |
| Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | • / • / • |
| DSD Audio Streaming | • (2.8/5.6MHz) |
| Gapless Playback | • (FLAC, WAV, ALAC, DSD) |
| AirPlay Audio Streaming | • (AirPlay2) |
| Internet Radio | • (TuneIn) |
| Spotify | • (connect) |
| Amazon Music HD / Deezer / TIDAL / Napster / others | • / • / • / • / varies per region |
| Compatible with Remote APP for Smart Phones | Android / iOS |
| Compatible with Remote APP for Tablets | Android / iOS / Amazon Kindle |
| Ethernet Port | • |
| Wi-Fi | • |
| Bluetooth | • |
| HDMI | |
| HDMI Inputs: Back / Front | 6 / 0 |
| HDCP2.3 support | • |
| HDMI Outputs: Main / Zone | 1 / – |
| Video Conversion Analogue -> HDMI | – |
| HDMI to HDMI scaling | up to 8K 60/50Hz |
| 8K/60Hz / 4K/120Hz / CEC / eARC | • / • / • / • |
| Dolby Vision / HDR10+ / Dynamic HDR / HLG | • / • / • / • |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | • |
| Variable Refresh Rate / Quick Frame Transport / Quick Media Switching | • / • / • |
| HDMI pass-through in Standby Mode | • |
| DSD Audio Capability | – |
| Auto LipSync | • |
| Multiroom/CI | |
| HEOS Multi-Room Integrated | • |
| TV Sound Grouping | • |
| Multi-Room zones | 2 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue | • (2ch) / • (2ch) / • / • |
| Zone Audio Output: Speaker / Preout | • / • |
| Zone HDMI Output from HDMI Source | – |
| IP Control / RS232 Control / Web Control / App Control | • / – / • / • |
| IR Flasher In | – |
| Marantz Remote Bus | • |
| DC Trigger Output | 1 |
| Others | |
| Auto Speaker Setup by Microphone | Audyssey MultEQ |
| FL Display | 1 line |
| Graphic User Interface – GUI | Advanced |
| ISF Certification | • |
| GUI Languages | 9 |
| Setup Assistant | • |
| Smart Select | • |
| Firmware Update by Network / USB | • / • |
| Variable Cross Over | • |
| Optimized Bass Redirection | • |
| Bass Sync | – |
| ECO Mode | • |
| Auto Power Off | • |
| Sleep Timer | • |
| Video Inputs/Outputs | |
| Composite In / Out | 3 / 1 |
| Component In / Out | 2 / 1 |
| HDMI In / Out | 6 / 1 |
| Multi-Room Video Out: Video / HDMI | – / – |
| Audio Inputs/Outputs | |
| Analogue In / Out | 3 / – |
| Phono (MM) In | • |
| Digital In: Optical / Coaxial | 1 / 1 |
| Multi-Room Out: Analogue / Digital | 1 / – |
| Multichannel Pre Out | • (2.2) |
| Subwoofer Out | 2 |
| 7.1 Multichannel Input | – |
| Other | |
| Speaker Terminal: Gold Plated Screw / Regular Screw | – / • |
| Number of Speaker Terminals | 7 |
| Speaker A / B | assignable |
| Bi-Amp Drive | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | – / – / – / – / • |
| USB Audio | • |
| FM/AM Tuner | • |
| General Power | |
| Number of Poweramps | 7 |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) | 50 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 70 W |
| Power Output (6 ohm, 1 kHz, 1% 1ch Drive) | 90 W |
| 70% Guarantee | • |
| General | |
| Metal Front Panel | – |
| System Remote Control | RC042SR |
| Pre-Programmed / Learnable / LCD Display | – / – / – |
| Power Consumption in W | 250 |
| Power Consumption No-Sound (ECO on / off) in W | 30 W / 40 W |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | 3.7 |
| Maximum Dimensions in mm Antenna:Horizontal:(W x D x H) Antenna:Vertical:(W x D x H) w/o Antenna:(W x D x H) | 440 x 378 x 105 440 x 378 x 173 440 x 366 x 105 |
| Weight in kg | 8.3 |
| Carton Maximum Dimensions (W x D x H) in mm | 525 x 495 x 192 |
| Carton Weight (incl. product) in kg | 10.5 |
| SAP Code / EAN Black
SAP Code / EAN Silver-Gold | NR1711/N1B 4951035073148 NR1711/N1SG 4951035073155 |
