Quick Install Guide
PoE+ Powered 5 Port Gigabit Compact Switch
SW-100-05PD
Setting up your switch:

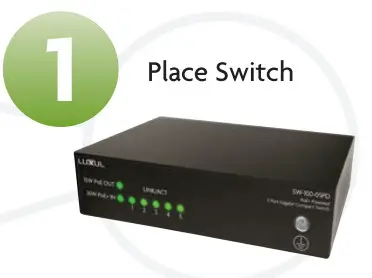

- Place your new switch in the desired location

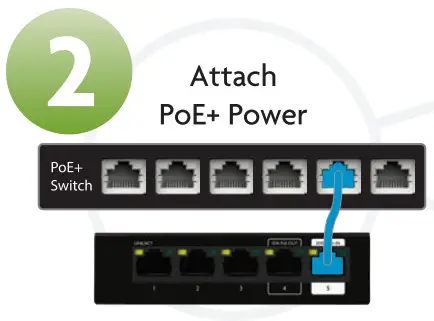

- Connect a PoE+ Ethernet network cable to port 5

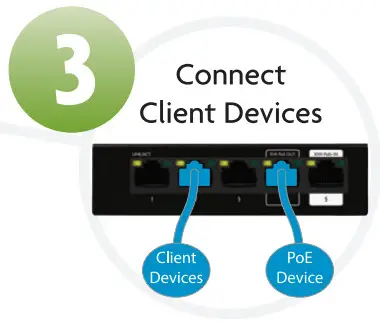

- Attach devices via Ethernet cables
• Ports 1- 3: Gigabit Ethernet ports
• Port 4: PoE (15W) output port
 |  |  |
What if…
What if…Do I need to restart my switch?
To restart your switch, unplug the Ethernet cable from port 5 for 5 seconds.
Where is my power supply?

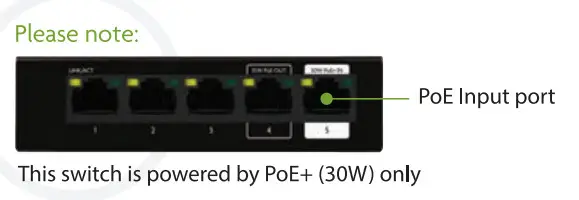

The SW-100-05PD is a PoE+ powered switch and simply requires an 802.3at/POE+ power source.

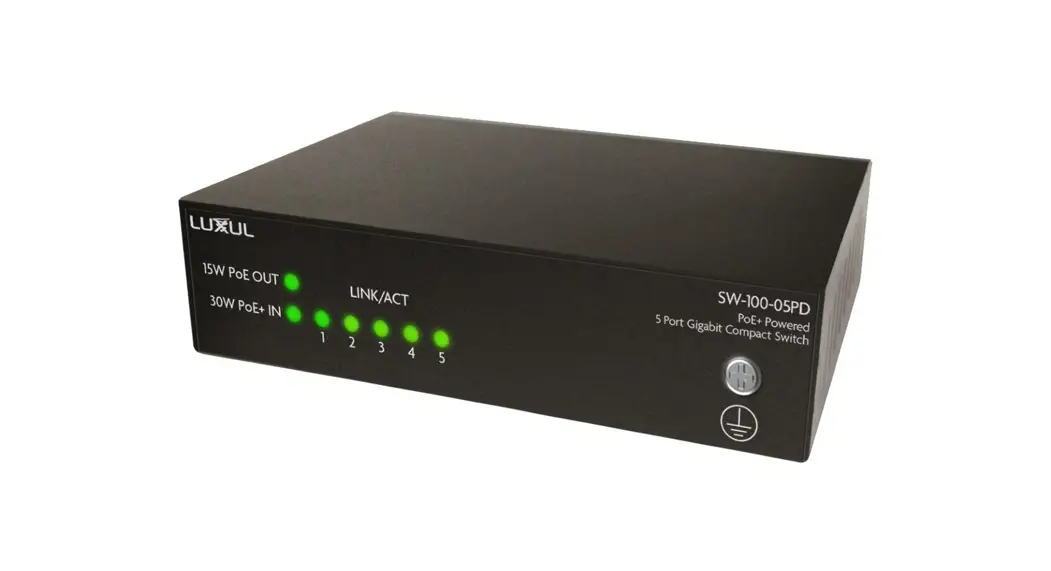

What do the LEDs on the switch indicate?
| Indicator | Front | Back | State | Description |
| 30W PoE+ In | Green | Amber | Solid | Receiving PoE+ power as per 802.3at specification |
| Off | No PoE+ power detected | |||
| 15W PoE Out | Green | Amber | Solid | Port is connected properly and supplying 15W of power |
| Off | No power or device detected | |||
| Link/ Activity | Green | Amber | Solid | Port is connected properly |
| Blinking | Data is being transmitted or received over port | |||
| Off | Port is disconnected or not properly connected to a device |
Note: Back green LEDs, top right of each port, are currently unused
