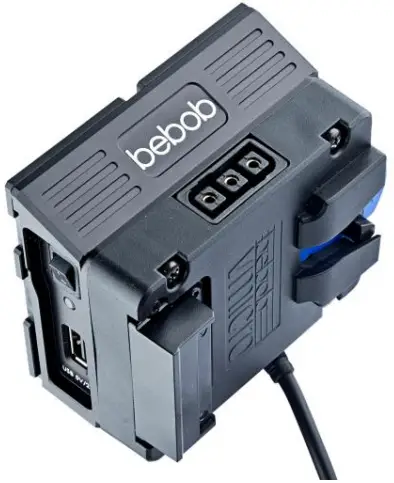

bebob COCO-MODO-V V-Mount Adapter Instruction Manual
WE STRONGLY RECOMMEND THAT YOU READ THIS INSTRUCTION BEFORE USING YOUR BEBOB RED KOMODO-VMICRO ADAPTER! PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE
Features
- Mounts onto the back of the RED KOMODO
- 5 Outputs (1x USBA, 1x USBC, 1x DTap, 2x Lemo 2p)
- 1x Lemo 2p Input for Hotswap
- On-Off switch incl. LED for the accessories (5 outputs)
- Only one LED

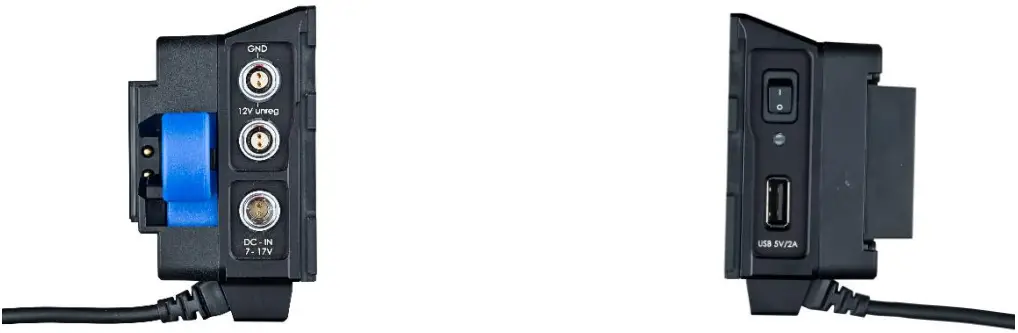

Hotswap functionality
- Plug an external 7 – 17V DC power source into the Lemo 2p (only input) to swap the battery (Vmount or Goldmount) without interruption
Safety instructions
- Only for professional use! Keep the COCO-MODO-V/A out of reach of children and personnel that has not been instructed in the use!
- Use only with recommended batteries.
- Keep the COCO-MODO- V/A dry and do not immerse in water.
- Do not attempt to open or repair the COCO-MODO-V/A. Contact your dealer for help if it becomes defective.
- Handle with care! Do not throw! Do not drop!
- Remove the battery from the COCO-MODO- V/A when not in use for a longer period of time
Warranty
- The COCO-MODO-VMM is covered by a 2 years unconditional warranty on all parts.
- For warranty issues or if you have any additional questions, please contact the appropriate bebob distributor listed at www.bebob.de.
Specifications
| Model | COCO-MODO-V / A |
| Battery Mount | Vmicro (or Amicro) |
| Voltages | 5,0V/14,4V unreg. OUT / 7 to 17V (Camera IN) |
| Max. Draw | Depends on battery |
| Twist D-Tap | 1 (14,4V unreg. / max. 5.0A) |
| USB-A Port | 1 (5,0V / max. 2,0A) |
| USB-C Port | 1 (5,0V / max. 1,0A) |
| Lemo 2p | 2 (12V unreg. / max. 2,0A) |
| Lemo 2p DC IN | 1 (7 to 17V) Hotswap |
| Operation Temperature | 0°C – 40°C |
| Dimensions (WXHXD) | 66 x 82,2 x 26,1 (mm) |
| Weight | 0,225 kg |
