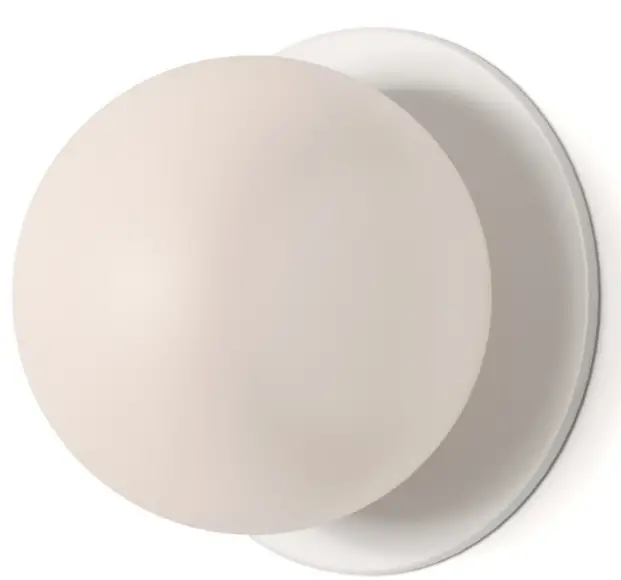

HUMAN HOME Base Hardwired Wall Lamp
INSTALLATION
WARNING!
BEFORE STARTING, TURN OFF THE POWER AT THE MAIN CIRCUIT BREAKER
- Connect wires together using a wire connector
- black wire to black wire (LIVE)
- white wire to white wire (NEUTRAL)
- green wire to green screw (GROUND)
- Screw 4” mount to the junction box with supplied flat head bolts
- Insert and level metal plate through socket

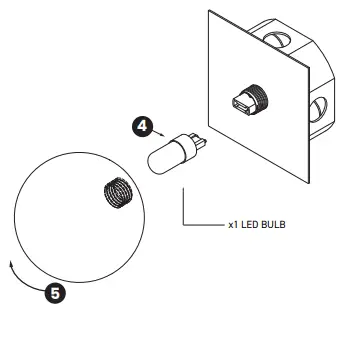

- Insert bulb
- Screw on 4” Globe to the socket to complete installation.
CAUTION:
Before starting, turn off the power at the main circuit panel.
