velleman HAA40AN LED Flashing Light User Manual
HAA40xN
HAA100xN
The Velleman® Service and Quality Warranty is on
Introduction
To all residents of the European Union Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Technical Specifications
| HAA40xN | HAA100xN | ||

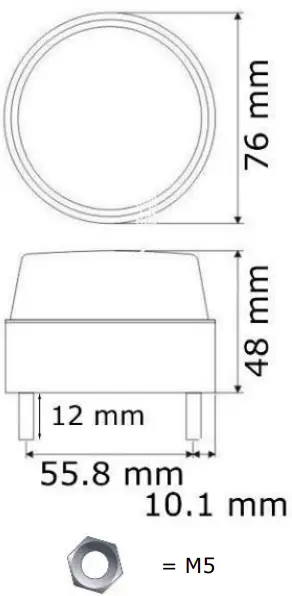

| dimensions | Ø 77 mm x 45.7 mm | Ø 100 mm x 75 mm | |
| LEDs | 15 white LEDs | ||
| rated voltage | 12 VDC | ||
| working voltage | 6 ~ 15 VDC | ||
| rated current | 120 +/- 15 mA | 100 +/- 10 mA | |
| flash rate | 80-100 / min. | ||
| material | ABS/acrylic | ||
| wiring | |||
| black (-)/red (+) | |||
| AWG24 | |||
| length | 40 cm | ||
| IP rating | IP20 | ||
Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder
Velleman – Wholesaler and developer of electronics
