BALDR IR 1350 Lumens LED Light
User Manual
BALDR IR 1350 Lumens LED Light
Thank you for purchasing this Olight Product. Please read this manual carefully before use and keep it for future reference!
IN THE BOX
 | |
| BALDR IR ( with Batteries ) | 1913 Adapter and Screws |
 | |
| Adjustable Screws | Wrench |
SPECIFICATIONS
 | ||

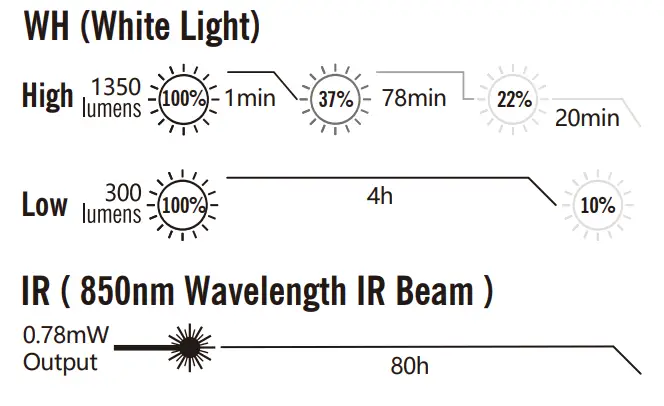

| 1m | HIGH: 16,900cd LOW: 3,600cd | HIGH: 260m LOW: 120m |
 | ||
| IPX4 | 3.30*1.44*1.75 in 84*36.5*44.5 mm | 4.55 oz/129 g Including battery |
* Class 1 IR beam level in accordance with IEC 60825-1 Standards.
* All above specifications are test results based on ANSI/NEMA FL1 Standard. The test sare performed using two 3V 1600mAh CR123A batteries that are included in the product.
* The 1350-lumen output requires sufficient battery power. When the battery level is lower than 33%, the maximum output will be capped at 500 lumens.

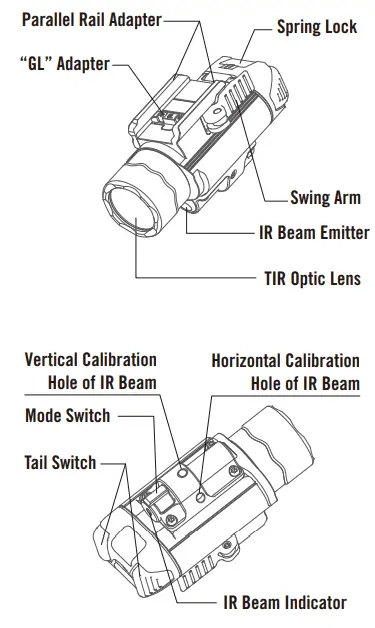

PRODUCT OVERVIEW
BEFORE FIRST USE

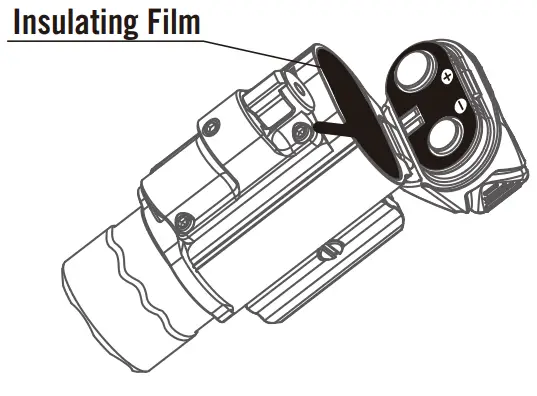

Please open the tail cap as shown in the picture. Remove the insulating film and close the tailcap.
- Open the tail cap
- Remove the insulating film
BATTERY INSTALLATION

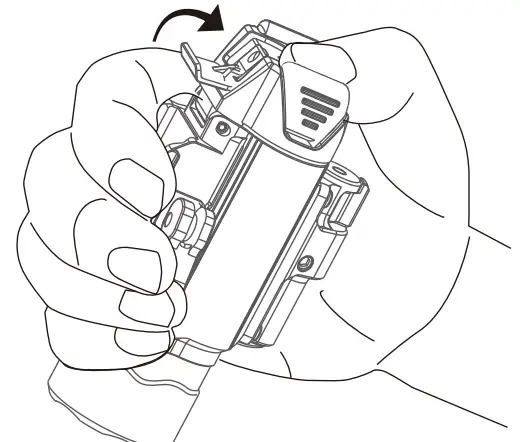

- Pull up the spring lock door and open the tailcap. Place the batteries inside the body following the direction of the positive and negative marks.
- Hold the tail cap down firmly, and then close the spring lock.
SUPPORTED BATTERY
- 2 x CR123A
- 2 x CR123A

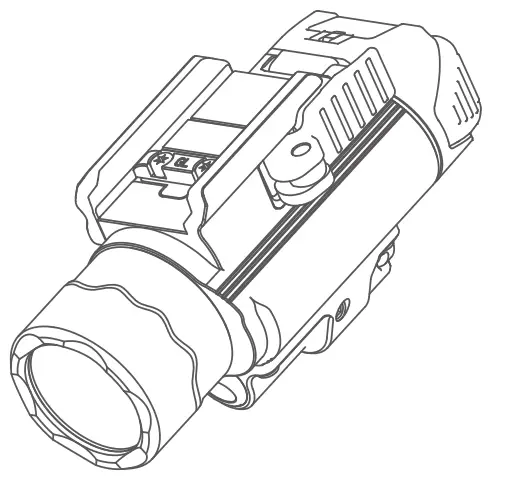

LIGHT INSTALLATION
Open the swing arm as shown below. Make sure that the rail adapter used fits inside the rail notch without any movement. Close the swing arm once it is aligned.

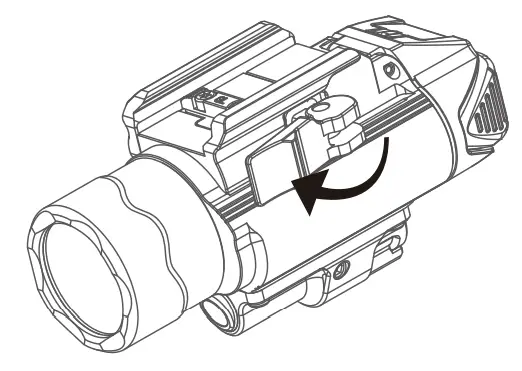

Pull open the swing arm

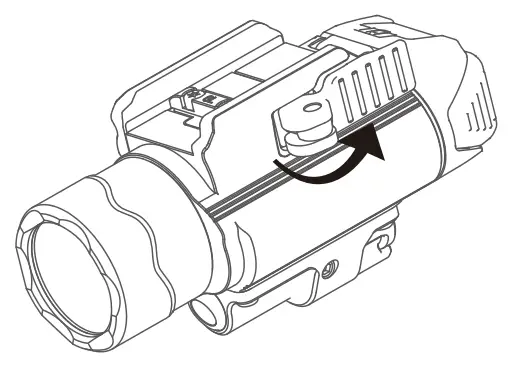

Close the swing arm
 ICON | LIGHT SETTING |
| IR | IR BEAM |
| OFF | OFF |
| WH | White Light |
COMPATIBILITY CHECK:
The BALDR IR can be used on most Glock or Picatinny (mil-std-1913) type rails. The Glock adapter labelled “GL” is already installed (compatible with most Glock handguns) and a Picatinny (mil-std-1913) adapter is included in the packaging. For Picatinny (mil-std-1913) rails, the user needs to replace the “GL” adapter with the included 1913 adapter using the screws and wrench provided in the package.
IR BEAM CALIBRATION: Use the included hex wrench to rotate the adjustment screw underneath or on the side of the IR beam emitter to calibrate the vertical or horizontal angle of the IR beam, and finally sight in the beam for accurate use.
NOTE: A backup set of NYLOK adjustable screws is included.
DANGER
- DO NOT shine the light directly into human eyes. This may cause temporary blindness, or permanent damage to the eyes.
- DO NOT cover the light’s head or stand the light on its head when it is on. The heat built-up may damage the product itself, cause close objects to burn, or even result in unexpected disasters.
- DO NOT use non-protected rechargeable lithium batteries. This may result in battery damage or even unexpected disasters.
WARNING
- Keep out of reach of children.
- After being on for a long time, the surface of the light may reach 50°C or higher. In this case, DO NOT touch the light to prevent scalding.
- If the light is stored for a long time or transported, please rotate the mode switch to the OFF position.
NOTICE
- The mode switch is magnetically sensitive. When close to a magnet, interference may occur.
- To replace batteries, please align the positive and negative ends according to their instructive marks before putting them in.
- The 1350-lumen output can only last 1 minute, and then it will gradually step down to 500 lumens within 1 minute.
- The light may turn off abruptly when using protected RCR123A batteries that have overcurrent protection and low-voltage protection.
- When the battery voltage is too low, the maximum brightness will be capped at 300 lumens.
- It is normal for the light beam to flicker while the batteries are running out.
- NYLOK is a registered trademark of NYLOK LLC.
- The IR beam is only visible with a night vision device.
WARRANTY
Within 30 days of purchase: Contact the original seller for repair or replacement. Within 5 years of purchase: Contact Olight for repair or replacement. This warranty does not cover normal wear and tear, modifications, misuse, disintegrations, negligence, accidents, improper maintenance, or repair by anyone other than an authorized retailer or Olight itself.
EU DECLARTION OF CONFORMTY
EU-Declaration of Conformity can be found here: https://olightworld.com/ec-declaration
USA Customer Support [email protected]
Global Customer Support
Customer-[email protected]
Visit www.olightworld.com to see our complete product line of portable illumination tools.
Dongguan Olight E-Commerce
Technology Co., Ltd
Address: 4th Floor, Building 4, Kegu Industrial
Park, No 6 Zhongnan Road, Changan Town,
Dongguan City, Guangdong, China.
