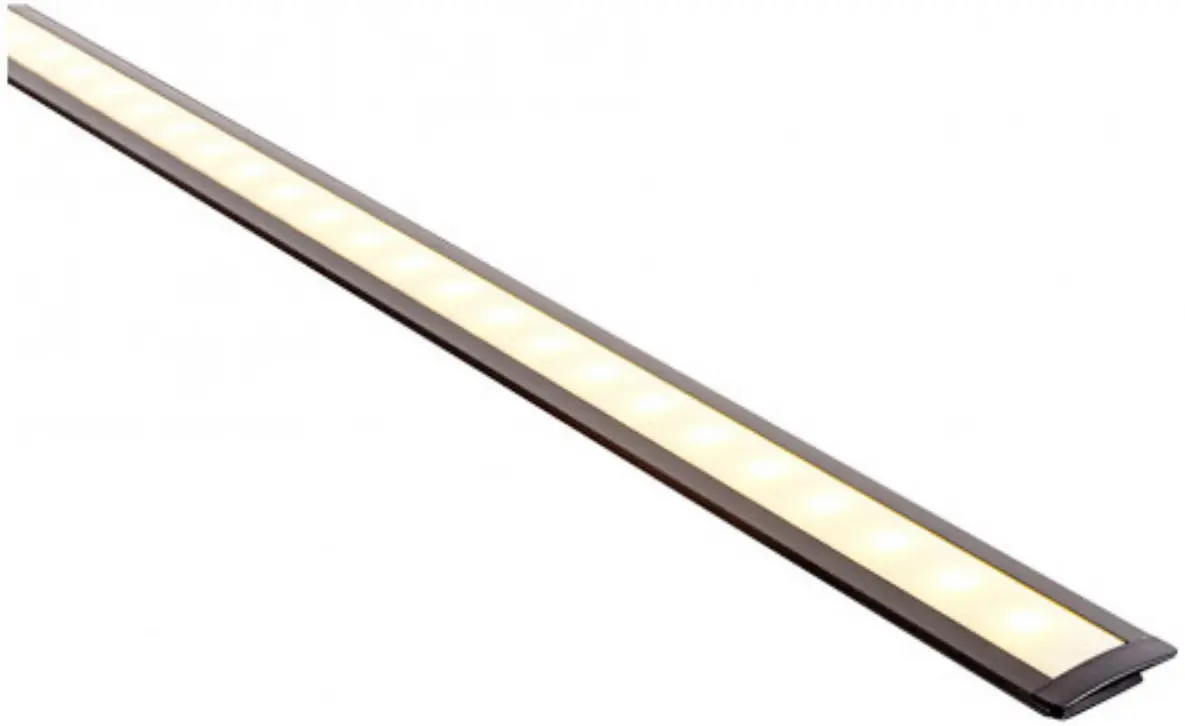

HAVIT HV9695-2507 Winged LED Profile User Manual
Winged LED Profile

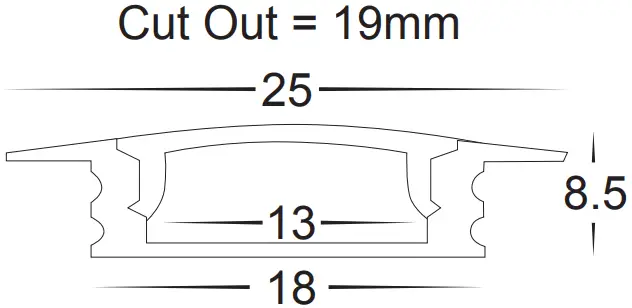

- Shallow winged square profile
- UV Stabilised PC diffuser
- Suitable for recessed installation
| PART NUMBER | DESCRIPTION | IP RATING | MAX LENGTH |

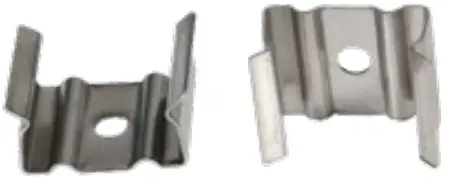

| HV9695-2507 | 25mm x 9mm Shallow winged square profile with PC diffuser – Kit – / Metre. Custom Cut Length. Supplied with Aluminium, Diffuser, 2x mounting clips per metre + 2x end caps per length | IP20 | 3 metres |
| HV9695-2507-3M | 3m Length includes aluminium, diffuser + 6x end caps & 6x mounting clips | IP20 | 3 metres |
| HV9695-2507-BLK | 25mm x 9mm Black shallow winged square profile with PC diffuser – Kit – / Metre. Custom Cut Length. Supplied with Black Aluminium, Diffuser, 2x mounting clips per metre + 2x end caps per length | IP20 | 3 metres |
| HV9695-2507-BLK-3M | 3m Length includes aluminium, diffuser + 6x end caps & 6x mounting clips | IP20 | 3 metres |
| HV9695-2507-WHT | 25mm x 9mm White shallow winged square profile with PC diffuser – Kit – / Metre. Custom Cut Length. Supplied with White Aluminium, Diffuser, 2x mounting clips per metre + 2x end caps per length | IP20 | 3 metres |
| HV9695-2507-WHT-3M | 3m Length includes aluminium, diffuser + 6x end caps & 6x mounting clips | IP20 | 3 metres |
| HAVIT COMPATIBLE ACCESSORIES | |||
| HV9695-2507-SD-ROLL: Diffuser available for continuous run of up to 20 metres | ||
| HV9695-2507-BLKSD: Black diffuser to suit HV9695-2507 up to 3m length | ||
| SAMPLE INSTALLATION METHOD | |||
 | |||
