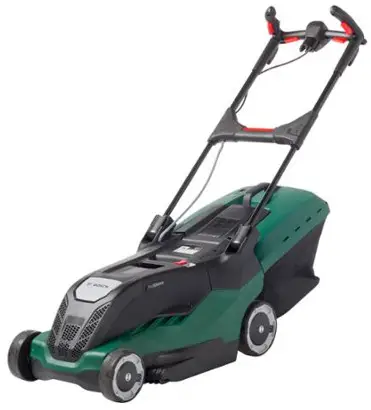

650 Advanced Rotak
Instruction Manual

Contents hide

6 Noise/Vibration Information

7 Troubleshooting

8 After-sales Service and Application Service

9 Documents / Resources

9.1 References

10 Related Posts

Safety Notes

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the machine. Please keep the instructions safe for later use!
Explanation of symbols on the machine

	General hazard safety alert.
	Read instruction manual.
	Pay attention that bystanders are not injured through foreign objects thrown from the machine.
	Warning: Keep a safe distance from the machine when operating.
	Caution: Do not touch rotating blades. Sharp blade(s). Beware of severing toes or fingers.
	Not applicable.
	Switch off and remove plug from mains before adjusting, cleaning or if the cable is entangled and before leaving the garden product unattended for any period. Keep the supply flexible cord away from the cutting blades.
	Wait until all machine components have completely stopped before touching them. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.
	Do not use the machine in the rain or leave it outdoors when it is raining.
	Beware electric shock hazard.
	Keep supply flexible cord away from cutting means.
	Do not use a high-pressure washer or a garden hose to clean the machine.

Operation

Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use, store the machine out of reach of children.
Never allow children, persons with physical, sensory or mental limitations or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator.
Children should be supervised to ensure that they do not play with the machine.
Never work while people, especially children, or pets are nearby.
The user is responsible for accidents or hazards occurring to other people or their property.
Do not operate the machine when barefoot or wearing open sandals, always wear substantial footwear and long trousers.
Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones and other foreign objects.
Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
Mow only in daylight or in good artificial light.
Avoid mowing in bad weather conditions especially when there is a risk of lightning.
Avoid operating the machine in wet grass, where feasible.
Walk, never run.
Never operate the machine with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers in place.
We would advise you to wear ear protection for your own convenience.
Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine.
Working on banks can be dangerous.
– Do not mow on excessively steep slopes.
– Always be sure of your footing on slopes or wet grass.
– Mow across the face of slopes
– never up and down.
– Exercise extreme caution when changing direction on slopes.
Use extreme caution when stepping back or pulling the machine towards you.
Never mow by pulling the mower towards you.
Wait until the blades stop if the machine has to be tilted for transportation when crossing surfaces other than grass and when transporting the machine to and from the area to be mowed.
Do not tilt the machine when starting or switching on the motor.
Switch on the motor according to the instructions with feet well away from rotating parts.
Do not put hands or feet near or under rotating parts.
Always stand clear of the discharge zone when operating the machine.
Never pick up or carry the machine while the motor is running.
Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.
Regularly inspect the supply cable and any extension cables. Do not connect damaged cables to the supply or touch a damaged cable before it is disconnected from the supply. A damaged cable can lead to contact with live parts. Beware electric shock hazard.

Leaf Collect
The leaf collect blade has been designed to allow you to pick up autumn leaves from your lawn. In order for this functionality to work within optimal parameters, please note the following:

only collect leaves with the machine set at 70 mm cutting hight
collect leaves from your lawn only
before collecting leaves inspect the area where the machine is to be used and keep people, pets, glass structures and cars away from use

Remove the plug from the socket:

Whenever you leave the machine.
before clearing a blockage,
before checking, cleaning or working on the machine,
after striking a foreign object. Inspect the machine for damage and make repairs as necessary,
if the machine starts to vibrate abnormally (check immediately).

Connecting to the mains

The voltage indicated on the rating plate must correspond to the voltage of the power source.
We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current.
Only use or replace power supply cables for this unit which correspond to the types indicated by the manufacturer. See the operating instructions for the order no. and types.
Never touch the mains plug with wet hands.
Do not run over, crush or pull the power supply cord or extension cord, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.
The extension lead must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water.
Always wear gardening gloves when handling or working near the sharp blades.

Electrical Safety
Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.

The blades continue to rotate for a few seconds after the machine is switched off.
Caution – do not touch the rotating blade.

Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details.
For increased electrical safety use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.
Keep the supply cables away from moving hazardous parts and avoid damage to the cables; this can lead to contact with live parts.
The connections (plugs and sockets) should be kept dry and off the ground.
The supply cables must be inspected for signs of damage at regular intervals and may only be used if in perfect condition.
If the supply cable on the product is damaged, it must only be replaced by a Bosch Service Centre.
Only use approved extension cables. Extension cords, cables, leads, reels should only be used if they comply with EN 61242/IEC 61242 or IEC 60884-2-7.
If you want to use an extension cable when operating your product, only the following cable dimensions should be used:

Nominal Conductor Area of 1.25 mm ² or 1.5 mm ²
Maximum length of 30 m for a Cord Extension Set or maximum length of 60 m for a Cable Reel with Residual Current Device (RCD

Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations. If in doubt contact a qualified electrician or the nearest Bosch Service Centre.
WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.

Maintenance

Always wear gardening gloves when handling or working near the sharp blades.
Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition.
Check the grass catcher frequently for wear or deterioration.
Examine the machine and replace worn or damaged parts to maintain its safety.
Ensure replacement cutting means of the right type are used.
Ensure replacement parts fitted are Bosch-approved.
Before storage ensure machine is clean and free from debries, if necessary clean with a soft, dry brush.

Symbols

The following symbols are important for reading and understanding the operating instructions especally the diagrams. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner.

Symbol	Meaning
	Movement direction
	Reaction direction
	Wear protective gloves
	Weight
	Switching On
	Switching Off
	Permitted action
	Prohibited action
	Accessories/Spare Parts

Intended Use
The garden product is intended for domestic lawnmowing.
The garden product is not intended for hedge cutting, trimming, etc.

Technical Data

Lawnmower
Advanced Rotak	650	660	670	690	751
Article number 3 600 HB9	200/230/270	201/271	202/272	204	300/370
Rated power input	W 1700	1700	1800	1800	1700
Rated voltage	V 220 – 240	220 – 240	220 – 240	220 – 240	220 – 240
Bowl diameter	cm 41	42	42	42	45
Height of cut	mm 20 – 80	20 – 80	20 – 80	20 – 80	20 – 80
Grass box, capacity	I 50	50	50	50	50
Weight according to EPTA Procedure 01:2014	kg 16.0	16.0	16.0	16.0	16.0
Protection class	/II	/II	/II	/II	/II
Serial number: See type plate on the garden product The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary. All values in this manual are measured for usage below or equal to 2000 meters above nominal sea level

Lawnmower
Advanced Rotak		760	770	780	790
Article number 3 600 HB9		301/371	302/372	303/373	304/374
Rated power input	W	1800	1800	1800	1800
Rated voltage	V	220 – 240	220 – 240	220 – 240	220 – 240
Bowl diameter	cm	46	46	46	46
Height of cut	mm	20 – 80	20 – 80	20 – 80	20 – 80
Grassbox, capacity	l	50	50	50	50
Weight according to EPTA- Procedure 01:2014	kg	16.0	16.0	16.0	16.0
Protection class		/ II	/II	/II	/II

Serial number: See type plate on the garden product
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.
All values in this manual are measured for usage below or equal to 2000 meters above nominal sea level

Noise/Vibration Information

Sound emission values determined according to EN 60335-2-77.

	Advanced Rotak	650	660	670	690	750	760	770	780	790
	3 600 HB9	200 230 270	201 271	202 272	204	300 370	300 371	302 372	303 373	304 374
Typically the A-weighted noise levels of the product are: Sound pressure level	dB(A)	76	76	76	76	76	76	76	76	76
Sound power level	dB(A)	89	89	89	89	89	89	89	89	89
Uncertainty K	dB	=1.0	=1.0	=1.0	=1.0	=2.0	=2.0	=2.0	=2.0	=2.0
Vibration total values a _h (triax vector sum) and uncertainty K determined according to EN 60335-2-77: Vibration emission value a _h	m/s2	<2.5	<2.5	<2.5	<2.5	<2.5	<2.5	<2.5	<2.5	<2.5
Uncertainty K	m/s2	= 1.5	= 1.5	= 1.5	= 1.5	= 1.5	= 1.5	= 1.5	= 1.5	= 1.5

Mounting and Operation

Action	Figure	Page	Action	Figure	Page
Delivery Scope	1	235	Stopping	6	239

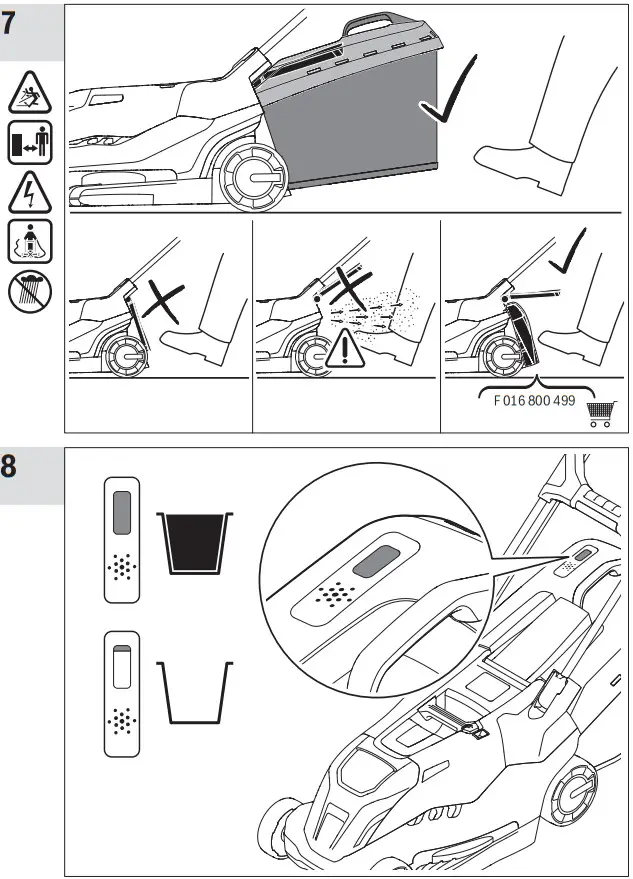

Unfold handle Adjusting the Working Height	2	236	Working Advice	7	240

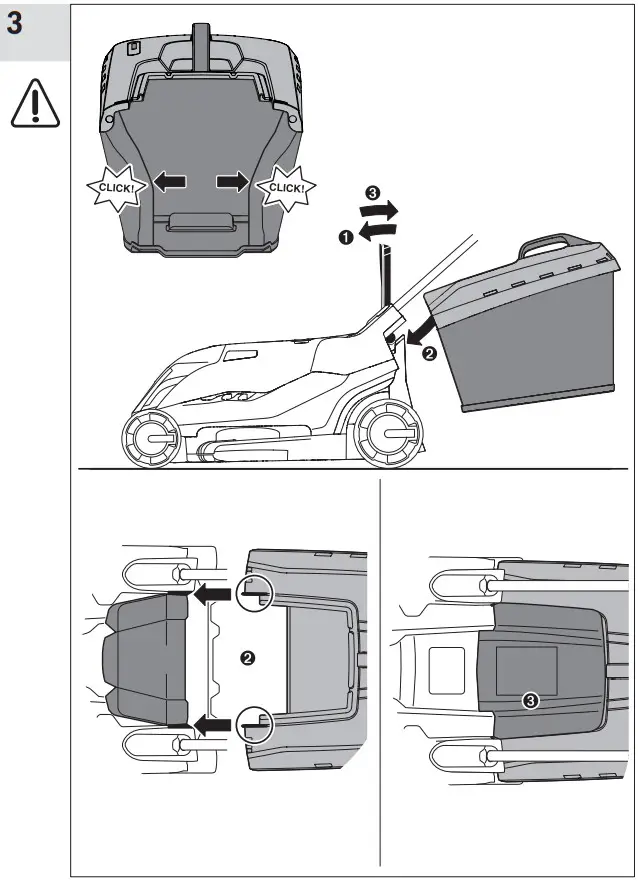

Grass box fitting/removing	3	237	Level Indicator Grass box empty/full	8	240

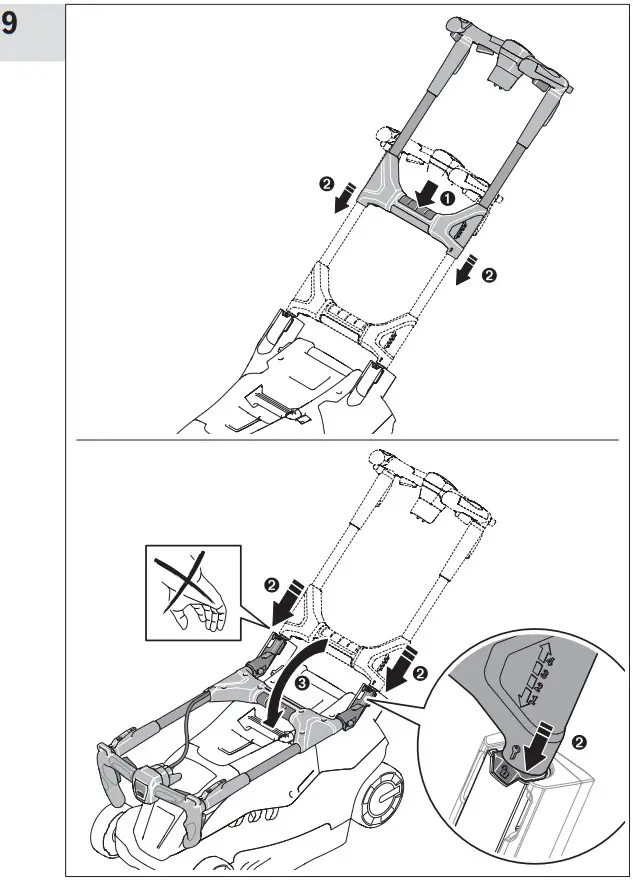

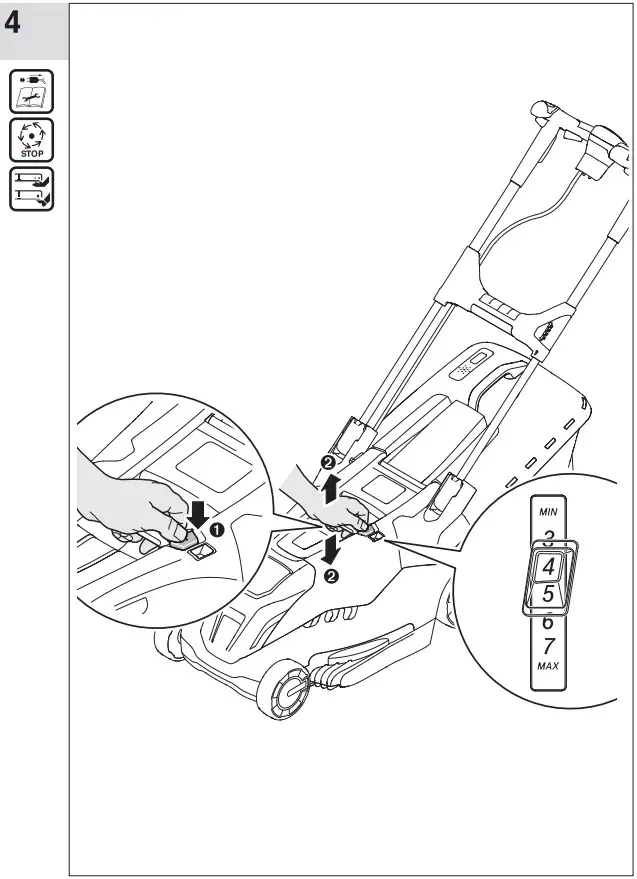

Adjusting the Cutting Height	4	238	Fold down handle	9	241

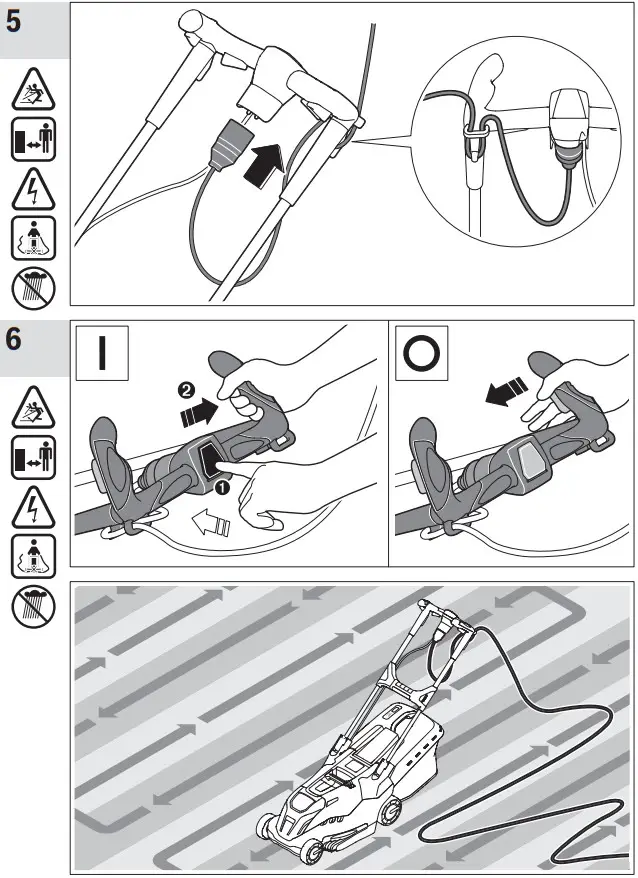

Connecting the extension lead	5	239	Blade Maintenance/Blade Swap	10	242
Starting	6	239	Selecting Accessories	11	242
Working Advice “mowing”	6	239

Troubleshooting

Problem	Possible Cause	Corrective Action
Motor refuses to start	Power turned off	Turn power on
	Mains socket faulty	Use another socket
	Extension cable damaged	Inspect cable, replace if damaged
	Fuse faulty/ blown	If fuse blows continuously. please check your electricity supply system or contact Bosch customer service agent
	Grass too long	Max. allowed grass height 30cm on highest height of-cut setting
	Motor protector has activated	Allow motor to cool and increase height of cut
Machine functions intermittently	Extension cable damaged	Inspect cable, replace if damaged
	Internal wiring of machine damaged	Contact Bosch customer service agent
	Motor protector has activated	Allow motor to cool and increase height of cut
Machine leaves ragged finish and/or Motor labours	Height of cut too low	Increase height of cut
	Cutting blade blunt	Replace the blade
	Possible clogging	Check underneath the garden product and clear out as necessary (always wear protective gloves)
	Blade fitted upside down	Refit blade correctly
Blade not rotating while garden product switched on	Cutting blade obstructed	Switch off garden product Clear obstruction (always wear protective gloves)
Blade not rotating while garden product switched on	Blade nut/bolt loose	Tighten blade nut/bolt (17 Nm)
Excessive vibrations/noise	Blade nut/bolt loose	Tighten blade nut/bolt (17 Nm)
Excessive vibrations/noise	Cutting blade damaged	Replace the blade

After-sales Service and Application Service

www.bosch-garden.com
In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product.

Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: [email protected]

Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888

Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch-pt.com.au
www.bosch-pt.co.nz

Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: [email protected]
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-Mail: [email protected]
Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax: (021) 5513223
E-Mail: [email protected]
Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-Mail: [email protected]

Disposal
Do not dispose of garden products into household waste!
Only for EC countries:
According to the European directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
Subject to change without notice.

EU Declaration of Conformity
Lawnmower
Article number:
We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.

Advanced Rotak 650	3 600 HB9 200 3 600 HB9 230 3 600 HB9 270	2006/42/EC 2014/30/EU 2011/65/EU 2000/14/EC EN 60335-1:2012+A11:2014 EN 60335-2-77:2010 EN 55014-1:2006+A1:2009+A2:2011 EN 55014-2:1997+A1:2001+A2:2008 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 50581:2012
Advanced Rotak 660	3 600 HB9 201 3 600 HB9 270
Advanced Rotak 670	3 600 HB9 202 3 600 HB9 272
Advanced Rotak 690	3 600 HB9 204
Advanced Rotak 750	3 600 HB9 300 3 600 HB9 370
Advanced Rotak 760	3 600 HB9 301 3 600 HB9 371
Advanced Rotak 770	3 600 HB9 302 3 600 HB9 372
Advanced Rotak 780	3 600 HB9 303 3 600 HB9 373
Advanced Rotak 790	3 600 HB9 304 3 600 HB9 373
3 600 HB9 2.. 2000/14/EC: Measured sound power level 89 dB(A), uncertainty K =1.0 dB, guaranteed sound power level 89 dB(A); Conformity assessment procedure in accordance with annex VI. Product category: 32 Notified body: DEKRA Certification B. V., Meander 1051, 6825 MJ Arnhem, Netherlands, Nr. 0344 3 600 HB9 3.. 2000/14/EC: Measured sound power level 89 dB(A), uncertainty K =2.0 dB, guaranteed sound power level 89 dB(A); Conformity assessment procedure in accordance with annex VI. Product category: 32 Notified body: DEKRA Certification B. V., Meander 1051, 6825 MJ Arnhem, Netherlands, Nr. 0344 Technical file at: *

	* Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering and Manufacturing	Helmut Heinzelmann Head of Product Certification
Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 11.12.2017
