ROOTS HARVEST 1516 Chicken Plucker

GENERAL WARNINGS AND SAFETY INFORMATION

IT IS IMPORTANT TO READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND SAFEGUARDS PRIOR TO USE Operate according to Operation Method and read the proper operation procedures before using. Please assemble and operate carefully, taking care not to scratch skin. Please do not to put hands around the paddles to avoid any possible injury. Please read and follow all safety precautions in this instruction manual.

Keep all loose clothing, away from moving parts when plucker is in use.
Keep fingers and hair away from moving parts when plucker is in use.
Turn plucker off before unplugging from outlet.
Always unplug plucker when changing parts on the plucker.
Unplug when assembling or disassembling the unit.
Close supervision is necessary when any appliance is used near children.
NEVER move the unit when it is running.
DO NOT disassemble the plucker or place anything other than the chicken in the plucker during operation.
DO NOT use the plucker if the power cord is broken. Please return the unit to Roots and Harvest.
To protect against risk of electrical shock do not put base with motor assembly in water or other liquid.
Unplug the unit when not in use, before putting on or taking off parts, and before cleaning.
DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
DO NOT let cord hang over edge of table or counter

WARNING!
THE WARNINGS, CAUTIONS, AND INSTRUCTIONS DISCUSSED IN THIS MANUAL CANNOT COVER ALL POSSIBLE CONDITIONS OR SITUATIONS THAT COULD OCCUR. IT MUST BE UNDERSTOOD BY THE OPERATOR THAT COMMON SENSE AND CAUTION ARE FACTORS THAT CAN NOT BE BUILT INTO THIS PRODUCT, BUT MUST BE SUPPLIED BY THE OPERATOR.

WELCOME Thank you and congratulations on purchasing a Roots & Harvest Chicken Plucker. Your plucker comes complete with everything you need to safely and easily pluck feathers. Please take a few minutes to read through this manual before installation and use. Your chicken plucker is made of the fInest materials to ensure extended use for all of your de-feathering processing needs. Your plucker will provide many years of service with proper operation.

PARTS

Part No.	Description	Qty.	Part No.	Description	Qty.
1	Buckle clamp	4	18	Nut M8	6
2	Reducer	1	19	Motor assembly	1
3	Screw 2	4	20	Screw M3x10	4
4	Botten plate	1	21	Proximity switch	1
5	Flat key	1	22	Assy feather pan	4
6	Wire nail	1	23	Feather plate	1
7	Leakage protector	1	24	Washer	1
8	Over-current protector	1	25	Magnet	1
9	Clevis pin	2	26	Nut M3	2
10	Left leg with wheel	1	27	Flat washer	1
11	Flat washer	2	28	Tub	1
12	Wheels	2	29	Bolt M8x30	1
13	Power Switch on Motor	1	30	Screw 3	4
14	Right leg with wheel	1	31	Plastic finger	1
15	Leg foot cap	3	32	Nut M6x14	1
16	Leg	1	33	Bolt M6	1
17	Bolt M8x50	6

ASSEMBLY

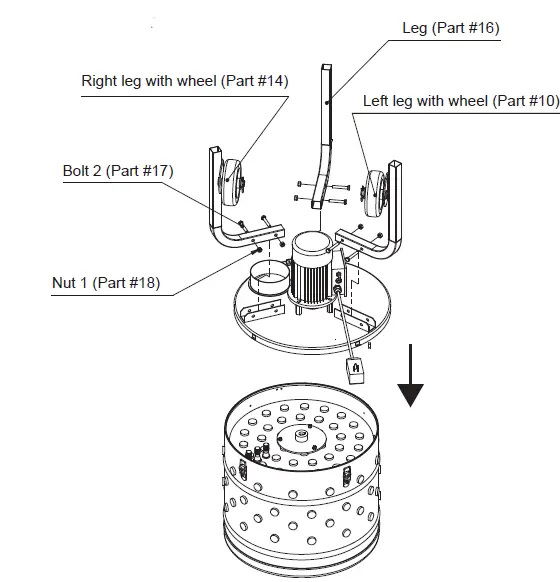

Install part #”16, part #14, and part #10, align the M8 bolts part #17 and part #18 with threaded holes and sarew them tightly.|
Install part #23 feather plate, then install part #29 through into part #27 to lock the feather plate.

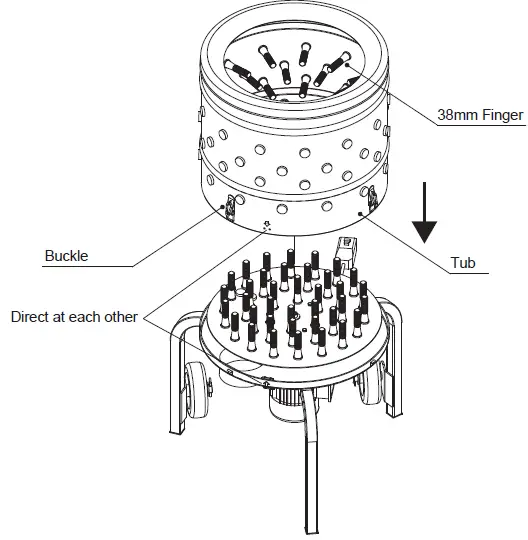

Install the tub to the bottom plate according to the arrow direction, line up the 2 arrows so that the proximity switch is activated. Lock the tub and fasten buckle.

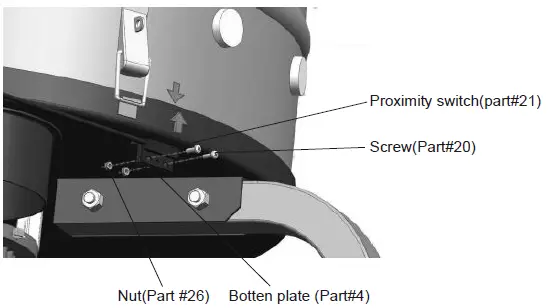

Install the Proximity Switch(Part#21) onto the ‘L’ Pin on the bottom plate, use screws (part#21) and nuts (part#26) to secure it
