Ordering Guide
DVR-LX®
Revision 2.8, October 13, 2022
User Guide

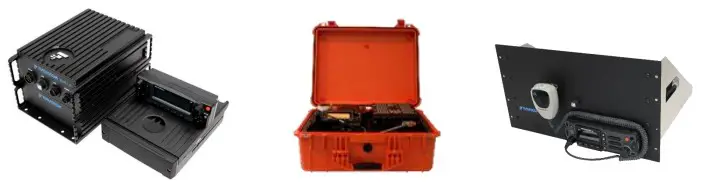

DVR-LX Digital Vehicular Repeater
Important Notes
- Only the frequency plans shown in this ordering guide are available as standard configurations. For custom filtering, please contact Futurecom at [email protected]
- DVR-LX® Frequencies must be specified when placing an order since the filters are custom tuned and cannot be re-tuned in the field.
- Standard DVR-LX® delivery time is 10-12 weeks after receipt of a purchase order and a valid frequency plan. Frequency information must be accurate and in accordance with the frequency plan requirements described in this document in order to avoid delays.
- DVR-LX® models include standard 3 ft control cable (DVR-LX® to Mobile Radio). Custom cable lengths are available in 5 ft, 10 ft, 15 ft, 20 ft and 25 ft (MAX). Custom cable length must be specified on the purchase order to Futurecom.
- The Motorola Mobile radios and accessories are NOT included with the DVR-LX®.
- The Motorola Mobile radio can operate with up to two control heads while interfaced to a DVR-LX® (vehicle mount DVR-LX® model only).
- High power VHF mobile radios (M25KTS9PW1 APX™ 6500) are NOT compatible with any Suitcase or Rack Mount DVR-LX® models.
- In all In-Band DVRS configurations, the MSU Transmit power must not exceed 50 Watts on DVRS Enabled MSU Modes due to the in-band filters power rating. The in-band filters connected to the MSU have typical insertion loss of 1.5dB
- The Motorola Mobile Radios may require firmware upgrades in order to operate with the DVR-LX®. Motorola Radio Firmware Upgrades are to be purchased directly from Motorola. Please note, to ensure full compatibility and make use of the latest available feature set, it is recommended that the APX™ Mobile Radio and DVR-LX® Firmware are updated to the latest Motorola certified firmware versions.
- APX™ Mobile Radios operating as the host mobile for the DVR-LX® require subscriber option GA00631 for operation. APX™ Portable Radios operating through a DVR-LX®, utilizing the digital enhanced DVR TRUNKING feature set require subscriber option QA00631.
Subscribe to our newsletter to be informed about new releases and updates. Please visit http://futurecom.com/support/newsletter/
Subscribe to our newsletter to be informed about new releases and updates. Please visit
Frequency plans that do not meet Futurecom specified frequency separation are custom orders. Please contact Futurecom to determine if a custom frequency plan is viable and for quotations on viable plans. [email protected]
Futurecom, DVR-LX, PDR8000, the Futurecom Logo and the Stylized FC logo are registered trademarks of Futurecom Systems Group, ULC. All other trademarks are the property of their respective owner. © 2020 Futurecom Systems Group, ULC. All rights reserved.
Mobile Radio Type
The DVR-LX® is compatible with the following Motorola Mobile Radios:
- Remote Mount APX™ 5500 with any Control Head, single band – Select Option TT05715AA
- Remote Mount APX™ 6500 with any Control Head, single band – Select Option TT05715AA
- Remote Mount APX™ 8500 with any Control Head, all band – Select Option TT06279AA
(APX™8500 use in UHF/VHF suitcase requires special consideration. Please contact Futurecom [email protected])
Depending on the isolation available between the APX™8500 mobile and DVR-LX® antennas, one of the following kits may be required.
Dual Triplexer Kit – Select Option DDN2657A
Single Triplexer Relay Kit – Select Option DDN2658A
Dual Triplexer Relay Kit – Select Option DDN2659A
Relay Kit – Select Option DDN2808A When the DVR-LX® is Connected to the APX™ 8500, The Motorola option number GA01515 is required at time of order or KT000247A01 as an accessory if ordered after original shipment. This Y cable splits the J2 into J2 and J600(DB25). Does not support APX8500 Smart Connect (Sold exclusively through Motorola Solutions, Inc.)
When the DVR-LX® is Connected to the APX™ 8500 using Smart Connect, The Motorola Y CABLE GA01779 is required. Y-Cable supports DVRLX® and Smart Connect to allow RS232 and USB line to be used concurrently. (Sold exclusively through Motorola Solutions, Inc.)

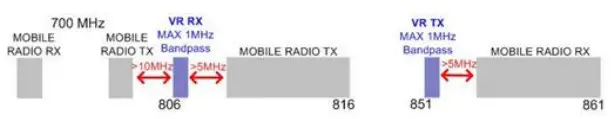

700MHz
In-Band
DVR-LX® Models
Frequency plans that do not meet Futurecom specified frequency separation are custom orders.
Please contact Futurecom to determine if a custom frequency plan is viable and for quotations on viable plans. [email protected]
| Vehicle Mount | Suitcase |
 |  |

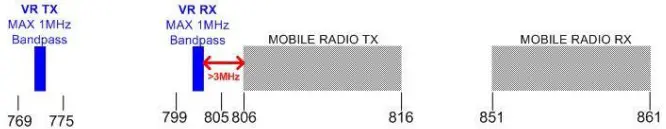

In-Band Frequency Plan A | TT3793A | TT3796A |
In-Band Frequency Plan A | TT3794A | TT3797A |

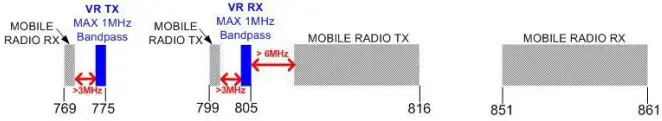

In-Band Frequency Plan C | TT3795A | TT3798A |

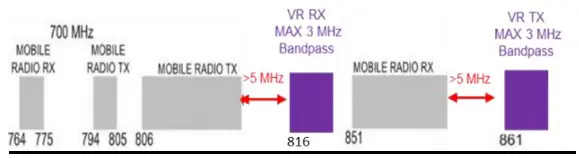

700MHz
Cross-Band
DVR-LX® Models
Frequency plans that do not meet Futurecom’s specified frequency separation are custom orders.
Please contact Futurecom to determine if a custom frequency plan is viable and for quotations on viable plans.
[email protected]
| Vehicle Mount | Suitcase |
 |  |

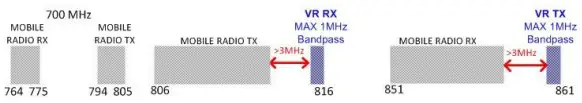

Cross-Band | TT3799A | TT3800A |
800MHz
In-Band
DVR-LX® Models
Frequency plans that do not meet Futurecom’s specified frequency separation are custom orders.
Please contact Futurecom to determine if a custom frequency plan is viable and for quotations on viable plans.
[email protected]
| Vehicle Mount | Suitcase |
| |
 Or | TT3887A | TT3890A |

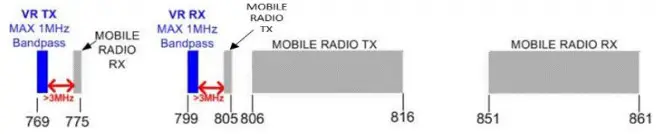

In-Band Frequency Plan B | TT3888A | TT3891A |
In-Band Frequency Plan C | TT3889A | TT3892A |
800MHz
Cross-Band
DVR-LX® Models
Frequency plans that do not meet Futurecom’s specified frequency separation are custom orders.
Please contact Futurecom to determine if a custom frequency plan is viable and for quotations on viable plans.
[email protected]
| Vehicle Mount | Suitcase |
| |

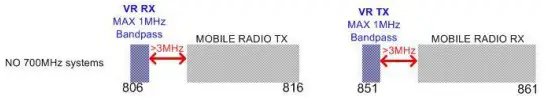

| Cross-Band 10MHz Bandpass Duplexer: DVR-LX® TX 851-869MHz (Specified 10MHz only) DVR-LX® RX 806-824MHz (Specified 10MHz only) | TT3893A | TT3894A |
380-430MHz
In-Band
DVR-LX® Models
Frequency plans that do not meet Futurecom’s specified frequency separation are custom orders.
Please contact Futurecom to determine if a custom frequency plan is viable and for quotations on viable plans.
[email protected]
| Vehicle Mount | Suitcase | Rackmount |
| APX8500 use in UHF suitcase requires special consideration. Please contact Futurecom [email protected] |  Integrates with customer supplied02 Control Head Only, Requires 13.8V DC Power |
In-Band Frequency Plan A | TT3871A | TT3875A | TT3929A |
In-Band Frequency Plan B | TT3872A | TT3876A |
In-Band Frequency Plan C | TT3873A | TT3877A | (For Optional 50 – Watt Amplifier See Options Below) |
In-Band Frequency Plan D | TT3874A | TT3878A | TT3929 (For Optional 50 – Watt Amplifier See Options Below) |
380-430MHz
Cross-Band
DVR-LX® Models
Frequency plans that do not meet Futurecom’s specified frequency separation are custom orders.
Please contact Futurecom to determine if a custom frequency plan is viable and for quotations on viable plans.
[email protected]
| Vehicle Mount | Suitcase | Rackmount |
| APX8500 use in UHF suitcase requires special consideration. Please contact Futurecom [email protected] | Integrates with customer supplied 02 Control Head Only, Requires 13.8V DC Power |
| Cross-Band Frequency Plan A 100kHz Wide Bandpass Duplexer 10MHz Tx to Rx Separation | TT3879A | TT3897A | TT3930A (For Optional 50 – Watt Amplifier See Options Below) |
| Cross-Band Frequency Plan B 500kHz Wide Bandpass Duplexer 5MHz Tx to Rx Separation | TT3880A | TT3898A |

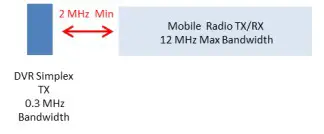

| Cross-Band Simplex No DVR-LX® Duplexer DVR-LX® TX/RX 380-430 MHz | TT4008A |
450-470MHz
In-Band
DVR-LX® Models
Frequency plans that do not meet Futurecom’s specified frequency separation are custom orders.
Please contact Futurecom to determine if a custom frequency plan is viable and for quotations on viable plans.
[email protected]
| Vehicle Mount | Suitcase | Rackmount |
| APX8500 use in UHF suitcase requires special consideration. Please contact Futurecom [email protected] | Integrates with customer supplied 02 Control Head Only, Requires 13.8V DC Power |
In-Band Frequency Plan A | TT3881A | TT3883A | TT3931A |
In-Band Frequency Plan B | TT3882A | TT3884A |
450-470MHz
Cross-Band
DVR-LX® Models
Frequency plans that do not meet Futurecom’s specified frequency separation are custom orders.
Please contact Futurecom to determine if a custom frequency plan is viable and for quotations on viable plans.
[email protected]
| Vehicle Mount | Suitcase | Rackmount |
| APX8500 use in UHF suitcase requires special consideration. Please contact Futurecom [email protected] | Integrates with customer supplied 02 Control Head Only, Requires 13.8V DC Power |
| Cross-Band Frequency Plan A 500kHz Wide Bandpass Duplexer 5MHz Tx to Rx Separation | TT3885A | TT3886A | TT3932A (For Optional 50 – Watt Amplifier See Options Below) |
| Cross-Band Simplex No DVR-LX® Duplexer DVR-LX® TX/RX 450-470 MHz | TT4009A | ||
136-174MHz
In-Band
DVR-LX® Models
Frequency plans that do not meet Futurecom’s specified frequency separation are custom orders.
Please contact Futurecom to determine if a custom frequency plan is viable and for quotations on viable plans.
[email protected]
| Vehicle Mount | Suitcase | Rackmount |
| APX8500 use in UHF suitcase requires special consideration. Please contact Futurecom [email protected] | Integrates with customer supplied 02 Control Head Only, Requires 13.8V DC Power |
In-Band Frequency Plan A | TT3859A | TT3864A | TT3926A |
In-Band Frequency Plan B | TT3860A | TT3865A | |
In-Band Frequency Plan C | TT3861A | TT3866A | |

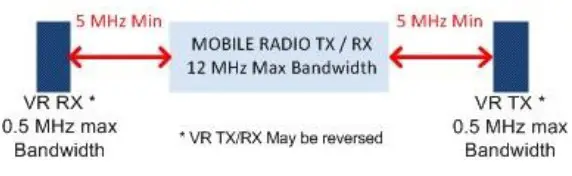

In-Band Frequency Plan D When DVR-LX/MSU frequency separation is larger than 4 MHz, the 12MHz MSU Tx/Rx frequency bandwidth restriction can be eliminated. | TT3862A | TT3867A | TT3927A For Optional 50 – Watt Amplifier See Options Below |
In-Band Frequency Plan E When DVR-LX/MSU frequency separation is larger than 4 MHz, the 12MHz MSU Tx/Rx frequency bandwidth restriction can be eliminated. | TT3863A | TT3868A |
136-174MHz
Cross-Band
DVR-LX® Models
Frequency plans that do not meet Futurecom’s specified frequency separation are custom orders.
Please contact Futurecom to determine if a custom frequency plan is viable and for quotations on viable plans.
[email protected]
| Vehicle Mount | Suitcase | Rackmount |
| NOTE: PLEASE CONTACT FUTURECOM SALES [email protected] IF APX8500 WILL BE USED IN SUITCASE | Integrates with customer supplied 02 Control Head Only, Requires 13.8V DC Power |
OPTIONS AND SPARES
| ORDER CODE | DESCRIPTION |
| Factory Installed Licensed Feature | |
| TT06567AA | Authentication Factory Installed Licensed Feature: Portable Link Layer authentication through the DVR-LX® Prevent unauthorized portables accessing the radio network (per unit) 1. Requires DVR-LX® software release 1.51 or greater 2. Requires mobile and portable to be running compatible firmware version (R20.02.00) Cost of subscriber upgrade and any required options not included in kit. If Ordered as field upgrade, DDN3117A is required |
| TT06568AA | RM-OTAP Factory Installed Licensed Feature: This feature enables operator to perform firmware and configuration update on each DVR-LX® unit using Motorola Radio Management via the Mobile Radio. 1. Requires DVR-LX® software release 1.60 or greater 2. Requires mobile be running compatible firmware version (R21.01.00 or later) Cost of subscriber upgrade and any required options not included in kit. If Ordered as field upgrade, DDN3118A is required |
| TT3817A | PSU Conventional Scan Factory Installed Licensed Feature: PSU conventional scan feature enables an enhanced PSU to support conventional scan while the Futurecom repeater is configured as its system type. 1. Requires DVR-LX® software release 1.61 or greater 2. Requires mobile and portable to be running compatible firmware version (R21.20.00 or recent) Cost of subscriber upgrade and any require not included in kit. PSU will need to have both QA00631 (DVRS Enabled PSU) & HA00677 (DVRS PSU Conventional Scan enabled) |
| TT3925A | Smart Connect In-Vehicle Range Extension Factory Installed Licensed Feature: Enables a “DVR enabled PSU” to maintain voice and emergency services when Smart Connect MSU is connected via broadband (LTE, SAT, Wi-Fi) (per unit)1. Requires DVR-LX® compatibility software release (See compatibility charts for reference) 2. Requires mobile and portable to be running compatible firmware version (See compatibility charts for reference) Cost of subscriber upgrade not included. Requires Smart Connect GA01630 & DVRS MSU GA00631, The Motorola Y CABLE GA01779 is required. If ordered as field upgrade, DDN3230A is required |
| TT4006A | GPS Driven Deactivation Factory Installed Licensed Feature: Enables a DVR-LX® to be deactivated by a pre-configured GPS based (Speed & Distance) threshold to decide when to deactivate the primary DVR-LX®. (Per Unit) 1. Requires DVR-LX® compatibility software release (See compatibility charts for reference) 2. Requires mobile to be running compatible firmware version (See compatibility charts for reference) Cost of subscriber upgrade not included. Requires GPS Activation GA00229 If ordered as a field upgrade, DDN3263A is required. |
| NOTE: FEATURE LICENSE(S) ARE NOT TRANSFERABLE BETWEEN UNITS NOTE: SHOULD CUSTOMER LOSE FEATURE LICENSE FILE(S), CUSTOMER IS RESPONSIBLE FOR REPURCHASING FEATURE LICENSE(S) | |
| Field Upgrade Licensed Feature | |
| DDN3117A | Authentication Field Upgrade Licensed Feature: Portable Link Layer authentication through the DVR-LX® Prevent unauthorized portables accessing the radio network (per unit) 1. Requires DVR-LX® software release 1.51 or greater 2. Requires mobile and portable to be running compatible firmware version (R20.02.00) Cost of subscriber upgrade and any required options not included in kit. All serial numbers must be provided to Futurecom at the time of order |
| DDN3118A | RM-OTAP Field Upgrade Licensed Feature: This feature enables operator to perform firmware and configuration update on each DVR-LX® unit using Motorola Radio Management via the Mobile Radio. 1. Requires DVR-LX® software release 1.60 or greater 2. Requires mobile be running compatible firmware version (R21.01.00 or later) Cost of subscriber upgrade and any required options not included in kit. All serial numbers must be provided to Futurecom at the time of order |
| DDN3175A | PSU Conventional Scan (Bulk Order) Field Upgrade Licensed Feature: PSU conventional scan feature enables an enhanced PSU to support conventional scan while the Futurecom repeater is configured as its system type. 1. Requires DVR-LX® software release 1.61 or greater 2. Requires mobile and portable to be running compatible firmware version (R21.20.00) Cost of subscriber upgrade and any require not included in kit. 3. PSU will need to have both QA00631 (DVRS Enabled PSU) & HA00677 (DVRS PSU Conventional Scan enabled) Note: To qualify for bulk order, all serial numbers must be provided to Futurecom at the time of order. The PSU Conventional Scan Feature License will be applicable only to the serial numbers provided. Should the Customer fail to provide the serial numbers for all units at the time of order, the Customer must place a new order for DDN3175A when the remaining serial numbers are available. |
| DDN3230A | Smart Connect In-Vehicle Range Extension Field Upgrade Licensed Feature: Enables a “DVR enabled PSU” to maintain voice and emergency services when Smart Connect MSU is connected via broadband (LTE, SAT, Wi-Fi) (per unit) 3. Requires DVR-LX® compatibility software release (See compatibility charts for reference) 4. Requires mobile and portable to be running compatible firmware version (See compatibility charts for reference) Cost of subscriber upgrade not included. Requires Smart Connect GA01630 & DVRS MSU GA00631 The Motorola Y CABLE GA01779 is required. All serial numbers must be provided to Futurecom at the time of order |
| DDN3263A | GPS Driven Deactivation Field Upgrade Licensed Feature: Enables a DVR-LX® to be deactivated by a pre-configured GPS based (Speed & Distance) threshold to decide when to deactivate the primary DVR-LX®. (Per Unit) 1. Requires DVR-LX® compatibility software release (See compatibility charts for reference) 2. Requires mobile be running compatible firmware version (See compatibility charts for reference) Cost of subscriber upgrade not included. Requires GPS Activation GA00229 All serial numbers must be provided to Futurecom at the time of order |
| NOTE: FEATURE LICENSE(S) ARE NOT TRANSFERABLE BETWEEN UNITS NOTE: SHOULD CUSTOMER LOSE FEATURE LICENSE FILE(S), CUSTOMER IS RESPONSIBLE FOR REPURCHASING FEATURE LICENSE(S) | |
| PROGRAMMING KITS, PROGRAMMING CABLES & SOFTWARE | |
| DDN9025A | DVR/DVR-LX® PROGRAMMING CABLE, 10 ft |
| CONTROL CABLES | |
| DDN9031A DDN9032A | DVR/DVR-LX® OPTIONS CABLE (PN 7W083X06-01, 2.5 ft) DVR/DVR-LX® RF SWITCH CABLE FOR VEHICLE MOUNT DVR-LX® (PN 7W083X09-01, 1 ft) (Required for IN Band Units) |
| DDN9028B | DVR/DVR-LX® TO APX MOBILE RADIO CONTROL CABLE (PN 7W083X05-01 is equivalent to 1W083B13-01 , 3 ft) Custom cable lengths are available in 5 ft, 10 ft, 15 ft, 20 ft and 25 ft (MAX). Custom cable length must be specified on the purchase order to Futurecom. |
| DDN2645A | DVR/DVR-LX® TO APX MOBILE RADIO FLAT MOUNT CONTROL CABLE (PN 7W083X83-01, 3 ft) Custom cable lengths are available in 5 ft, 10 ft, 15 ft, 20 ft and 25 ft (MAX). Custom cable length must be specified on the purchase order to Futurecom. |
| HKN6245A | Control Head to Mobile Cable 2 ft, ideal for Suitcase DVR/DVR-LX® (SOLD EXCLUSIVELY THROUGH MOTOROLA SOLUTIONS, INC.) |
| RF CABLES | |
| DDN9032A | DVR/DVR-LX® RF SWITCH CABLE FOR VEHICLE MOUNT DVR-LX® (PN 7W083X09-01, 1 ft) |
| DDN9033A | RF CABLE DVR/DVR-LX® TO DVR/DVR-LX® NOTCH FILTER FOR VEHICLE MOUNT DVR-LX® (PN 7W083X16-01, 3 ft) |
| DDN9034A | RF CABLE MOBILE TO NOTCH FILTER FOR VEHICLE MOUNT DVR/DVR-LX® (PN 7W083X17-01, 3 ft) |
| DDN2719A | RF CABLE APX™ 8500 MOBILE TO NOTCH FILTER FOR VEHICLE MOUNT DVR/DVR-LX® (PN 7W900X94-02, 3 ft) |
| Power Cables | |
| DDN9030A | DVR/DVR-LX® POWER CABLE FOR VEHICLE MOUNT DVR/DVR-LX® (PN 1W083A01-01) |
| DDN9525A | AC POWER CABLE FOR SUITCASE DVR/DVR-LX® (PN 7W077X17-01) |
| DDN9524A | DC POWER CABLE FOR SUITCASE DVR/DVR-LX® (PN 7W077X32-01) |
| Installation Kit | |
| DDN3274A | SPARE DVR-LX® INSTALLATION KIT – Includes Fuse installation kit, DVR-LX®, power cable, Connector mini UHF Male RA (VEHICLE MOUNT DVR-LX® ONLY) (PN 7K093X01) Must specify DVR-LX® configuration (Cross Band or In-Band) on the purchase order to Futurecom. |
| Custom Filters | |
| TT06579AA | ENGINERING DESIGN TIME – Non-Recurring Engineering Fee (NRE) |
| TT06580AA | CUSTOM FILTER DESIGN – TIER 1 (Per Unit) This option is for a custom filter design and must be ordered if frequency plans do not meet Futurecom’s specified frequency separation stated in the ordering guide. In order to determine if a custom frequency plan is viable, please contact [email protected] prior to placing an order. Tier 1 option consists of 1-2* custom filters per unit. Delivery lead time is 14-16 weeks ARO and a verified frequency plan. |
| TT06581AA | CUSTOM FILTER DESIGN – TIER 2 (Per Unit) This option is for a custom filter design and must be ordered if frequency plans do not meet Futurecom’s specified frequency separation stated in the ordering guide. In order to determine if a custom frequency plan is viable, please contact [email protected] prior to placing an order. Tier 2 option consists of 3-4* custom filters per unit. Delivery lead time is 14-16 weeks ARO and a verified frequency plan. |
| BATTERY BACKUP & ACCESSORIES FOR BATTERY BACKUP | |
| DDN9011A | BATTERY BACKUP FOR SUITCASE DVR/DVR-LX® MODEL, 2HRS (50:50 TX-RX DUTY RATIO) |
| DDN2646A | DVR/DVR-LX® BATTERY BACK UP DC POWER CABLE (PN 7W077X11-01) |
| DDN2334A | SPARE CHARGER FOR DVR-LX® / PDR8000® BATTERY BACK UP |
| ACCESSORIES FOR SUITCASE DVR-LX® | |
| DDN2335A | ZIPPERED ACCESSORY POUCH (PN 3Y088B01-01) |

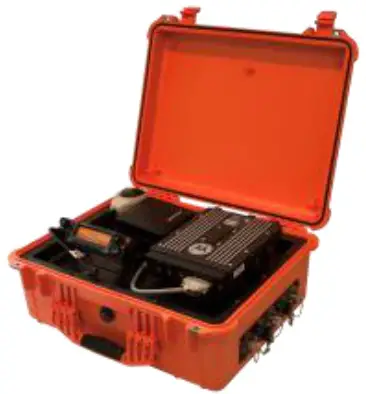

SUITCASE COLOR DVR-LX® OPTIONS
| Order Code | |
| TT06069AA | STANDARD SUITCASE CASE COLOR – ORANGE |
| TT06070AA | STANDARD SUITCASE CASE COLOR – BLACK |
| TT06071AA | OPTIONAL SUITCASE COLOR – DELETES STANDARD ORANGE OR BLACK SUITCASE AND REPLACES WITH YELLOW SUITCASE COLOR |
| TT06072AA | OPTIONAL SUITCASE COLOR – DELETES STANDARD ORANGE OR BLACK SUITCASE AND REPLACES WITH SILVER SUITCASE COLOR |
SUITCASE DVR-LX® POWER SUPPLY OPTIONS
| Order Code | |
| TT06075AA | STANDARD 120 VAC POWER SUPPLY |
| TT06076AA | STANDARD 220 VAC POWER SUPPLY |
50-WATT BOOSTER POWER AMPLIFIER FOR RACKMOUNT DVR-LX®
| Order Code | |
| TT3937A | UHF 380-430 MHz 50-Watt Amplifier for Rackmount DVR-LX® (Not available for sale in Canada) |
| TT3938A | UHF 450-470 MHz 50-Watt Amplifier for Rackmount DVR-LX® (Not available for sale in Canada) |
| TT3936A | VHF 50-Watt Amplifier for Rackmount DVR-LX |
ALARMS FOR RACKMOUNT DVR-LX®
| Order Code | |
| TT3935A | Rackmount Alarm capability – contact closure type, temperature, power |
Antennas for Vehicle Mount DVR-LX® – Sold Exclusively Through Motorola Solutions Inc.
| ANTENNAS FOR VEHICLE MOUNT DVR-LX® UNITY GAIN (0dBd), ROOF / TRUNK MOUNT | FREQUENCY BAND [MHz] |
| HAD4006A | 136 – 144 MHz |
| HAD4007A | 144 – 150.8 MHz |
| HAD4008A | 150.8 – 162 MHz |
| HAD4009A | 162 – 174 MHz |
| HAE6012A | 380 – 433 MHz |
| HAE4003A | 450 – 470 MHz |
| HAF4016A | 764 – 870 MHz |
Mag Mount Antennas – Sold by Futurecom Systems Group, ULC
| ANTENNAS FOR SUITCASE DVR-LX® UNITY GAIN (0dBd), MAG MOUNT | FREQUENCY BAND [MHz] |
| DDN9014A | 136 – 174 MHz |
| DDN9015A | 380 – 520 MHz |
| DDN9016A | 764 – 869 MHz |
Hardware Warranty & Services
Futurecom’s standard hardware warranty is 18 months starting from the date the product ships from Futurecom. Please reference Futurecom’s Terms and Conditions of Sale, Section 7 regarding standard hardware warranty. www.futurecom.com
| ORDER CODE | DESCRIPTION | Notes and Conditions |
| DDN2085A | DVR-LX® Cross Band 4 Year Extended Hardware Warranty | DVR-LX® Cross Band 4 Year Extended Hardware Warranty Extends standard hardware warranty by 4 years. Can only be purchased once per unit. Must be purchased prior to expiration of standard hardware warranty. |
| DDN2086A | DVR-LX® Cross Band 1 Year Extended Hardware Warranty | DVR-LX® Cross Band 1 Year Extended Hardware Warranty Extends any existing hardware warranty by 1 year. Can only be purchased a maximum of 4 times per unit. Cannot be purchased in conjunction with 4 year extended hardware warranty. Must be purchased prior to expiration of any existing hardware warranty. |
| DDN2087A | DVR-LX® In-Band 4 Year Extended Hardware Warranty | DVR-LX® In-Band 4 Year Extended Hardware Warranty Extends standard hardware warranty by 4 years. Can only be purchased once per unit. Must be purchased prior to expiration of standard hardware warranty. |
| DDN2088A | DVR-LX® In-Band 1 Year Extended HardwareWarranty | DVR-LX® In-Band 1 Year Extended Hardware Warranty Extends any existing hardware warranty by 1 year. Can only be purchased a maximum of 4 times per unit. Cannot be purchased in conjunction with 4 year extended hardware warranty. Must be purchased prior to expiration of any existing hardware warranty. |
| DDN1971A | On-site and/or Virtual Programming Support (Basic)On-site and/or Virtual Programming Support (Extended) | Maximum 1 day; see EXTENDED support for additional days. Minimum 2 weeks advance notice required however subject to resource availability. Applies to North America only. Must purchase BASIC on-site/virtual technical and programming support. |
| DDN1974A | On-site and/or Virtual Training (Basic) 2 Courses Available: 1. Training the Trainer/end user 1 Day (Est 4 hours) end user training gives the end user a general understanding of Futurecom solutions through your agencies particular use case, highlighting best practices through situations commonly seen in the field during deployment situations. Participants will have hands on training with the newly implemented solution for practical operation and control. OR 2. Technical and Programming Training 1 Day Technical and Programming training gives the radio technician an in depth understanding on how the DVR-LX®/VRX1000/PDR8000® is integrated into the everyday operation of the agency. Highlighting code plug compatibility, Futurecom Repeater Configurator (FRC) software functionality and programming for optimal end user experience. | Maximum 1 day; see EXTENDED training for additional days. Minimum 2 weeks advance notice required however subject to resource availability. Applies to North America only. Training the trainer requires the newly implemented DVR-LX®/VRX1000/PDR8000® to be tested and in use on the network to get the most out of the Training the Trainer. Standard training package. Includes soft copy of training materials. Customized training available subject to content and price negotiation. Contact Futurecom Systems Group, ULC for a pretraining checklist to insure your solution is ready for Basic Virtual Training Technical and Programming Training, Futurecom Systems Group, ULC requires at least two full functioning Portable radios (PSUs) programmed to the current system, at least one installed DVRLX®/VRX1000/PDR8000®. For DVR-LX®/ and VRX1000 use a Mobile Radio (MSU) radio set is required to conduct this training properly. |
| DDN1975A | On-site and/or Virtual Training (Extended) | Must purchase BASIC onsite and/or training |
