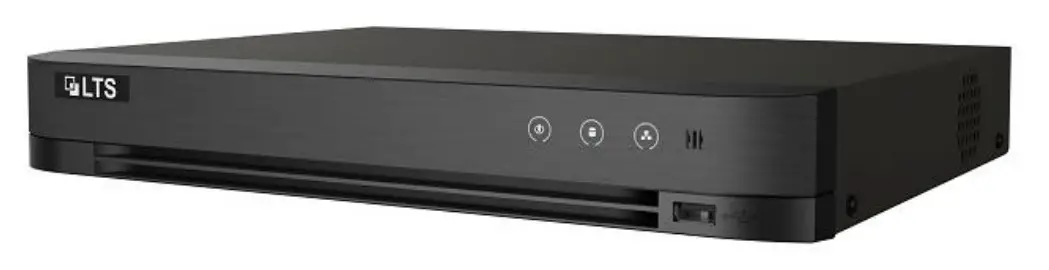

LTD8304M-ET/ LTD8308M-ETC Turbo Smart DVR
Instruction Manual
Key Feature
- Deep learning-based motion detection 2.0 for all analog channels
- Deep learning-based perimeter protection
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 6/12-ch IP camera inputs (up to 6 MP)
- Up to 10 TB capacity per HDD
Compression and Recording
- H.265 Pro+ video compression improves encoding efficiency and reduces data storage costs
- Full channel recording at up to 1080p resolution
Storage and Playback
- Smart search for efficient playback
Smart Function
- Deep learning-based motion detection, perimeter protection (line crossing and intrusion detection)
- Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
Network & Ethernet Access
- Compatible with major Wi-Fi dongle products in the market
- LTS-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Output bandwidth limit configurable
Specification
Model | LTD8304M-ET | LTD8308M-ETC |
| Motion Detection 2.0¹ | ||
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; | |
| Perimeter Protection¹ | ||
| Human/Vehicle Analysis | Up to 2-ch | Up to 4-ch |
| Recording | ||
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Encoding resolution | Main stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 P/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access:1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p ite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) | |
| Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) | ||
| Video bitrate | 32 Kbps to 6 Mbps | |
| Dual stream | Support | |
| Stream type | Video, Video & Audio | |
| Audio compression | G.711u | |
| Audio bitrate | 64 Kbps | |
| Video and Audio | ||
| IP video input2 | 1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps | 2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps |
| Up to 6 MP resolution | ||
| Support H.265+/H.265/H.264+/H.264 IP cameras | ||
| Total bandwidth | 72Mbps | 96Mbps |
| Analog video input | 4-ch | 8-ch |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coalition connection | ||
| HDTVI input | 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1 of LTD8304M-ET, for channel 1/2 of LTD8308M-ETC | |
| AHD input | 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps | |
| HDCVI input | 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps | |
| CVBS input | PAL/NTSC | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output | |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| 4-ch via coaxial cable | 8-ch via coaxial cable | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two–way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Synchronous playback | 4-ch | 8-ch |
| Network | ||
| Remote connection | 32 | 64 |
| Network protocol | TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Network interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface | |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through the USB interface | |
| Auxiliary interface | ||
| SATA | 1 SATA interface, up to 10 TB capacity for each disk | |
| Serial interface | RS-485 (half-duplex) | |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 | |
| Alarm in/out | N/A | |
| General | ||
| Power supply | 12 VDC, 1.5 A | |
| Consumption (without HDD) | ≤ 18 W | |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) | |
| Working humidity | 10% to 90% | |
| Dimension (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
| Weight (without HDD) | ≤ 1.16 kg (2.6 lb) | ≤ 1.78 kg (3.9 lb) |
Note:
- Motion detection 2.0, perimeter protection cannot be enabled at the same time. Enable one function will make the other unavailable.
- Enhanced IP mode might be conflicted with smart events (motion detection 2.0 and perimeter protection) or other functions, please refer to the user manual for details.

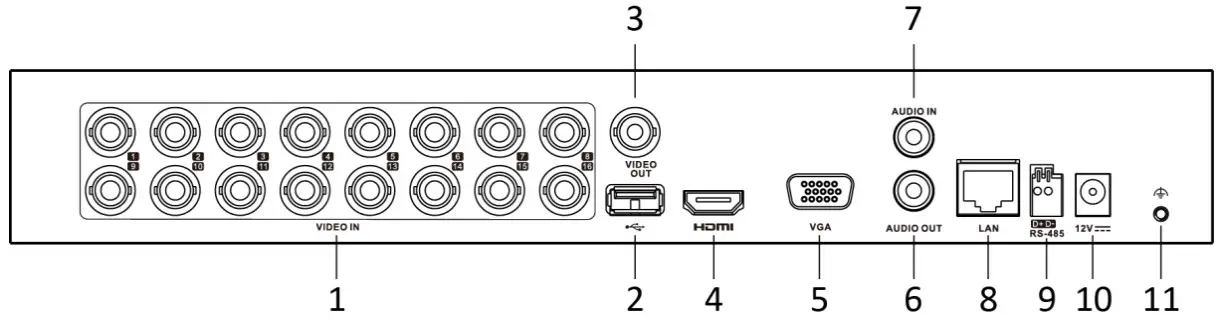

Physical Interface
*: The rear panel of LTD8304M-ET provides 4 video input interfaces. The rear panel of LTD8308M-ETC provides 8 video input interfaces.
No. | Description | No. | Description |
| 1 | VIDEO IN | 7 | AUDIO IN, RCA connector |
| 2 | USB interface | 8 | LAN network interface |
| 3 | VIDEO OUT | 9 | RS-485 serial interface |
| 4 | HDMI interface | 10 | 12 VDC power input |
| 5 | VGA interface | 11 | GND |
| 6 | AUDIO OUT, RCA connector |
